Strike Dice Game Real size
IP Report
Print Profile(2)
0.2mm layer, 2 walls, 15% infill no supports
Designer
5.8 h
2 plates
0.2mm layer, 2 walls, 15% infill
Designer
5.2 h
2 plates
Open in Bambu Studio
Boost
12
33
4
3
27
17
Released
Description
Design features:
- 3-piece design that fits together with a 45° flange joint for easy gluing

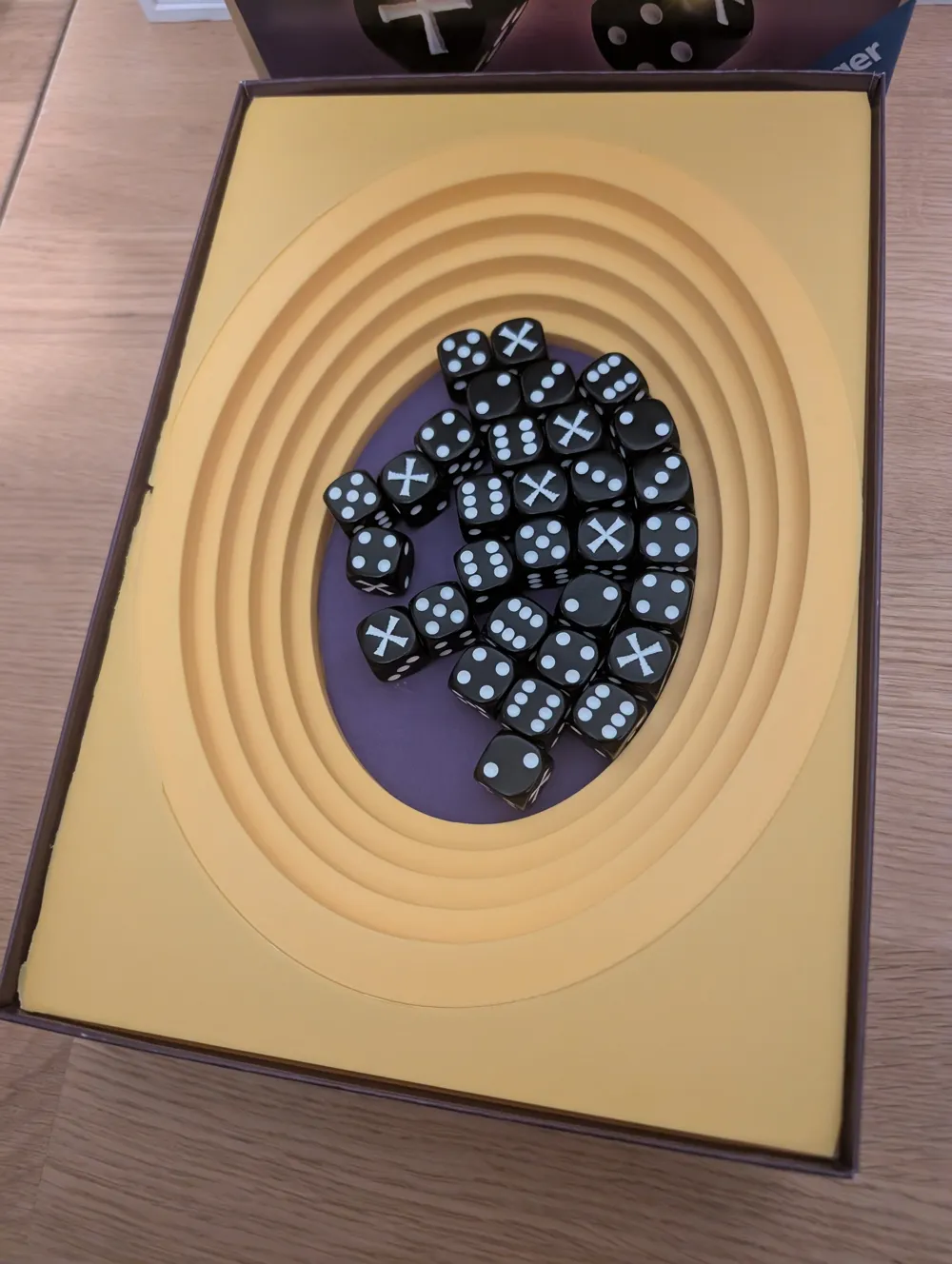

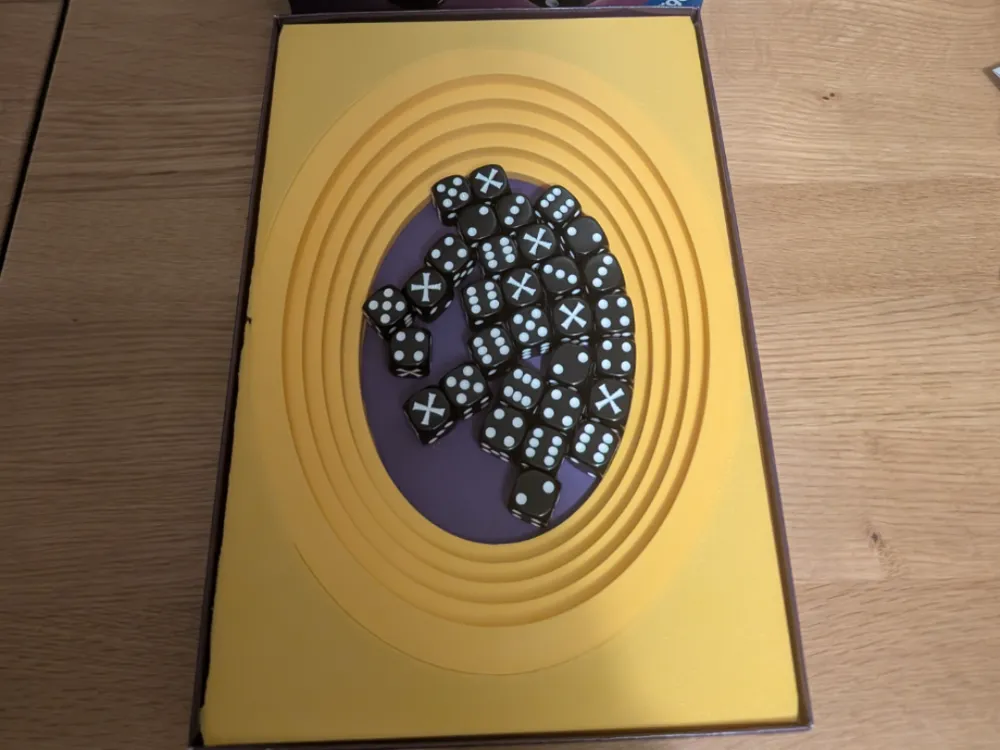

- Elliptical bowl with 5 concentric step rings for dice to bounce and settle
- Thin-shell construction (3mm walls) for minimal filament usage
- 45° outer slopes — prints without supports on any FDM printer
- Center designed for a 110 × 150 mm foam mat (included with the original game)
Pieces:

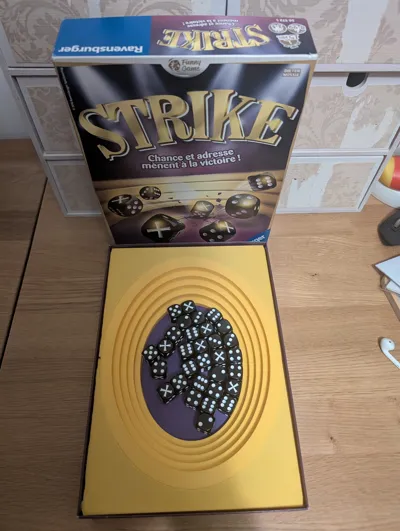

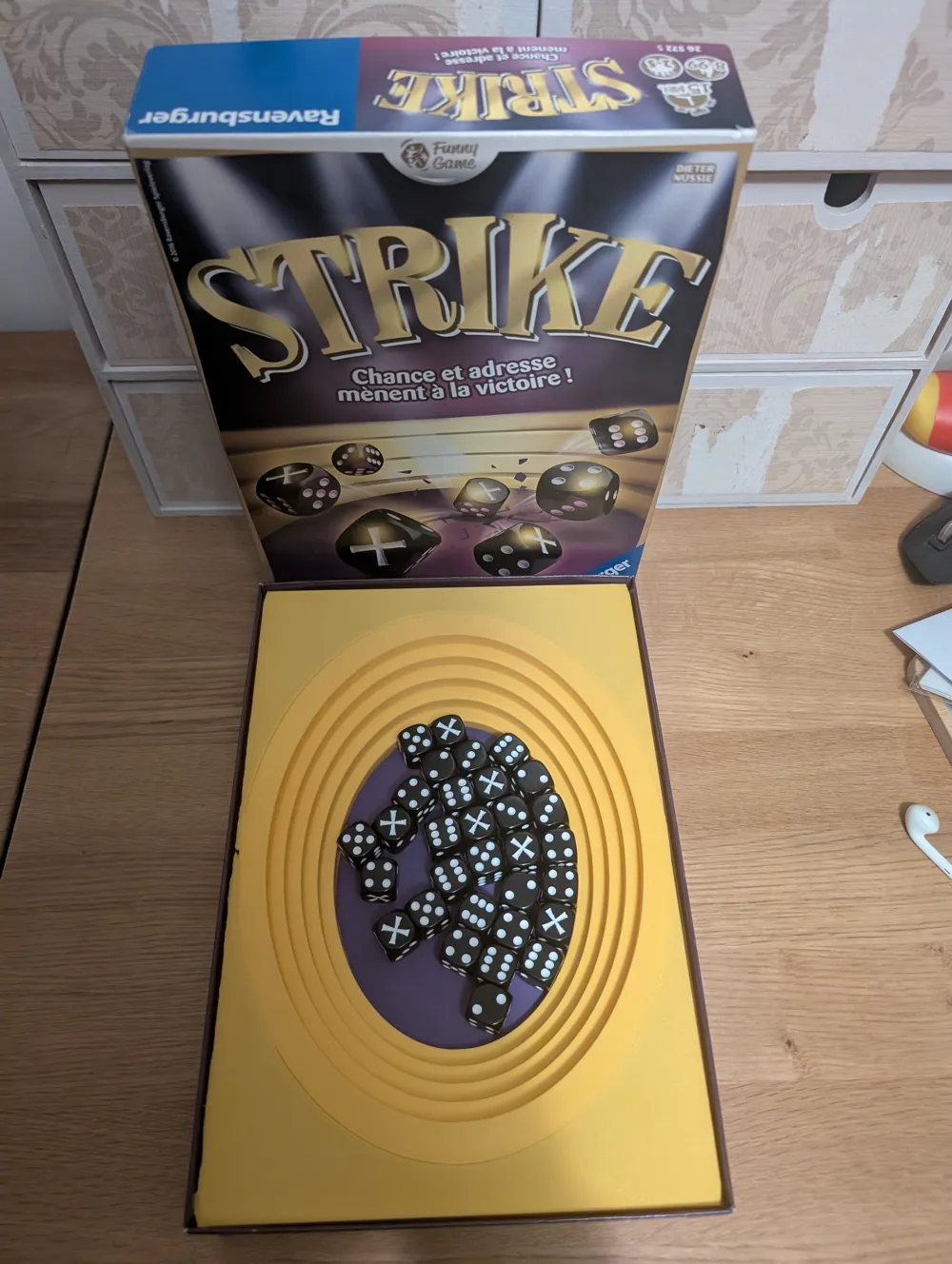

- Coliseum (181 × 235 × 45 mm) — the main arena bowl with stepped rings and a 45° flange around the rim
- Frame Top (open bottom, ~182 × 132 mm)
- Frame Bottom (open bottom, ~182 × 132 mm)
The frames have no bottom face to save material — print them upside down. A matching 45° groove on the inside locks onto the coliseum's flange for a solid glue joint.
Box dimensions: 192 × 275 × 55 mm (standard Ravensburger Strike box)
Designed to drop right into the box. Glue the three pieces together with cyanoacrylate (super glue) on the flange and you're done.
