Description

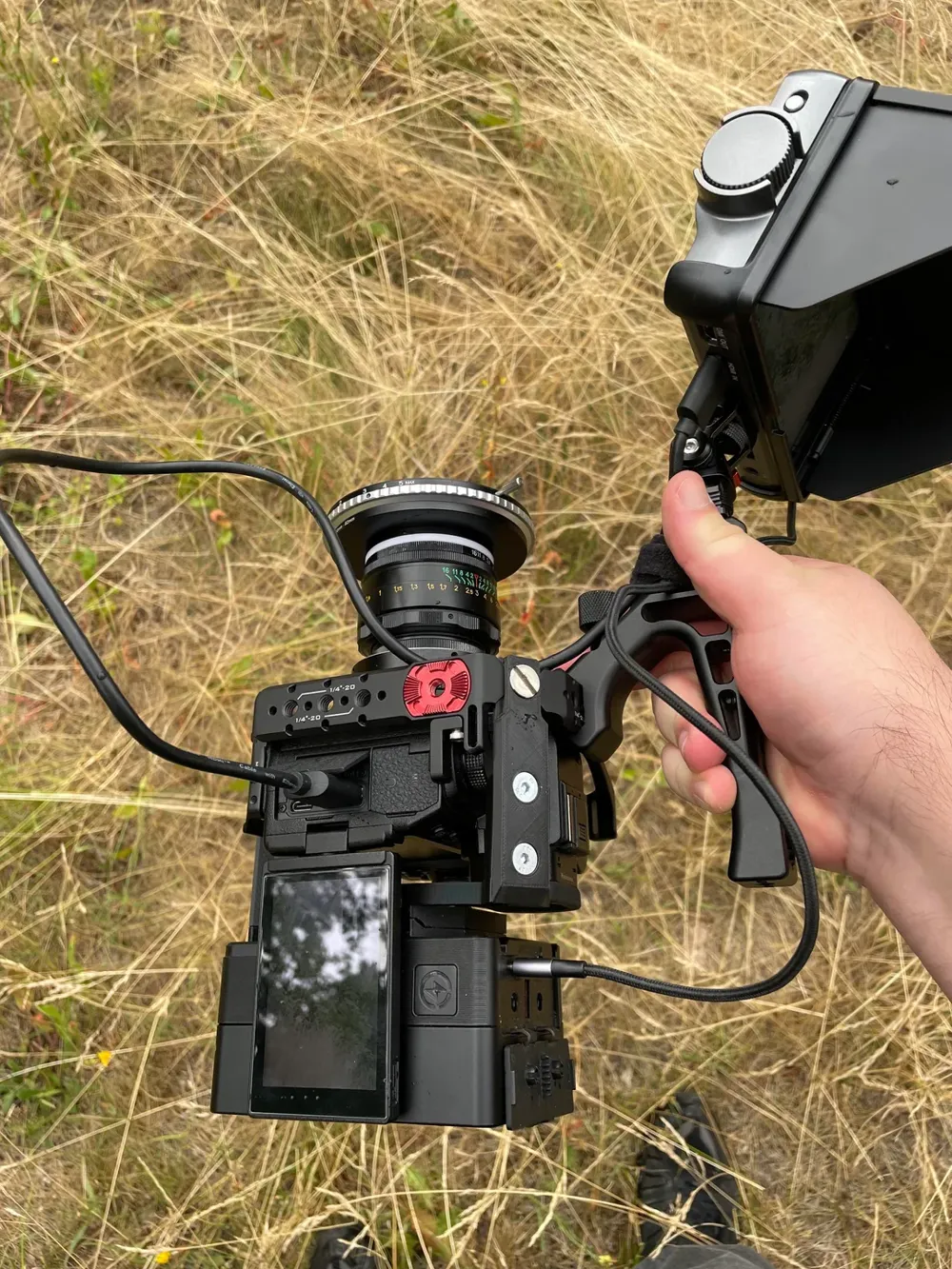

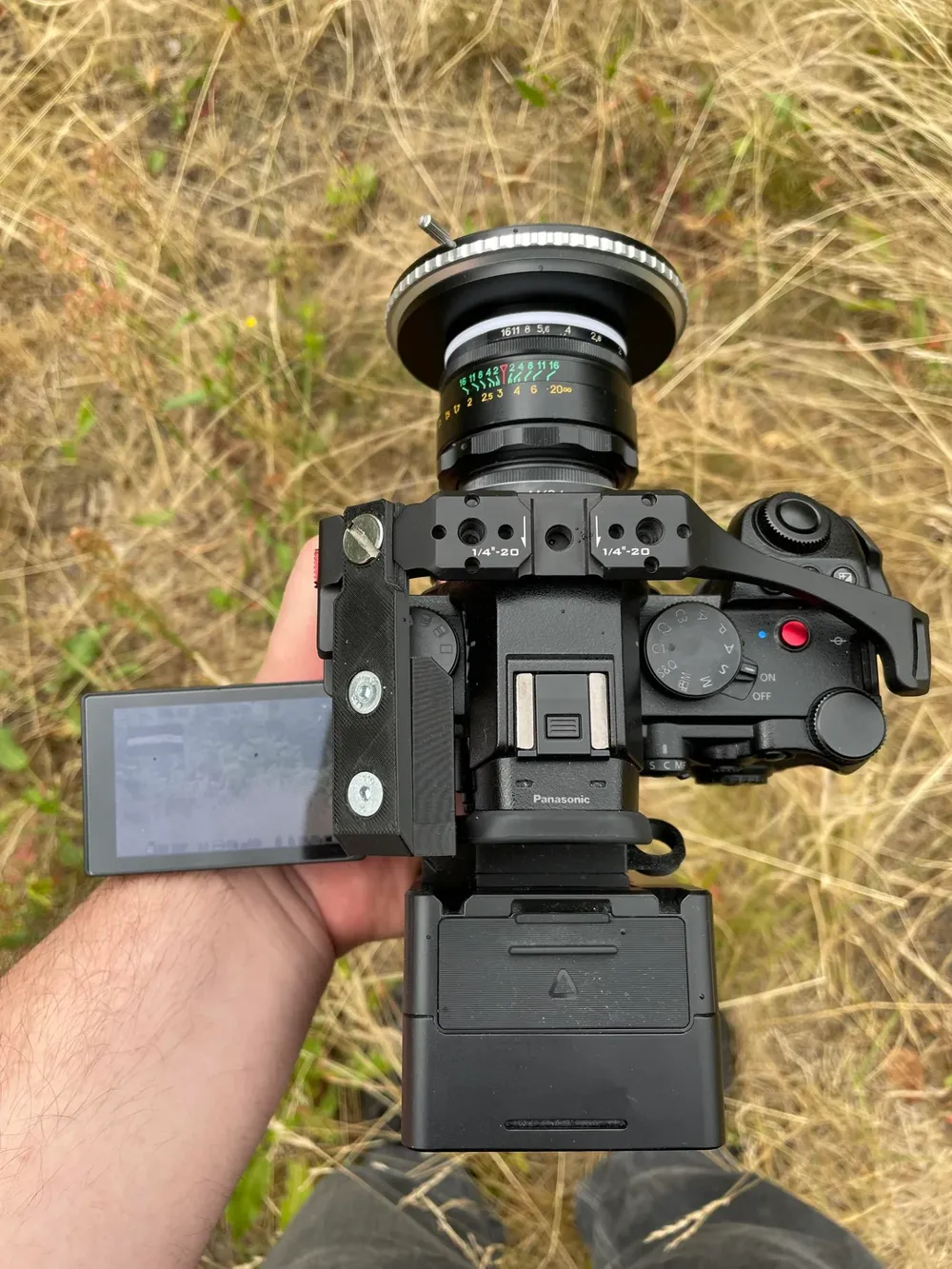

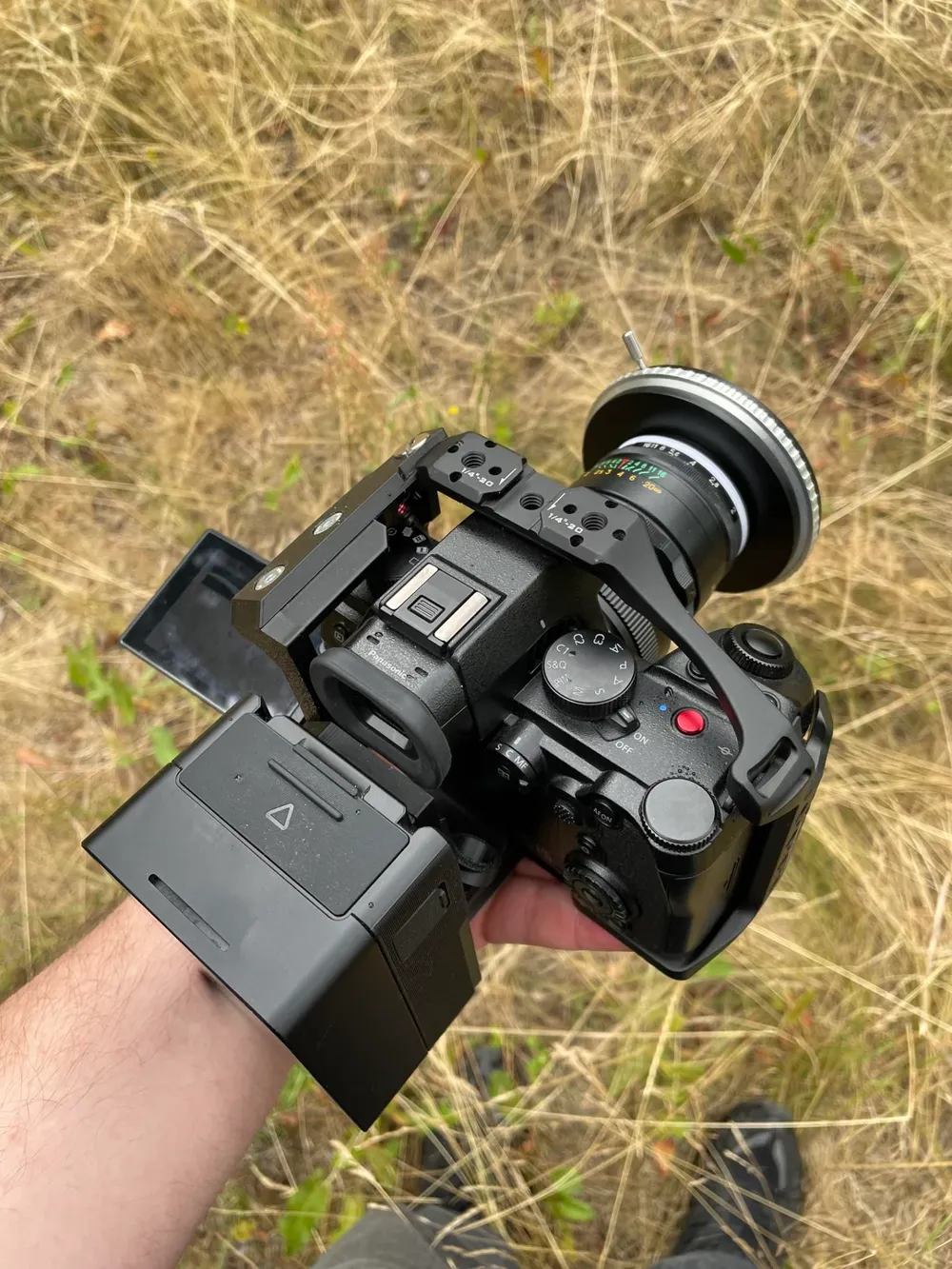

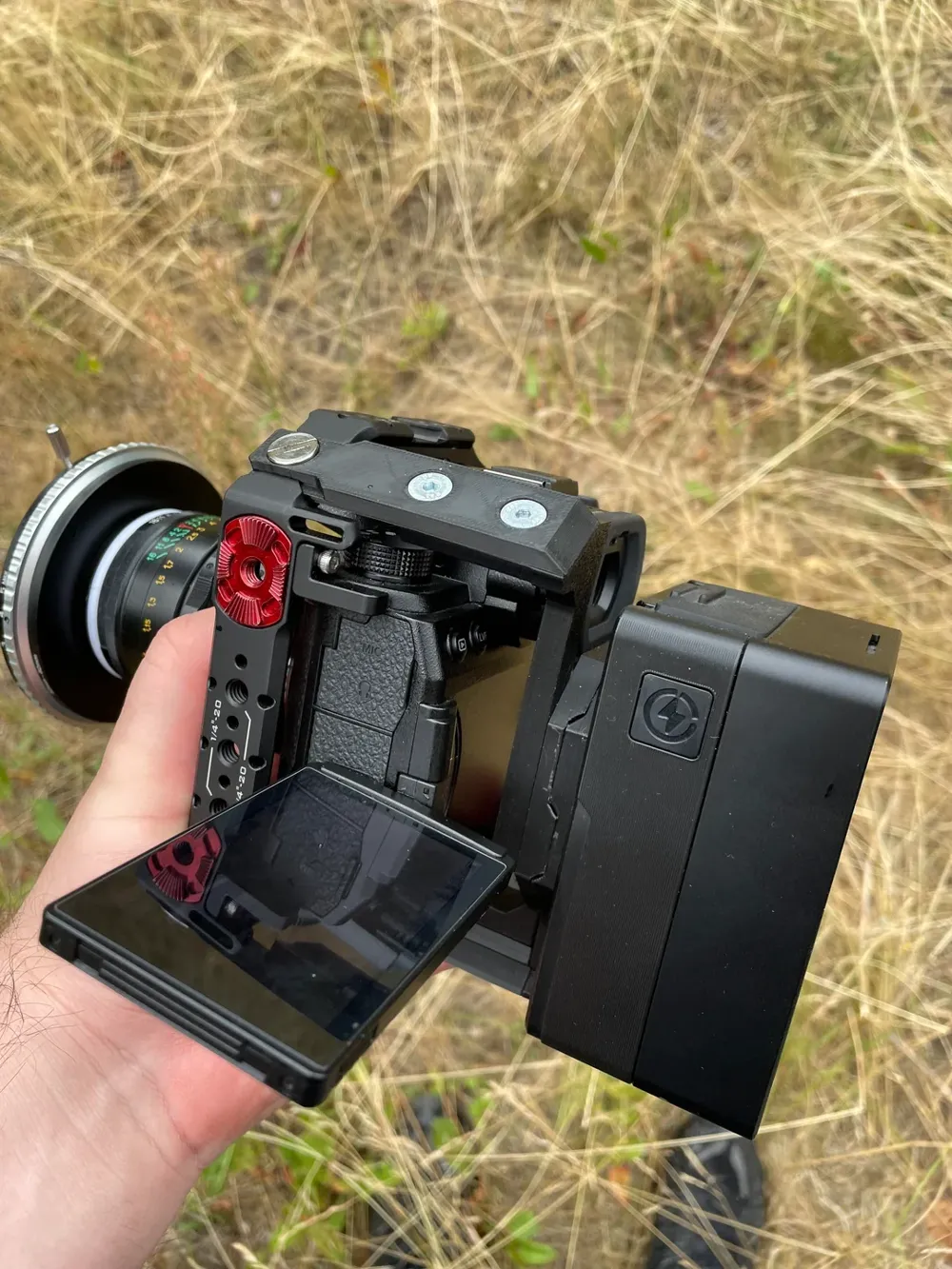

3D Printed V-Mount Battery Back Plate for Lumix S5IIX (Tilta Cage)
Designed as a functional back plate for the Lumix S5IIX paired with a Tilta cage

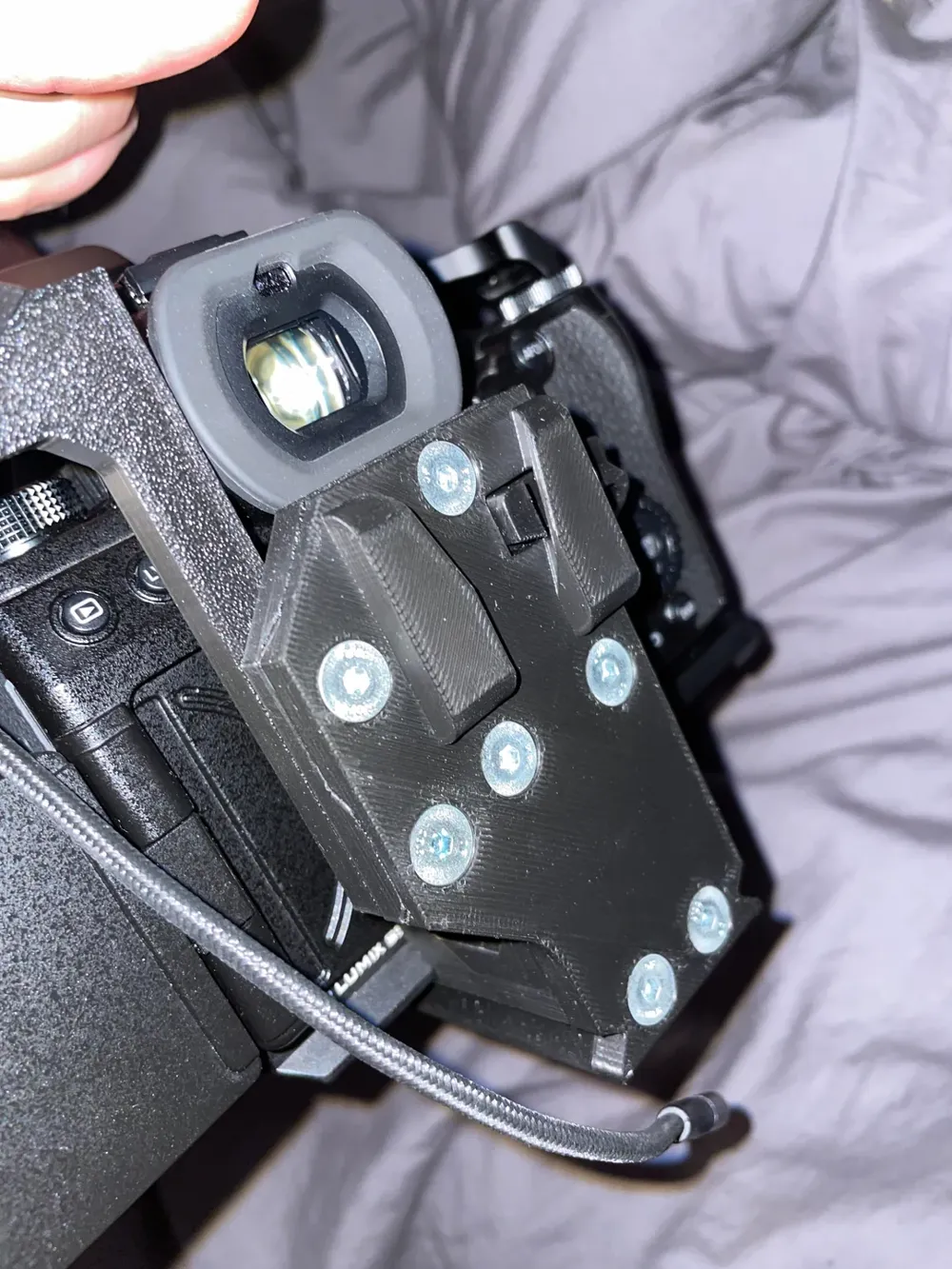

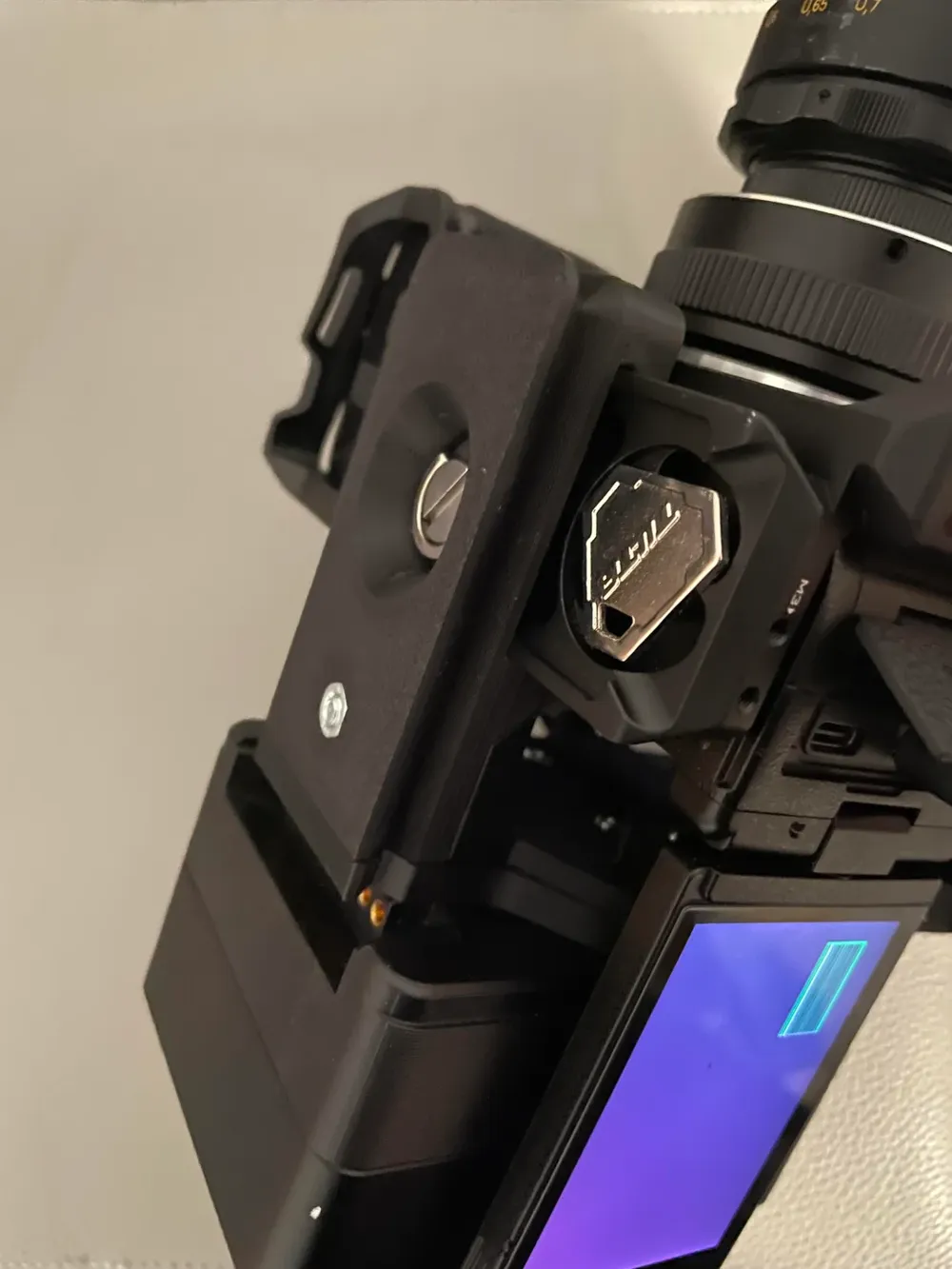

The V-Lock interface is mechanically secure. The base is Arca-Swiss compatible and the entire assembly mounts using standard 1/4"-20 and M5 countersunk hardware no permanent modifications to the camera or cage required. All buttons remain accessible.
Hardware Required:
- 2× M5×12 countersunk
- 1× M5×20 countersunk
- 7× M5×10 countersunk
- 2× 1/4"-20 screws
- and Nuts
- Spring, with a good diameter
At a Point the print needs to be Paused for 2 Nuts to be Inserted in in the Base (Layer 156)
Compatibility:
- Tilta cage: Full Camera Cage for Panasonic S5 II/IIX/G9 II
- SmallRig V-Mount VB99 or SE
