Parametic Large Rain / Weather Cover For Outlets
Print Profile(1)
Bill of Materials
Description

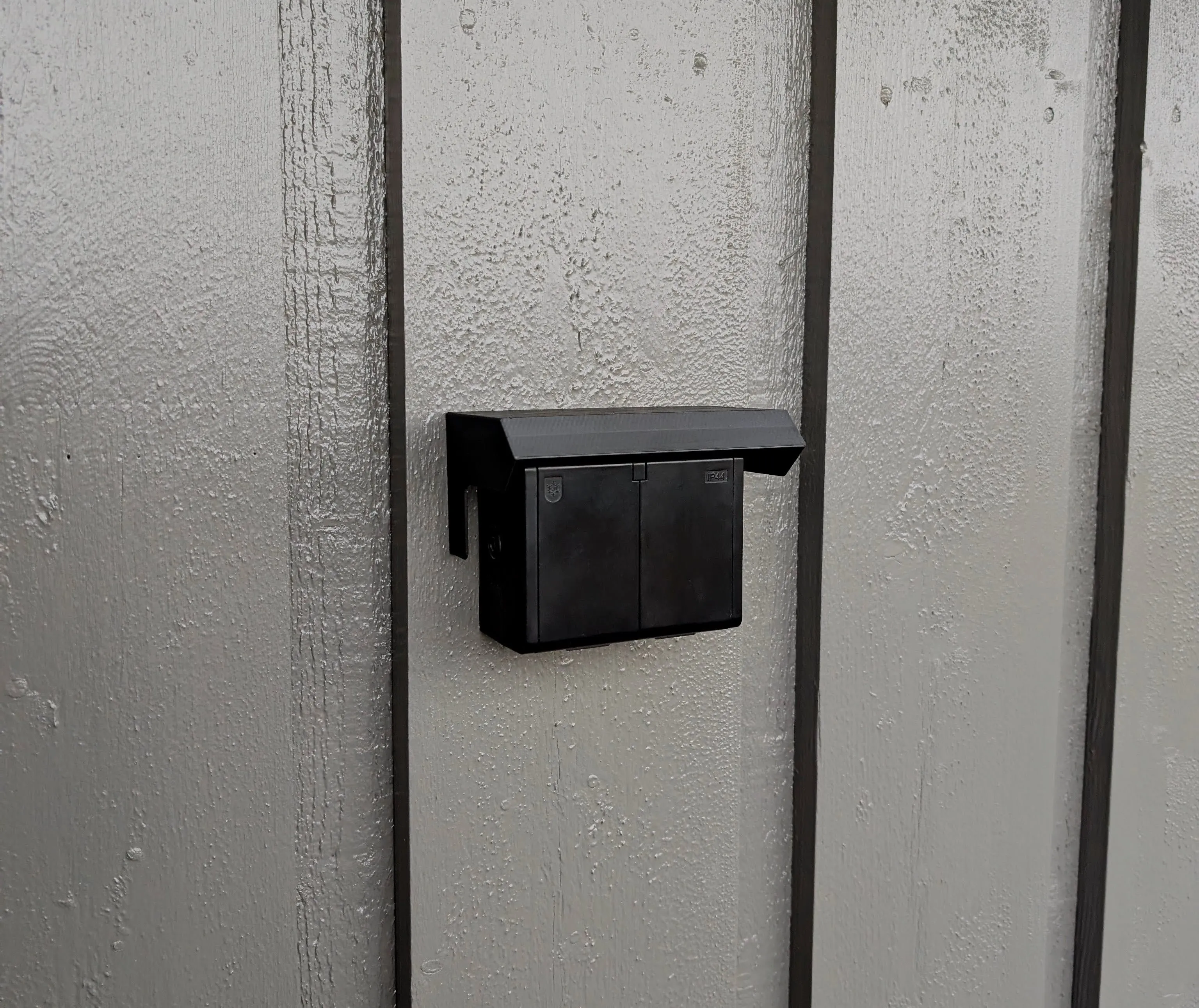

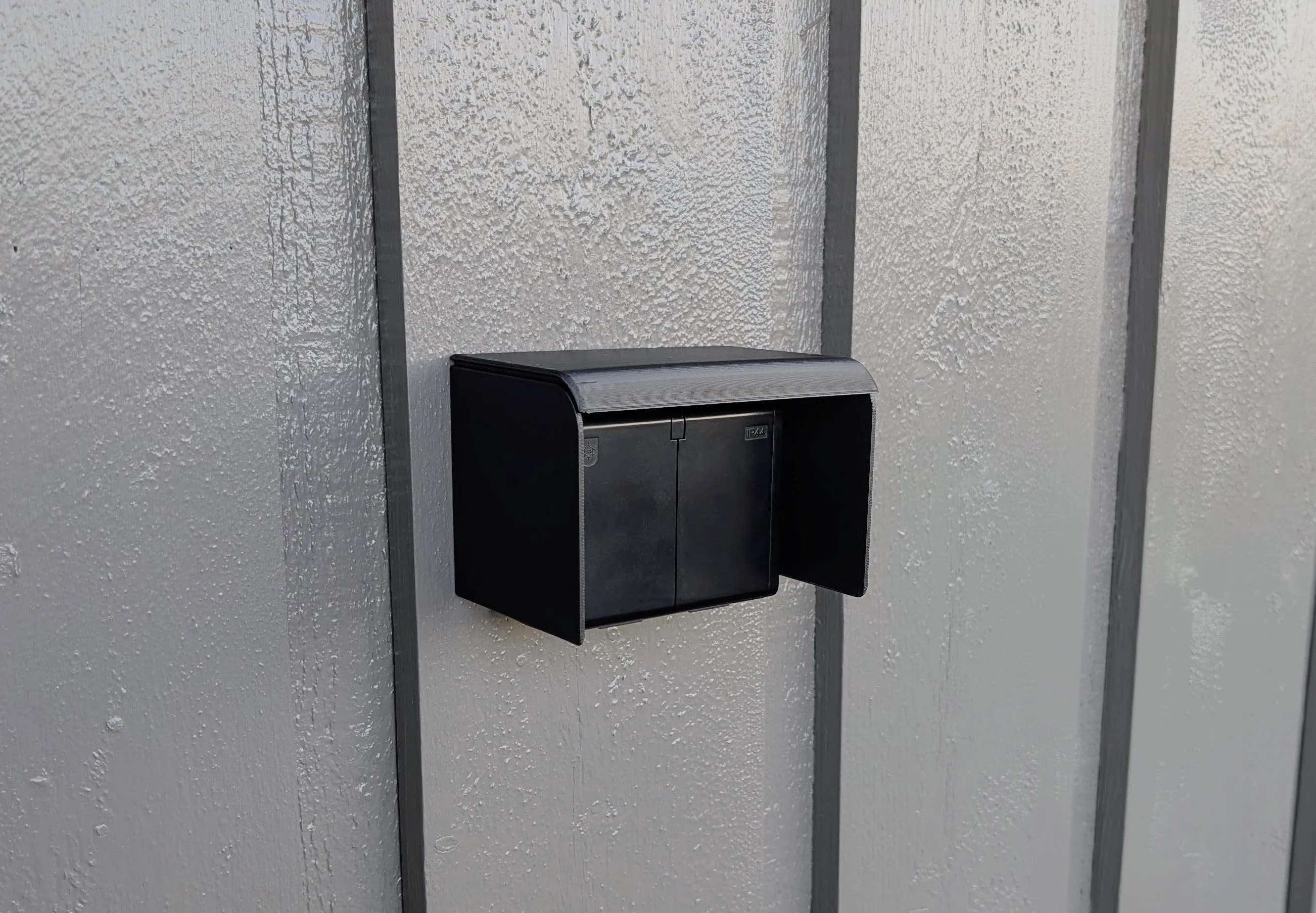

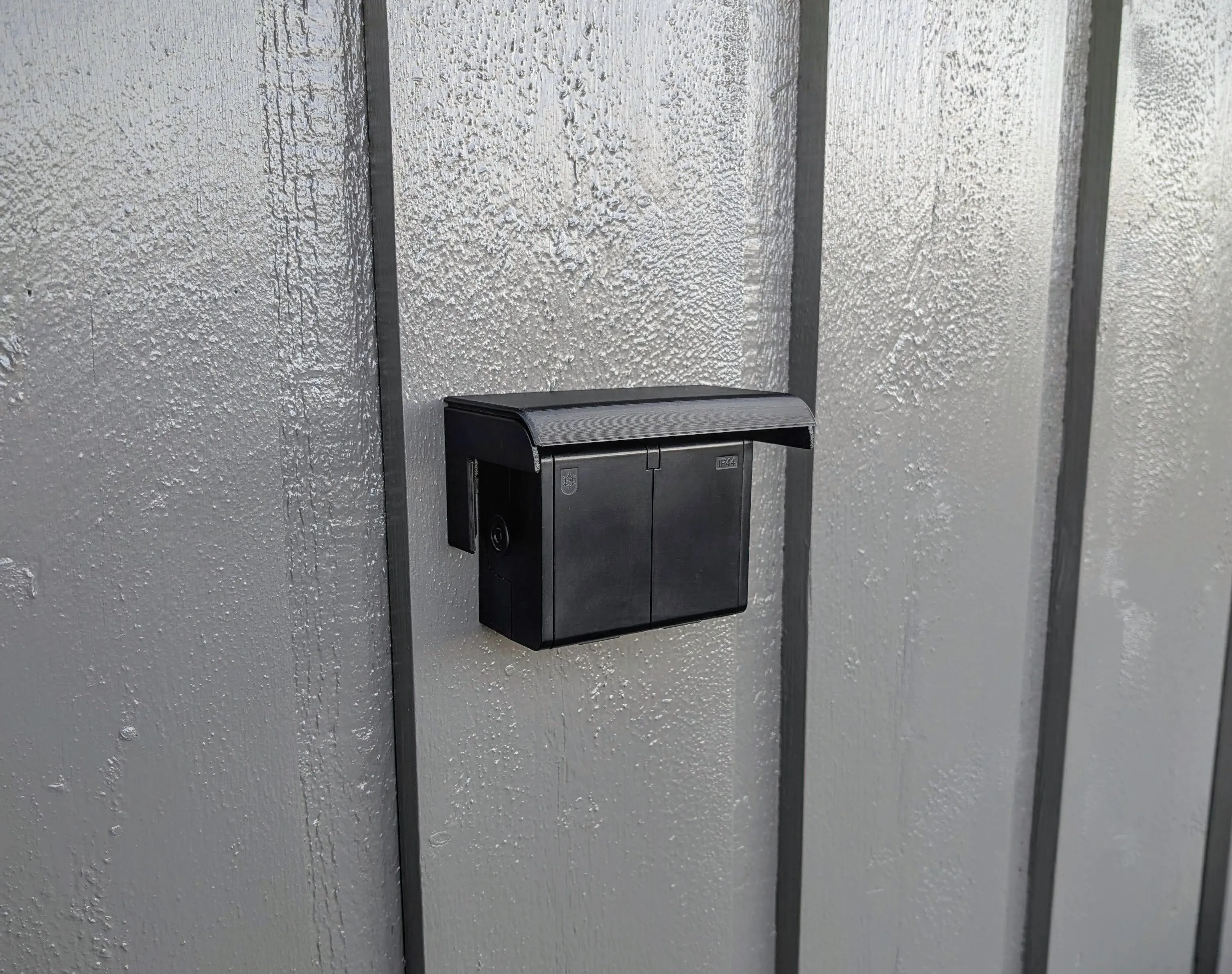

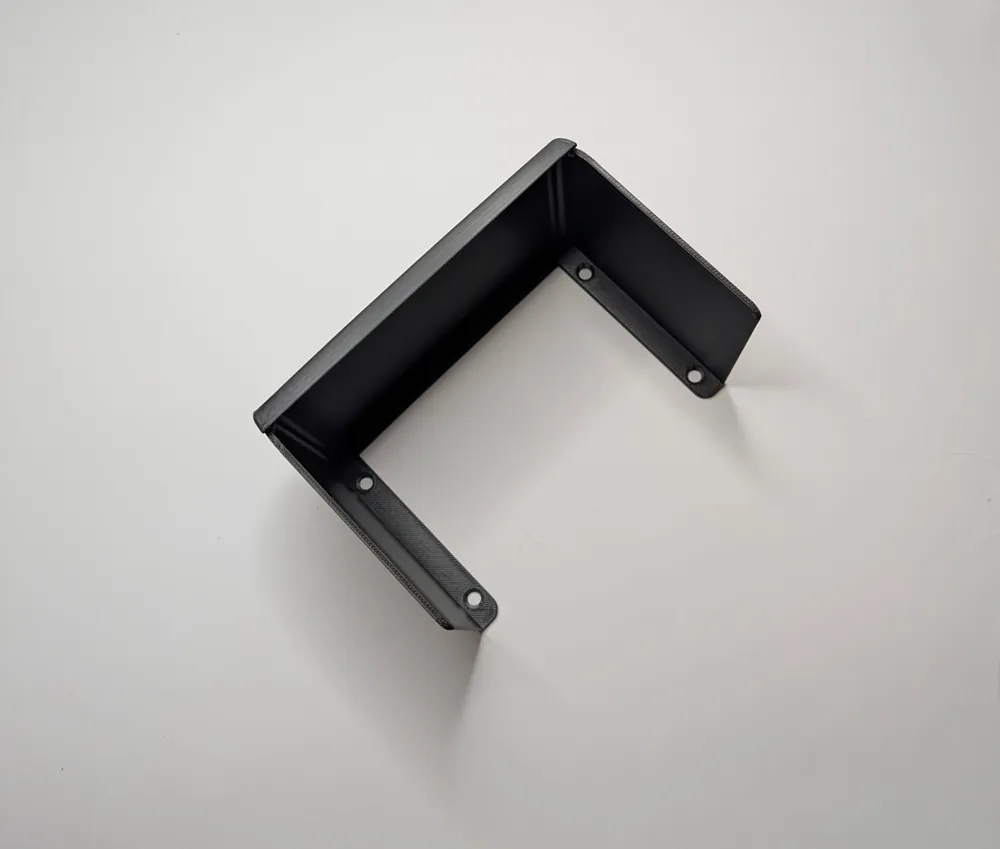

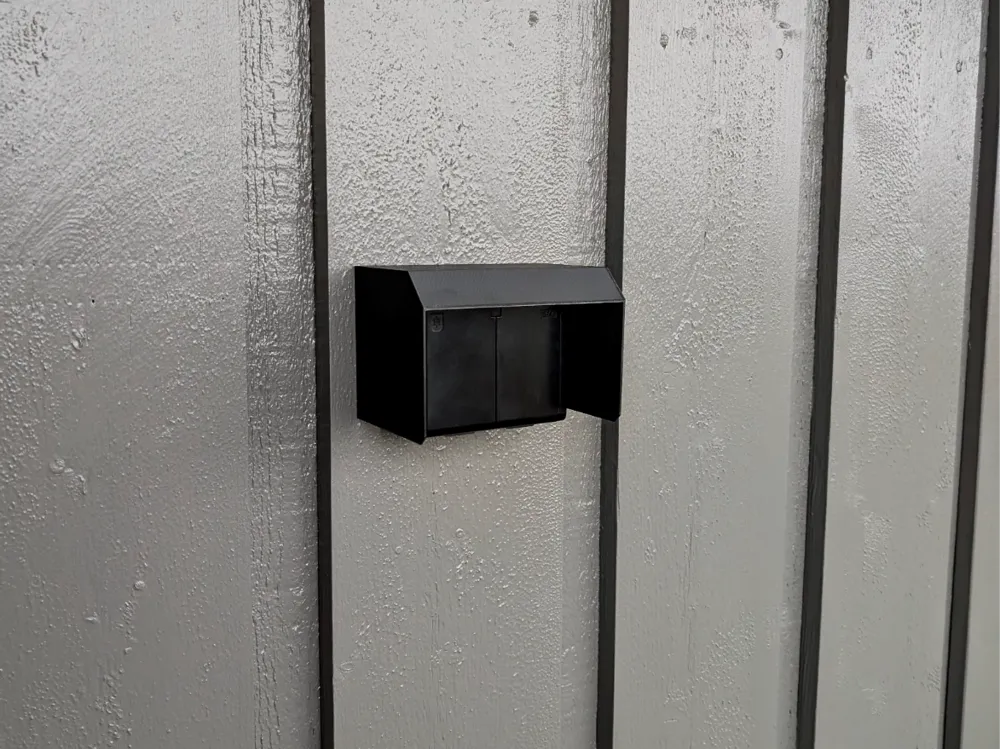

Parametric Large rain cover for outlets
Protect your outdoor outlets and other sensitive equipment from rain and weather with this cover. Adds extra protection to avoid water entering the sockets, causing corrosion, shorts and earthing issues.
- Parametric model with customizable width, height,depth,hood size and wall thickness
- Printed in PETG - For UV and Temperature resistance.
Dimensions:
- Width : 130mm (customizable)
- Height: 90mm (customizable)
- Depth: 87.5mm (customizable)
- Hood: 17.5mm (customizable)
- Wall thickness: 1.5mm (customizable) Recommend thicker walls for large covers.
- Screw holes: 5mm
Other models in this series available here on MakerWorld:
Large version with rounded edges
https://makerworld.com/en/models/3003475
Small version with rounded edges
https://makerworld.com/en/models/3000607
Small version with sharp edges
https://makerworld.com/en/models/1811464

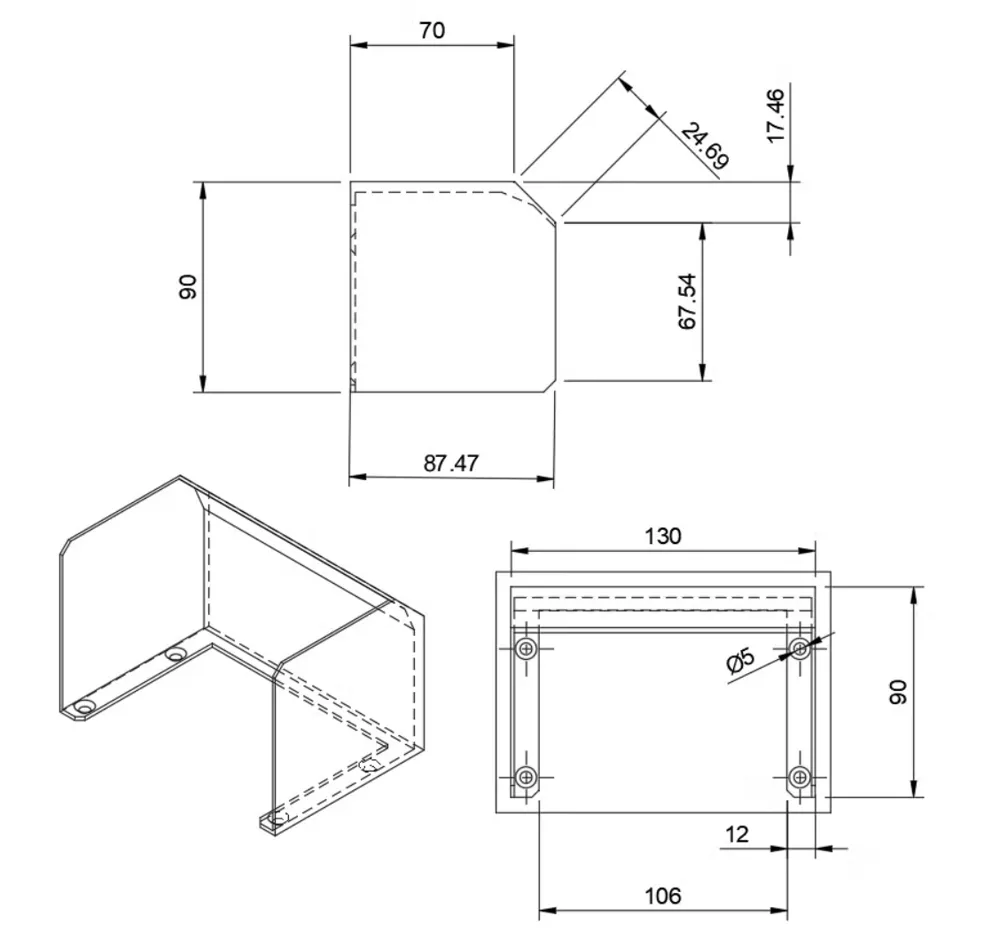

Measurements/Drawing (Original model):
All measurements are in mm

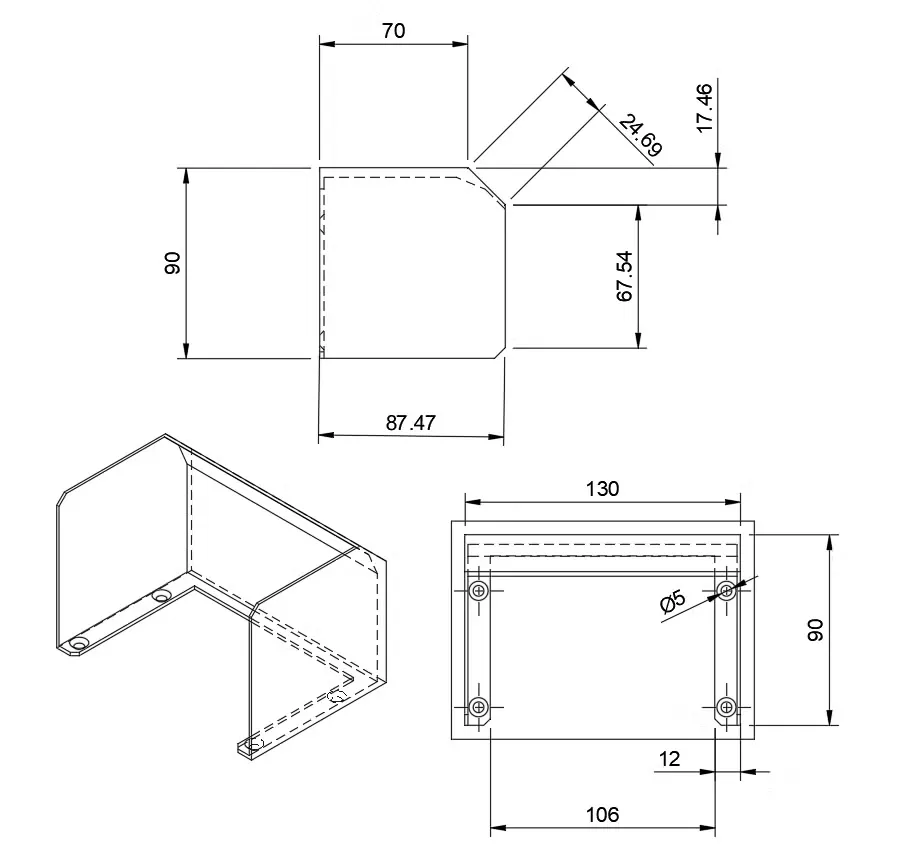

Parameters/Drawing (Parametric model):
Adjustable dimensions
