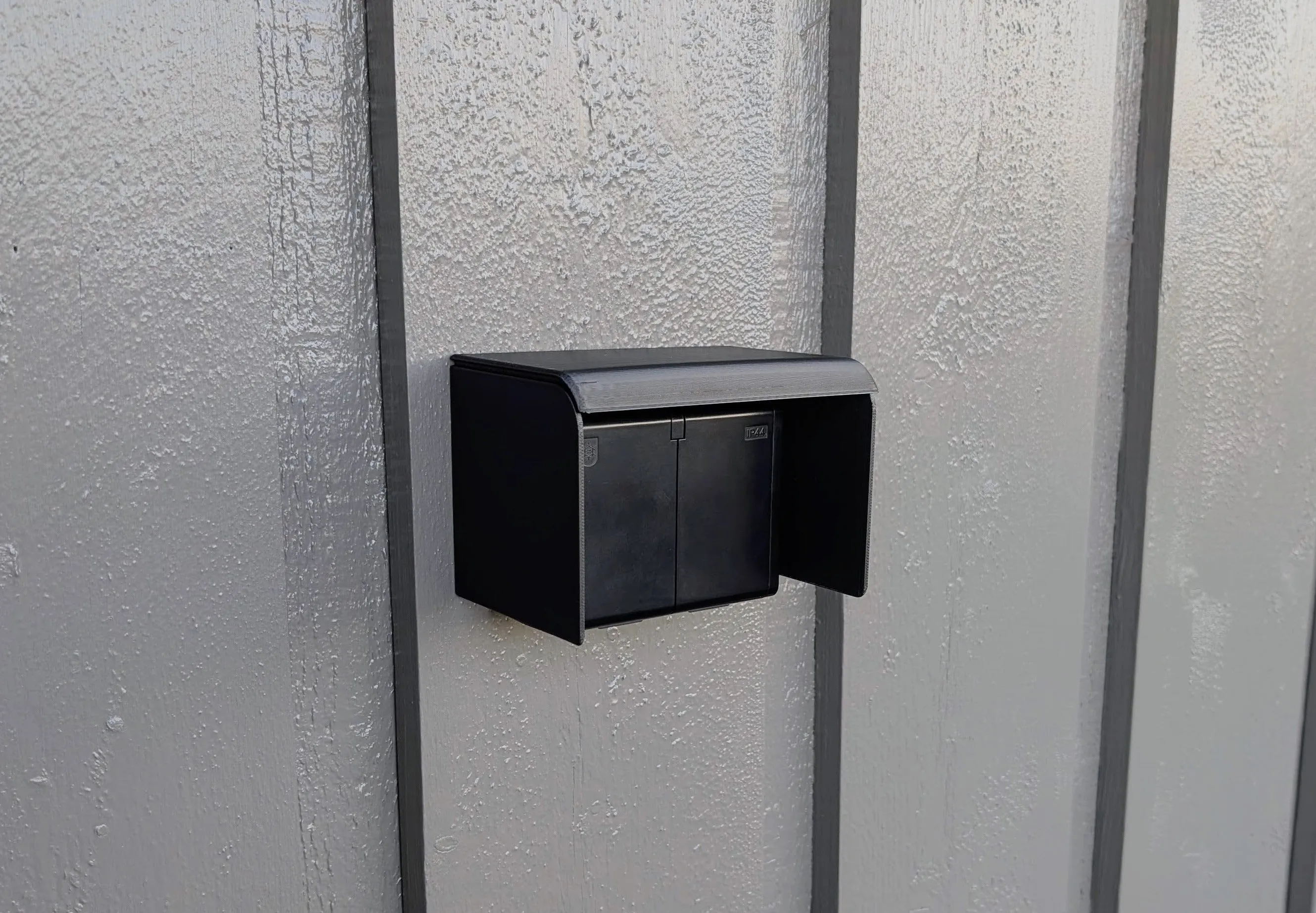

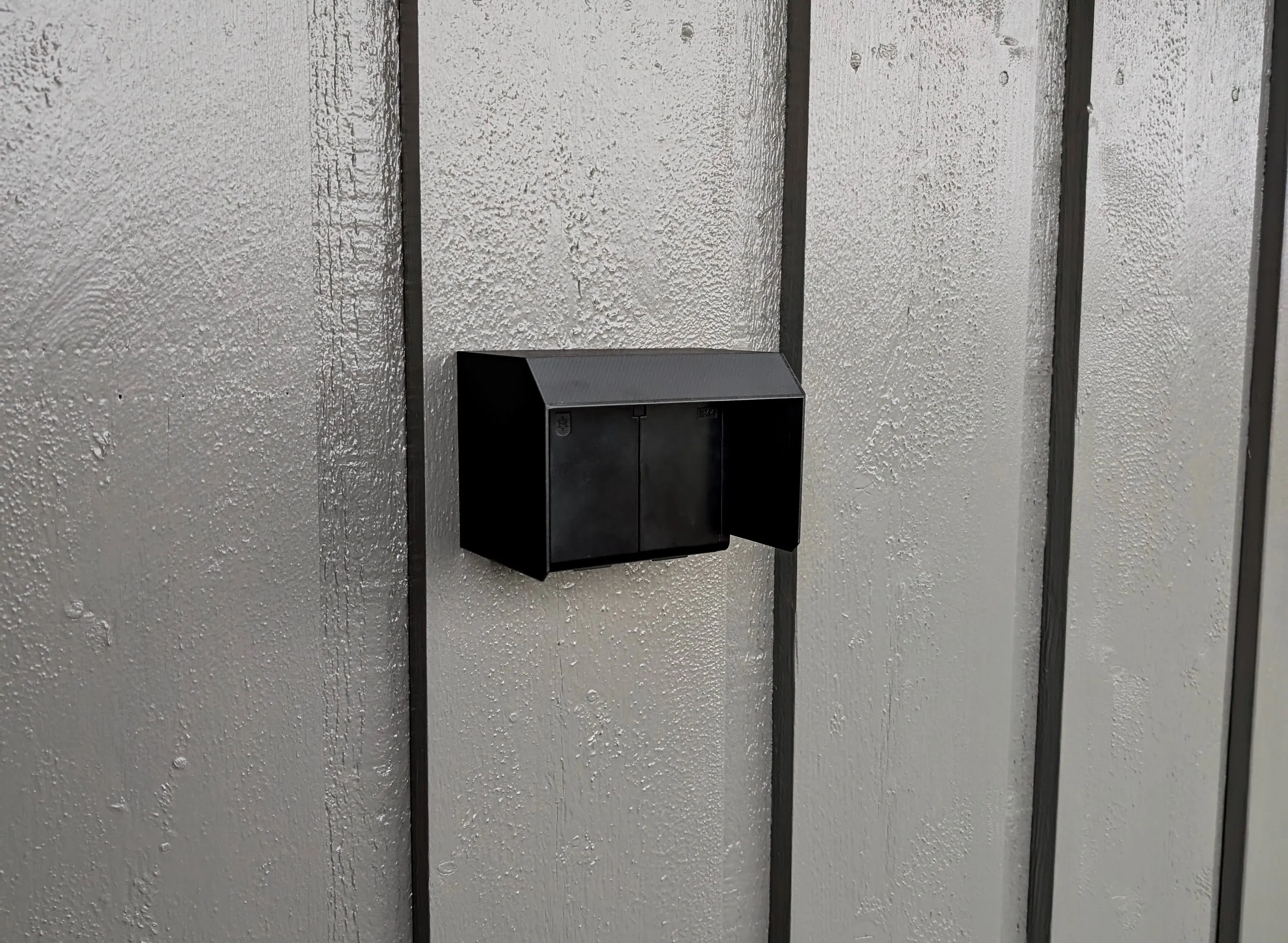

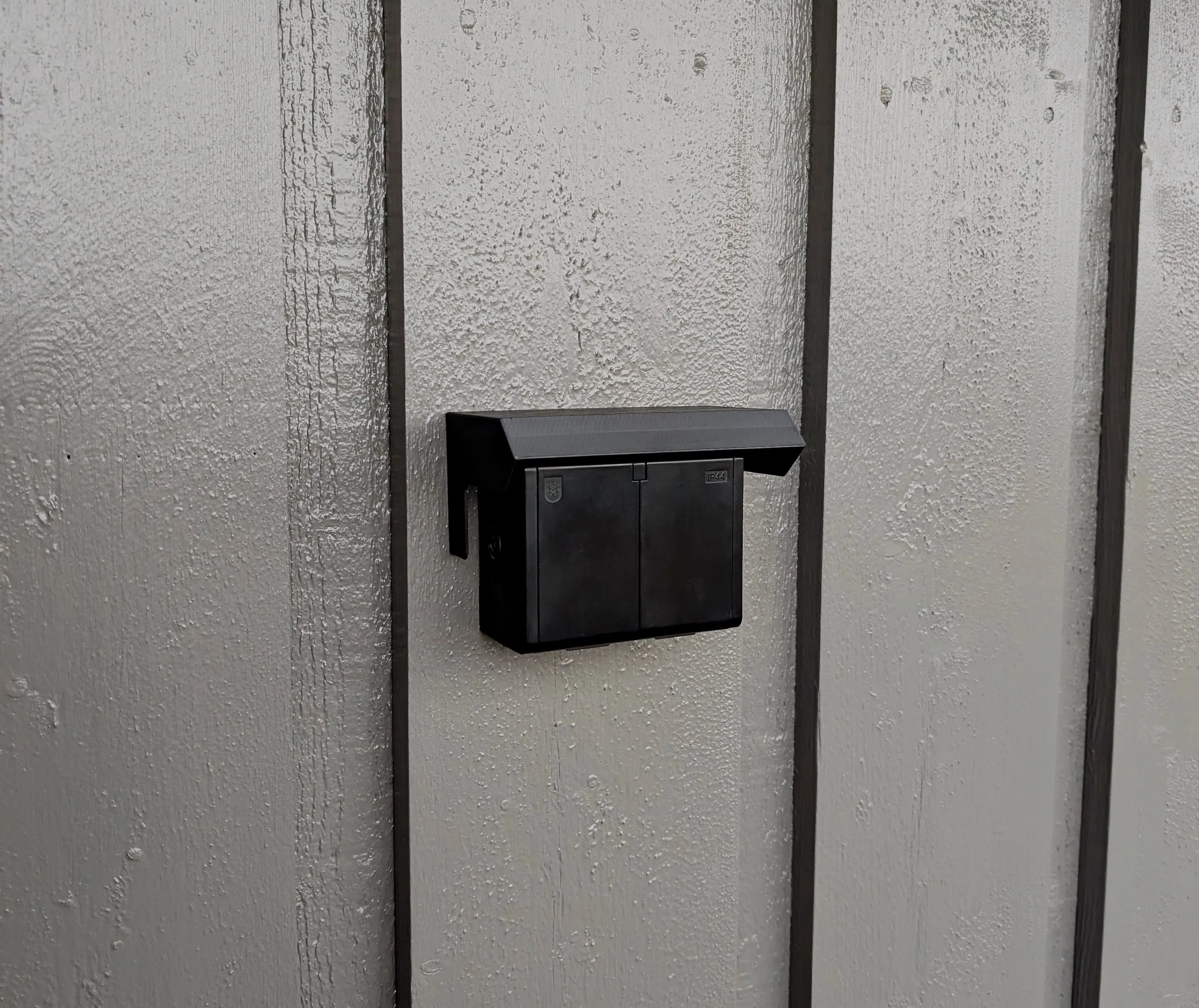

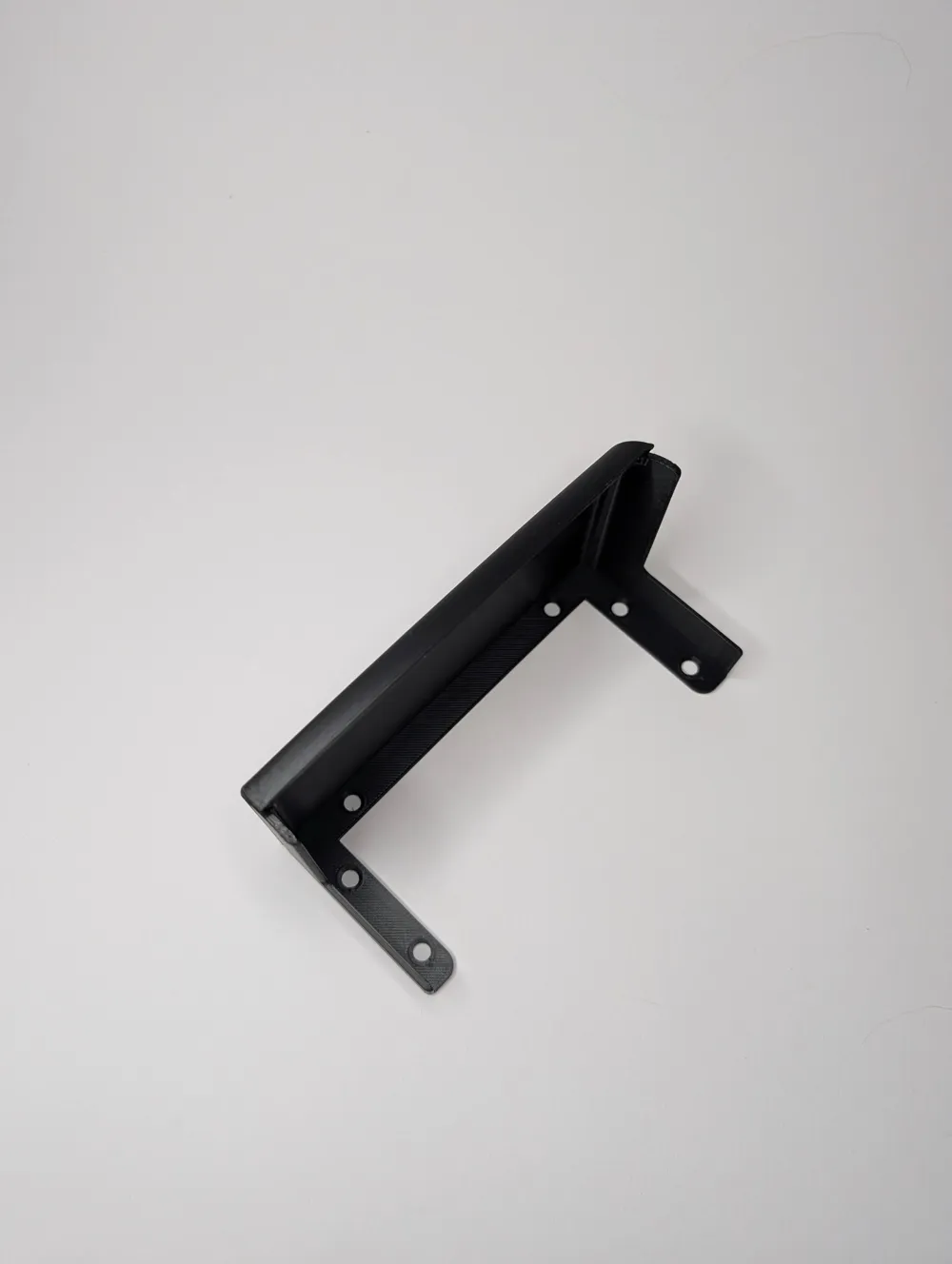

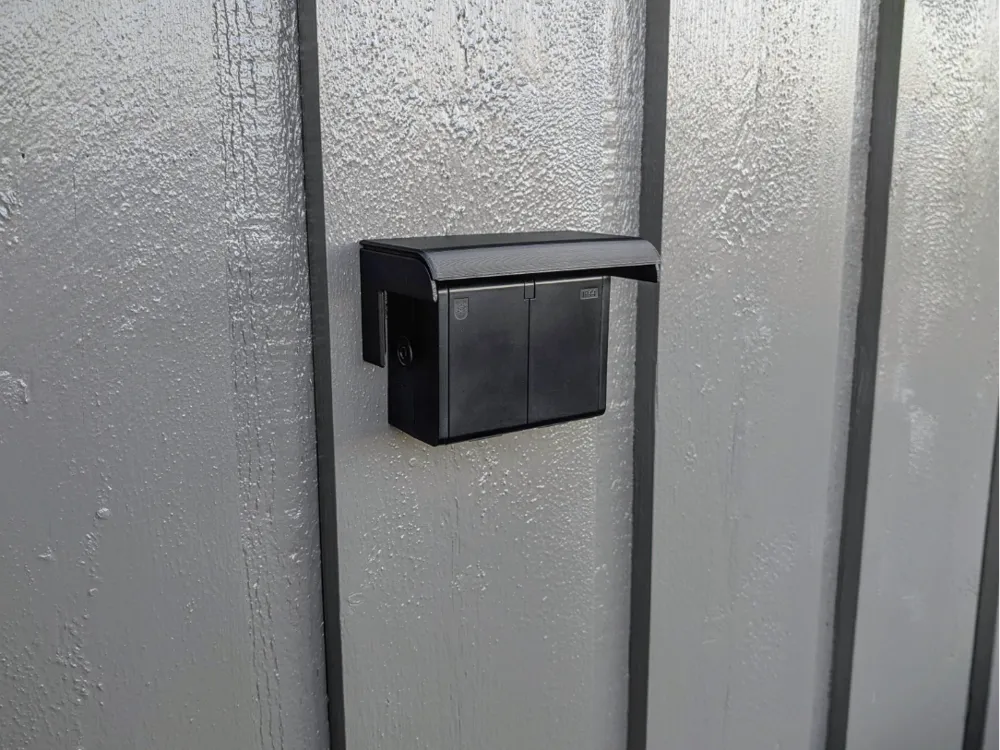

Parametric / Customizable rain cover for outlets V2 - Rounded edges
Protect your outdoor outlets from rain with this cover. Adds extra protection to avoid water entering the sockets, causing corrosion, shorts and earthing issues. Can also be adapted for other use cases that needs a cover.
- Parametric model with customizable width, height and depth.
- Printed in PETG - For UV and Temperature resistance.
Dimensions:
- Width : 130mm (customizable)
- Height: 60mm (customizable)
- Depth: 73mm (customizable)
- Hood fillet: 20mm (customizable) - Warning, too much fillet will cause overhang issues
- Thickness: 2mm (customizable) - Minimum 1.5mm / Maximum 3mm
Screw holes: 5mm
Other models in this series available here on MakerWorld:
Large version with rounded edges
https://makerworld.com/en/models/3003475
Large version with sharp edges
https://makerworld.com/en/models/2463661
Small version with sharp edges
https://makerworld.com/en/models/1811464
Boost Me (for free)
Please leave a boost if you like my model, it helps me out making more useful stuff :)
