Foldable 13x4" 3-Panel Comic Strip Template

Description

This precision-engineered 3-panel comic strip template is designed for the professional, hobbyist, and traditional comic strip enthusiast. It is tailored specifically for the Daily Syndicated Comic format (13 x 4 inches).

Professional Workflow & Quality: Drawing at this 13-inch scale allows for higher detail and cleaner line work. This template is designed for creating original art that is then scanned and scaled down to the standard 6-inch wide size used in traditional publications. This reduction process ensures your final printed ink lines appear sharp, polished, and professional.

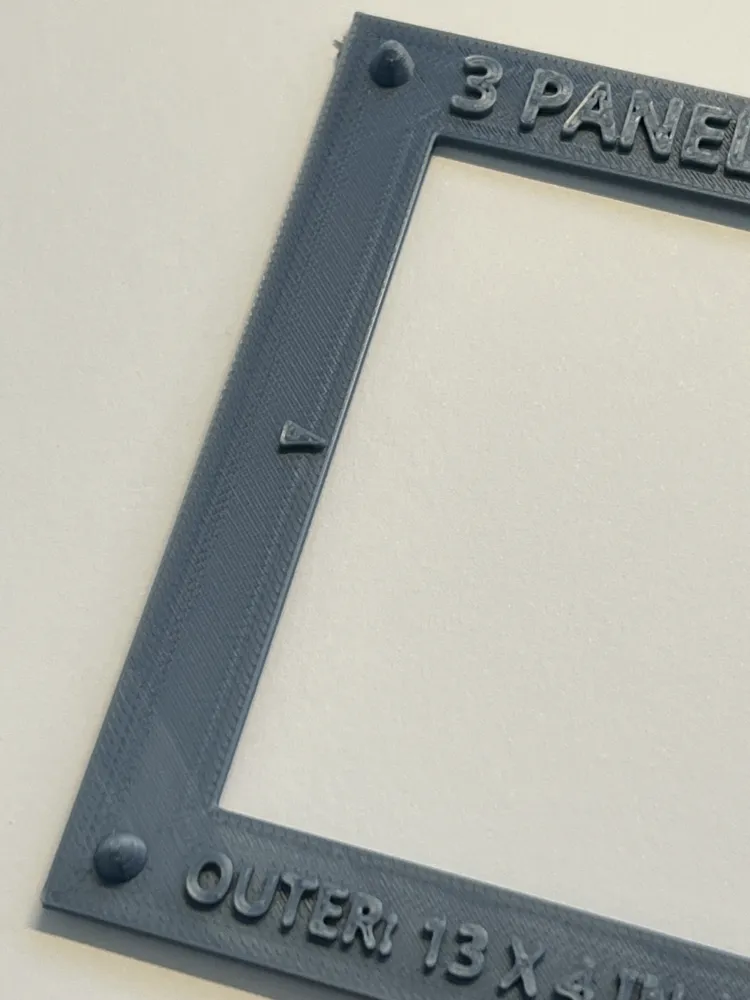

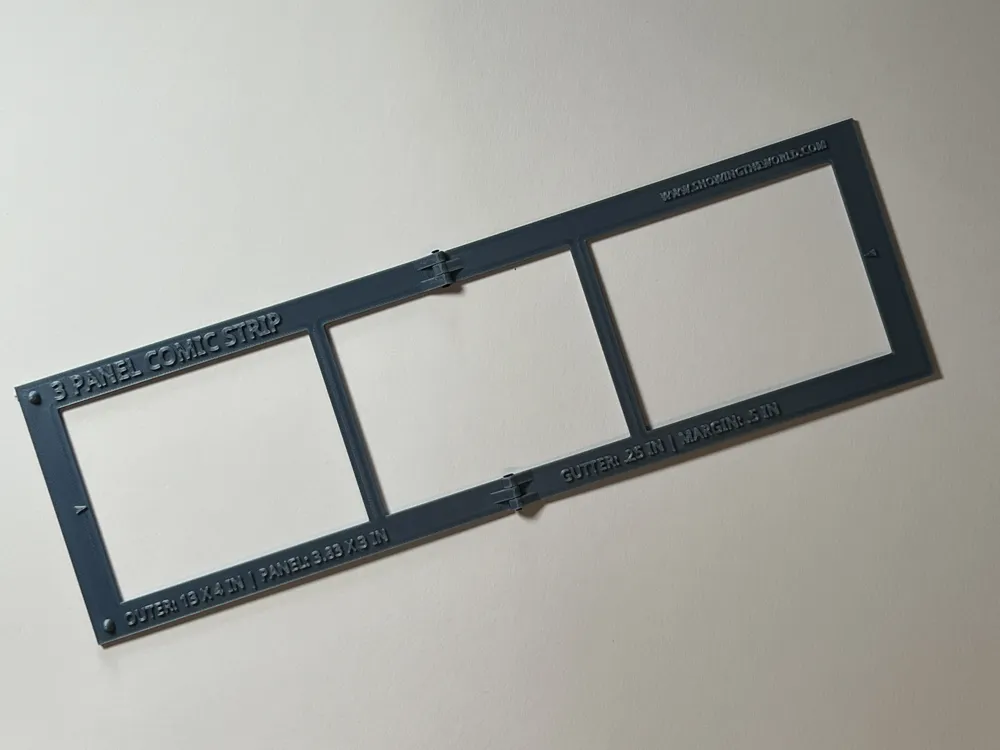

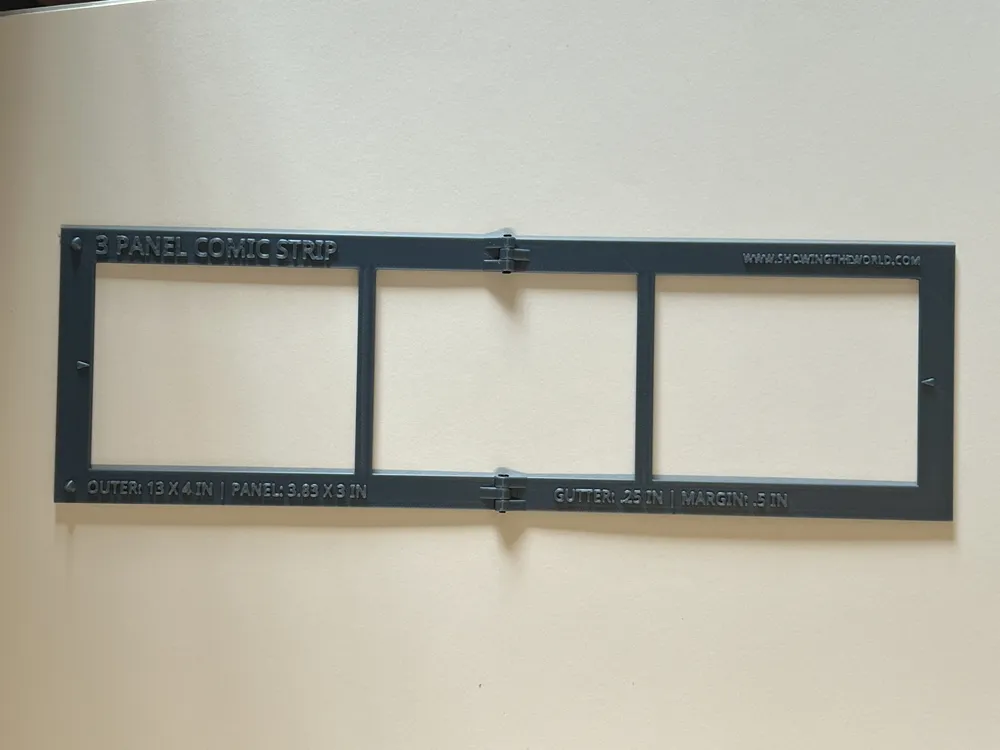

Technical Specifications

• Total Layout: 13 x 4 inches (330.2 x 101.6 mm)
• Panel Count: 3 Panels
• Individual Panel Size: 3.83 x 3 inches (97.37 x 76.2 mm)
• Gutters: 0.25 inches (6.35 mm)
• Margins: 0.5 inches (12.7 mm)

Assembly & How to Use

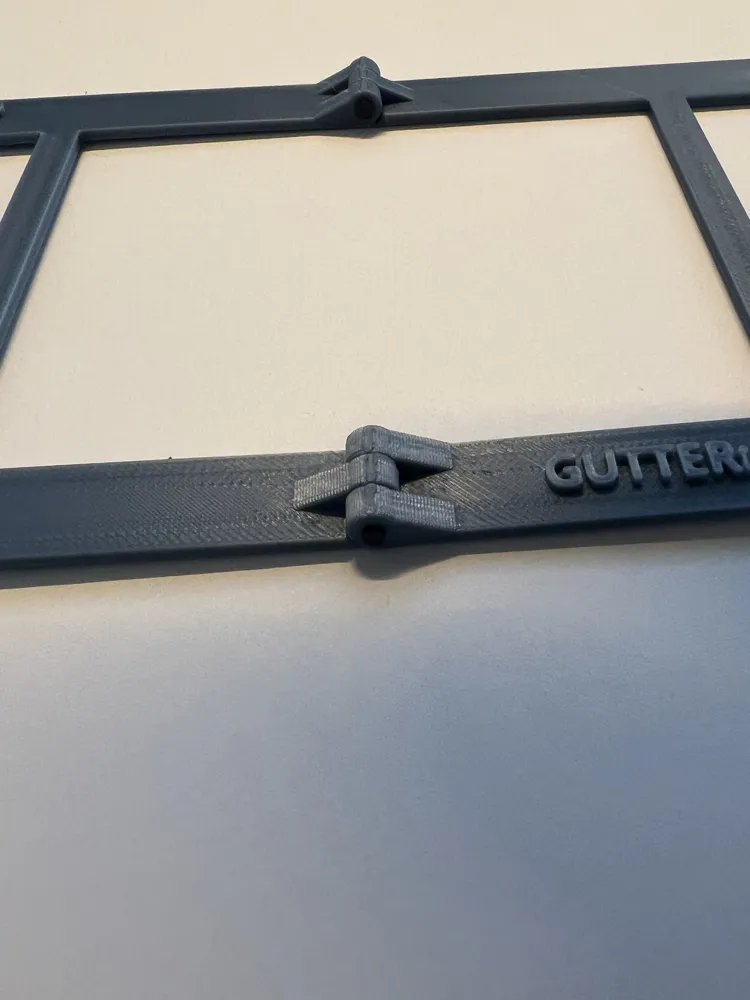

Assembly Instructions (Filament Hinge)

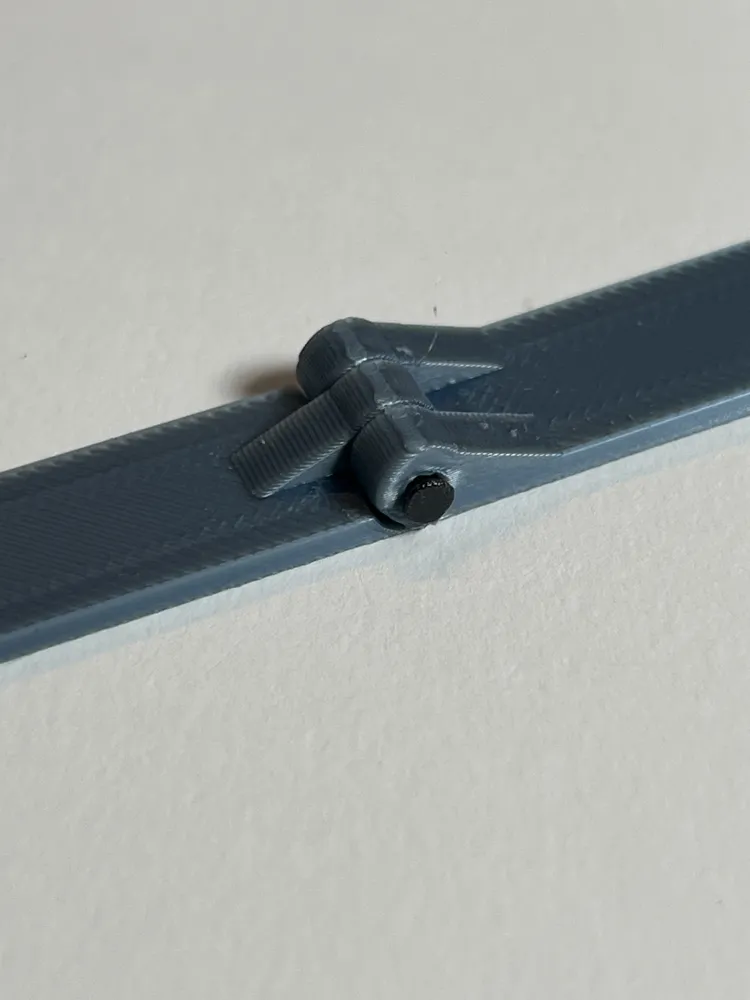

This model uses a Filament Hinge for maximum durability. Instead of a brittle 3D-printed pin, it uses a standard piece of 3D printer filament.

1. Align: Lay the two halves flat and mesh the hinge "knuckles" together.
2. Insert Pin: Take a short length of 1.75mm filament (PLA or PETG works great) and slide it through the hinge hole.
3. Secure: Use a pair of flush cutters to trim the filament. Optional: Gently touch the ends of the filament with a lighter for 1 second to "mushroom" the tips so the pin never slides out.

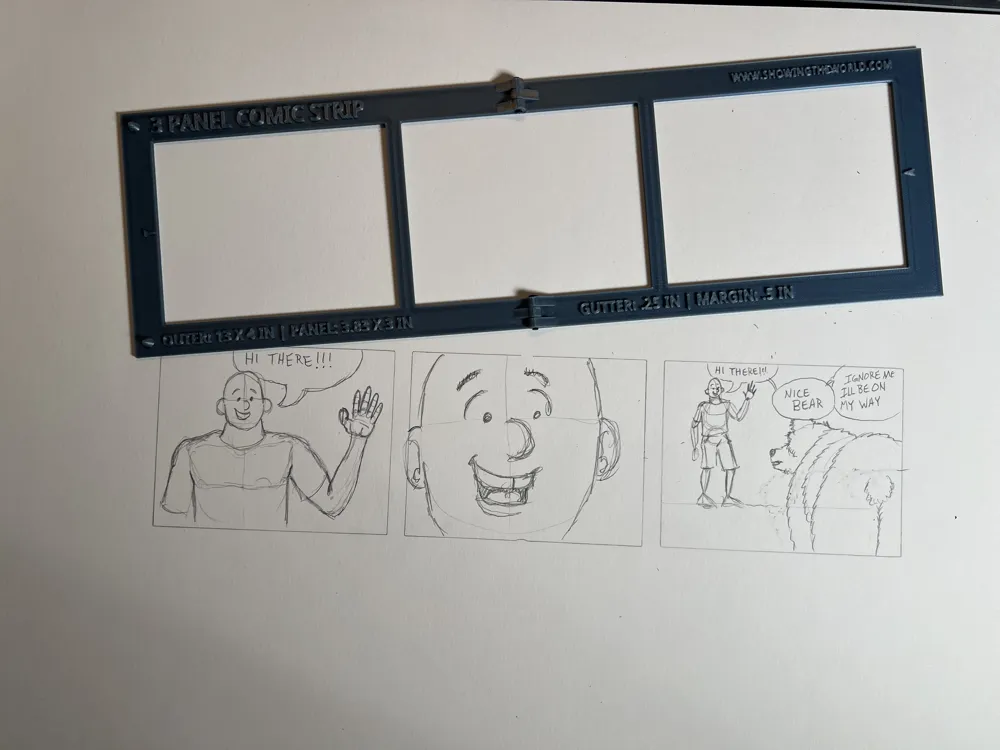

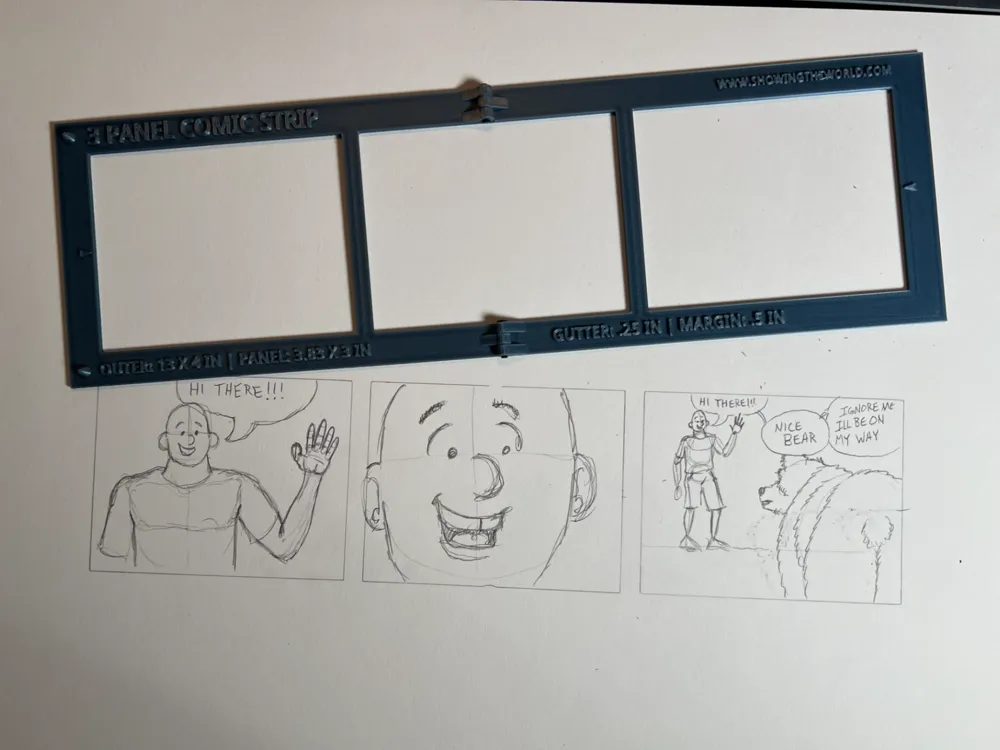

How to Use

1. Unfold: Open the template. The filament hinge allows it to lay perfectly flat on your paper.
2. Align: Position on your Bristol board. The 13x4" size aligns perfectly with standard 14x5" (or larger) comic art paper.
3. Trace: Use a light pencil (2H or non-photo blue) to trace the inner panel borders.
4. Scan & Scale: Scan your finished art and scale the digital file to a 6-inch width (approx. 46%) for professional publication standards.

Recommended Print Settings (Bambu Lab A1)

Warping Prevention (Crucial) Because this is a long, thin print, these steps are necessary to prevent corner lifting:

• Brim Type: Outer Brim Only (5mm to 8mm width).
• Brim-Object Gap: 0.1mm to 0.15mm.
• Build Plate Temp: 65°C to 70°C for PLA.
• Auxiliary Fan: Turn this OFF.
• Mouse Ears: Alternatively, add 20mm diameter x 0.2mm high discs to the four outer corners in your slicer.

0.2mm Standard Profile

• Wall Loops: 4 to 6 (Crucial for hinge strength).
• Top/Bottom Shells: 5 Layers each.
• Infill: 100% (Solid).
• Ironing: Enable on "All Top Surfaces" for a professional, smooth finish.
