I reworked this GrabCad project to create a custom box for the ARDUSIMPLE simpleRTK2B Heading Starter Kit.

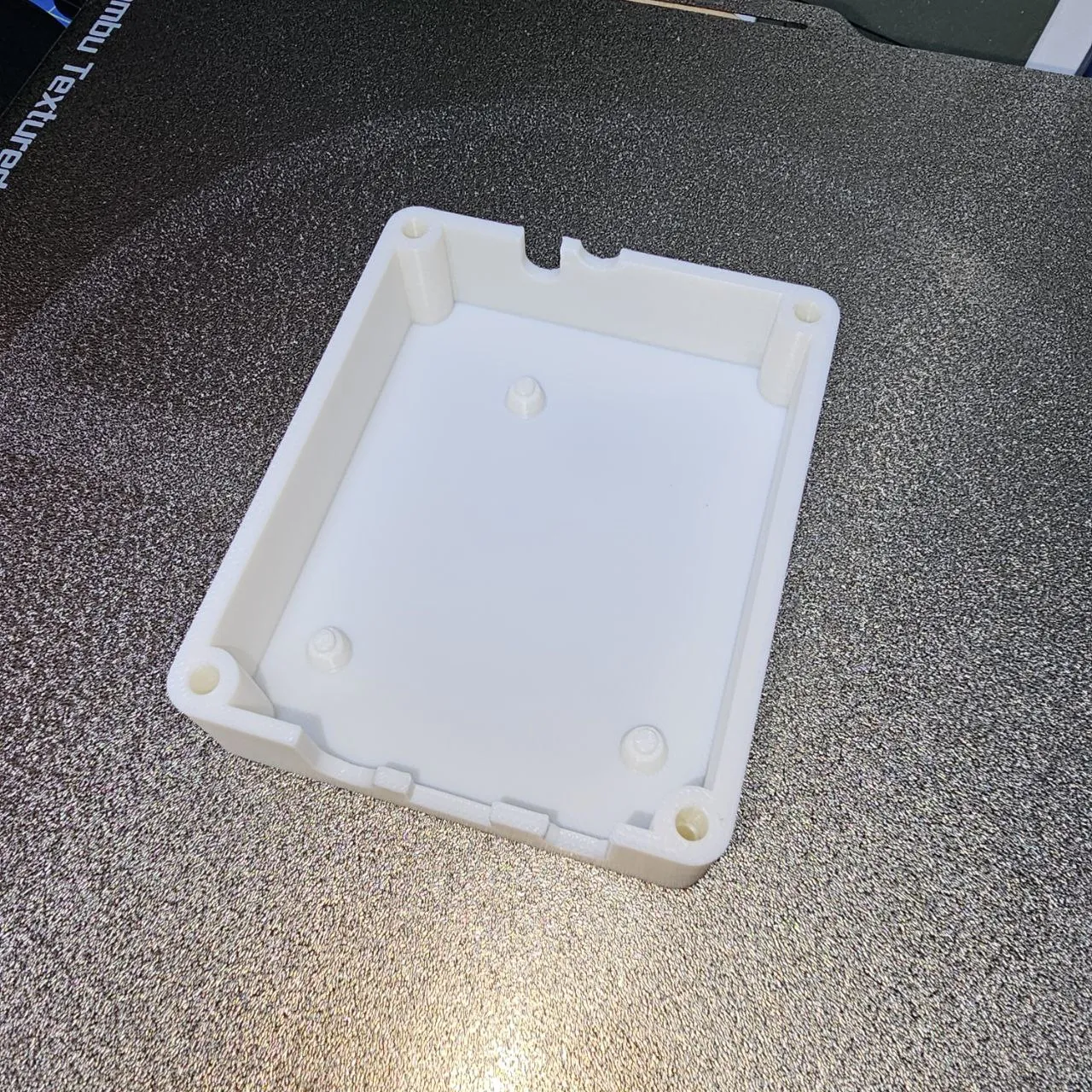

The bottom cover if fully closed, without holes and I printed it in ASA to make it more resistant to UV.

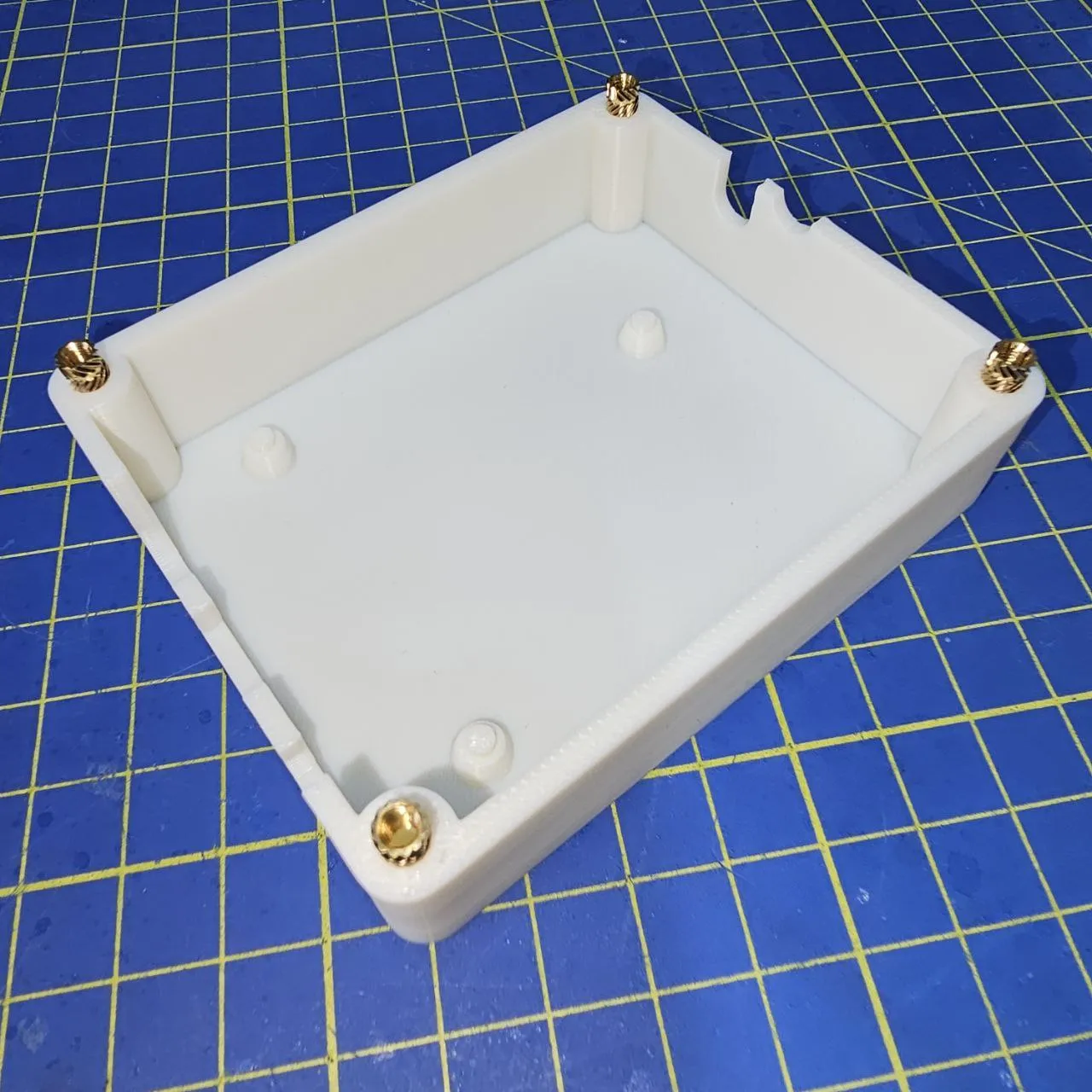

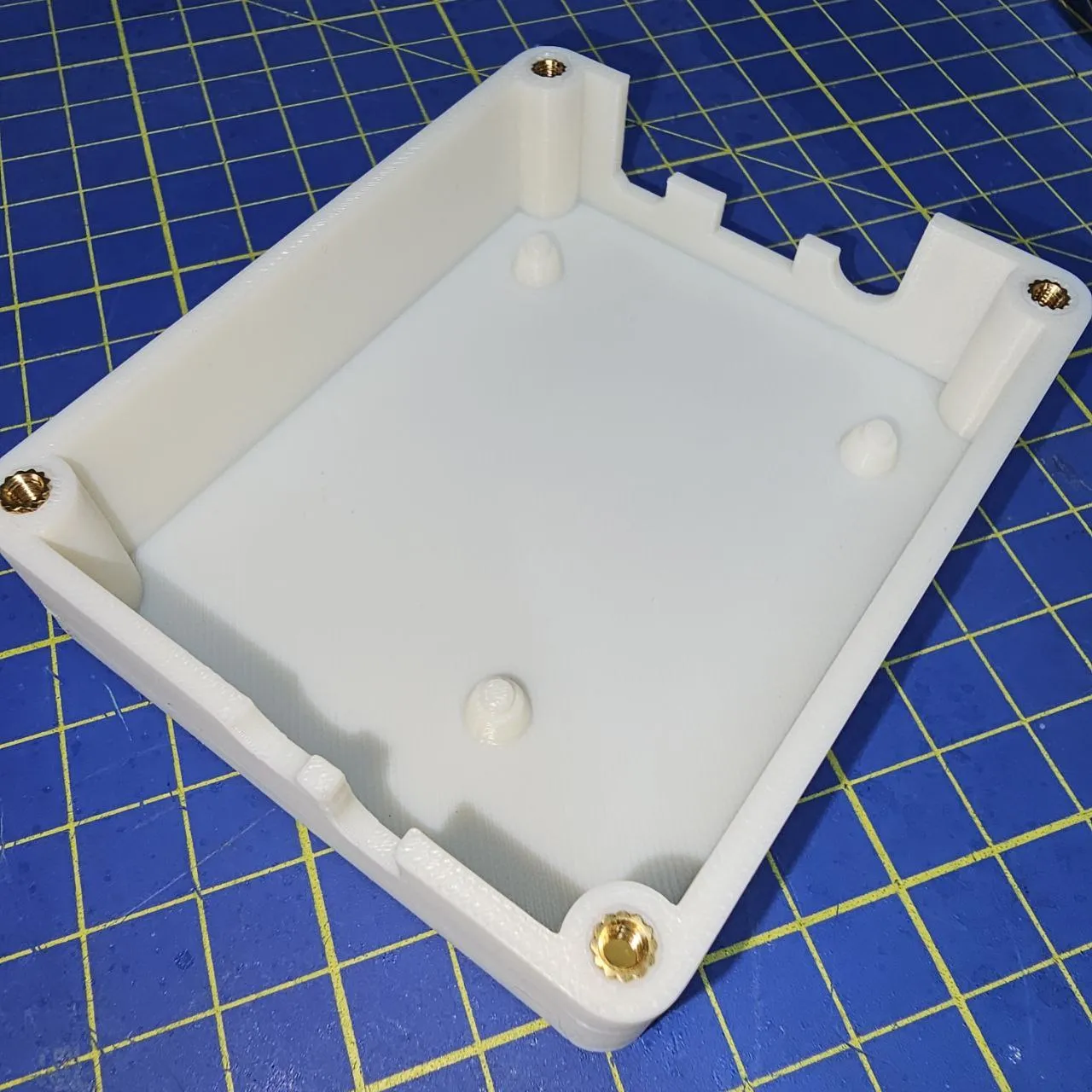

The cover holes are suitable for M3 brass inserts to lock to top cover
 |  |

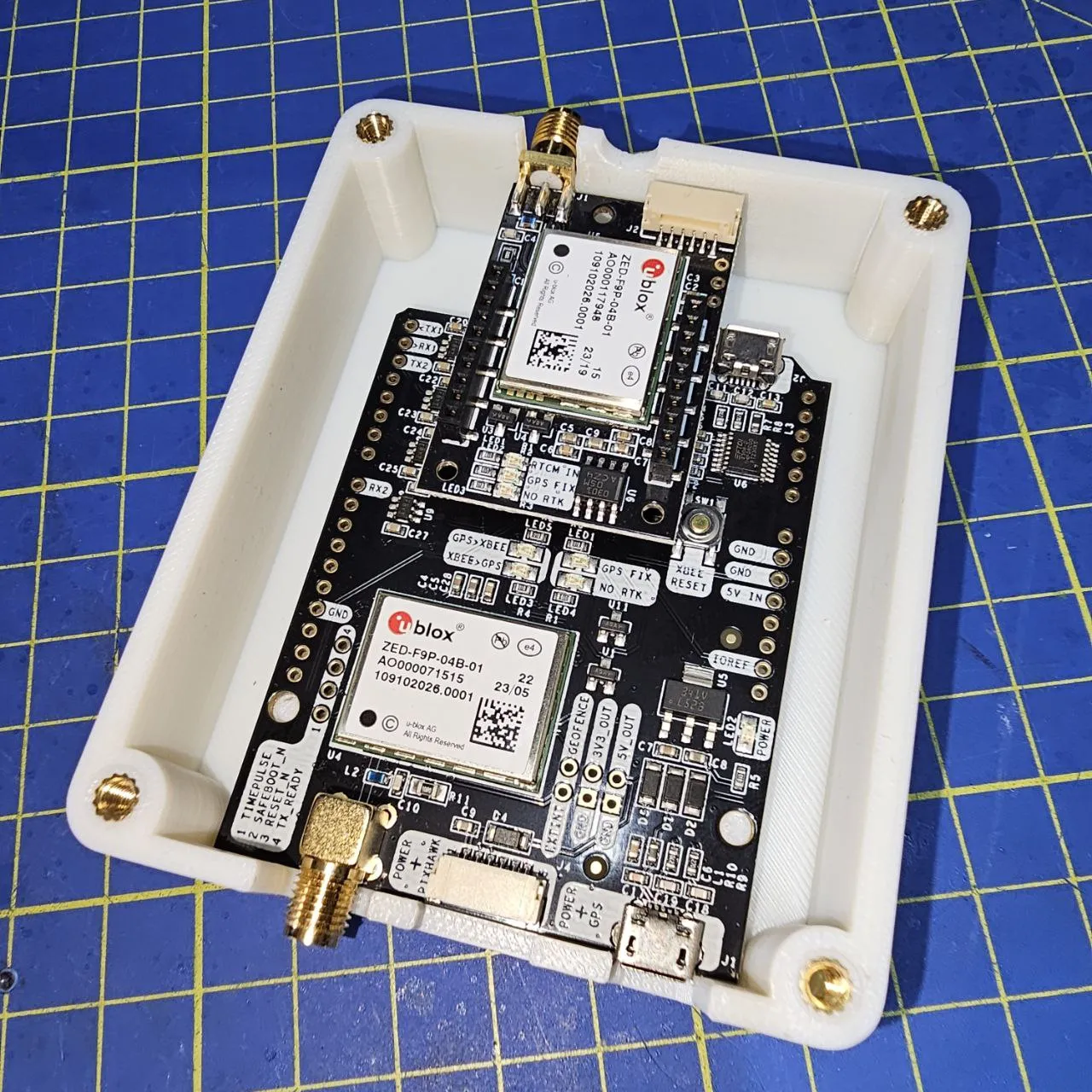

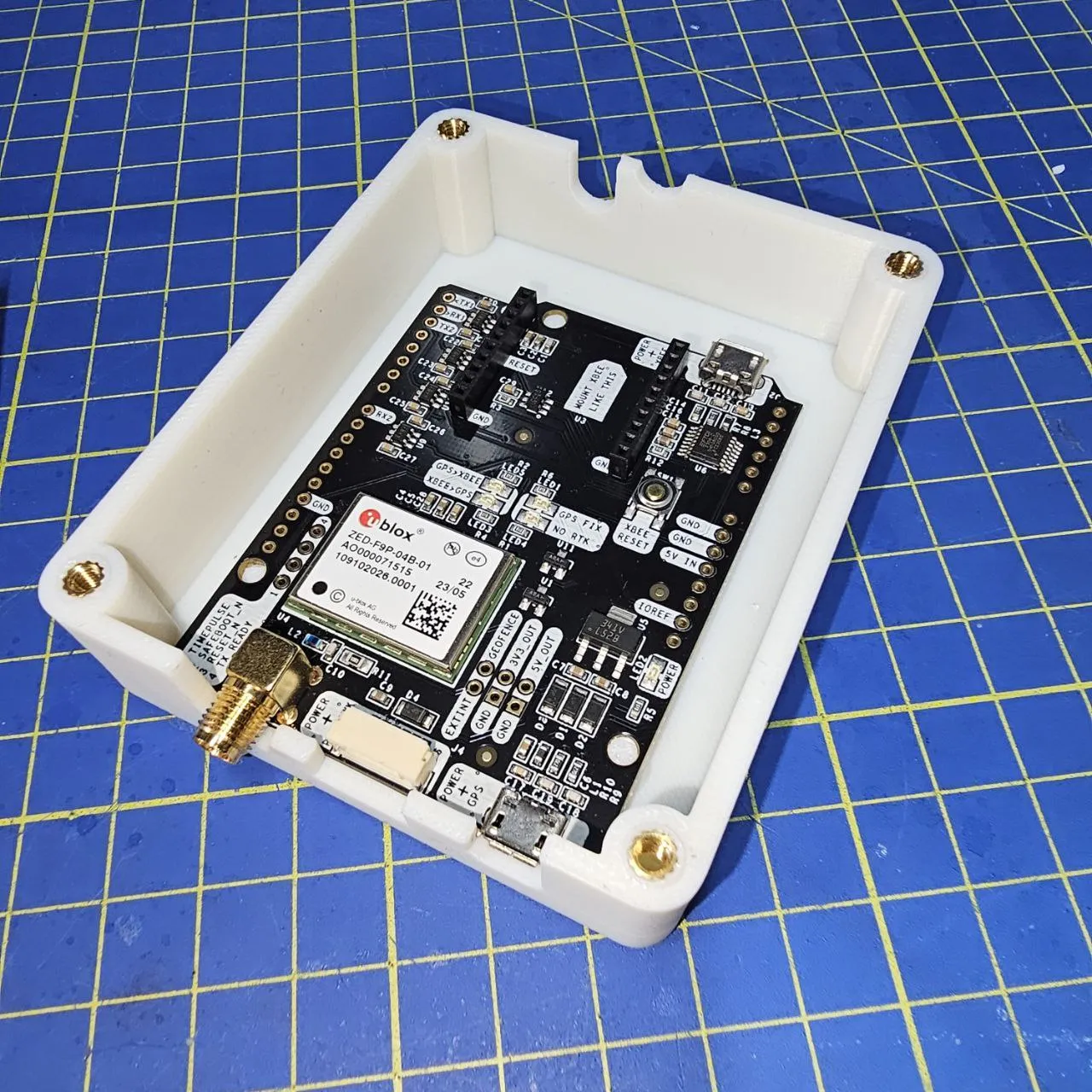

The box is perfect for fitting the main board with u-blox ZED-F9P and the heading board with a second u-blox ZED-F9P. It is also ready to fit the Xbee daughter board for local communication.
 |  |

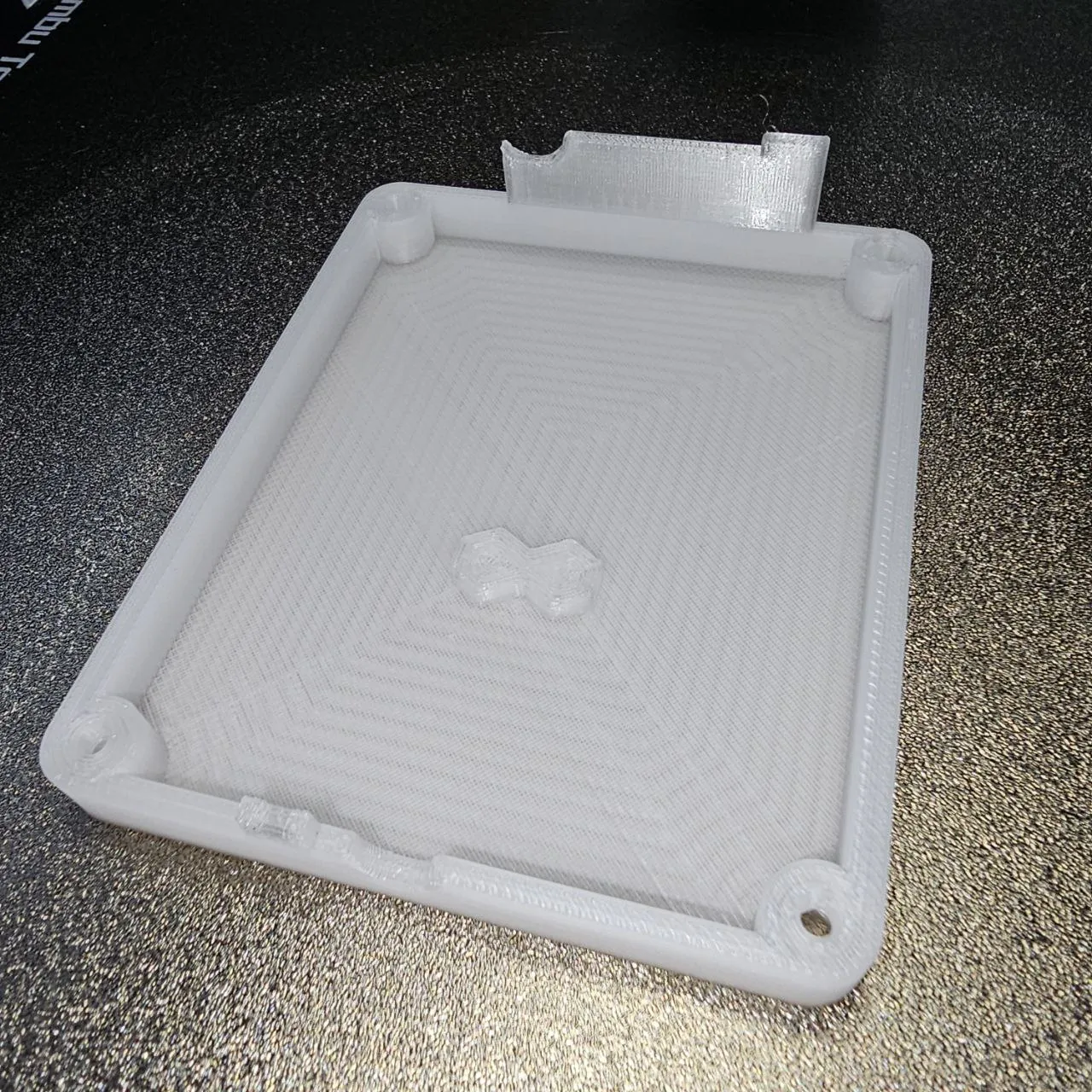

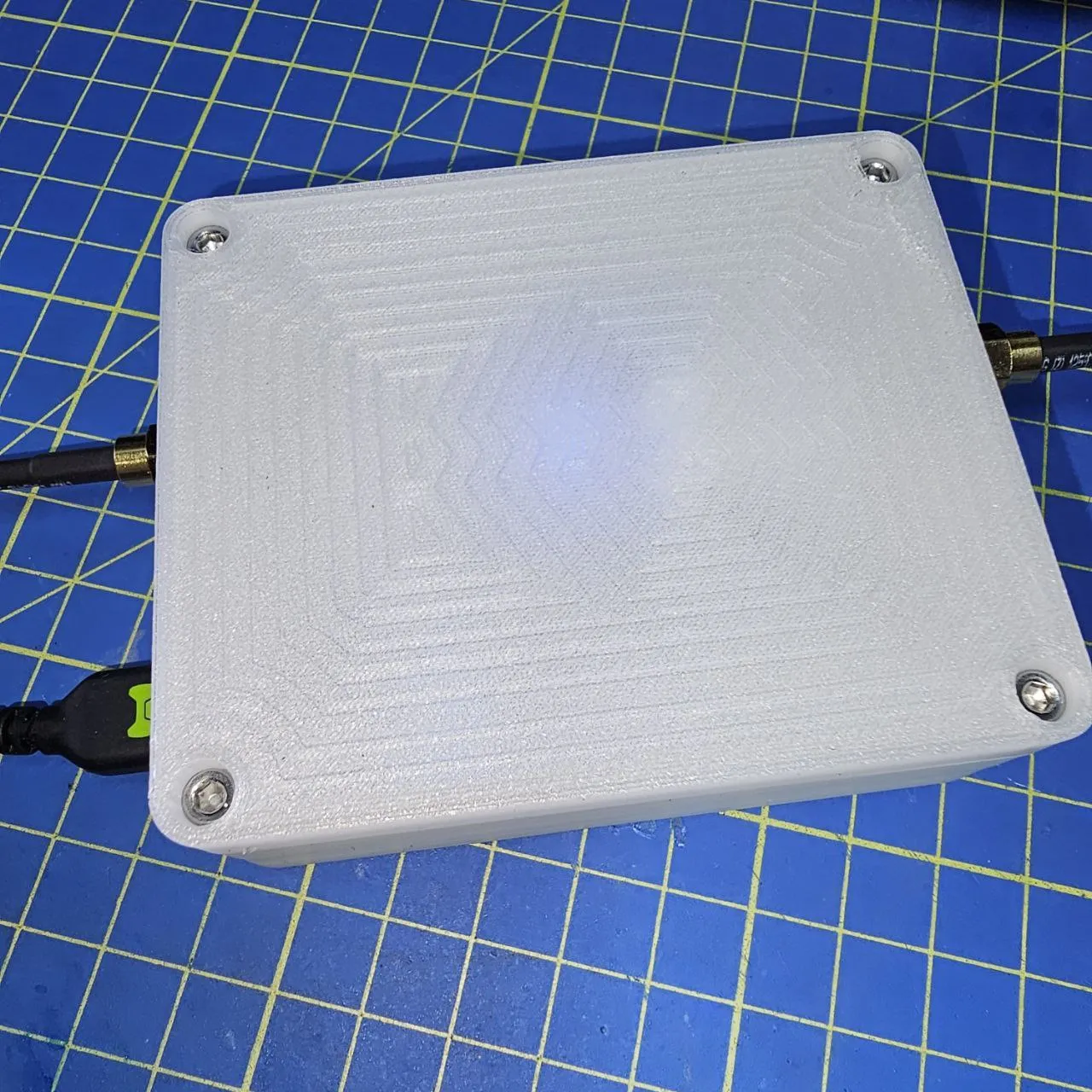

The top cover in transparent PETG allows the monitoring of the blinking of the LEDs to check the availability of the satellite fix.
 |  |
---------------------------------------------------------------------------
