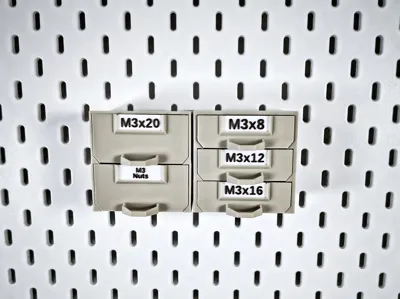

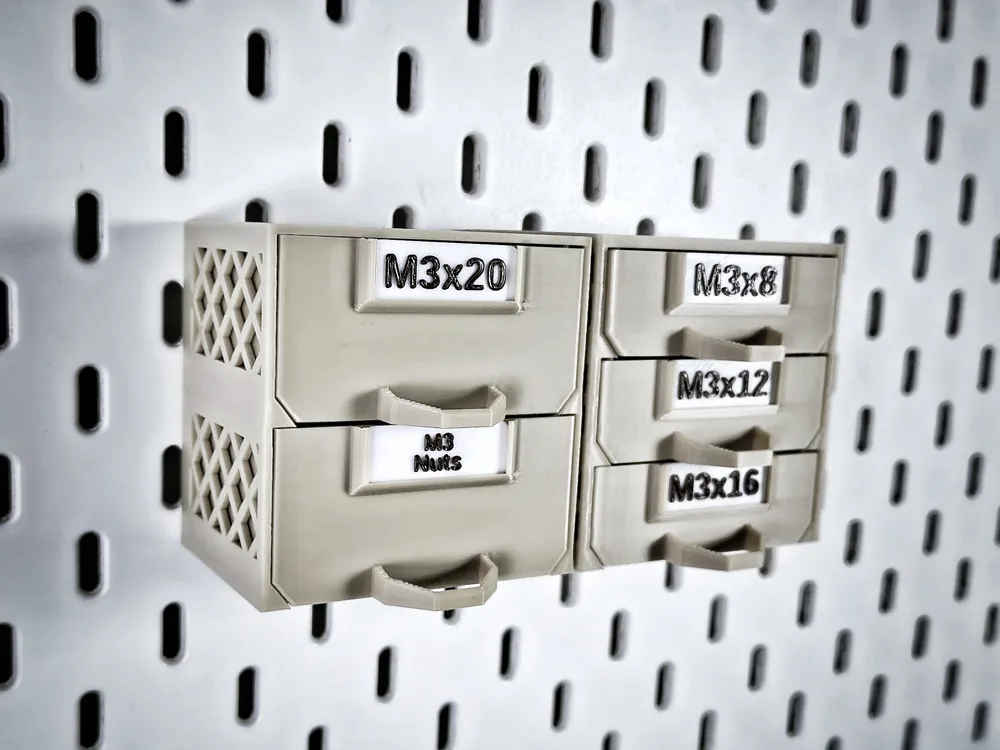

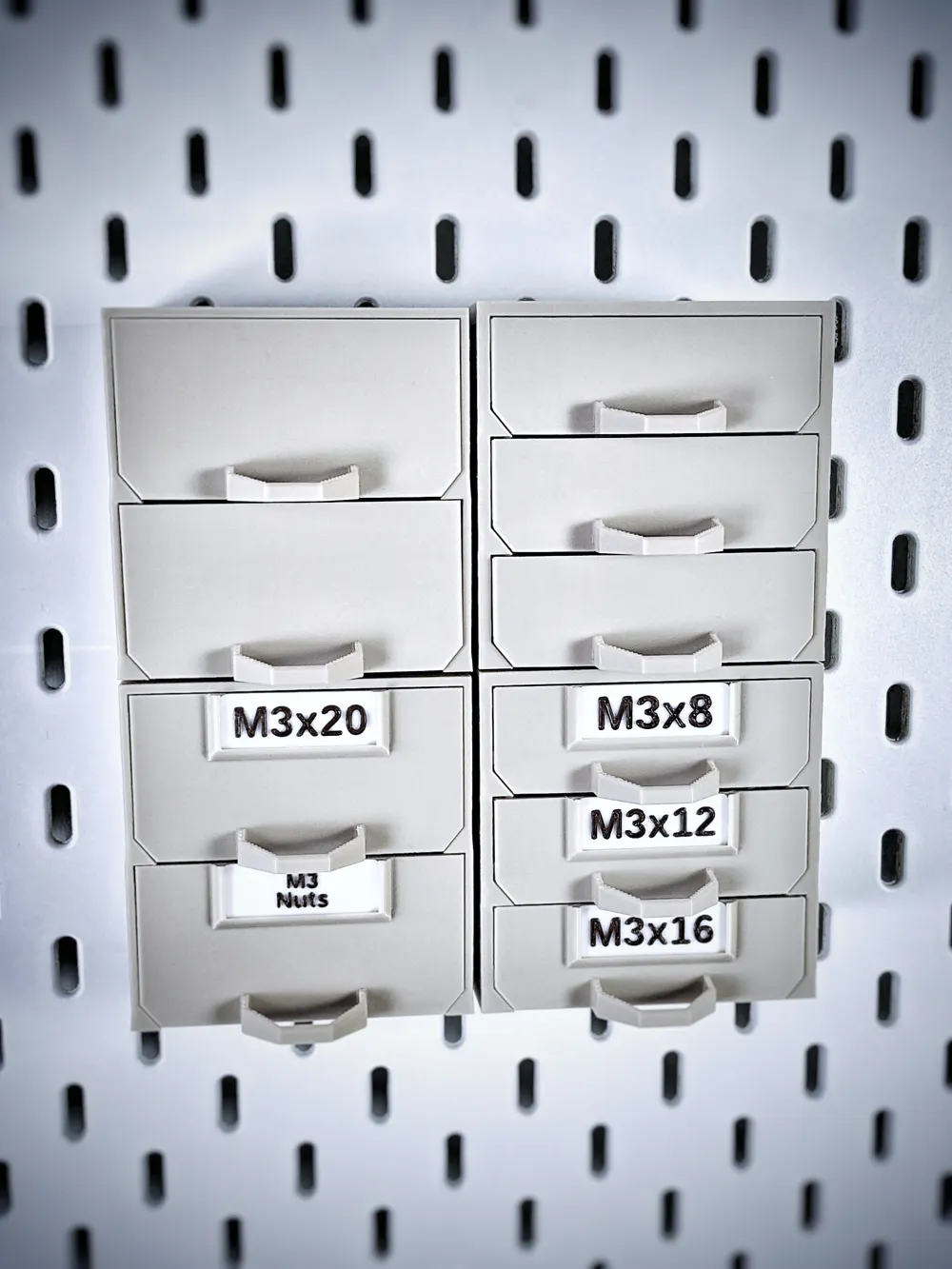

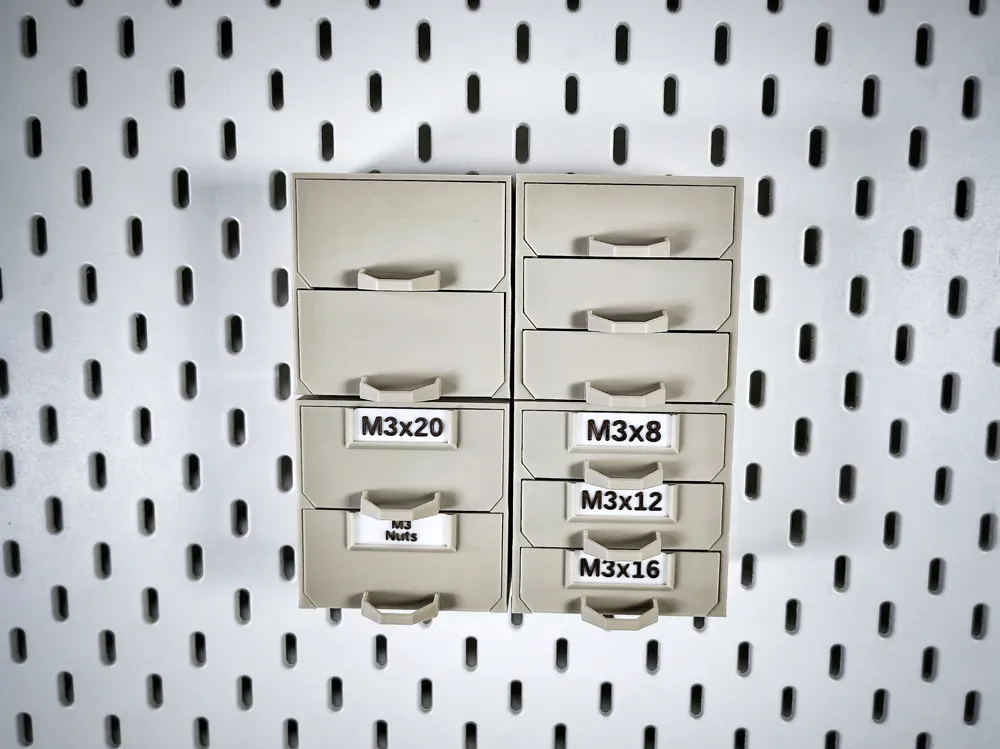

This is a modular drawer system for IKEA Skådis, designed for storing small parts such as screws, nuts, electronic components, or workshop accessories.

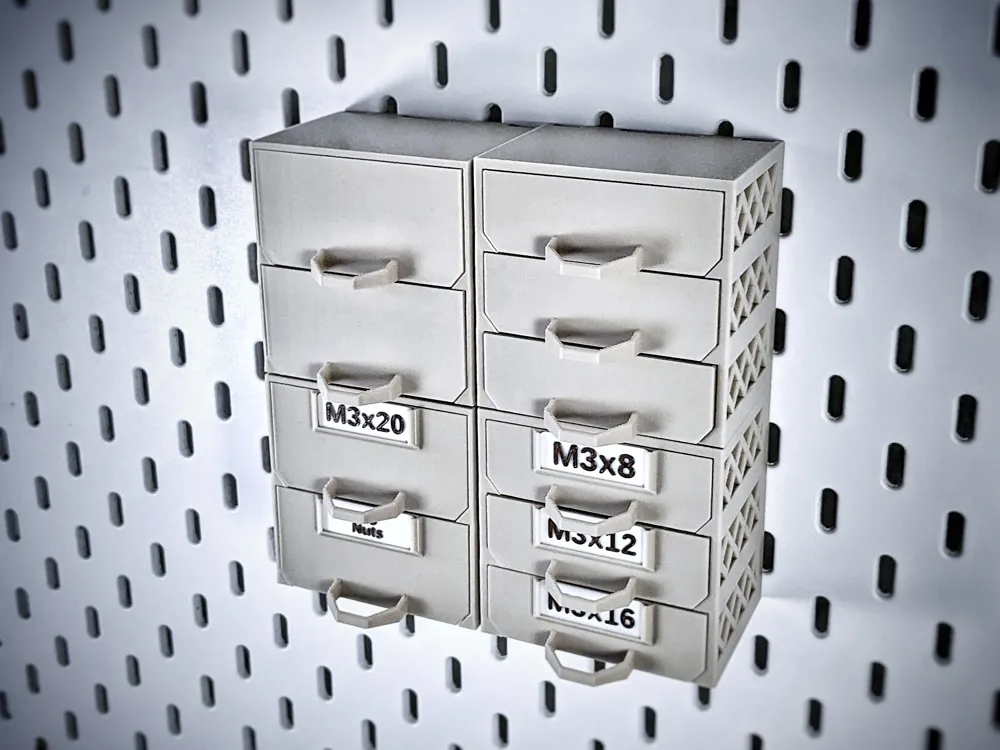

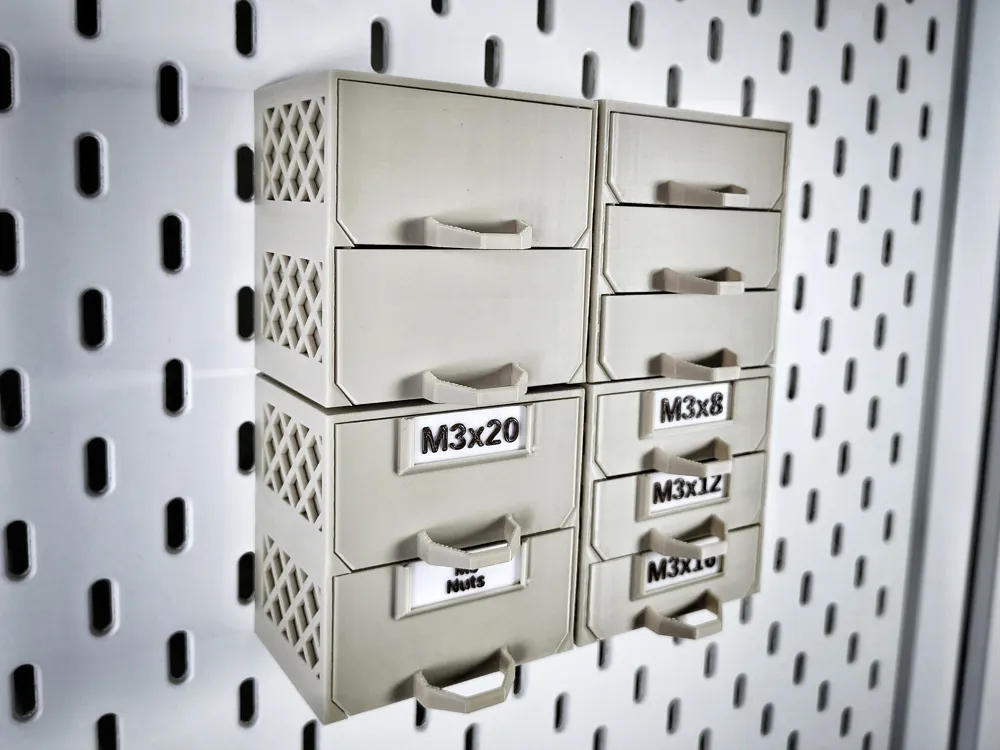

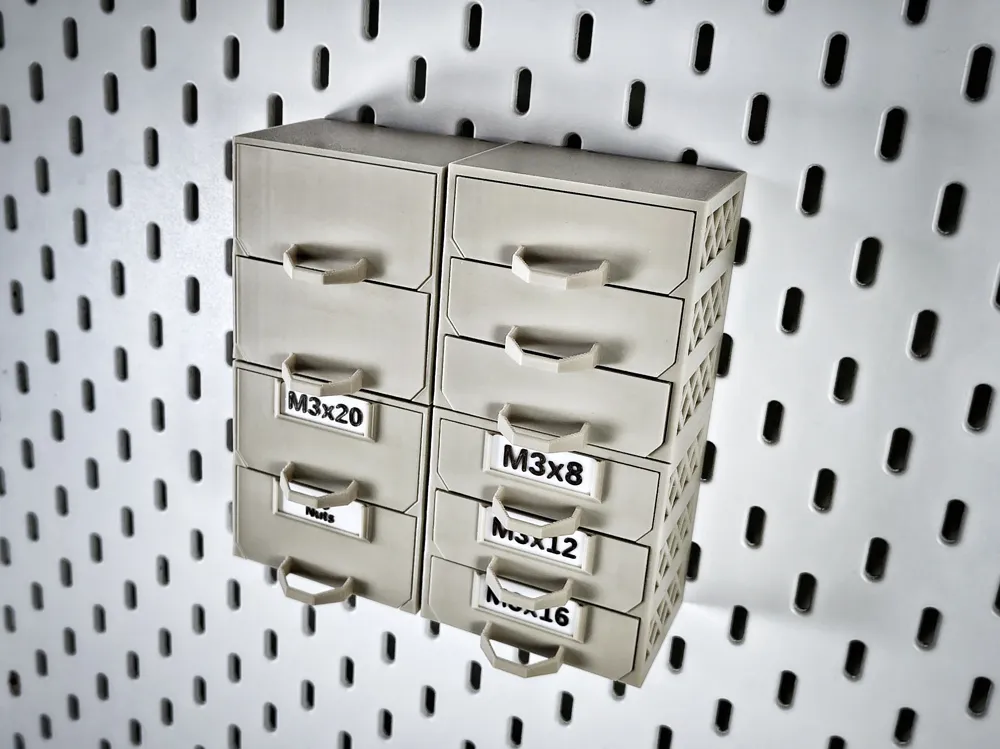

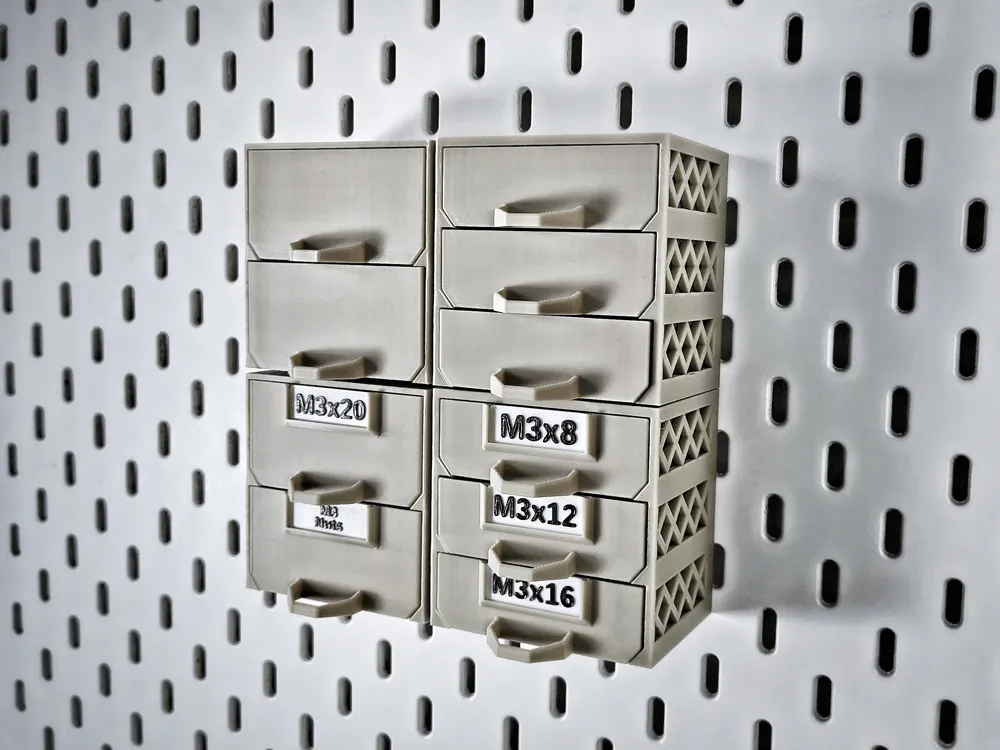

The system consists of frames (racks) and drawers, allowing you to build a fully customizable storage wall directly on your Skadis pegboard.

System Overview

Frames (Racks):

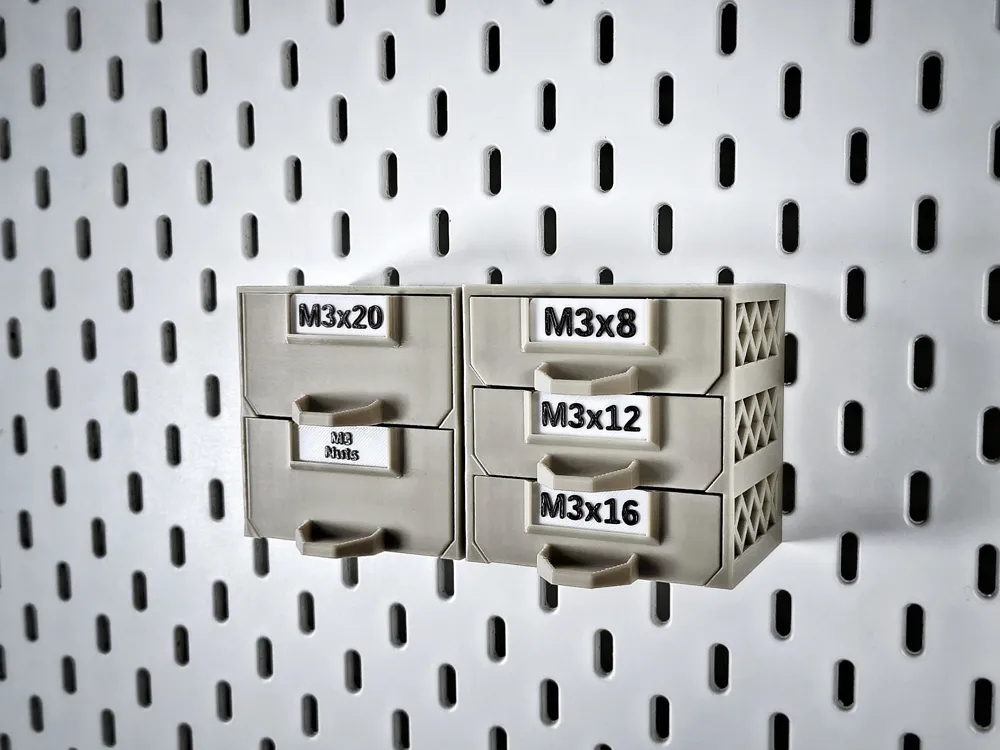

- Available in 2-drawer and 3-drawer versions
- Overall frame size: 80 × 80 mm
- Mounted using two slide-in Skadis hooks

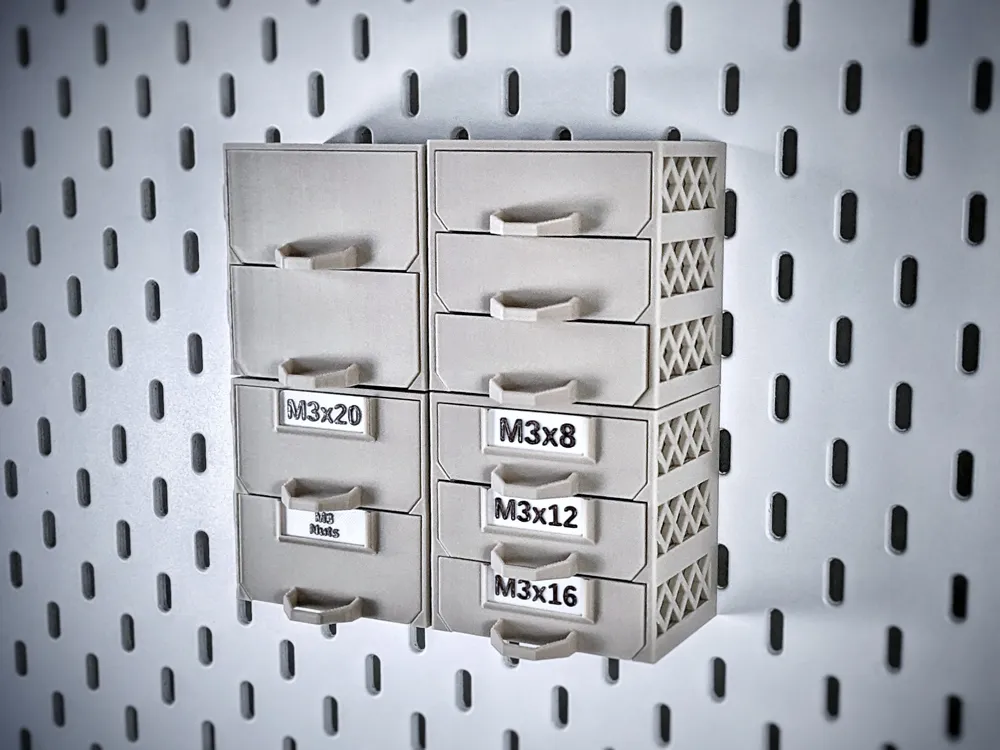

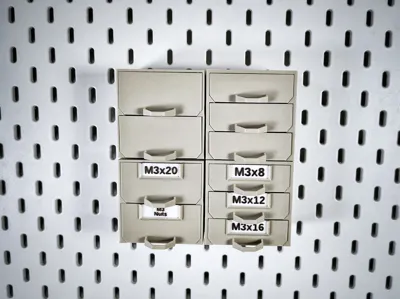

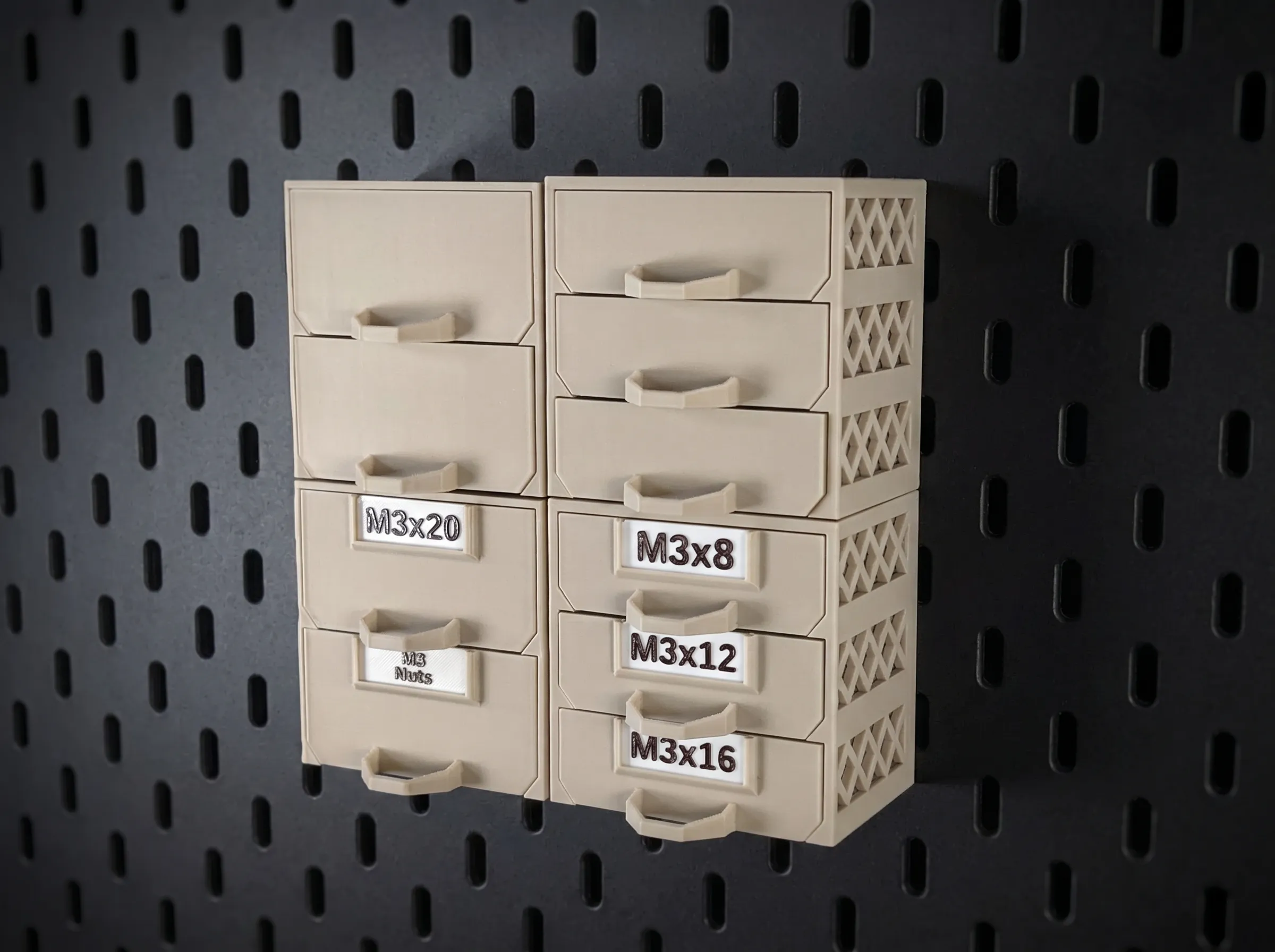

- Frames can be connected horizontally and vertically, allowing you to cover an unlimited area

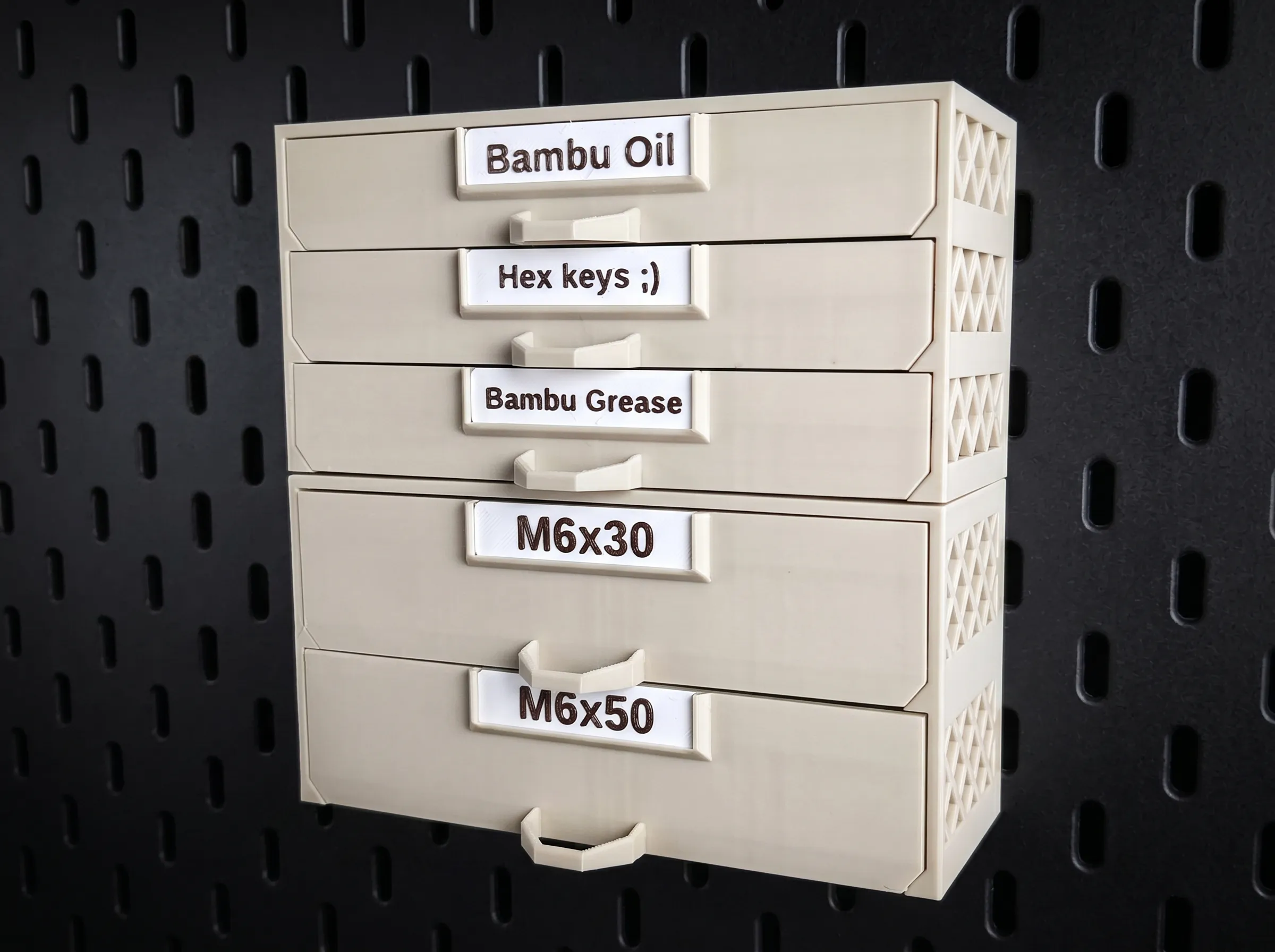

Drawers:
- Two sizes available:
  - 50 mm deep × 30 mm high
  - 50 mm deep × 37 mm high
- Available in two front versions:
  - Clean front

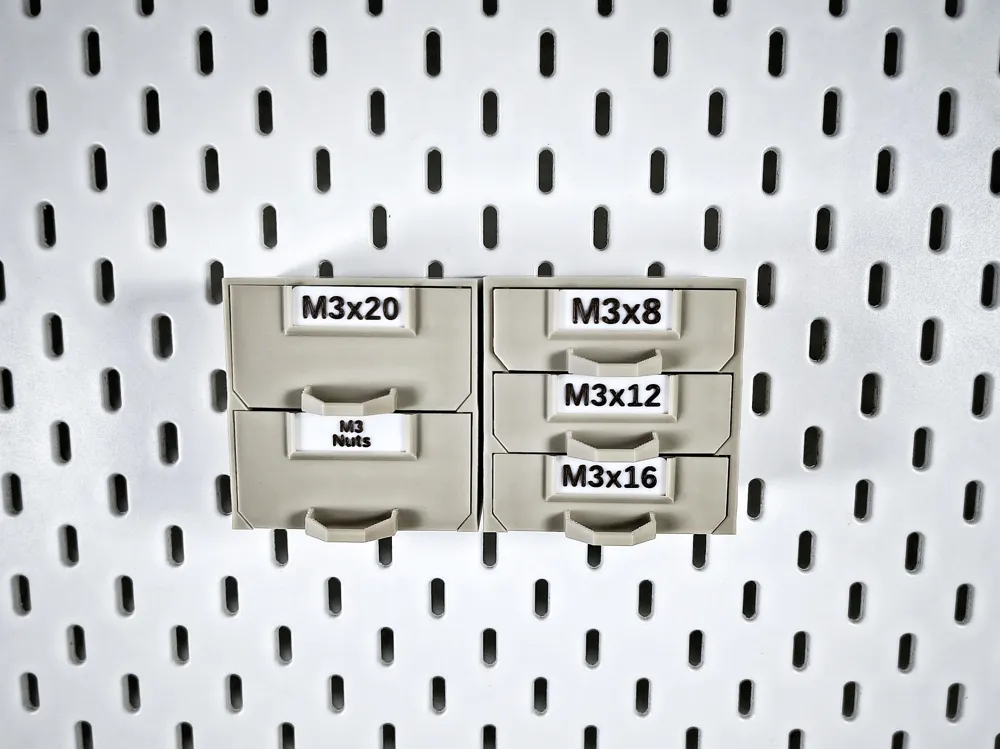

  - Label-ready front with space for a label plate
- Label plate size: 36 × 13 mm

Labels & Customization

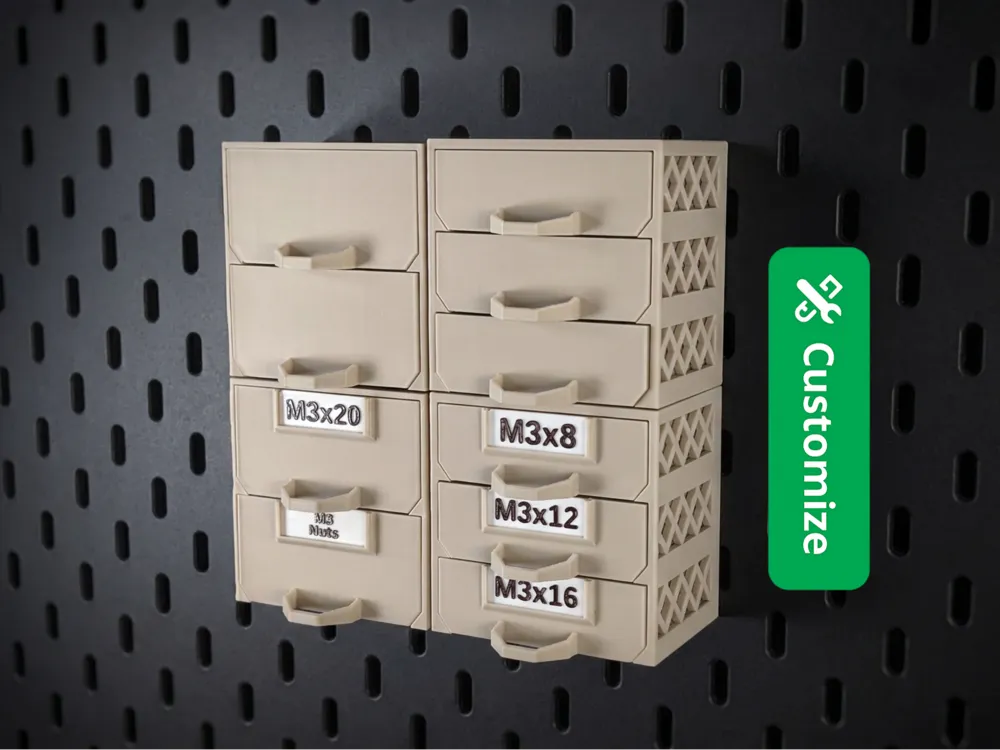

For labeled drawers, a customizable label plate generator is included as separate object on print profile list - just click green customize button.
This allows you to easily create personalized labels that fit perfectly into the drawer front, making organization faster and clearer.

Design Details

Frames feature integrated retaining tabs on the upper rail to prevent drawers from sliding out accidentally
To insert or remove a drawer, simply lift the front of the drawer slightly
The system is optimized for: clean look, easy expansion, secure drawer retention

Update 03/03/2026: Updated 2 drawers rack (walls 3mm thickness) to match 3 drawers rack.

Update 01/02/2026: Added drawers with dividers (for each variant). Requested by @JordJ - thanks!

More Skadis models: IKEA Skadis collection

If you print it, please leave a make or rating. It helps a lot.
