Dillon Micro Rifle Case Feed Plate (incl A1 mini)

Since i didn't have any 300blk cases available this design has been tested by third part users. This feed plate is slightly thinner then my other plates. When multiple cases stood up in a slot (much like the pistol plates are designed) they sometimes rode up together and causing a jam at the drop point since they weren't heavy enough to fall back out. The thinner design prevents this from happening while still holding the cases that is lying down.

I'd like to address a sincere thank you to the Facebook users who tested version 1.0 and gave valuable feedback.

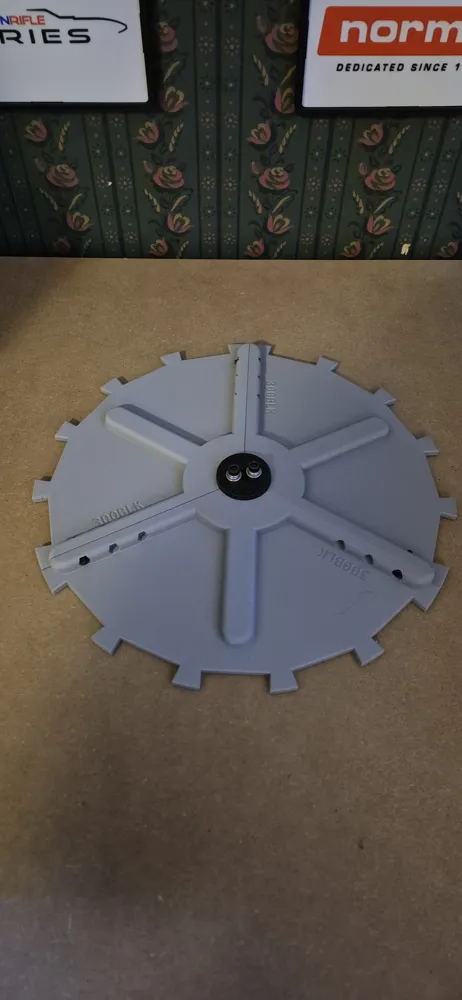

Case feed plate for Dillon reloading press. For really small rifle cases (max 40 mm long, no more then 10 mm thick), including but not limited to, 300 BLK. In my Dillon collection you will find other plate sizes. Plates in this size are not possible to buy from Dillon and the small rifle plate makes cases like 300 Blackout bind up and causing a jam every now and then. This plate is designed to prevent that from happening.

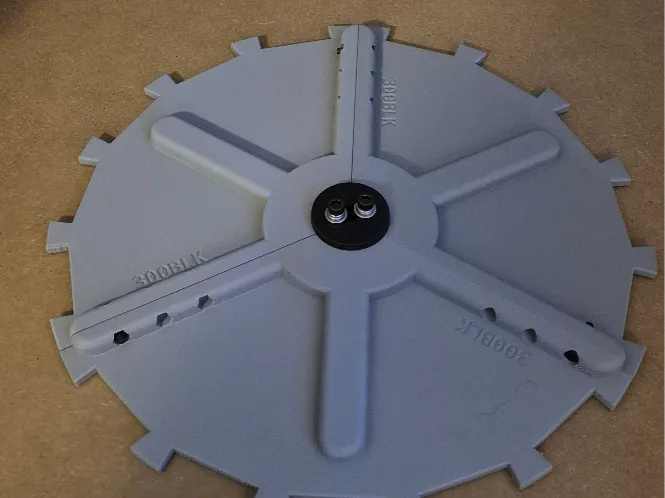

The print is divided into three parts making it possible to print on printers less then 300x300. Print the object three times. The parts mounts together using standard M4x14, or longer, screws. Only 6 screws is necessary even though it is possible to use 9 screws. Longer screws will still work as the protruding part is on the hind side given that the case feeder is running clockwise.

256x256 sized printers and above can print the part lying down. Smaller printers, including A1 mini, can print the part standing up. The included print profiles uses supports. If you print the STL, adding supports is imperative.
