Description

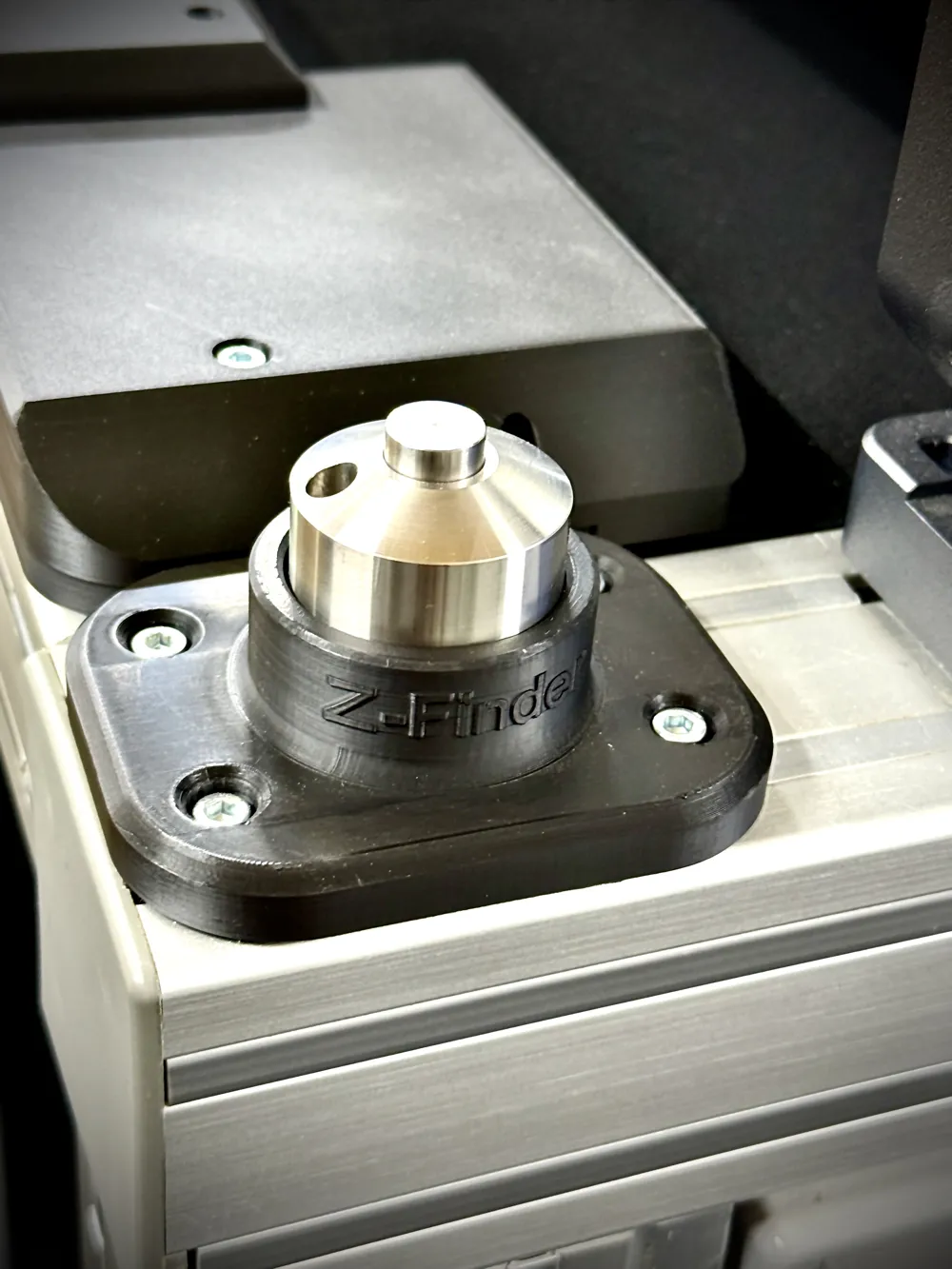

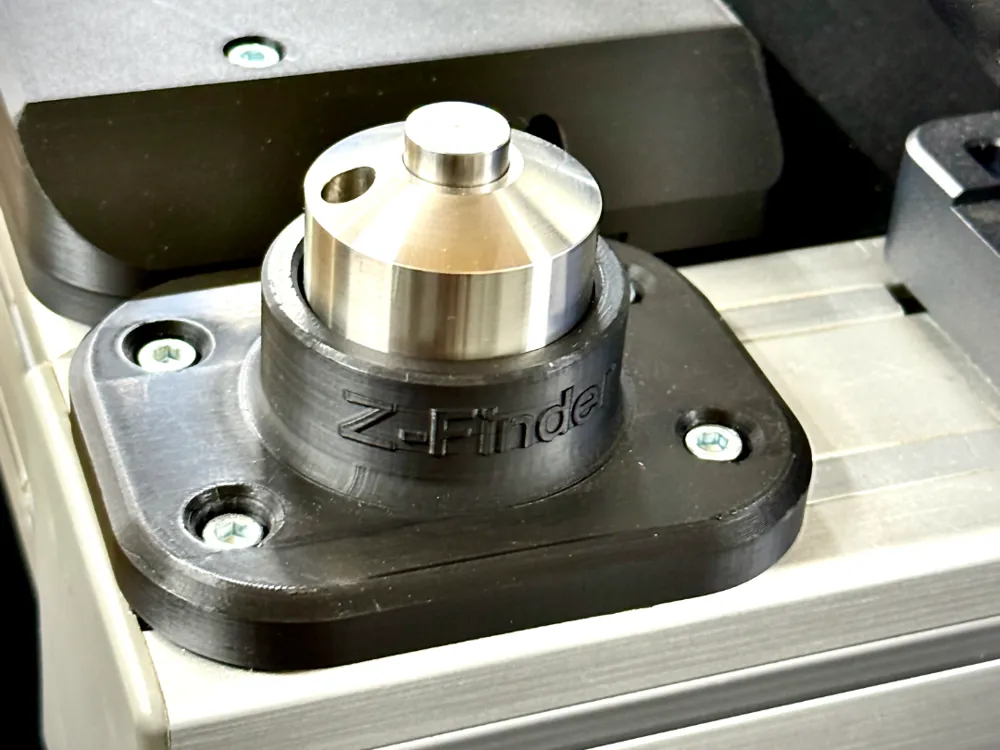

This compact holder is designed to mount a Z-Finder or tool length sensor in a fixed and repeatable position on a CNC machine.
No temporary solutions, no cable ties, no sensor lying around.
The holder keeps the sensor securely in place while remaining easily accessible at all times.
It mounts directly to 80 mm aluminum profiles or machine components and provides a stable, defined position for reliable daily use.
Features
- Fixed, repeatable position for Z-Finder tool length sensors
- Compact design with minimal space requirements
- Direct mounting to aluminum profiles or machine plates
- Secure fit, no movement during handling
- Clean, unobtrusive design with subtle labeling
Technical Information
- Compatible with Z-Finder or tool length sensors of the same size
- Mounting: screwed connection
Note
- This is a holder, not a measuring device
- No liability for measurement errors or machine damage
- Intended for private use only (see license)
This holder does nothing special – and that is exactly the point.
It keeps the Z-Finder where it belongs and simply works.
