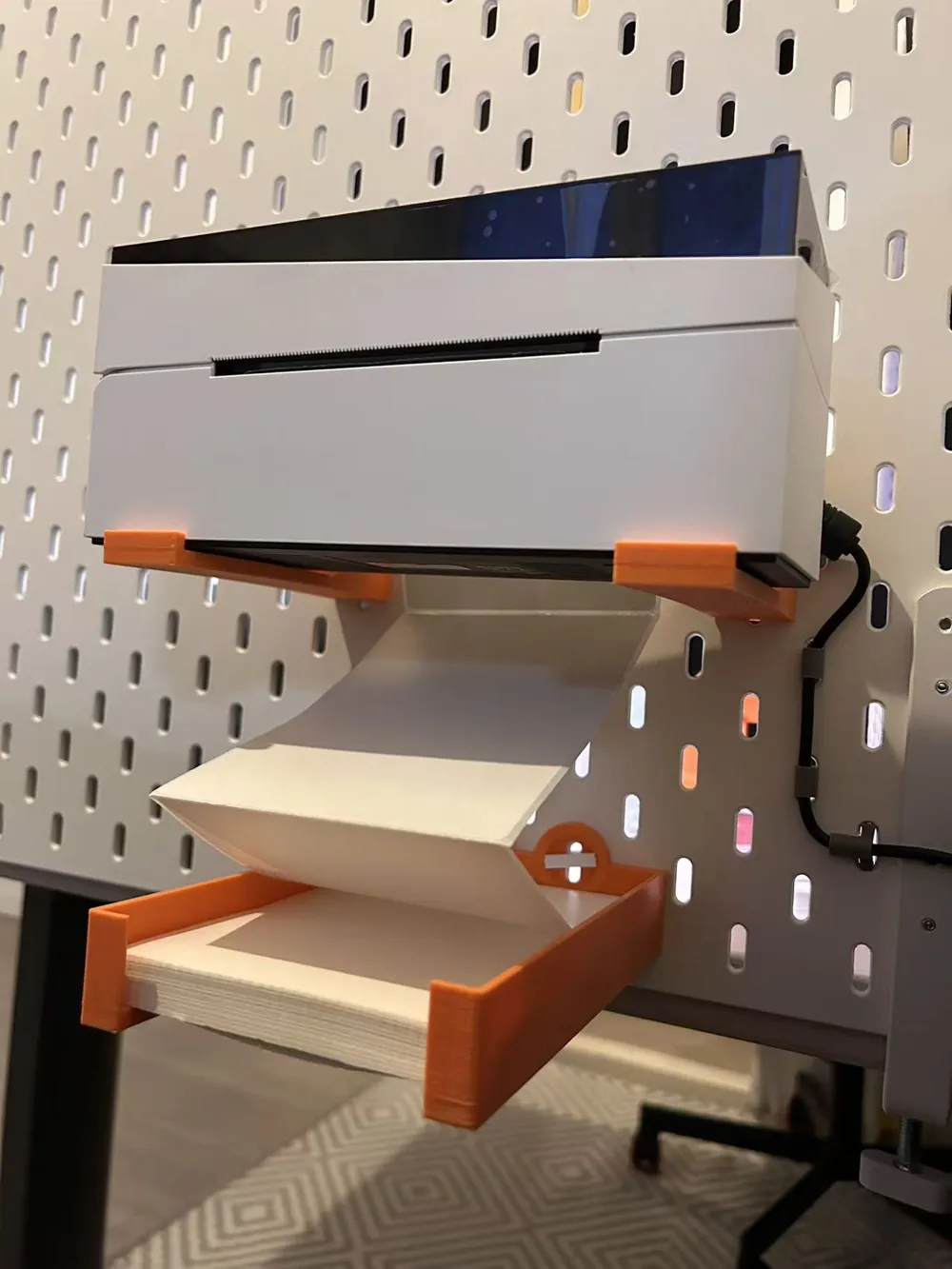

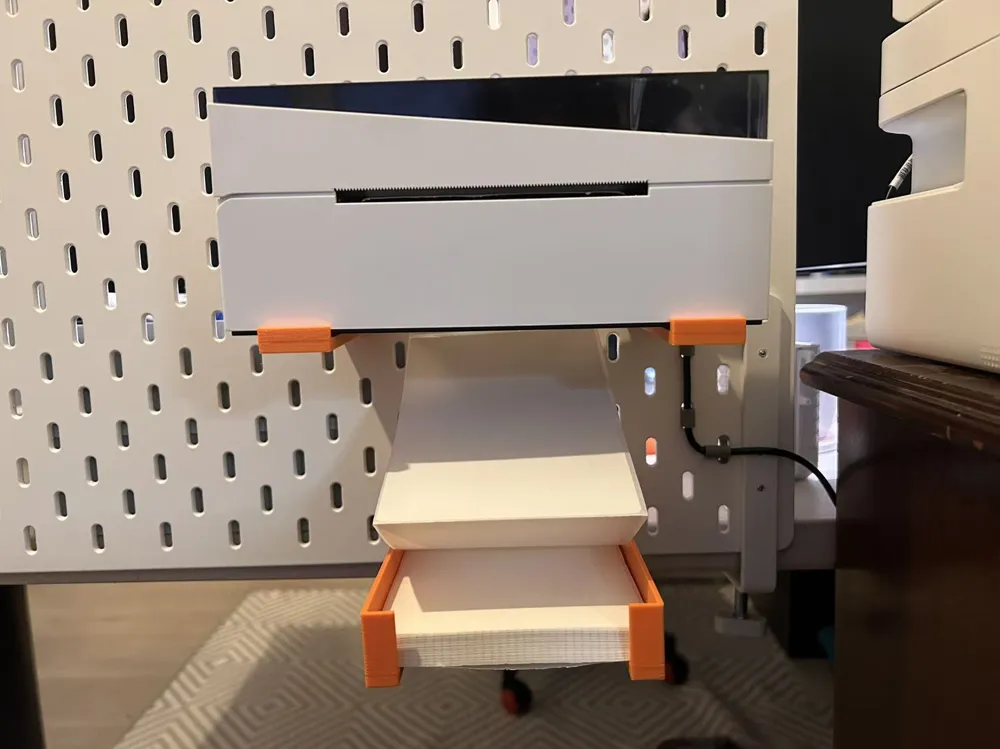

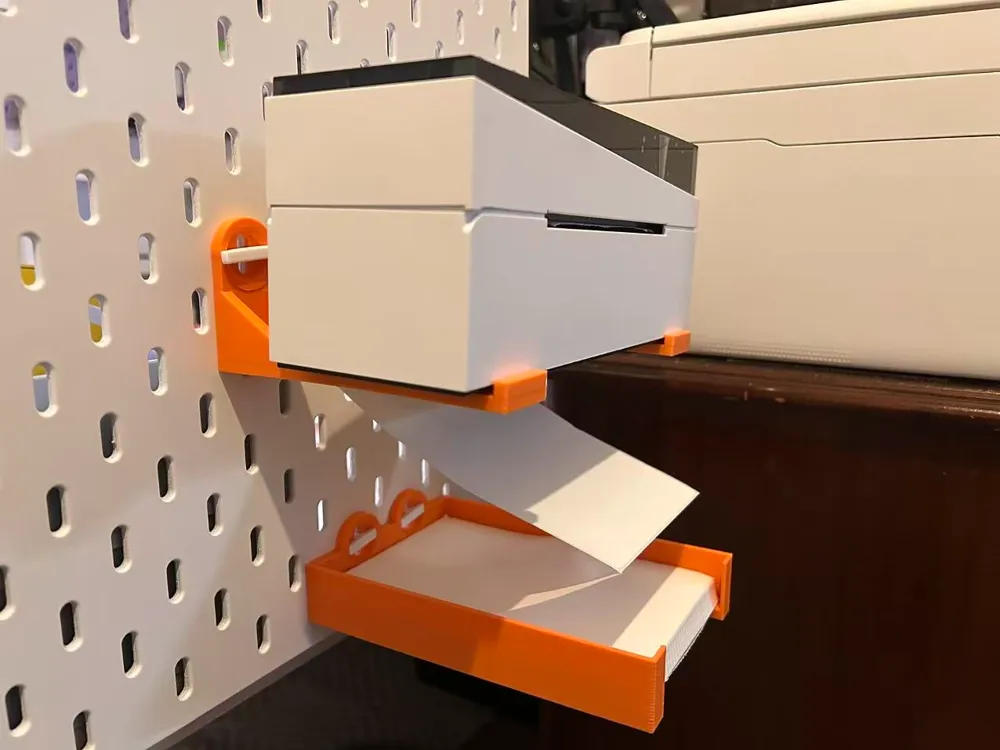

Label Printer Holder for IKEA Skadis T-Clip System

This model includes two components:

• A thermal label printer holder
• A label paper stack tray

Note: You'll need the T-Clips for this model, available here:  https://makerworld.com/en/models/1965447-t-clip-and-t-clip-lite-for-ikea-skadis .

Customize for your own printer:

The default print profile is designed for printers with a depth of 80 mm and label paper sized 4×6 inches (10×15 cm).

You can easily adjust the printer holder dimensions using this parametric customizable model: Customizable Heavy Duty Hook for Skadis

If your printer has a depth of D, then:

hook_arm_length = hook_arm_thick + gusset_len_y + D

You can also customize gusset_len_y, which determines the space between the pegboard and the back of your printer.

🔧 IKEA Skådis setup

You might also want to check out my IKEA Skådis T-Clip ecosystem:

• 📚 Full collection (subscribe here):
  https://makerworld.com/en/collections/14177364-ikea-skadis-t-clip-system
• 🔁 Must-have twist tool for all T-Clips:
  https://makerworld.com/en/models/1968853-ultimate-twist-tool-for-ikea-skadis-t-clip-system
• 🧩 Standard & Lite low-profile T-Clip versions:
  https://makerworld.com/en/models/1965447-t-clip-and-t-clip-lite-for-ikea-skadis

✏️ For creators / remixers

If you want to design your own compatible Skådis accessories:

• 📐 Seat mount template (T-Clip system)
  https://makerworld.com/en/models/1965007-seat-mount-template-ikea-skadis-t-clip-system
• 🕳️ Negative part / hole template
  https://makerworld.com/en/models/1965024-negative-part-hole-template-ikea-skadis-t-clip
