40mm Fan Mount for Sparkle Intel Arc A310 LP
Print Profile(3)
Description

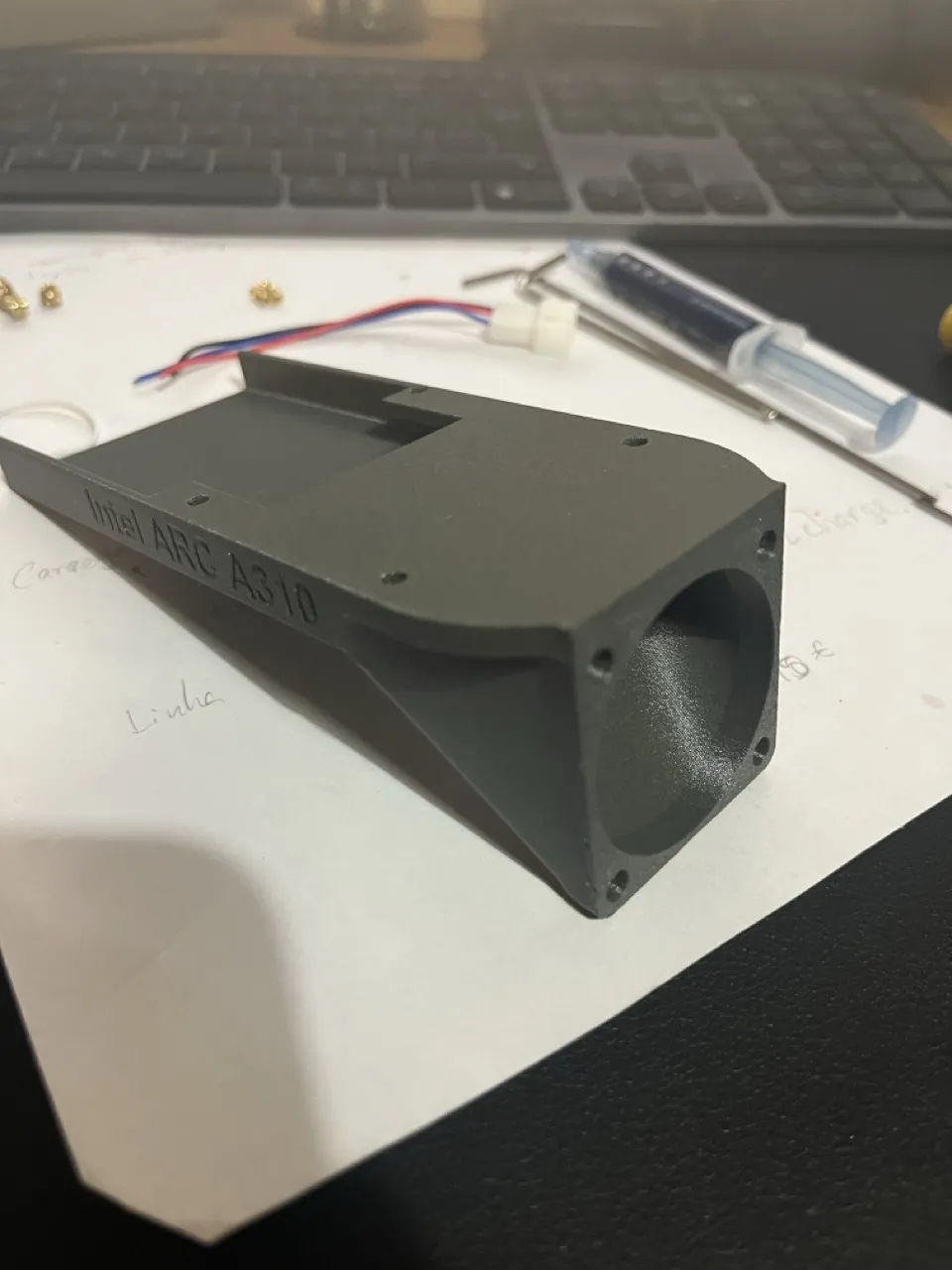

This model is designed for the Sparkle Intel Arc A310 Low-Profile GPU.

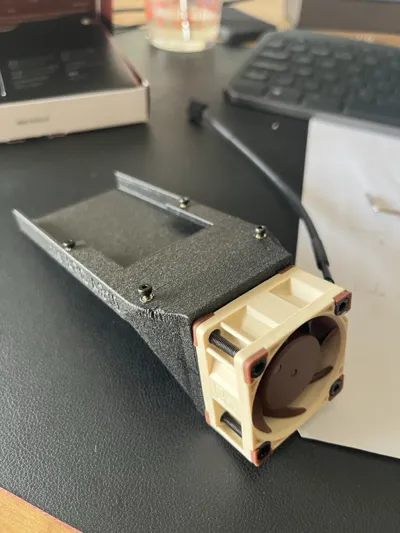

It replaces the stock fan — which is noisy and constantly ramps — with a 40mm silent fan (tested with Noctua NF-A4x20).
The mount directs airflow onto the heatsink, improving cooling and reducing noise significantly.
V2.0
- Better airflow
- Smaller height (should use only 2 slots, previous version was using a bit more)
- Less filament
V1.2

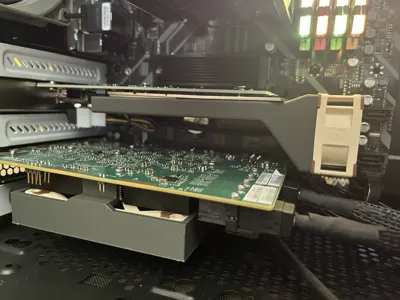

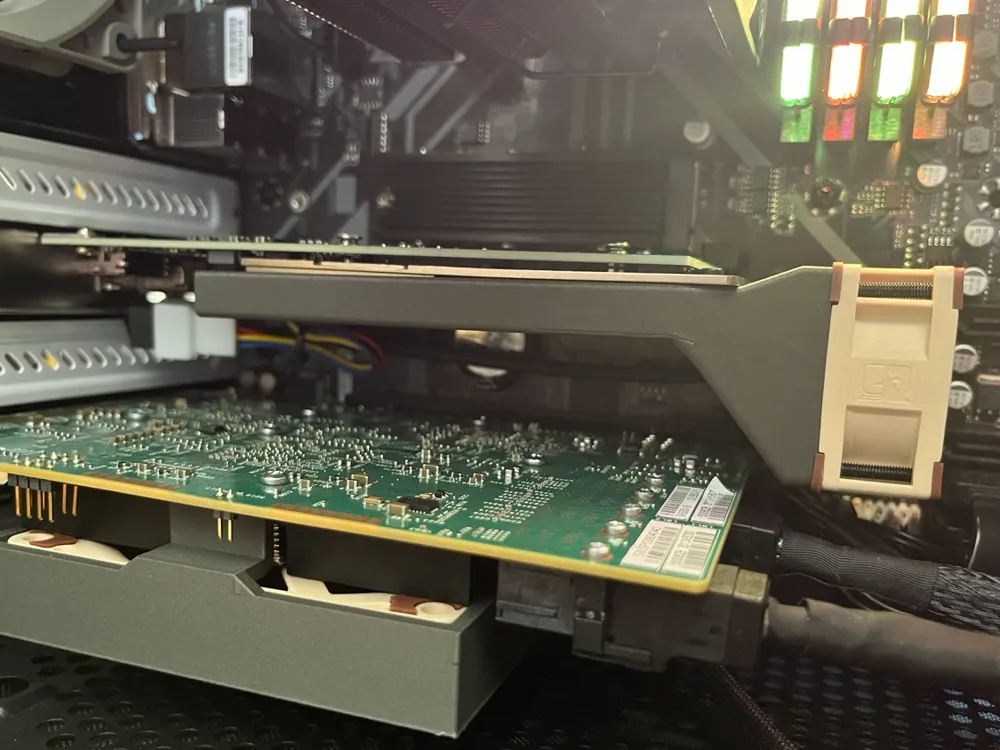

- A little bit longer (previous version was pushing against my LSI card power connector)
- Better airflow angle
- Easier to print (fewer overhangs)
Features:
- Compatible with Sparkle Arc A310 Low-Profile
- Fits 40x40mm fans (tested with Noctua NF-A4x20)
- Simple install — screw the fan to the mount and attach to the GPU
- Much quieter than the stock cooler
Printing Recommendation:
- Print in PETG / ABS / ASA (not PLA)
- Layer height: 0.20mm
- Infill: 20–25%
- 6 walls for strength
Hardware Required:
Threaded inserts + screws:
| Spec | Quantity |
|---|---|
| M2x3x3.2 inserts (M2 x height x diameter) | 4 |
| M3x4x5 inserts (M3 x height x diameter) | 4 |
| M2x3mm countersunk head screws | 4 |
| M3x20mm screws | 4 |
