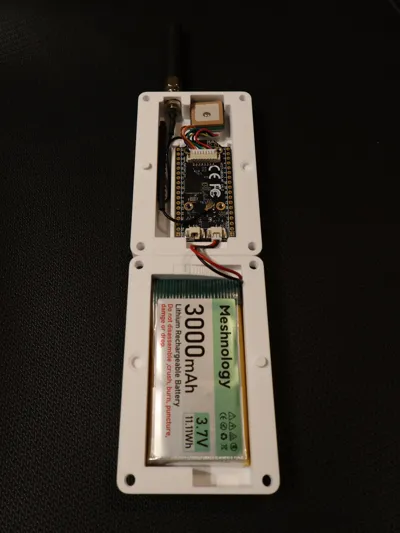

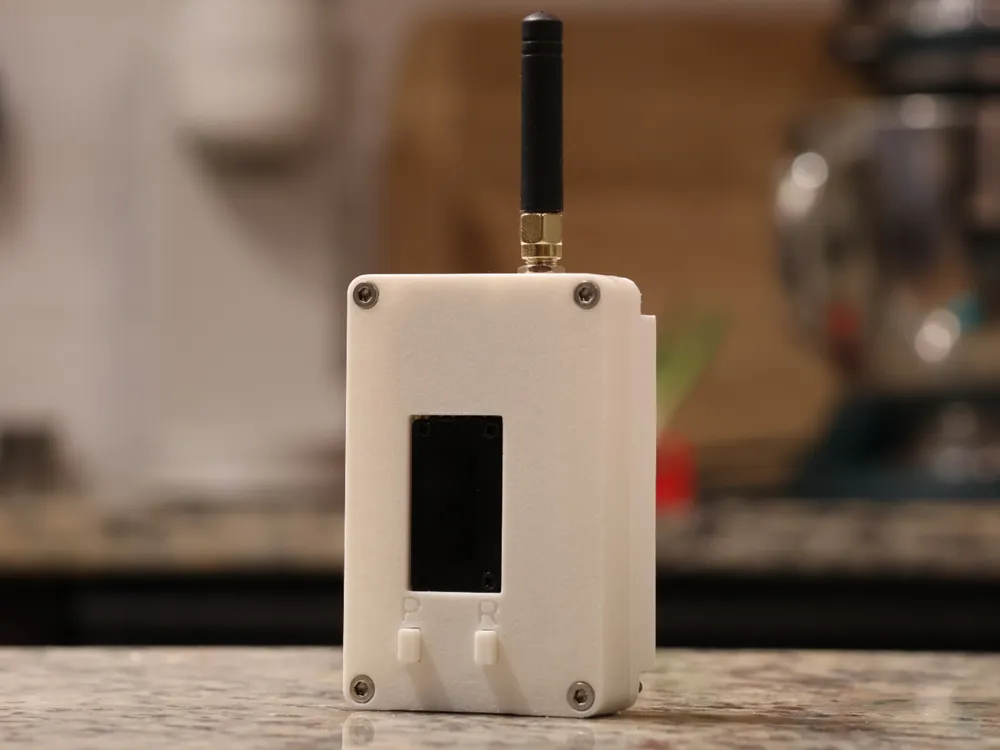

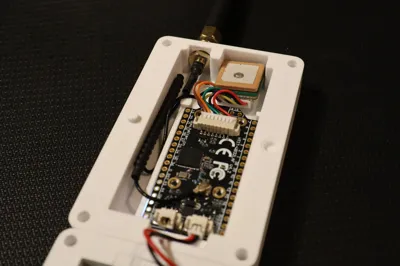

A redesigned Heltec V4 LoRa Case (V3), now featuring a dedicated GPS module cutout and precise locating lugs for cleaner assembly/better alignment and new printed buttons which work much better.

(Old back plate is still compatible with the new V3 front plate.)

This case includes:

USB-C port and Physical buttons with the V3.0 model!

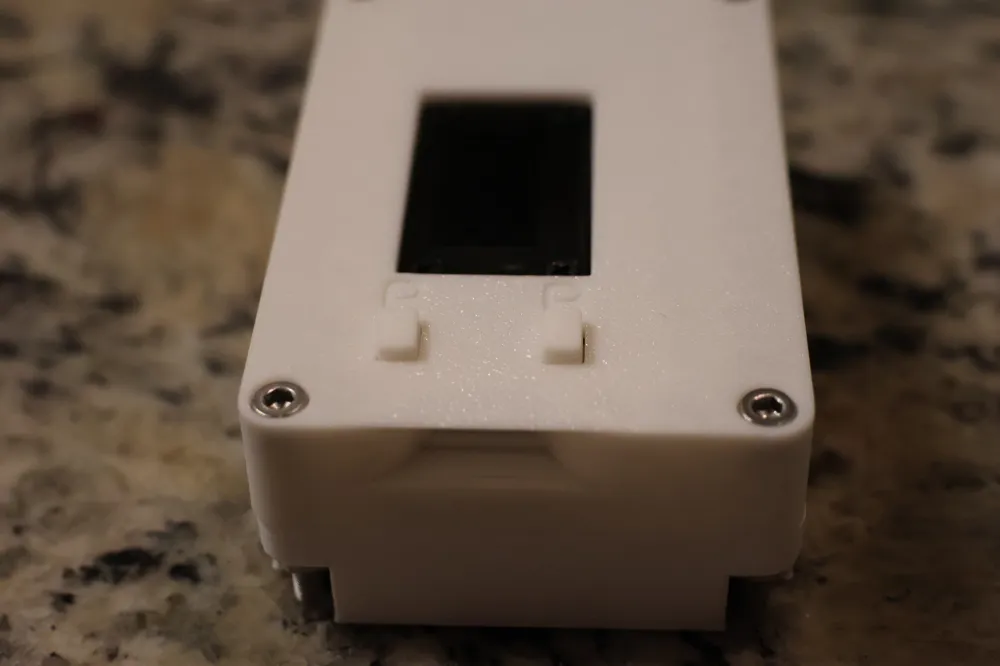

A recessed OLED screen window to reduce scratches

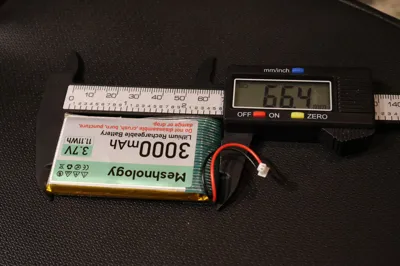

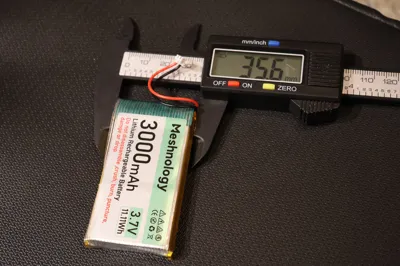

Support for a 3000 mAh Li-ion battery (fits internally)

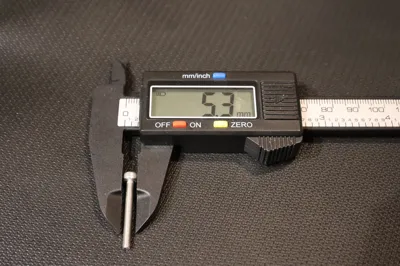

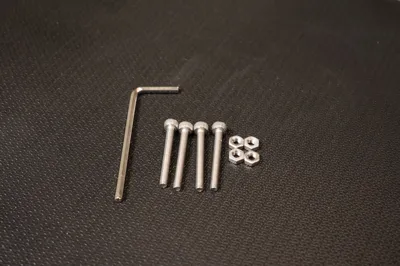

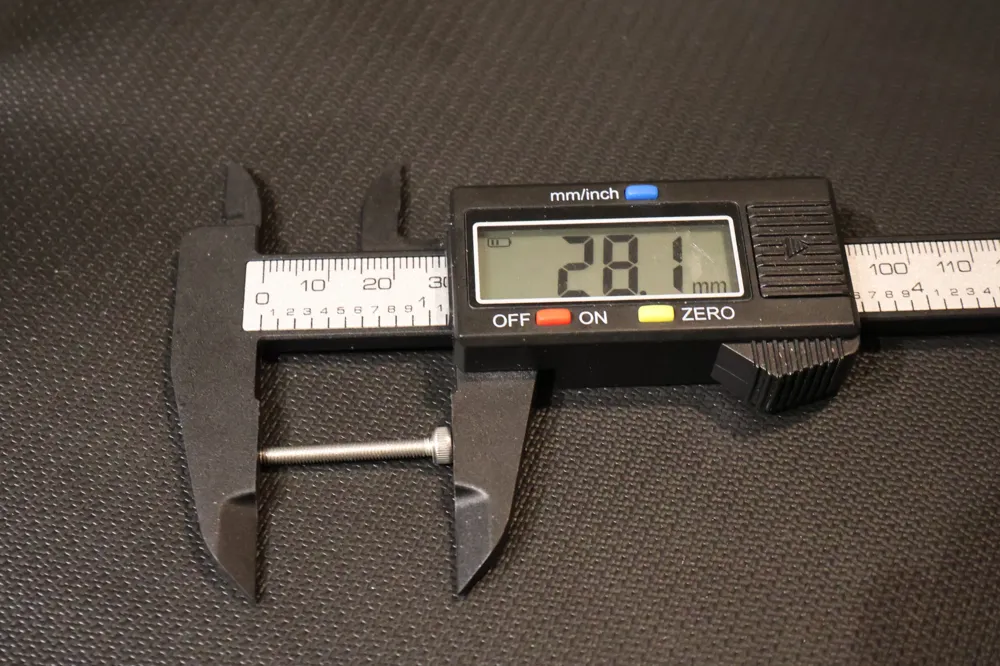

Mounting points for M3 screws (20mm+ recommended)

Perfect for Heltec V4 Meshtastic builds, and anyone wanting a durable, form-fitting printed enclosure.
