Description

All Compatible Lightbox Frames & Mounts Available Here!

🛠️ Recommended Gear

Check out my Amazon Storefront by clicking here!

Bed Adhesion (Fix First Layer Issues) Magnets (for optional mounts)

Custom One-Off Designs Available - CLICK HERE

Printing tips are located at the bottom of this listing

___________________________________________________________________________

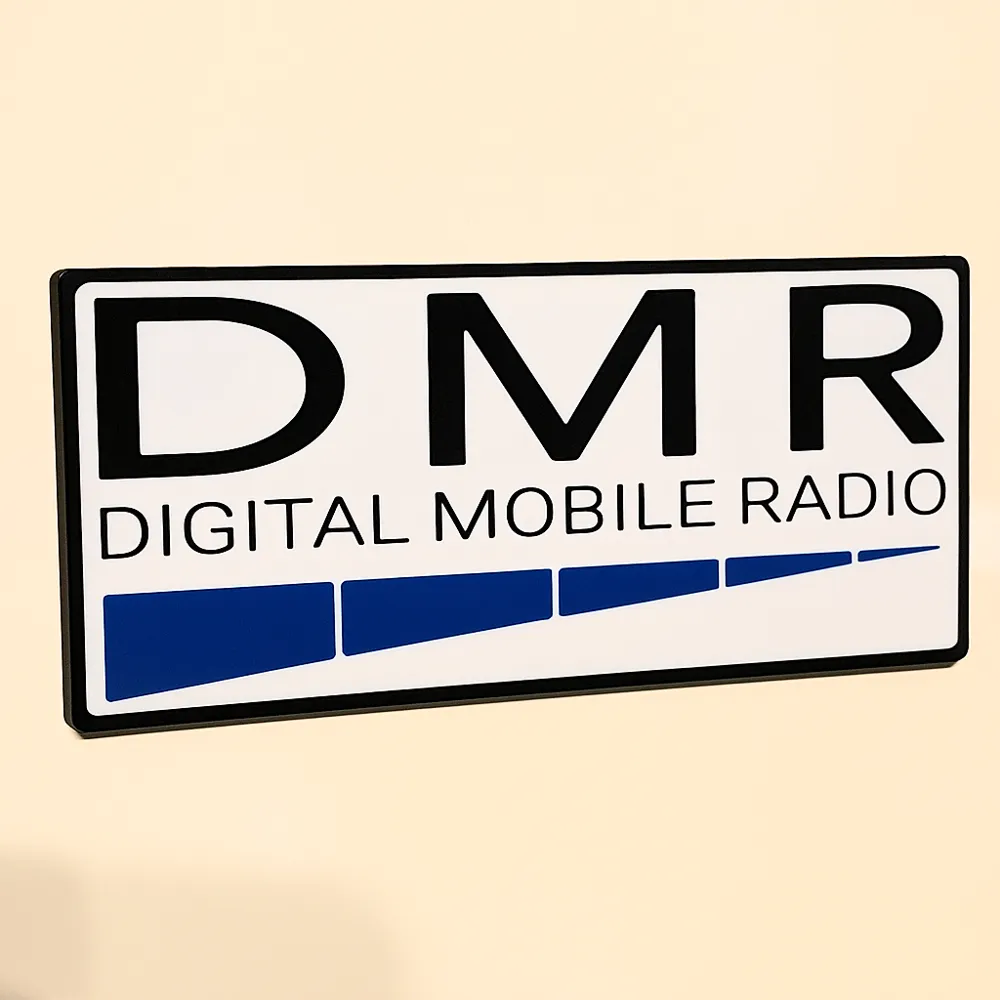

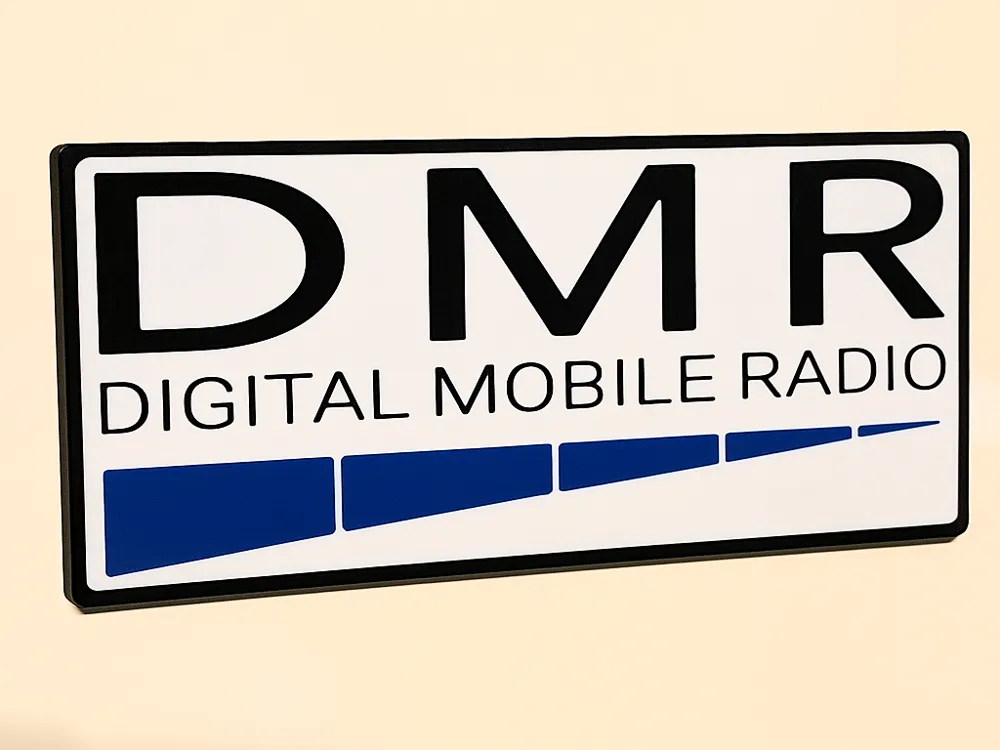

134x60x5mm

Face down, 3 color printing with recess to accept up to 6 of the 12 x 3 mm round magnets.

Magnets should be a press fit but can also be glued into place.

Check out all of my other HAM Radio magnets here!

_________________________________________________________________________________________________

Thanks for downloading from Chopper Originals.

If this print earned a spot on your printer and you’re out of Boosts, consider buying me a coffee ☕ to help support future designs and releases.

___________________________________________________________________________________

Affiliate Disclosure
Some links in this listing are affiliate links. As an Amazon Associate, I earn from qualifying purchases at no extra cost to you.

____________________________________________________________________________________

Having issues getting that first layer to flow and stick good? Follow these steps, it helps! ***If using an enclosed printer, be sure to remove the lid and leave door open to avoid heat creep***

If using multiple brands/types of filament, you will need to save each as a Custom Filament setting. Otherwise the settings will change when your colors switch.

Comment & Rating (5)

@W1DGL

OK, so mine didn't turn out as nice as the original, but I tried. Had one heck of a time gluing the internal parts of the "Ds" (especially the smaller ones), "R", the small "As" and the O"s". As you can see, the "i" on "Radio" didn't come out clearly. Had to use red filament because I don't have blue. Only attached 3 magnets to it at the top, even though there's spots for 6 total.

(Edited)

The designer has replied

@Chris_Robertson

What printer and filament are you using? Looks like the first layer did not adhere very well. You might also benefit from a flow calibration.

@W1DGL

Replying to @Chris_Robertson :

PLA filament on an Ender 5 S1 single color printer—it doesn't have flow calibration, at least not that I'm aware of. Had to print each color separately, then glue (Testor's plastic model cement) together. The magnets fit just fine.

(Edited)

@user_4055148537

Boosted

Print Profile

3 Color, 0.2mm layer, 2 walls, 15% infill

Nice design, made for good give aways for our ham club.

The profile uploader has replied

@Chris_Robertson

That is awesome. I never even thought about that. If you guys have any other stuff like that to print, just give me a shout.
