PTFE Y Splitter V4 (Updated Version)
Print Profile(1)
Description

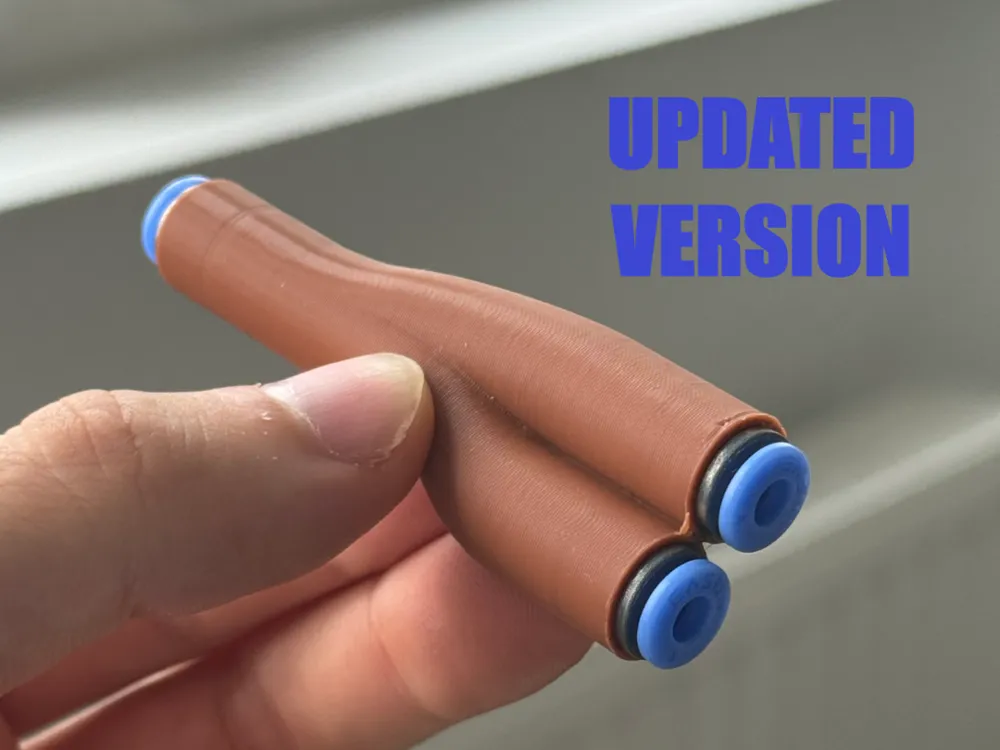

Introducing the PTFE Splitter V4!
The PTFE Splitter V4 is the next evolution of my Bowden Tube Coupler series, engineered for even smoother and more reliable filament transport. Perfect for connecting external spools to your 3D printer, it removes the hassle of repeatedly disconnecting PTFE tubes, streamlining your workflow for maximum efficiency.
Enhanced Design for Uninterrupted Performance

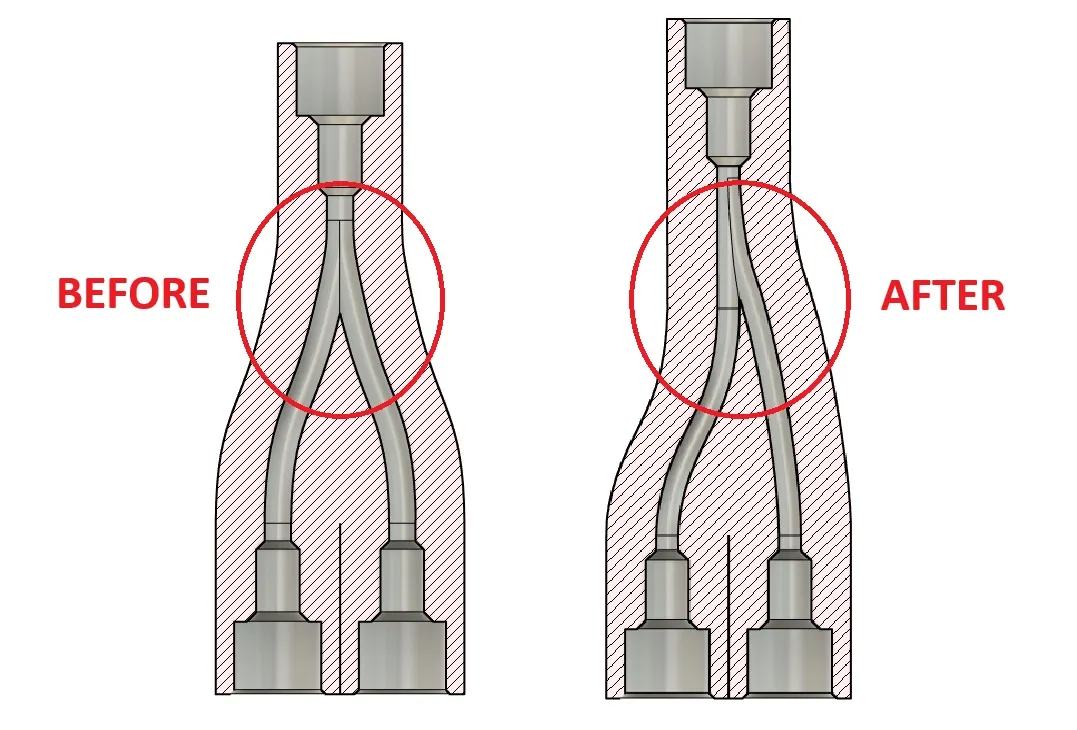

Building on the success of V3, the V4 features a refined channel junction, offering an even cleaner filament path. This improvement minimizes transition resistance at the tube intersections, resulting in smoother feeding and reduced filament wear.
Key Features:
- Optimized Internal Geometry: Enhanced junction design ensures effortless filament movement with minimal resistance.
- Compatibility: Fully supports ECAS04 pass-through connectors, with both tight-fit and standard-fit options. AliExpress Link
- Durable Build: Blue pass-through connectors provide consistent, long-term reliability.
Why Choose the PTFE Splitter V4?
- Improved Filament Path: Smoother channel junction reduces micro-jams and drag.
- Seamless Integration: Inline installation keeps your system clean and efficient.
- Proven Versatility: Performance tested with all sorts of filament setups, charged with fibers or not.
Installation Tips:
- Fully insert each PTFE tube until it reaches the internal stop.
- Always cut tube tips at a clean 90° angle.
- Press and gently rotate tubes to ensure proper seating.
Printing Recommendations:
- Orientation: Print vertically with the dual-port side on the bed.
- Settings: 0.4mm nozzle, 0.2mm layer height recommended.
- Assembly Tip: Insert the blue connectors, start with the tight-fit version. If insertion is too difficult, use the normal-fit variant.
Upgrade your filament management with the PTFE Splitter V4, refined, reliable, and ready to take your 3D printing experience to the next level.
Link of previous version : https://makerworld.com/en/models/936148-ptfe-y-splitter#profileId-901042
