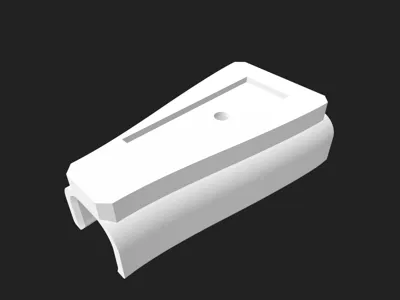

The Smoothy Mount is the official mount designed for use with the Smoothy PTFE Bowden Y Connector. The Smoothy allows you to use an external spool with your Bambu Lab machine without disconnecting your PTFE Bowden Tubes.

The Smoothy can happily rest inline without a mount which has some advantages, but some users have requested a mounting method so I'm delivering for you!

The Smoothy Mount features a universal mounting design so it can be used with either an M3x8mm screw or magnets.

Having the mount separate allows for easy removal of the Smoothy without removing fasteners like screws, etc.

I've designed a couple images with placement ideas but the location and method is up to you.

The screw mount is most secure, while the magnets allow for more flexible placement. On the X1C, the screw hole closest to the outside edge of the machine works best.

Several magnet sizes are now supported for flexibility (see files). The magnets need to be fairly strong. If you don't have strong magnets, I recommend the screw mounting method.

The Smoothy Mount is compatible with Smoothy models that have flanges at both ends, which includes:

Smoothy V2 PC4-M6
Smoothy V2 PC4-M10
Smoothy V1 PC4-M10

If you have a Smoothy V1 M6 with no flange, simply upgrade to a Smoothy V2 and you'll be good to go!

FEATURING:

No Supports
No Brims
No Overhangs

NOTES:

I printed all tests successfully with the following:

Nozzle: 0.4mm
Layer Height: 0.2mm
Walls: 4+
Infill: Gyroid
Brims: Disabled
Supports: Disabled
Orientation: Vertical, wide side down
Glue Stick: Yes
Bambu Lab X1C
Cool Plate

UPDATES:

Support for several new magnet sizes has been added!

The Smoothy can be used commercially, but can't be resold.

Enjoy!

Download The Smoothy PTFE Bowden Y Connecter here: https://makerworld.com/en/models/18174
