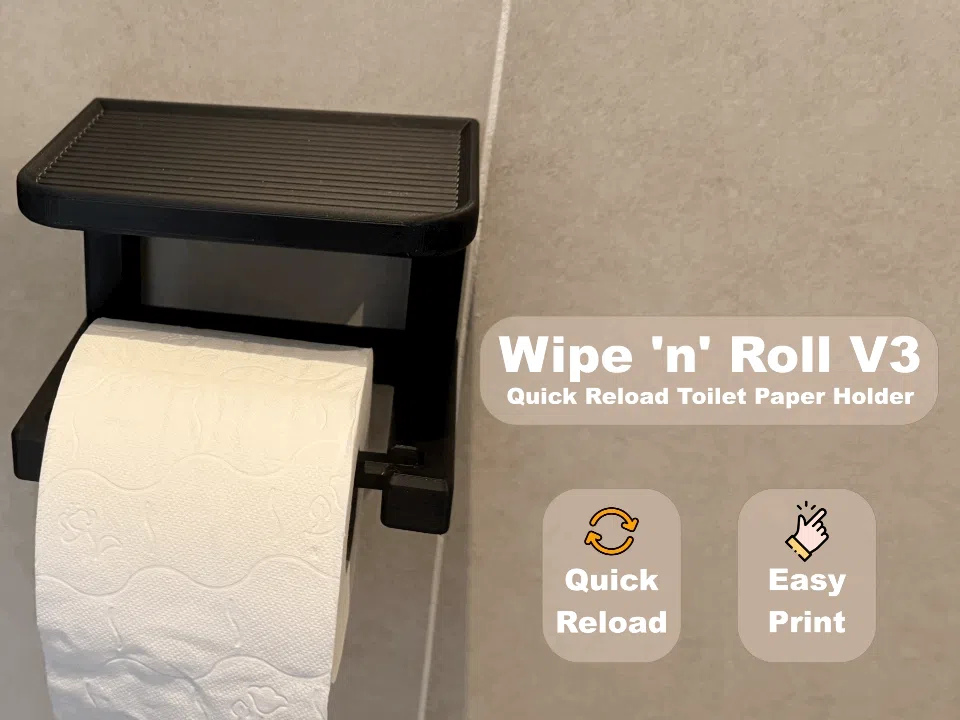

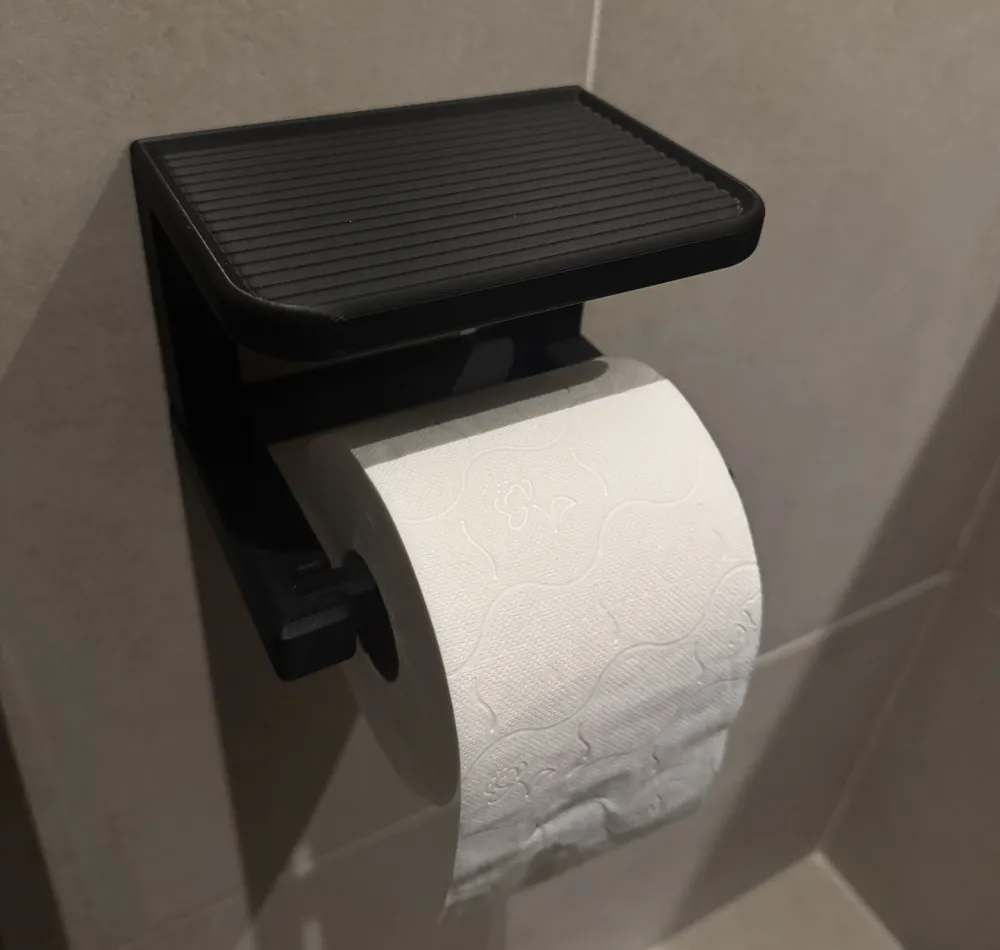

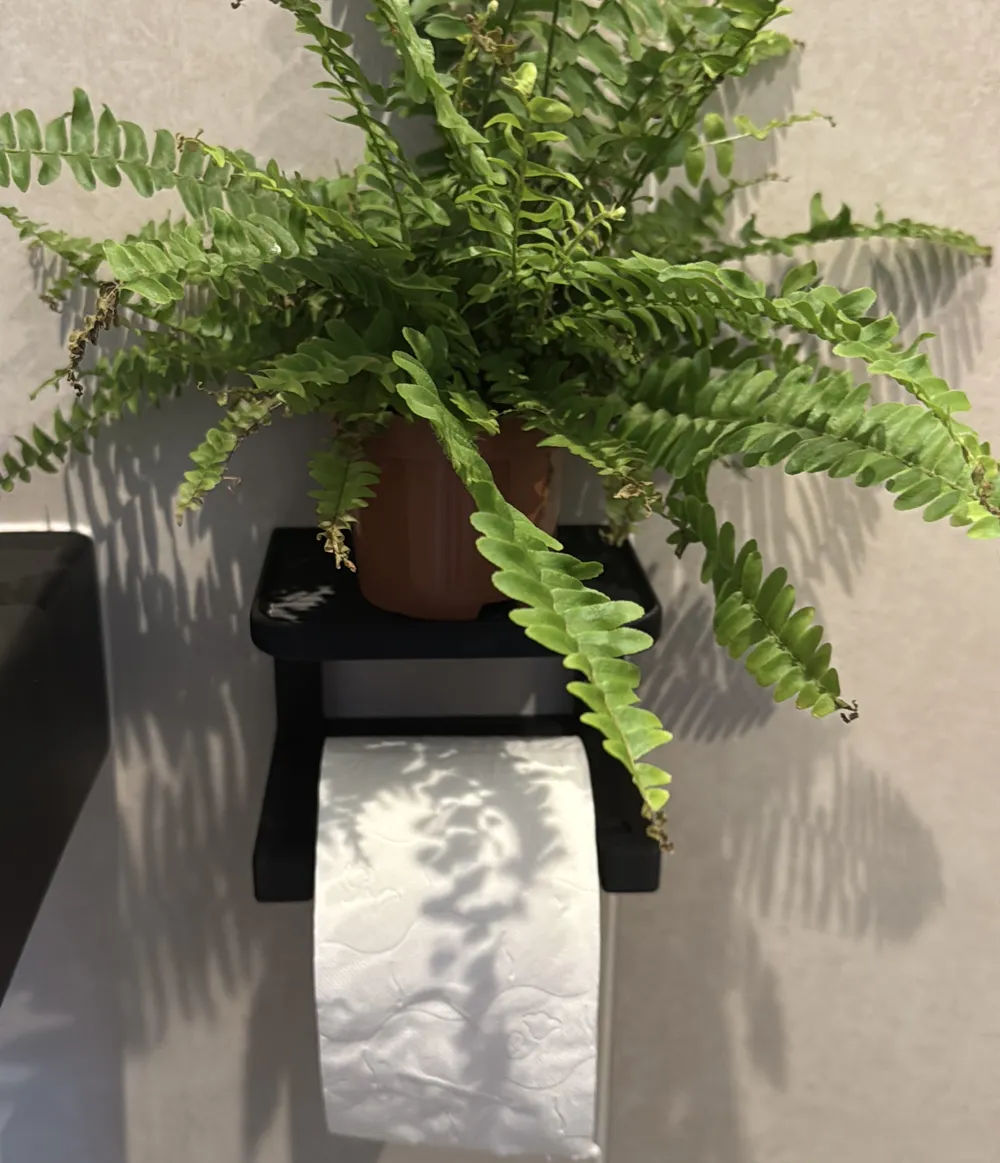

Wipe ’n’ Roll V3 - Quick Reload TP Holder

This holder makes swapping toilet paper rolls fast and easy! Designed for convenience and functionality, it’s available in EU and US versions to fit different roll sizes and mounting standards. 💩

  • Quick reload design – swap rolls in seconds

  • Sleek, practical design – keeps your space tidy
  • Easy to print – model split for simple assembly
  • Flexible mounting options – use screws or tape

Version details:

• EU version

 – Holds rolls up to 100 mm wide

 – Mounting holes 75.25 mm apart



• US version

 – Holds rolls up to 120 mm wide

 – Mounting holes 95.25 mm apart





How to Assemble

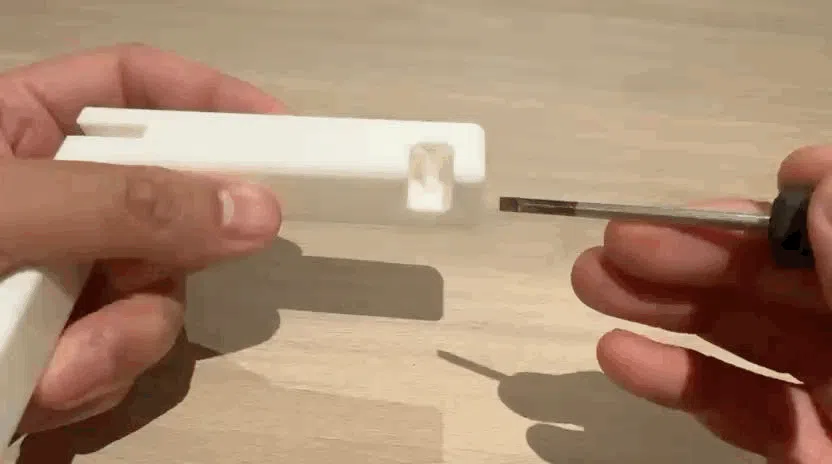

1. Remove the tree supports from both sides.

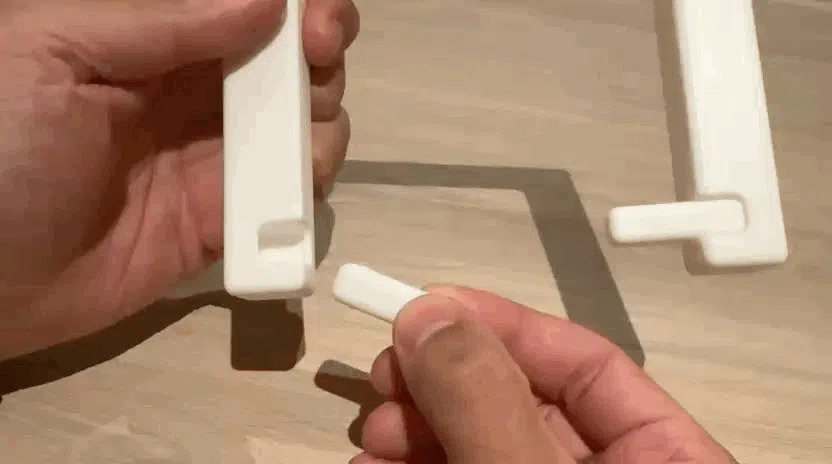

2. Insert the pin from the side until it clicks into place. Wiggle it slightly - the pin should be locked in position but still able to fall down when the holder is upright.

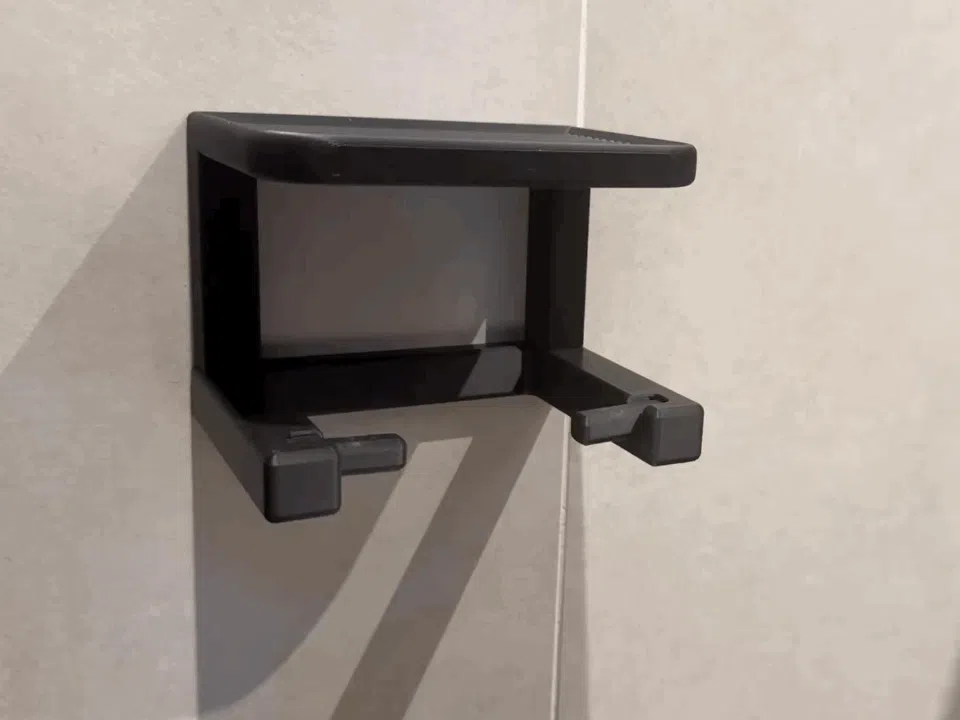

(GIF coming soon…)3. Slide the Tray (part 2) onto the holder from the back until it fits securely.

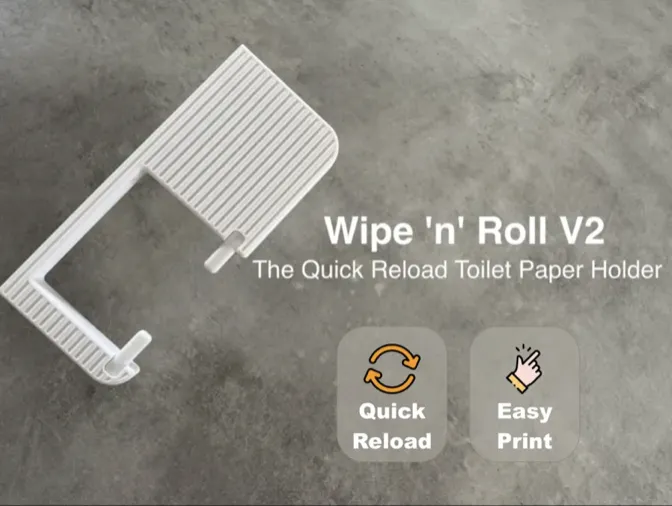

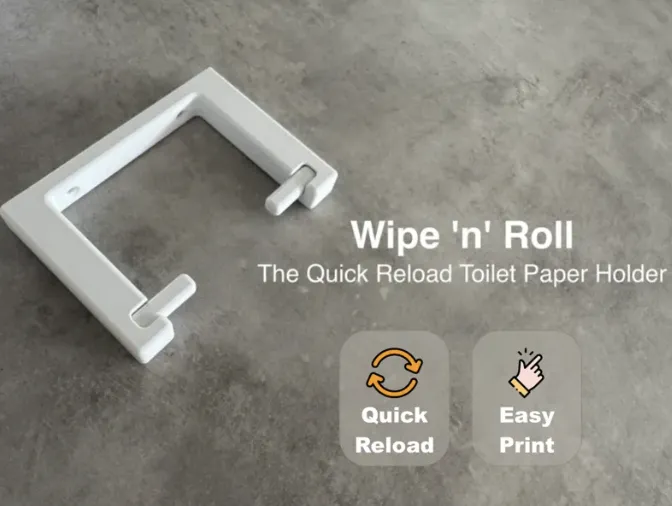

Additional Toilet Paper Holders

CLICK THE IMAGE
CLICK THE IMAGE


Try it out and share your thoughts😁 Feel free to give it a like or boost!🙏

Boost Me (for free)

Thanks a ton! 🙌

toilet paper
toilet paper holder
modern design
functional
home
organizer
wall mount
bathroom
bathroom accesories
wc

Comment & Rating (76)

(0/1000)
@TLN3D.
Pinned by Designer
A special thank you to the makers who boosted this model ❤️ Your extra support really motivates me to keep building and sharing. @user_3375006343 @user_1236643775 @user_1627097027 @DPM3D @RougeRasha @user_190730925 @user_1628658144 @user_1274696174 @bellsolmi @user_2471611375 @user_2471611375 @Mini_Rio @RougeRasha @user_1914422870 @darrowc @BytePir8 @user_1753096259 @user_1753096259 @MDCreations @Ankeroth @Ankeroth @user_2921526627 @naeh @user_1457377321 @neverhome @kalvas83 @Audifreak117
(Edited)
0
Reply
@Audifreak117
Boosted
Print Profile
(EU) Wipe 'n' Roll V3
Really very chic, tolerances for the connection fit perfectly. Printed on the H2C with Bambu Basic PETG
The profile uploader has replied
Show original
profile
1
Reply
@TLN3D.
Glad you like it 😊 It’s really nice seeing my design in people’s homes! Thanks so much for sharing!
(Edited)
1
Reply
@Audifreak117
Boosted
Replying to @TLN3D. :
My mother really loves it, here's another boost for you and your work
(Edited)
Show original
profile
1
Reply
@TLN3D.
Replying to @Audifreak117 :
Thanks a lot! I’m really happy she enjoys it, that really made my day :)
(Edited)
1
Reply
@darrowc
Boosted
Nice and sturdy build! I was impatient and didn't read the full details provided—this is not wide enough to fit US rolls. Charmin Ultra Soft in the photo for reference. Regardless, it's a nice design, so I'll be editing it and reprinting to the correct size!
The designer has replied
designer
1
Reply
@TLN3D.
Thank you so much for your kind words, encouragement, and for sharing the image. I’m not entirely sure about the different dimensions for the US rolls, but you’ve definitely motivated me to try making one. I’ll update you once it’s done! 😊
0
Reply
@TLN3D.
@darrowc The US version of Wipe ’n’ Roll V3 is now released!🎉 I have included a print profile to make printing easy. Let me know what you think once you try it.
0
Reply
@darrowc
Boosted
Replying to @TLN3D. :
Thanks so much! I'll give it a try :)
0
Reply
@ThiagoFranco
Print Profile
(US) Wipe 'n' Roll V3
perfect project
(Edited)
Show original
profile
1
Reply
@Claymation2026
top shelf is for the 3 shells
0
Reply
@AMPT3D
Print Profile
(EU) Wipe 'n' Roll V3
Easy to print and fits perfectly Thanks for your design
The profile uploader has replied
Show original
profile
1
Reply
@TLN3D.
No problem! Glad you like it :) Thanks for sharing your print!
0
Reply
@user_1627097027
Boosted
Print Profile
(EU) Wipe 'n' Roll V3
Turned out really nice. thank you. PLA
The profile uploader has replied
profile
1
Reply
@TLN3D.
I’m so glad you like it! 😊 Thank you for the boost and for sharing your print. It really motivates me! 💪
0
Reply
@Mr.Ham
Print Profile
(US) Wipe 'n' Roll V3
Printer perfectly. Arms are a little too short for the brand I use, but that’s an easy adjustment
profile
1
Reply
@user_100082872
The us version fits the roll but it's extremely tight, adding a bit more wiggle room to the left and right would be best.
The designer has replied
designer
1
Reply
@TLN3D.
Thank you for mentioning it, I sadly had to work with chatgpts measurements of a US roll sinds am from EU. I will modify it tommorow! am sorry for the filament waste🙏🏼
0
Reply
@user_100082872
Replying to @TLN3D. :
No worries I am still going to use it but just could use a small amount more tolerance like 1cm or so.
0
Reply
@TLN3D.
Replying to @user_100082872 :
I didn’t see your message in time and had already updated the print profile. I’ve increased the width by 5 mm. The roll shouldn’t be too loose, so I’m hoping 5 mm is the right balance. I’m relying on feedback like yours since I can’t test the US rolls myself. Thanks a lot for helping improve it!
0
Reply
@jakeyr96
do you have a version for UK rolls? I tried the eu one and it’s too narrow. maybe I’ll try the US one
The designer has replied
0
Reply
@TLN3D.
I’m not sure what the roll sizes are in the UK. The US version supports rolls that are 20mm wider than the EU version (EU = 100mm, US = 120mm). You could try it to see if it fits, or feel free to share the roll dimensions with me and I’ll check for you.
0
Reply
@jakeyr96
Replying to @TLN3D. :
hi mate, yeah i printed the US version and it fit well so far! ill get it mounted this weekend and upload a pic!
0
Reply
@jakeyr96
Replying to @jakeyr96 :
uk rolls are 104 but the eu one is miles too small. but the US one works okay but sometimes the roll falls off the holder. I think if the pins were maybe 2.5mm longer each, the UK rolls would fit the US one perfect
(Edited)
0
Reply
@nasastudio
Print Profile
(EU) Wipe 'n' Roll V3
Exceptional print, no defects. It does its job! Printed with Elegoo PLA Matte using default settings
The profile uploader has replied
Show original
profile
1
Reply
@TLN3D.
Thank you for sharing, am glad you like it!😉 have a great wipe! 🧻
(Edited)
1
Reply
@user_853041240
Print Profile
(EU) Wipe 'n' Roll V3
Perfect!
The profile uploader has replied
Show original
profile
1
Reply
@TLN3D.
Glad you like it! 😊
0
Reply
