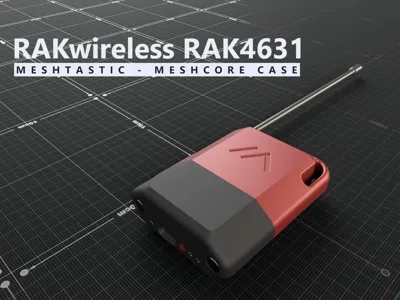

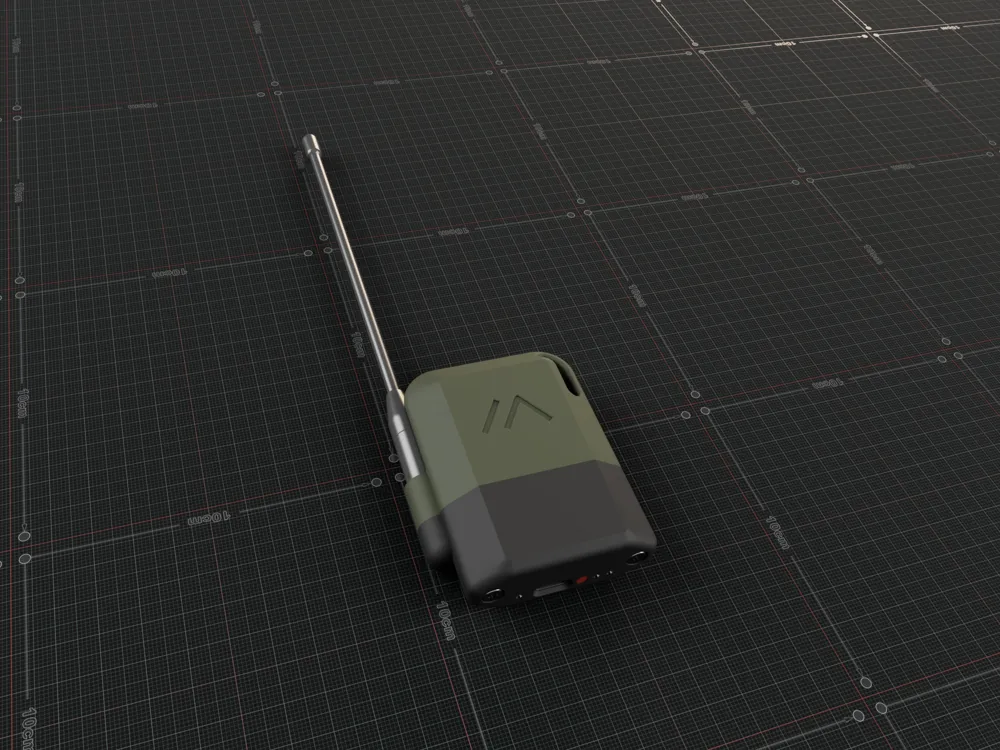

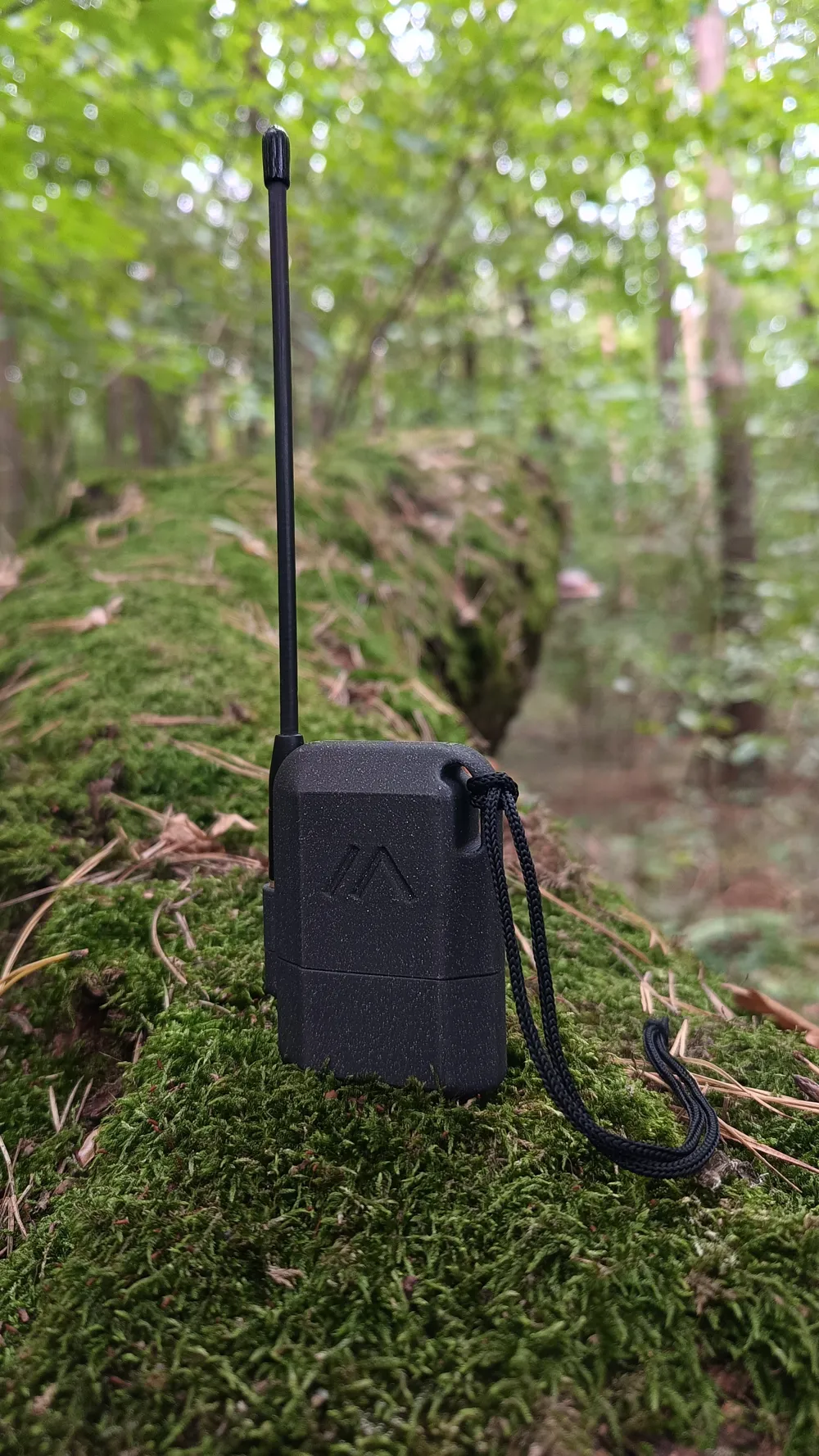

Case for WisBlock RAK19007 & Core RAK4631 with GPS & Buzzer

https://makerworld.com/en/models/1977851-case-for-wisblock-rak19007-core-rak4631-with-gps#profileId-2127353

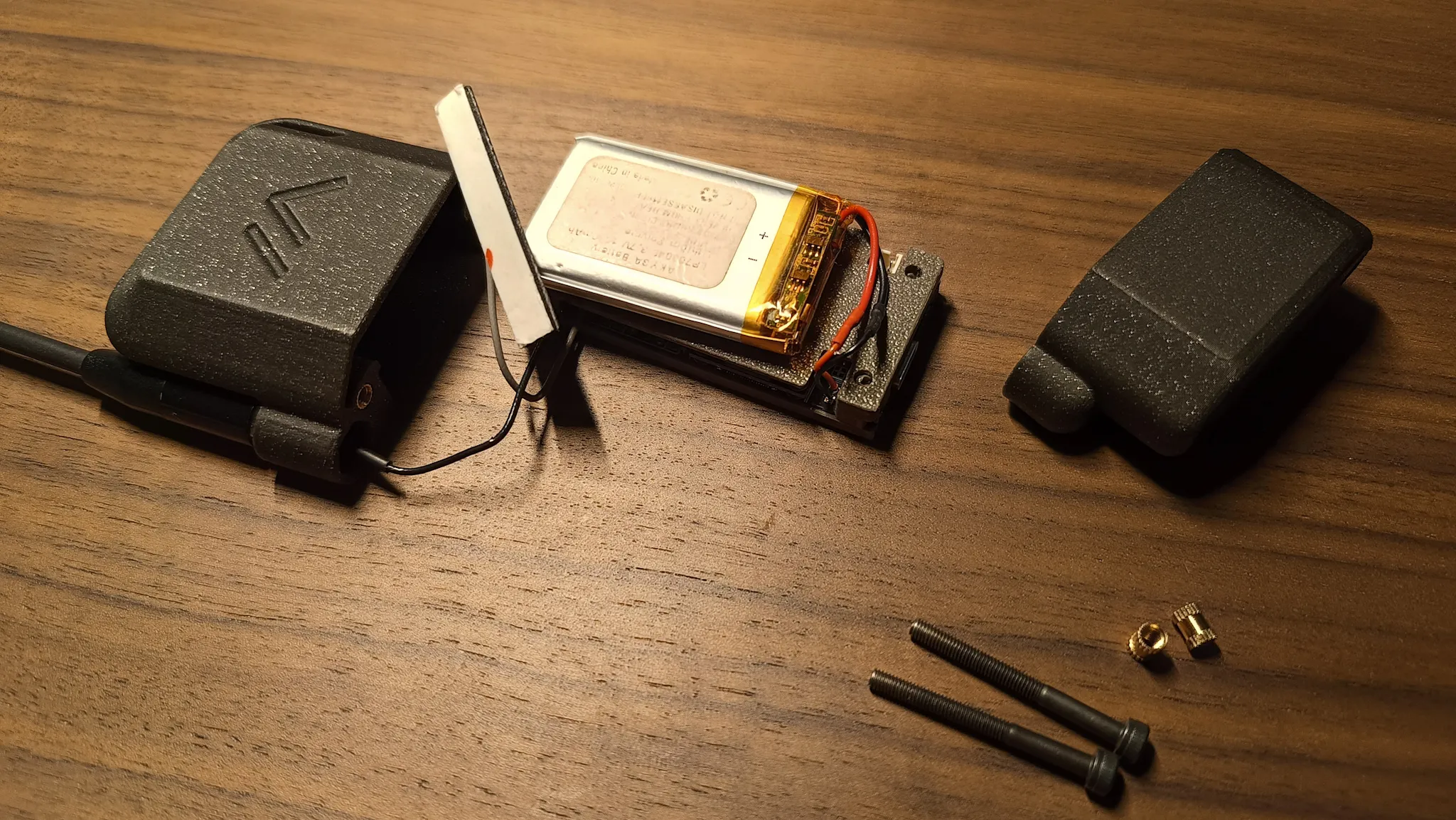

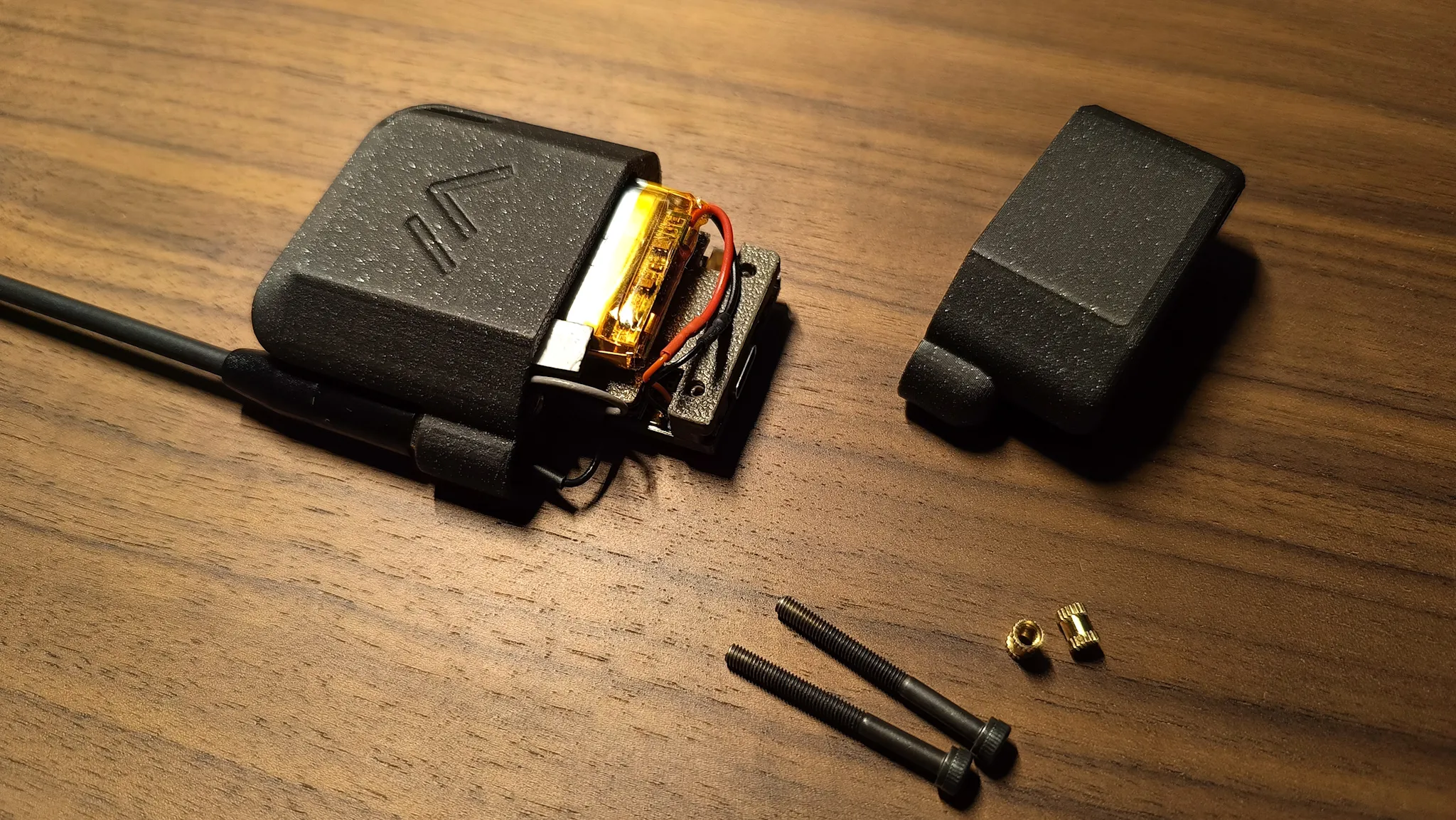

Fits:

WisBlock RAK19007 & Core RAK4631 - https://store.rakwireless.com/products/wisblock-meshtastic-starter-kit?variant=43884034621638
Battery 7mm x 30mm x 48mm
SMA Pigtail 10cm
Insert Nut 4pcs M2
Insert Nut 2pcs M3
Screws M2x6 4pcs
Screws M3x30 2pcs

Optional:

Quansheng UV-K5 Belt Clip https://www.amazon.com/QUANSHENG-Original-Replacement-Battery-Accessories/dp/B0D8BDP7BL

Update:

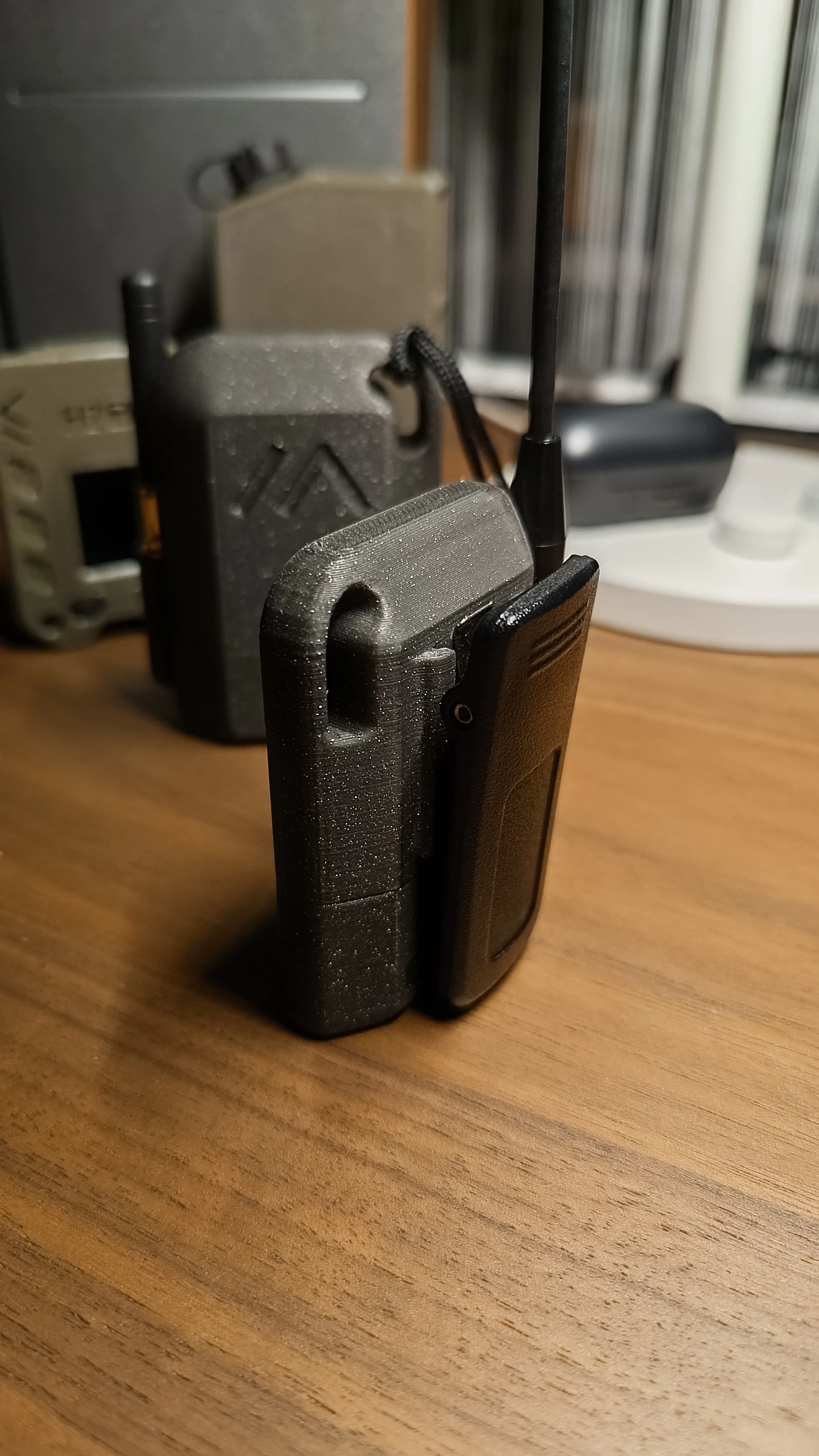

09.11.2025 Add RAK_obudowa_v1_TOP_Belt_Clip.3mf - I have added the top section of the enclosure, featuring a mounting point for the belt clip compatible with the Quansheng UV-K5.

Manual

soon…
