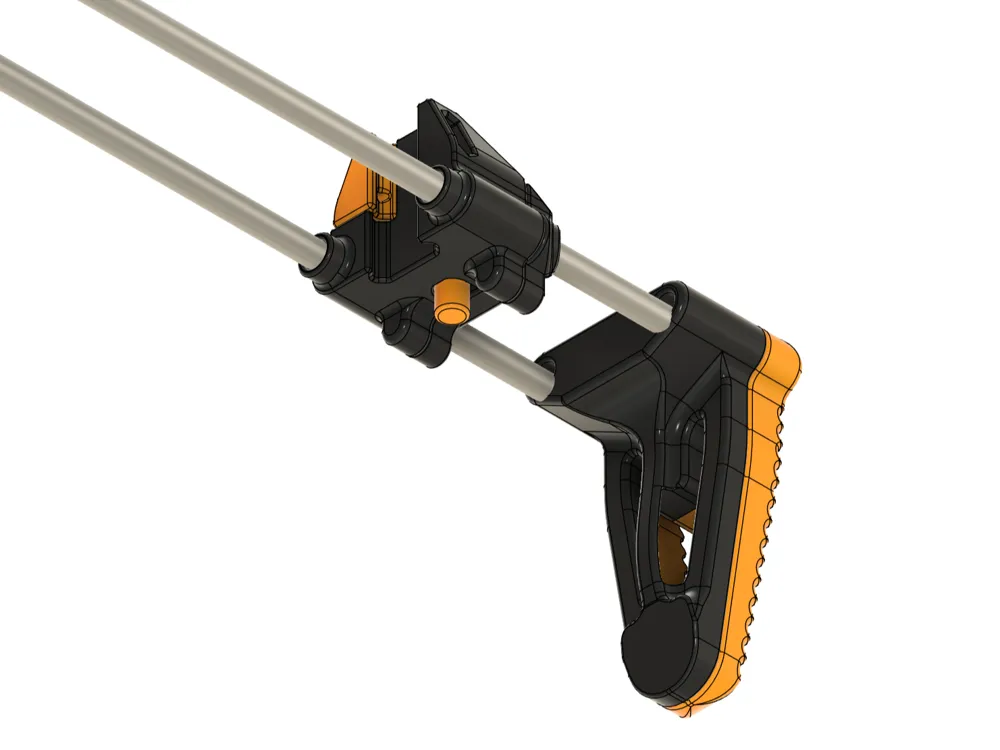

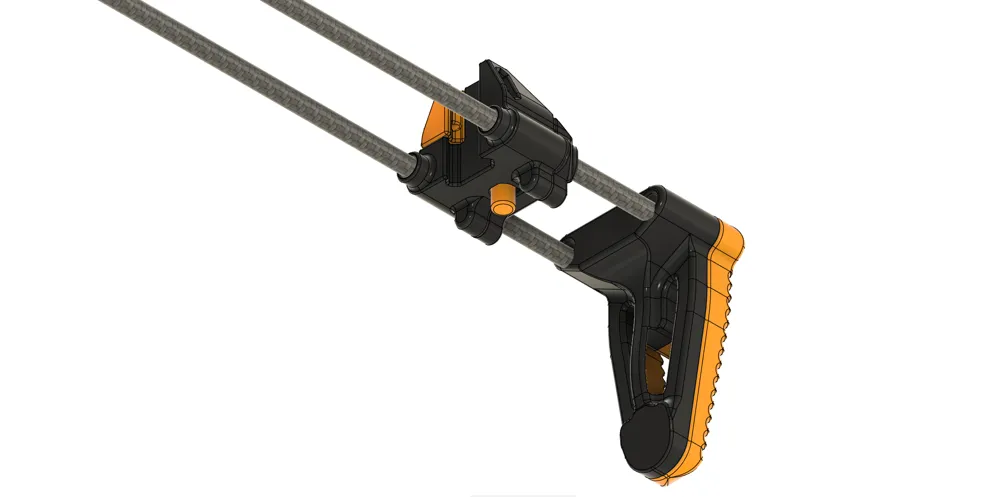

Picatinny PDW Stock for 8mm rods

First of all, this is not my design. Original design is this one made by Deltaa from printables
Kudos to him for his awesome design!

I loved the original design, but I wanted to use cheaper rods, so I bought some carbon fiber rods on Aliexpress for ~5€

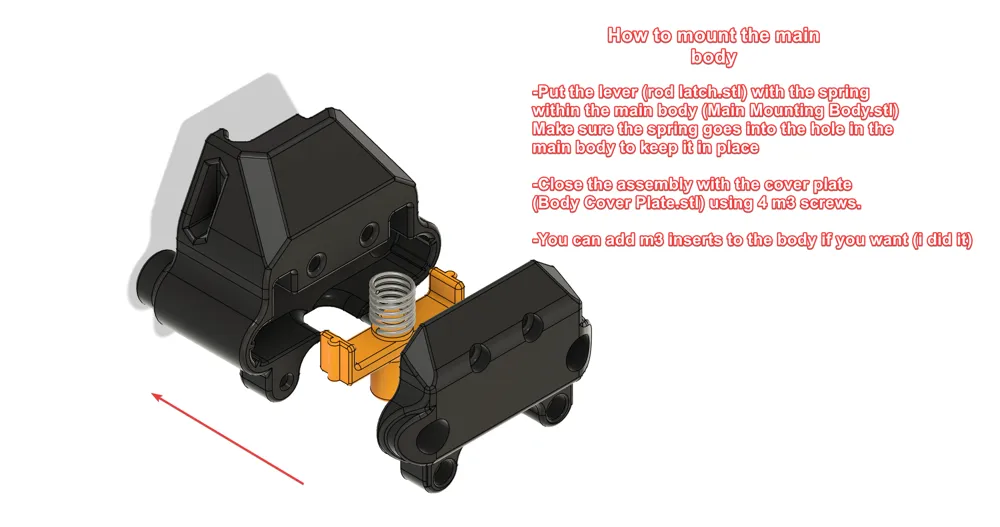

I also made some other changes to adapt them to my liking, like adding a couple of screws to improve the lid, and to be able to use spare parts I already had (basically the spring).

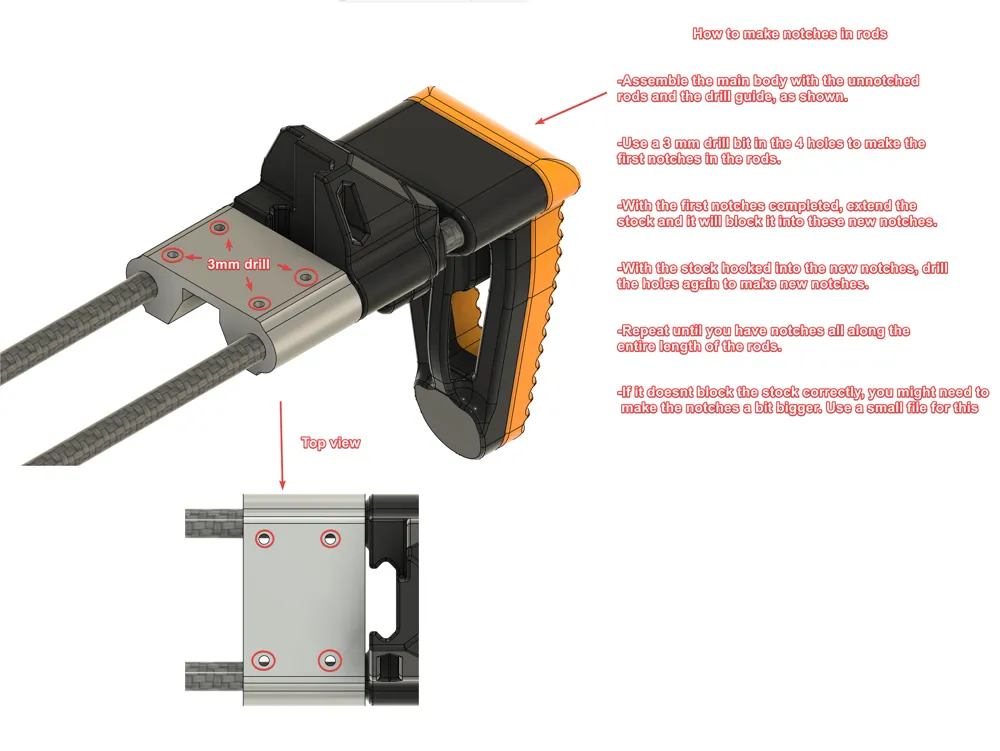

A guide for drilling the slots in the rods is included.

BOM

• 8x6x500 Carbon Fiber Rods x2: https://es.aliexpress.com/item/1005007791699804.html this include 2 rods
• 4mm m3 inserts: https://es.aliexpress.com/item/1005006002805856.html
• Spring: https://es.aliexpress.com/item/1005005402584700.html 10mm long, 8mm wide, 0,8mm wire diameter


Extra info

• Rod's diameter I bought was a mess. Rod's width was between 8mm and 8.5mm along the length of the rod, so i had to file down the main body
• The drill guide is designed for a 3mm drill bit. If the lever does not lock  the rods securely, simply file down the notches to make it larger.

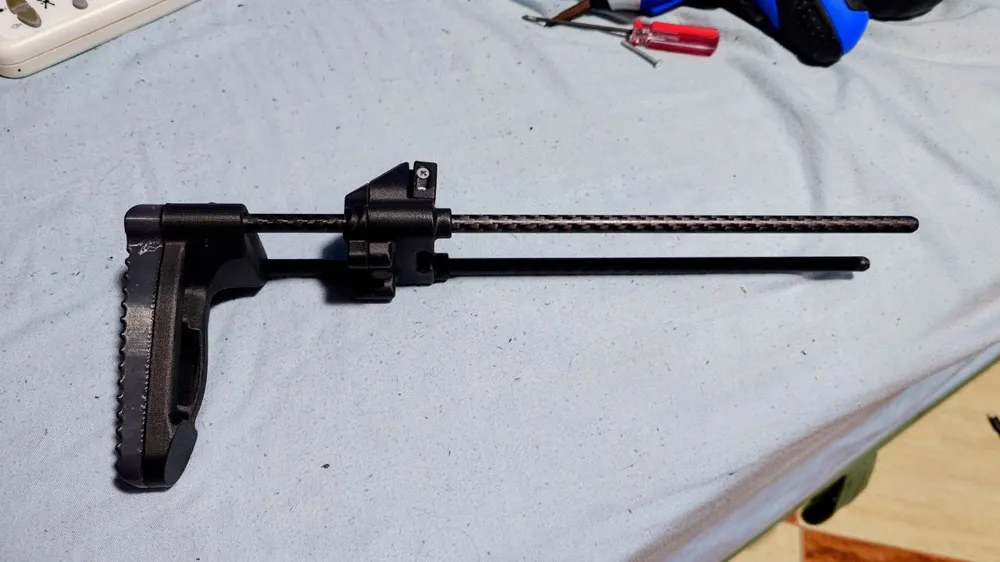

• Field tested. Worked flawlessly :D

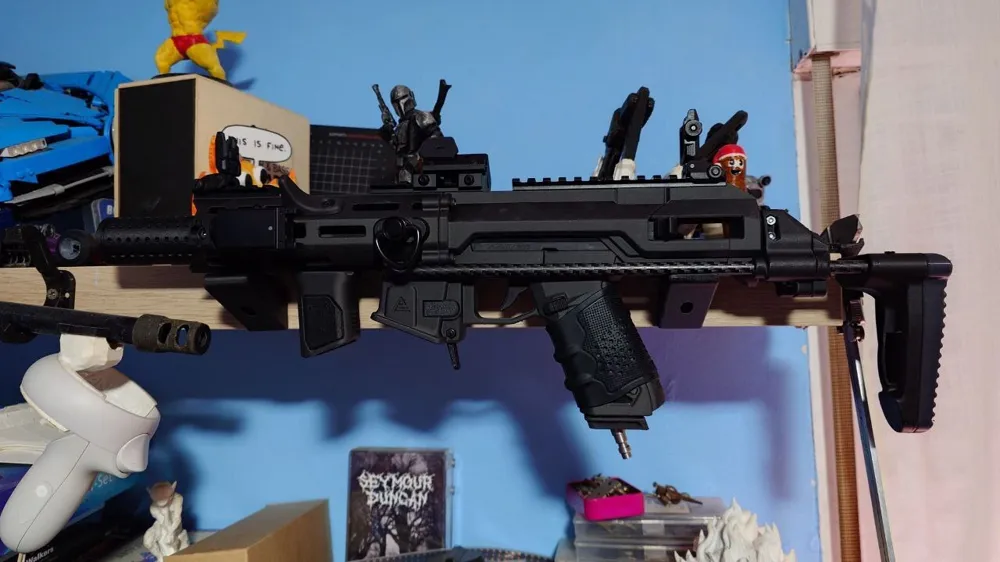

• I'm using it on an AAP01 with the well-known Firewad Panther kit, but since it's Picatinny, it will work on any platform with this system.
