🦾 MiniMechs – SpartaPack: Warrior PROTOCOL 🦾

✔ Fully compatible with all MiniMechs connections
✔ Partly compatible with Dummy13 parts (hands, feet, heads)
✔ Optimized for PLA printing

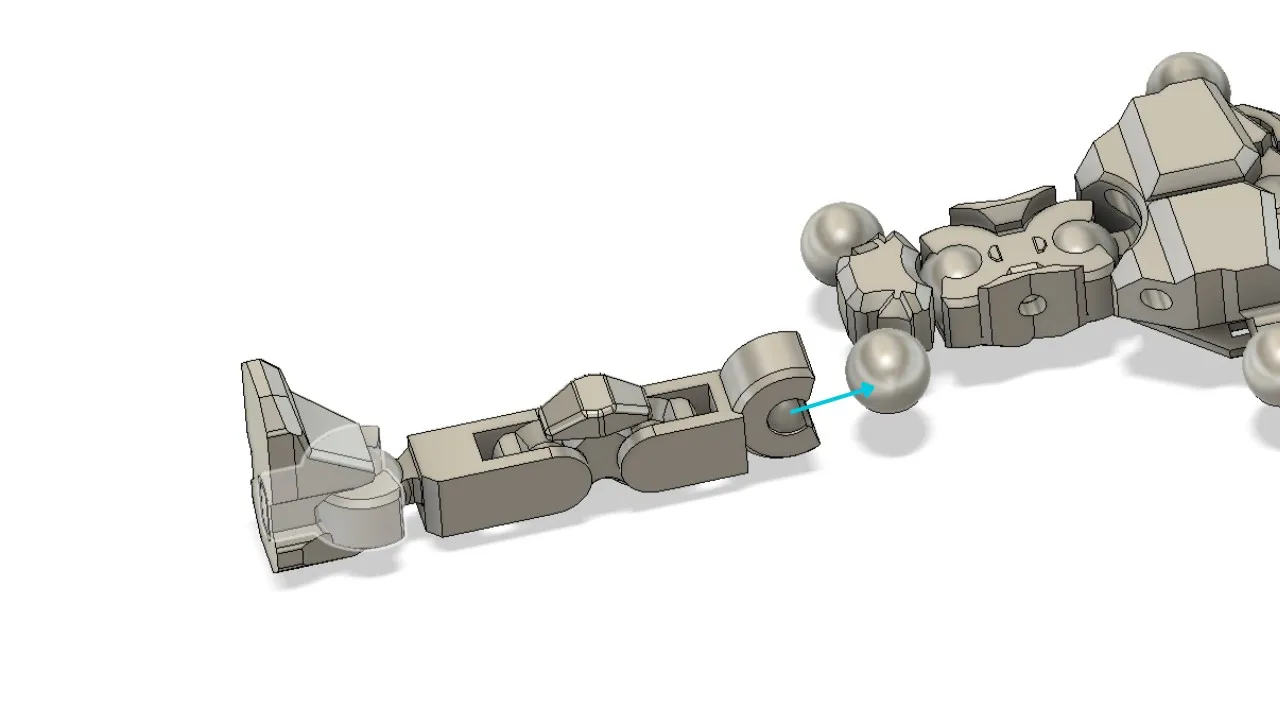

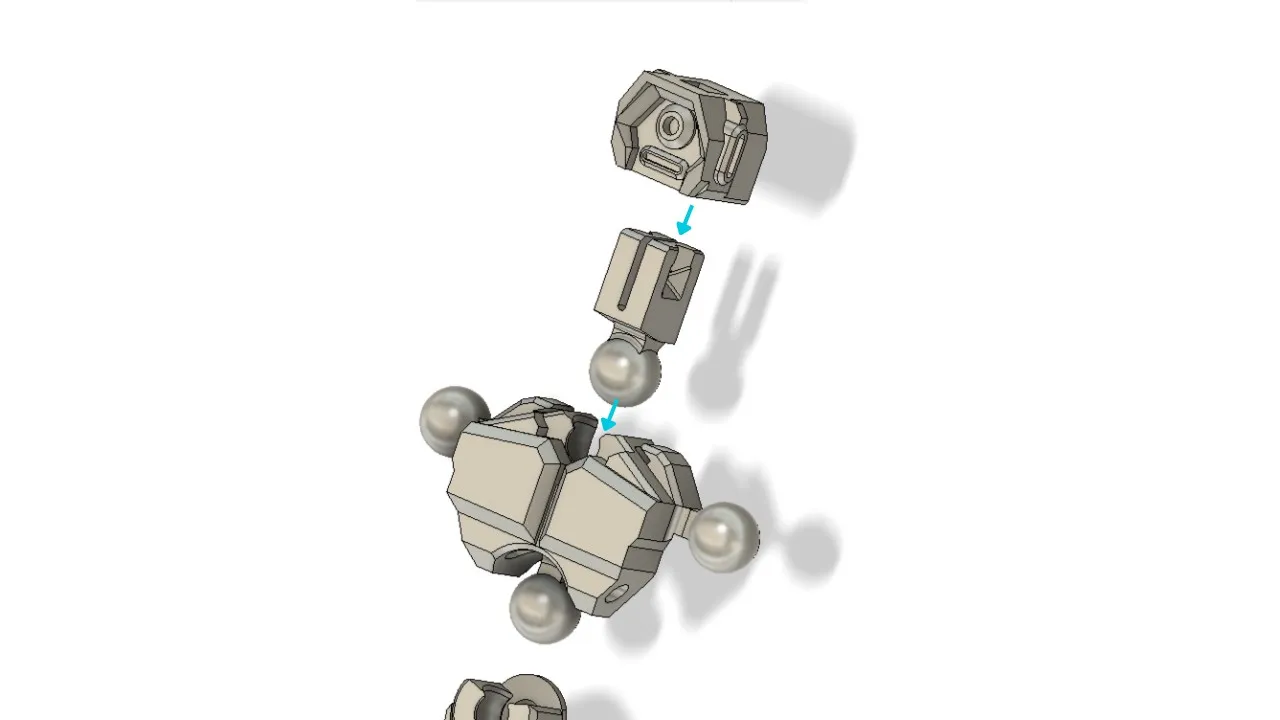

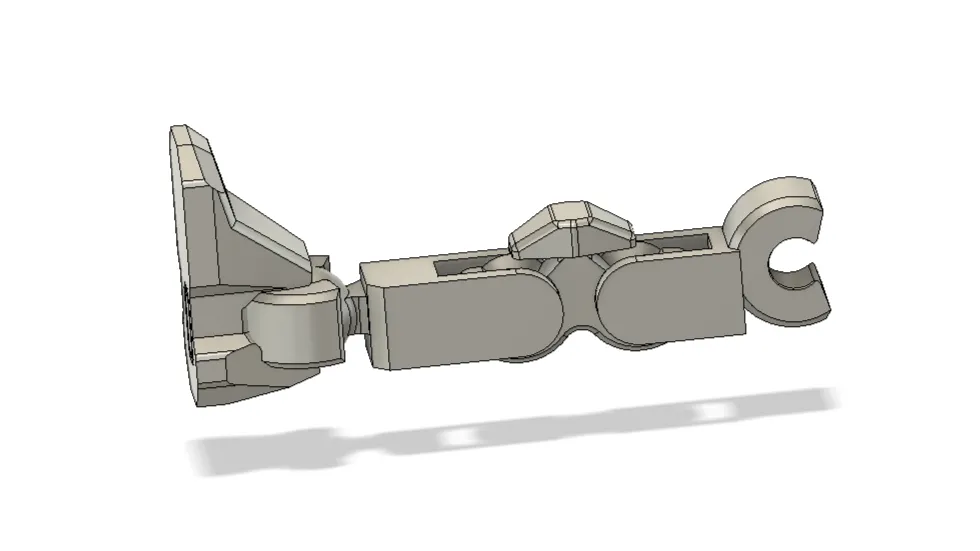

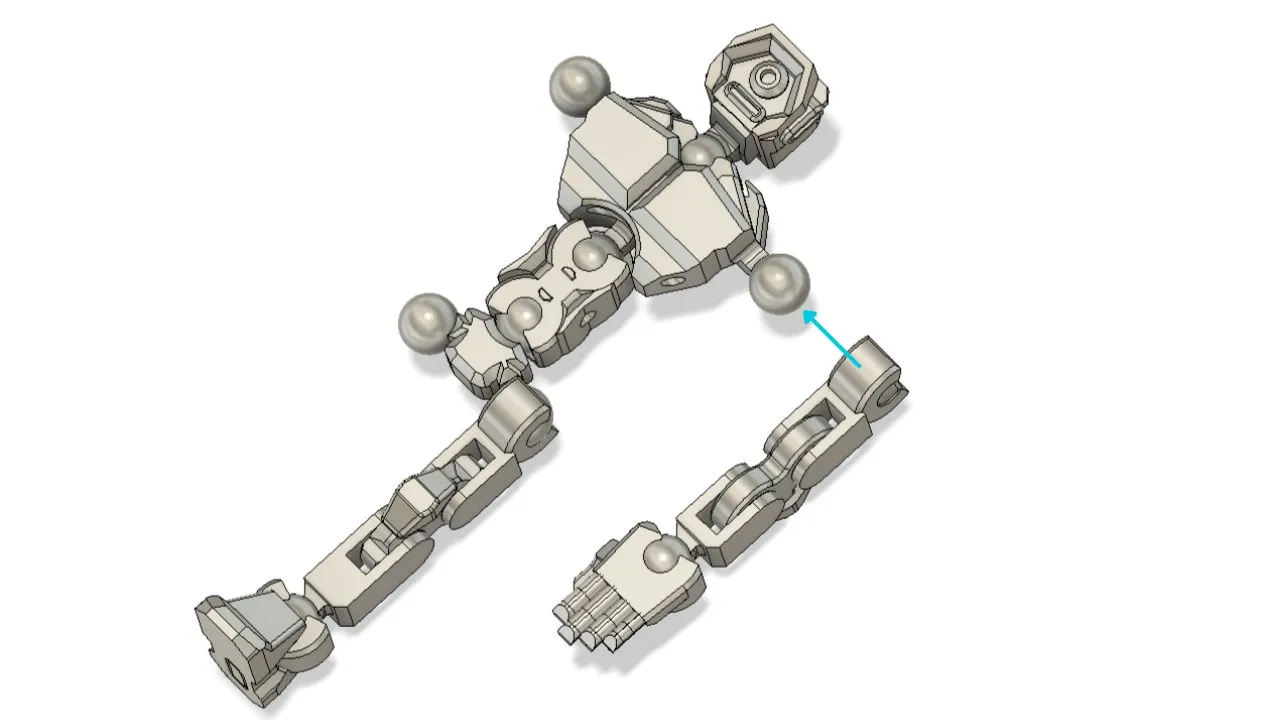

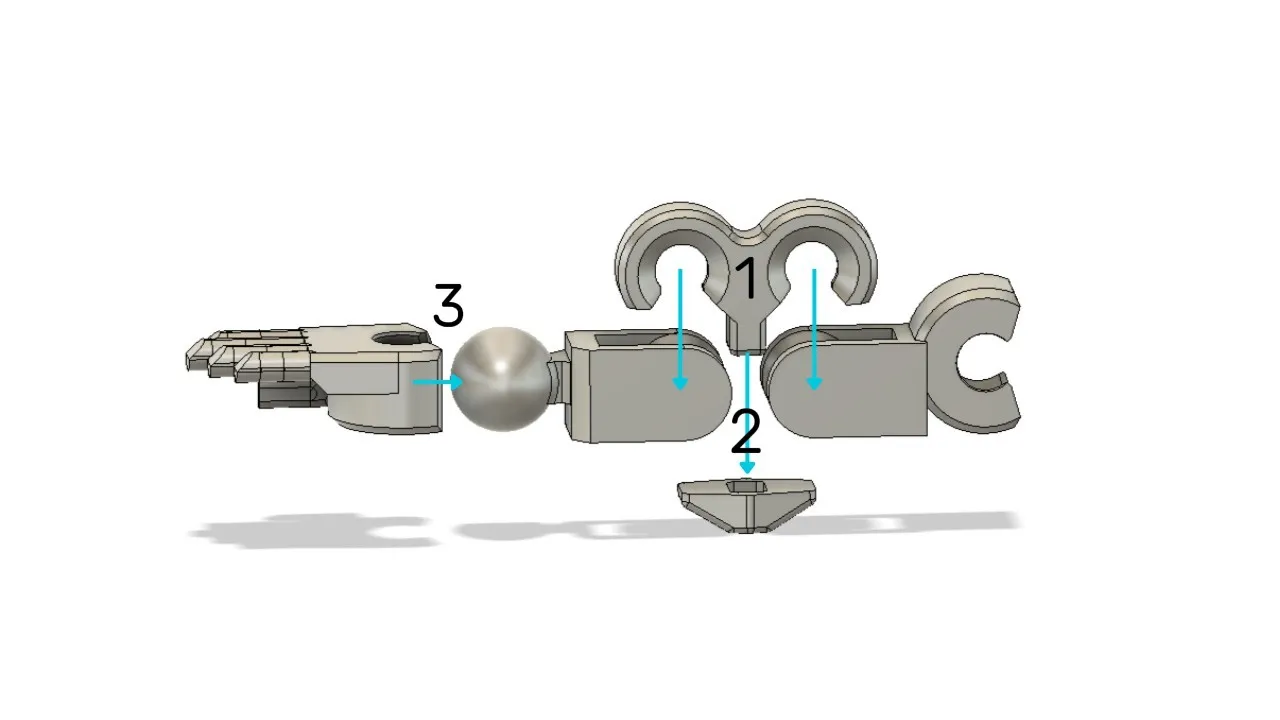

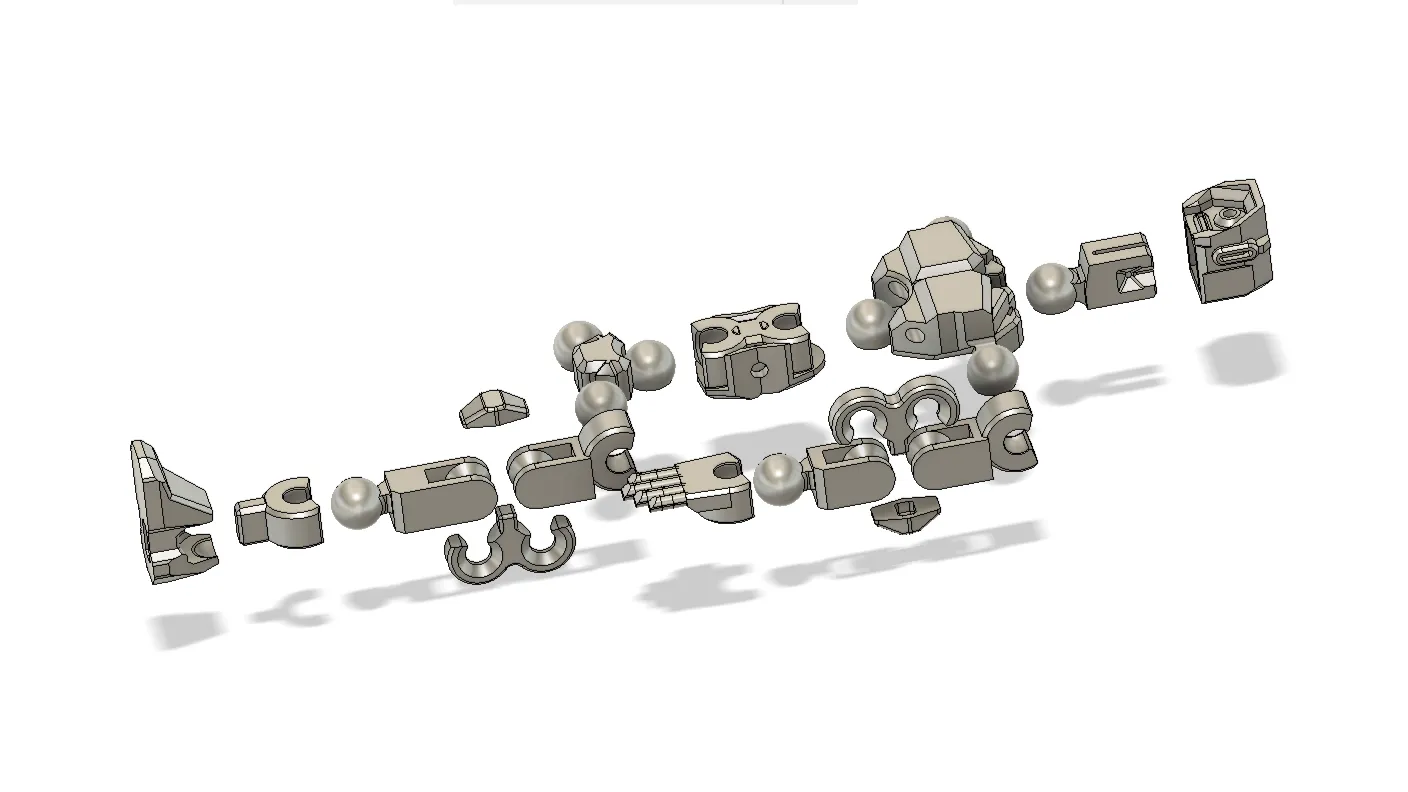

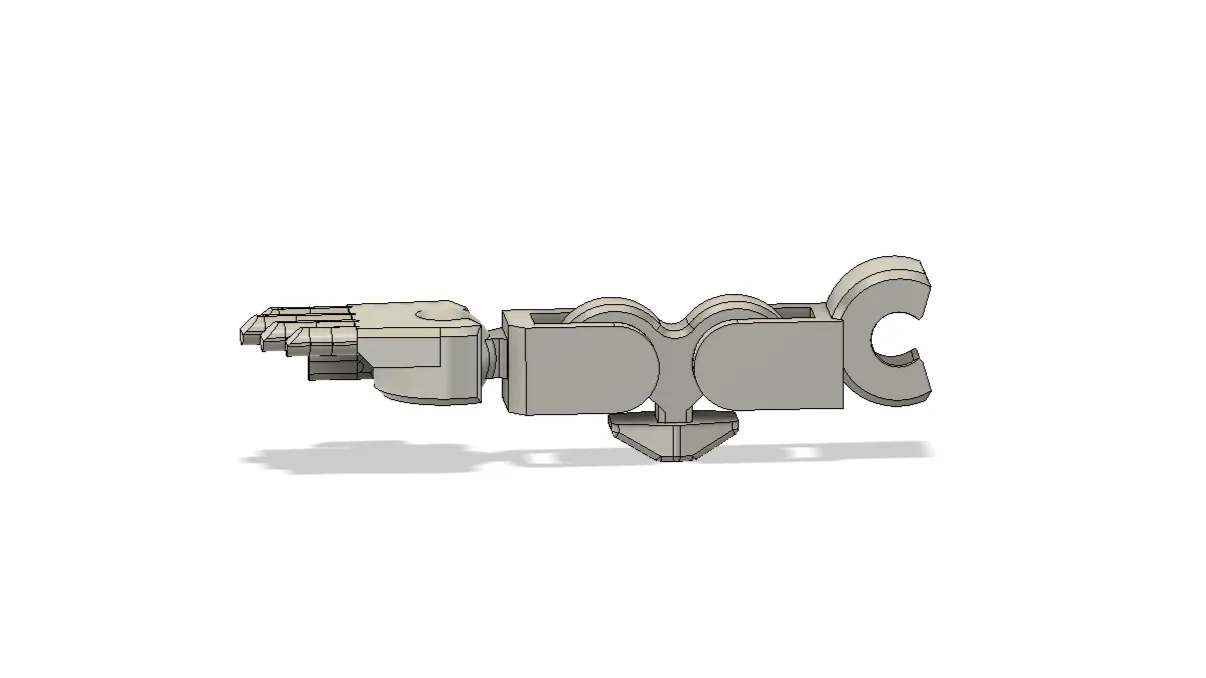

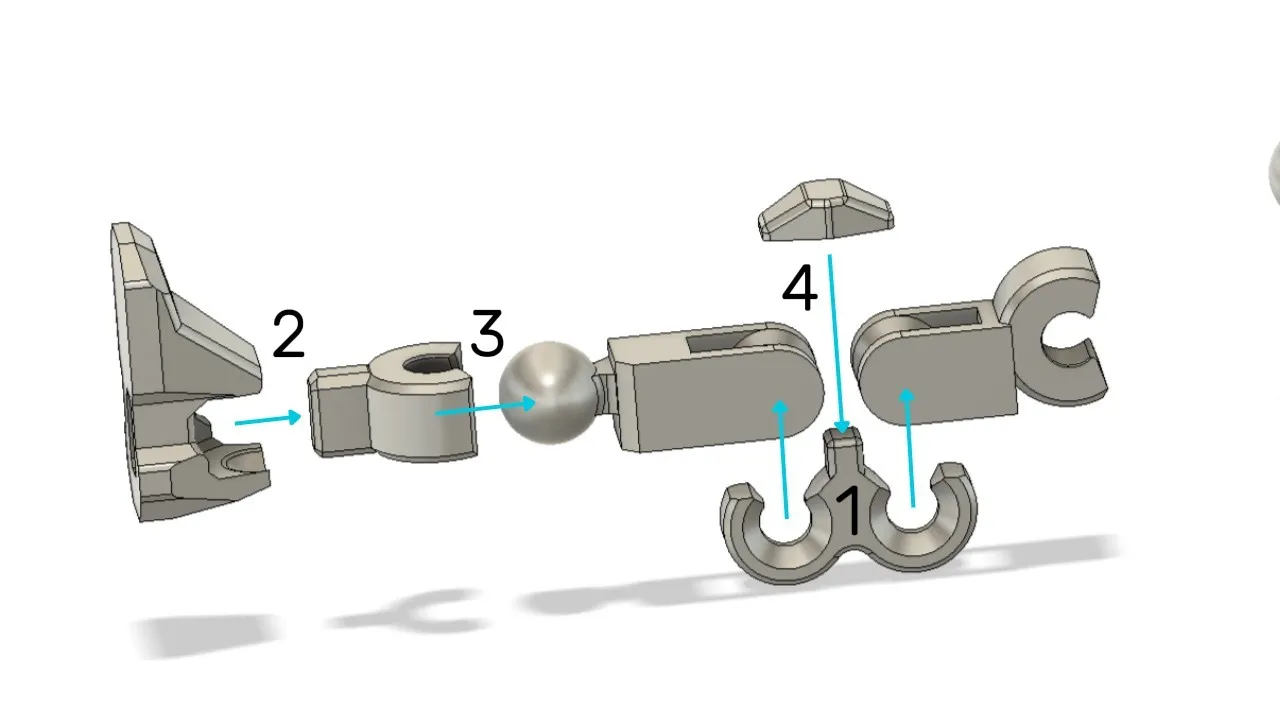

🧩Assembly Guide MiniMech`s ⚙️


⚠️ Important:
After assembly, gently move the joints back and forth to loosen them up.
Do not apply force!


The images shown feature the T-Class model.
The Spartan models are assembled in the same way!

🔻 For the head and the cape, please check here! 🔻

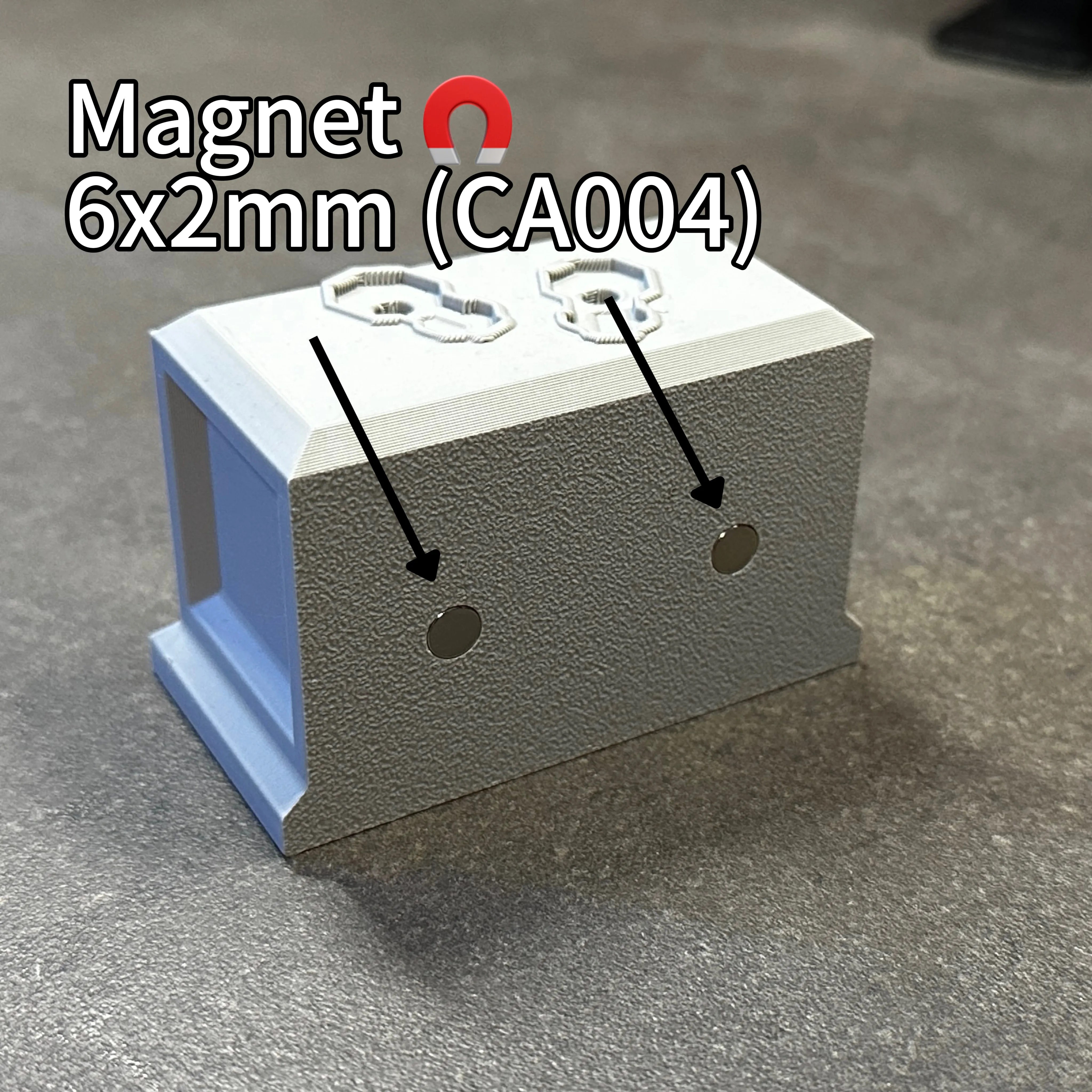

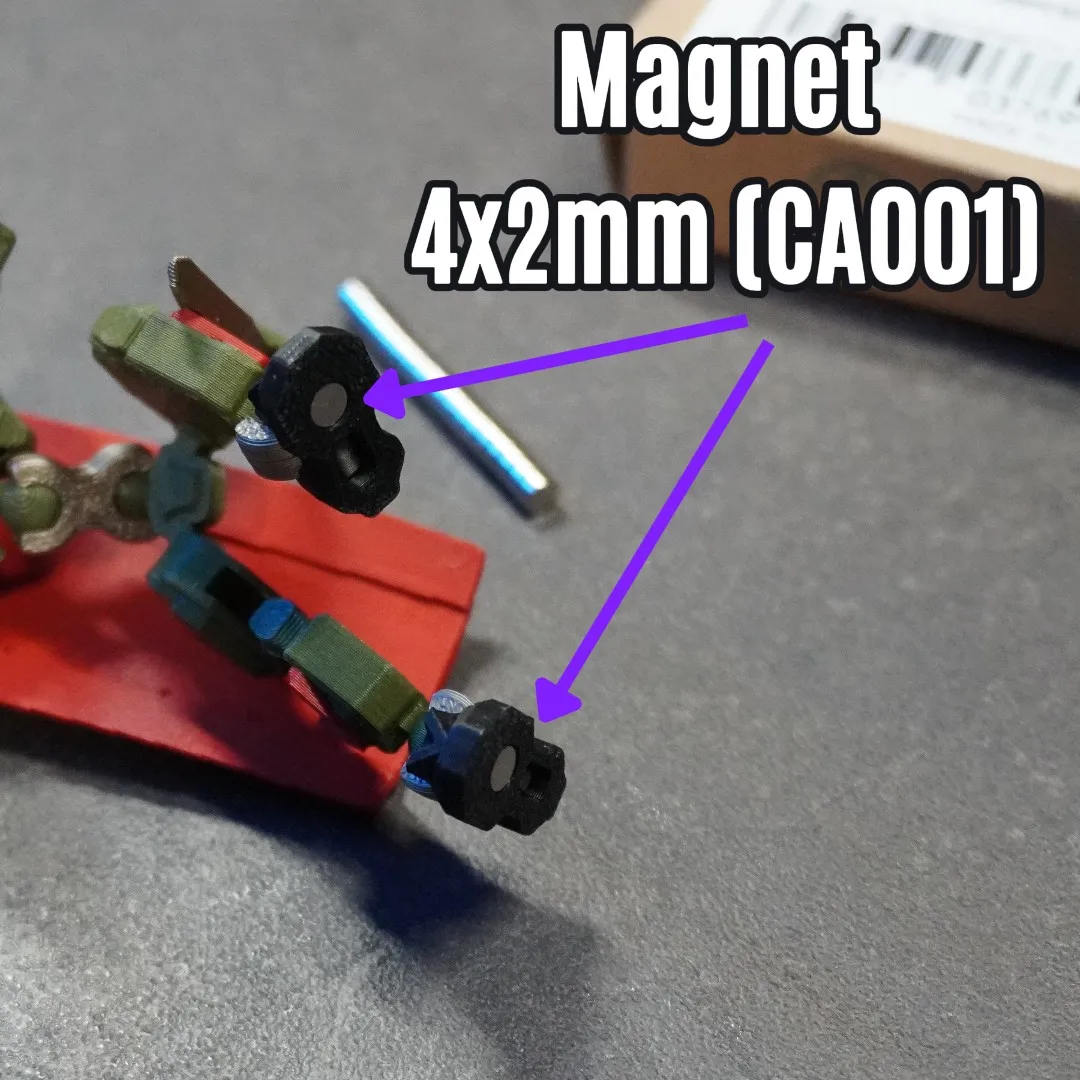

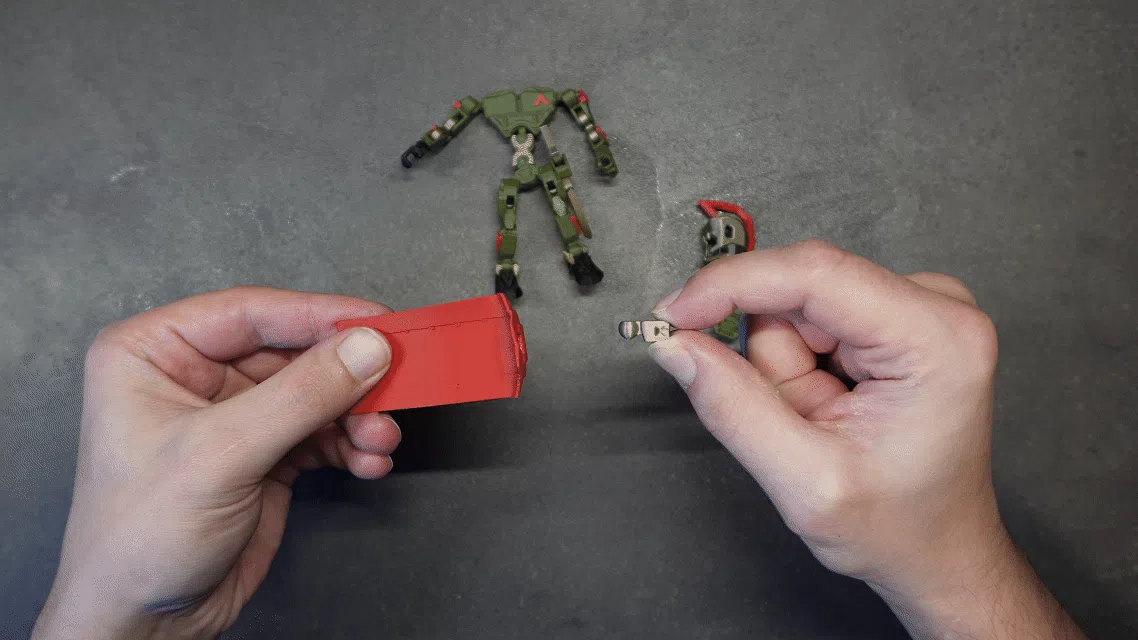

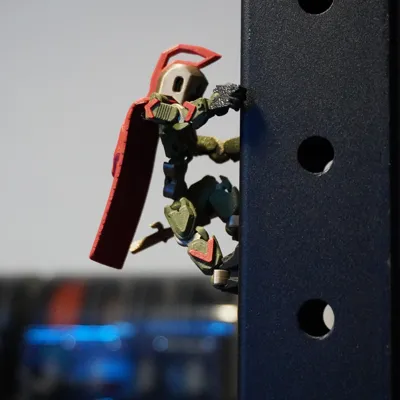

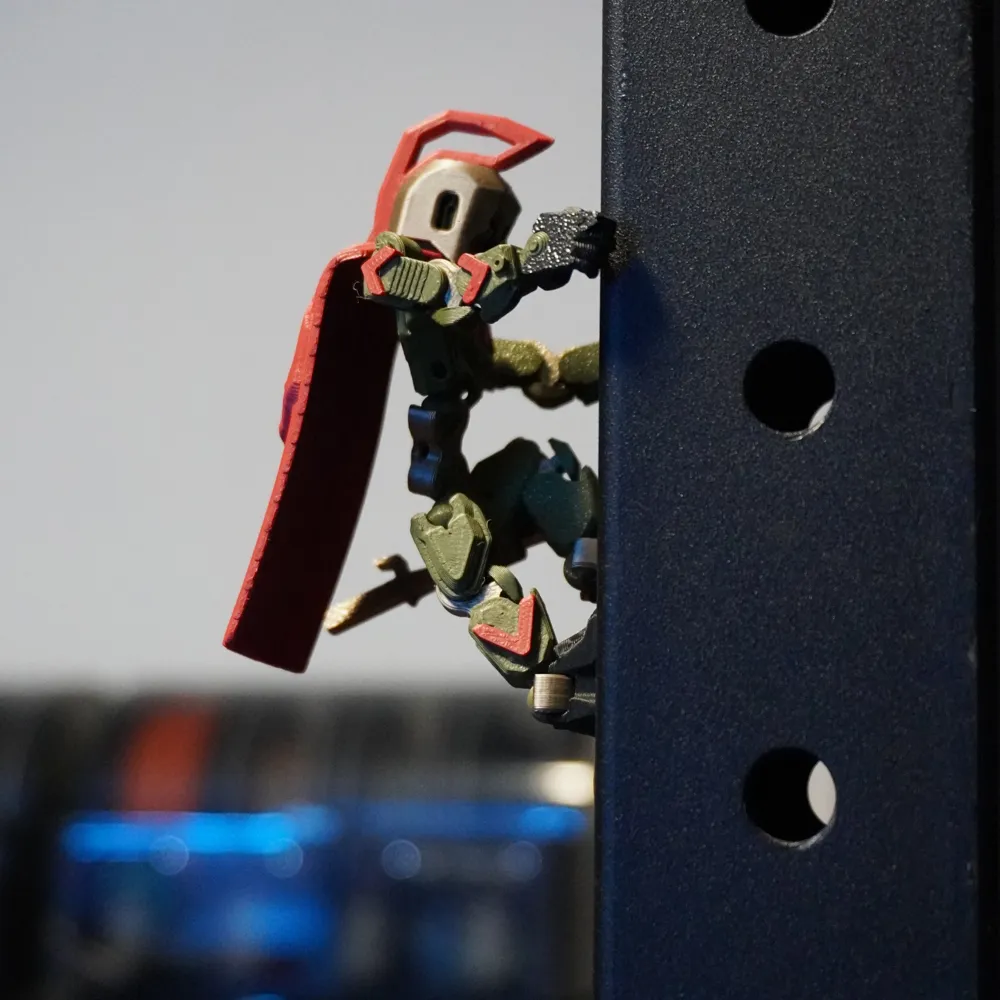

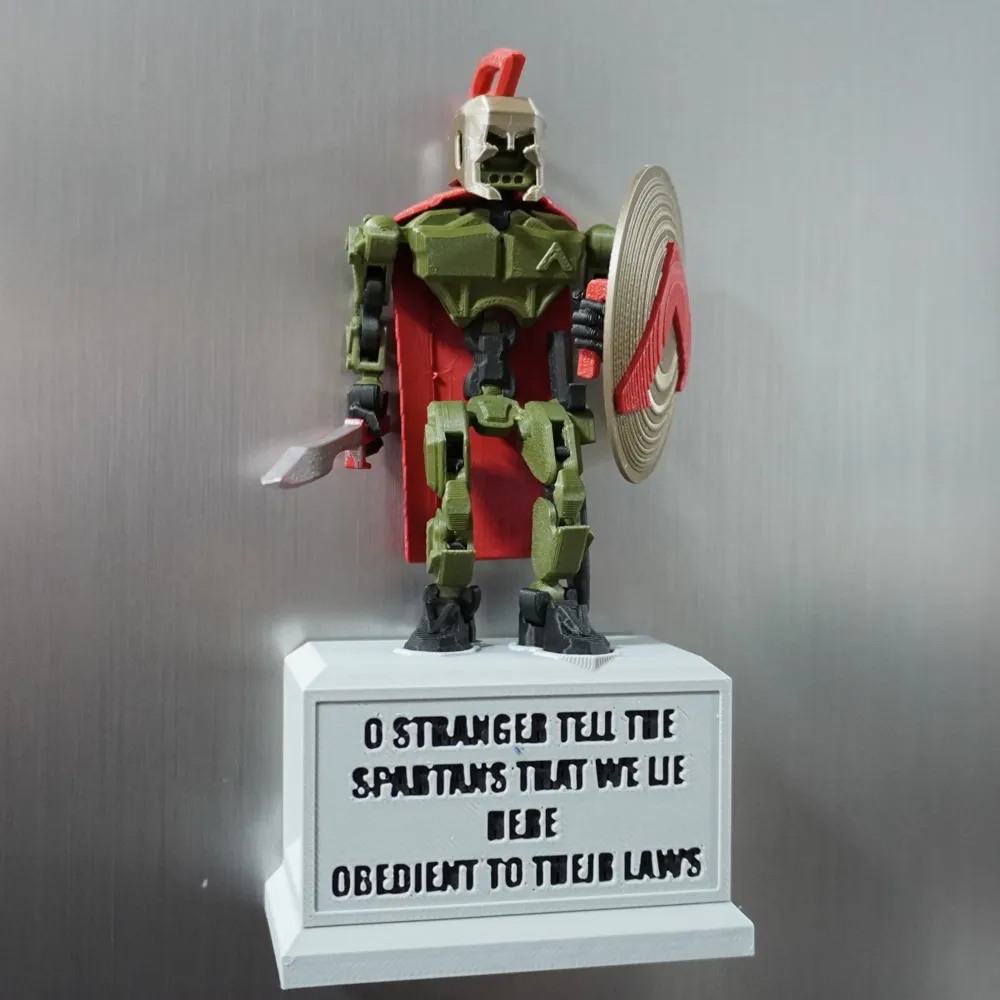

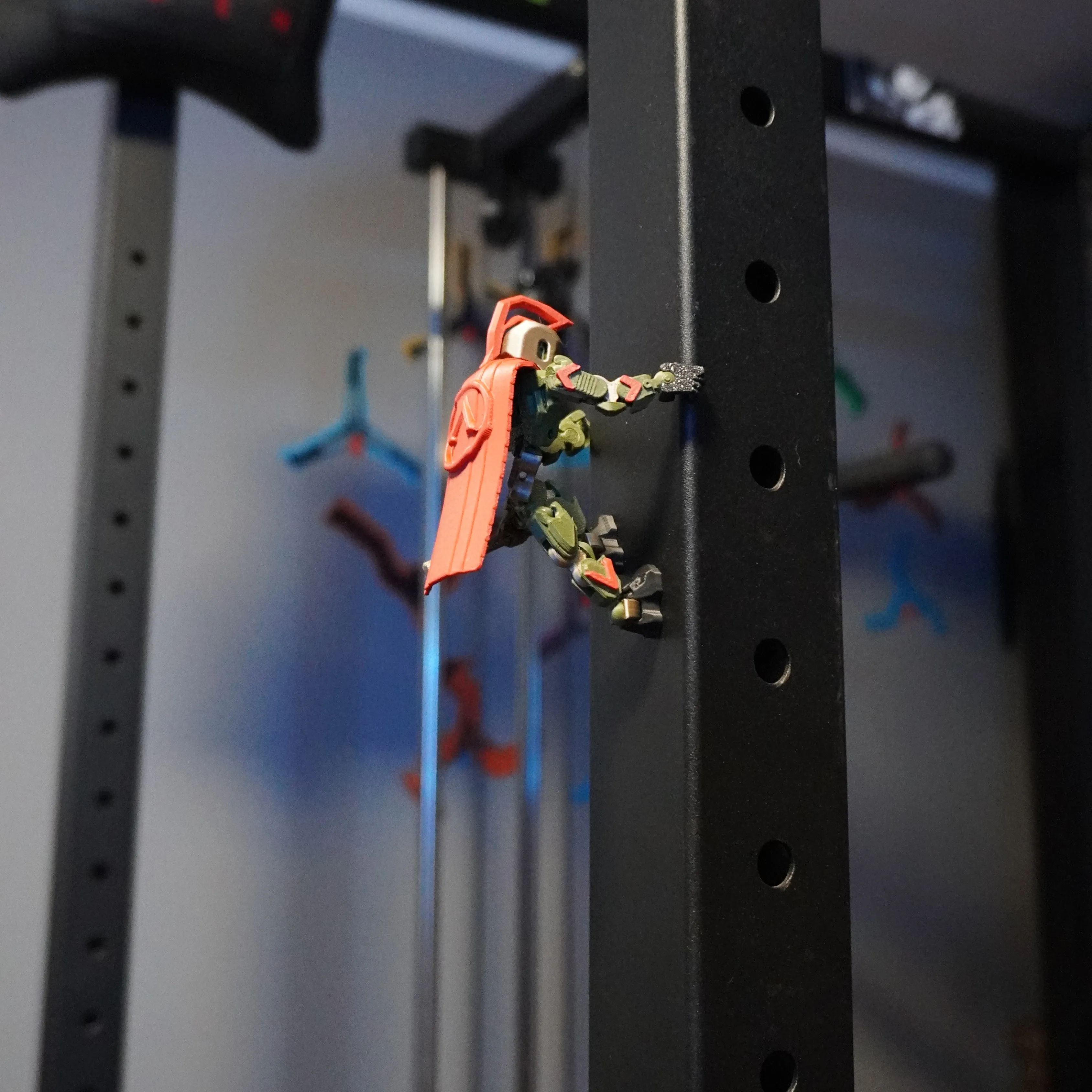

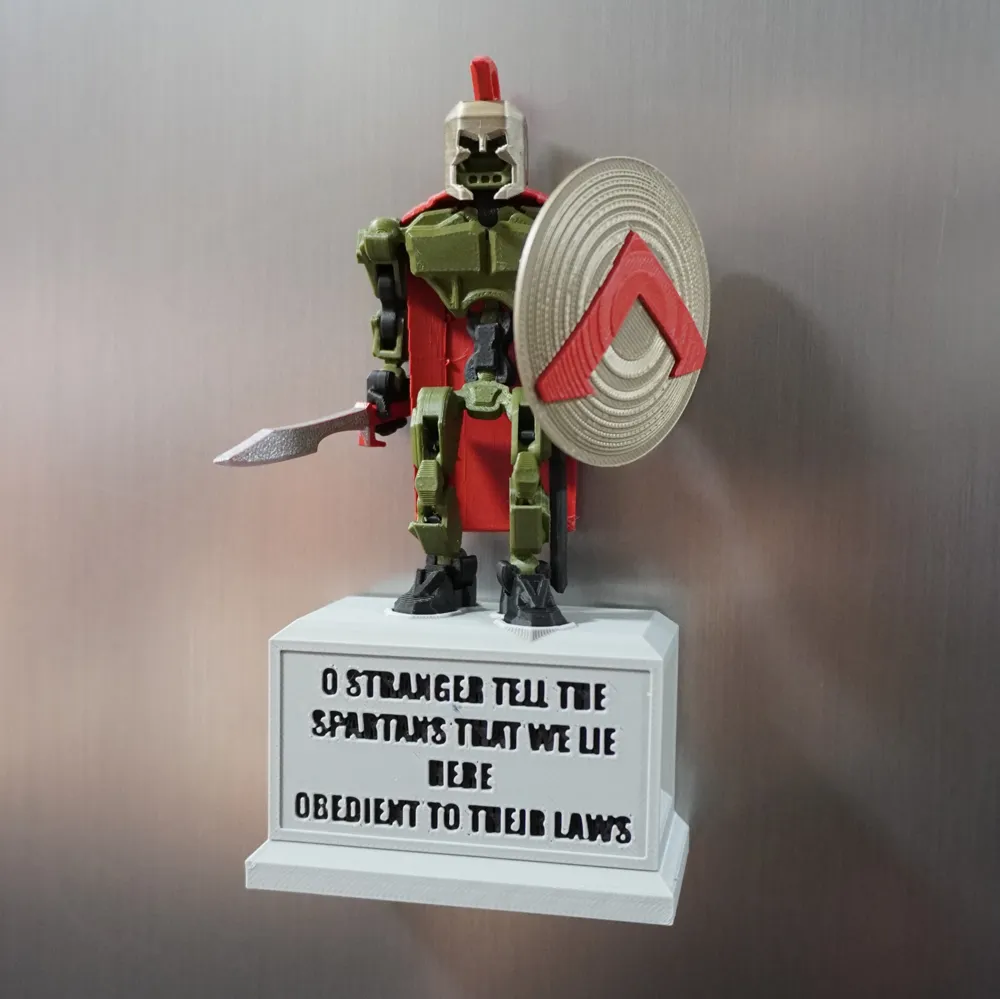

The base with the inscription has two slots on the back for 6×2 mm magnets, allowing you to attach Leonidas to any metallic surface. In addition, I added magnet slots (4×2 mm) in the feet, so the Mechs can stand securely on any metallic surface!



Material!


This time, I mostly printed the Mechs in PLA Matte and PLA Metallic.
If you followed the project in my community posts, you know they were already finished about three weeks ago. Since then, I’ve been testing them daily…. moving them around and playing with them a bit.


After almost a month, I can say they still hold their positions, but the joints have loosened up and move quite easily now. In some angles, the joints can no longer carry the weight properly, which means the arm may sag a little. For actual play, I would not recommend PLA Matte or Metallic. But if you only want to pose them occasionally or display them in a diorama, PLA Matte is sufficient.

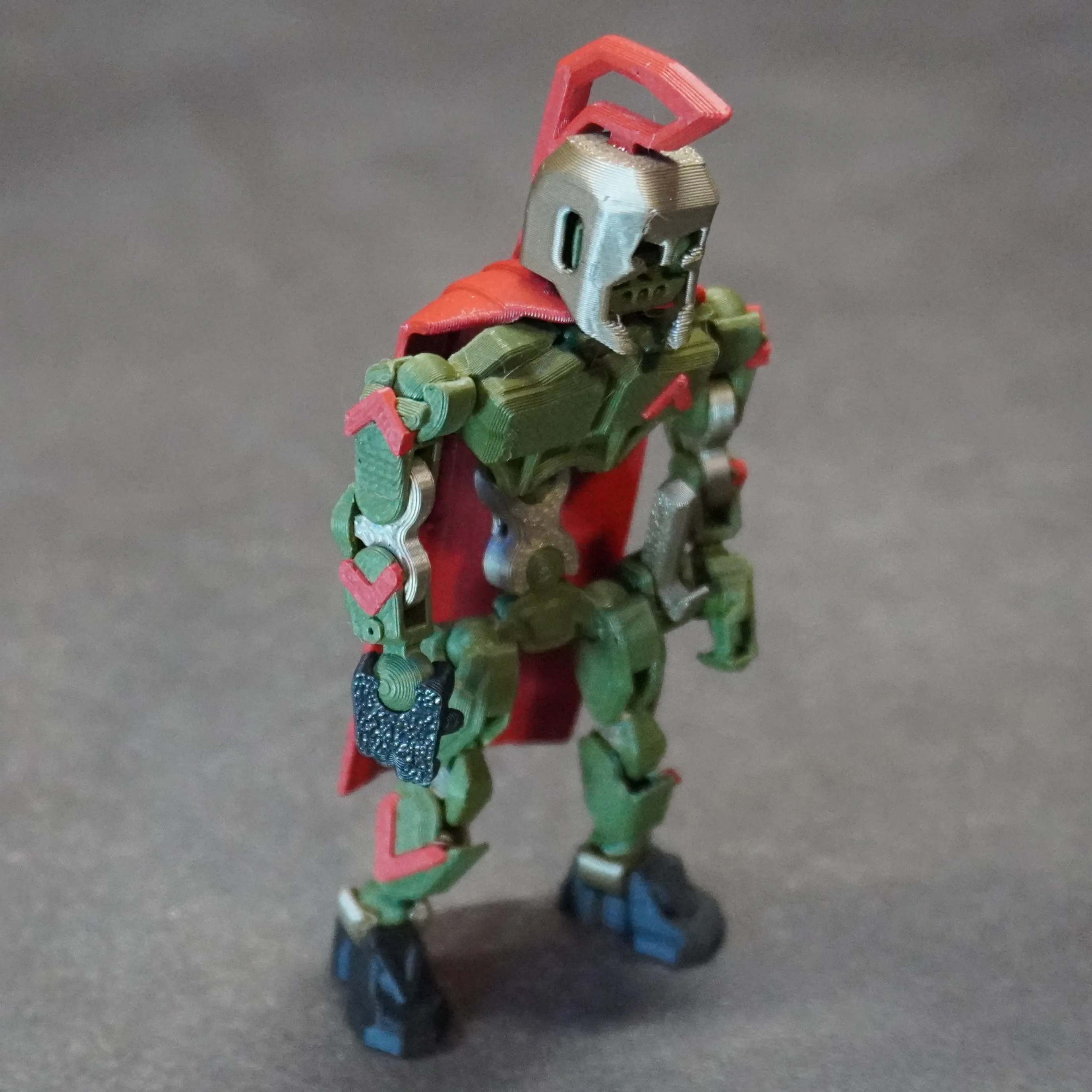

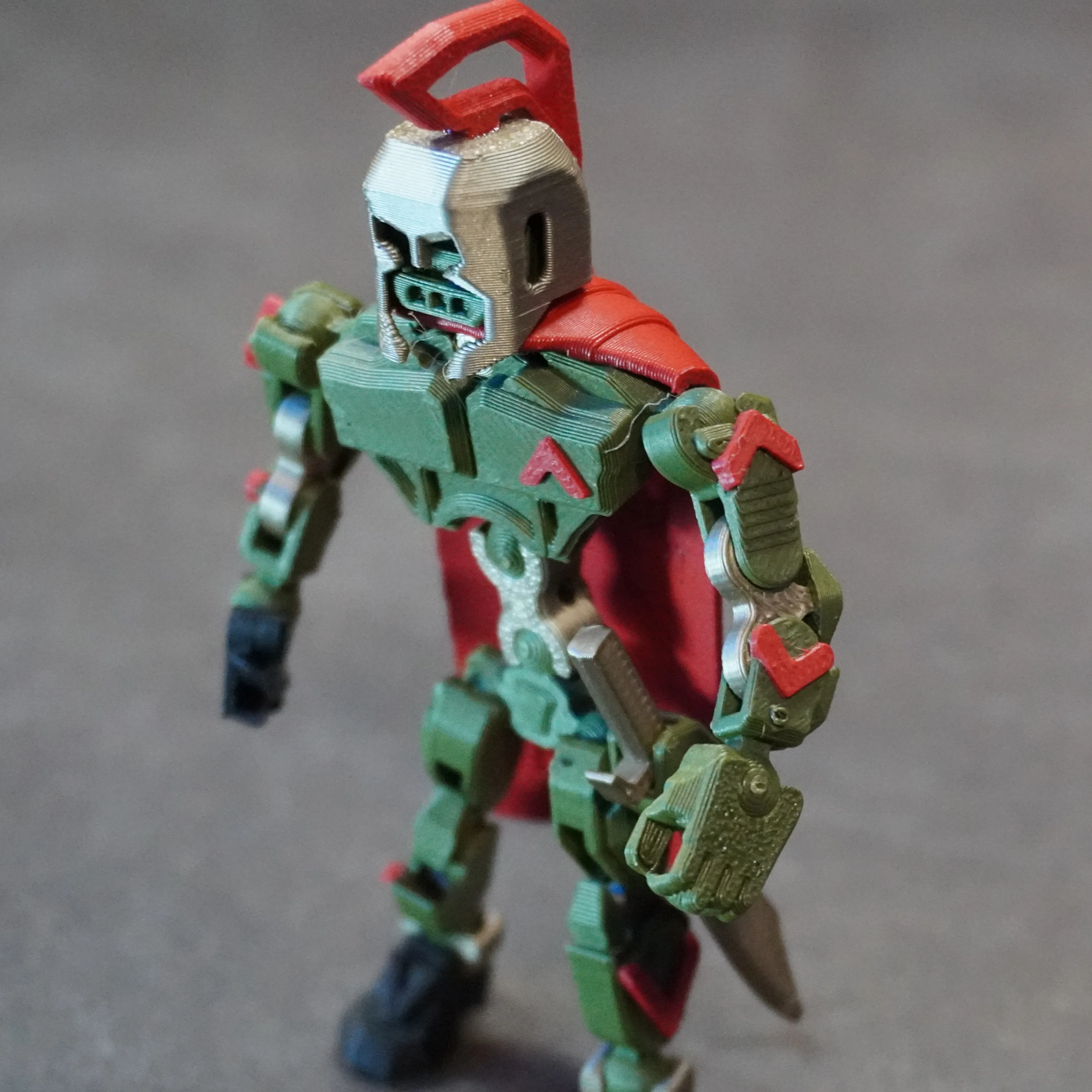

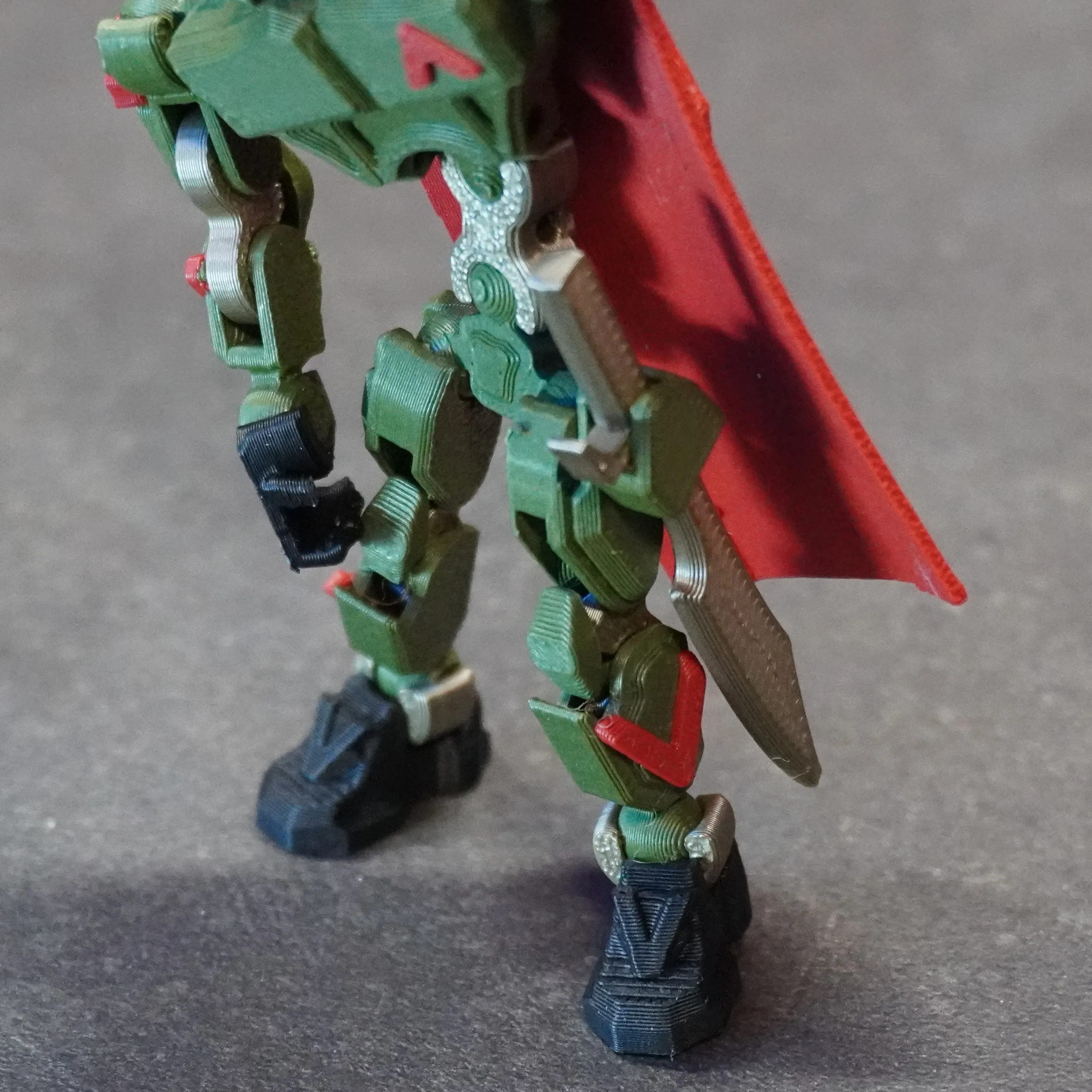

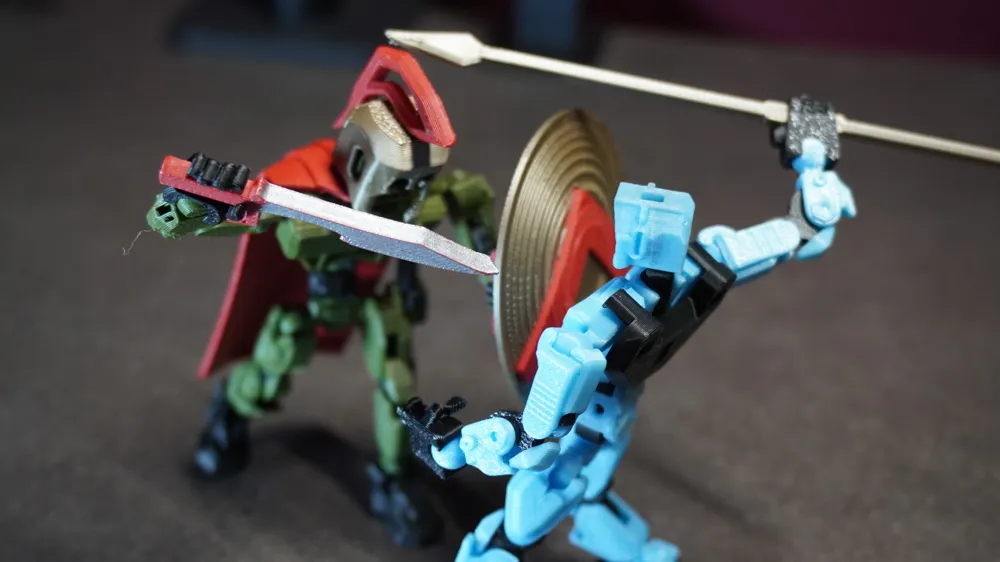

It’s also worth mentioning that the cape reduces the Mech’s balance and mobility. Unlike the previous packs, it can’t hold extremely dynamic poses. However, as you can see in the pictures, it’s still enough to put them into cool fighting stances or other dramatic poses.



Improvement!

I have reworked the ball joint sockets so they should now hold better compared to the previous T- and W-Class models!
All parts are cross compatible, so you can upgrade your older Mechs with the Sparta set. 😎

I also made the hand design more stable, since the old version tended to break at the thumb.👍 The new hand is still in testing, but if you need reliable hands, you can use Dummy13 hands…. they are fully compatible!


If you have any questions, please write to me 👍😄
