I remixed these two designs into one and made some modifications to allow for an external belt clip to be mounted. It's not perfect. I am still learning cad. But it works well for my needs.

I've tried three different filaments for this in the prototyping stage and all of them worked well. Bamboo PLA matte, Bamboo PLA tough+ and Elegoo Rapid PETG. I landed on Bamboo Black PLA Matte because I think it looks the best. Printed on a P1S.

*** Also works with the new ArkPro series

List of parts:

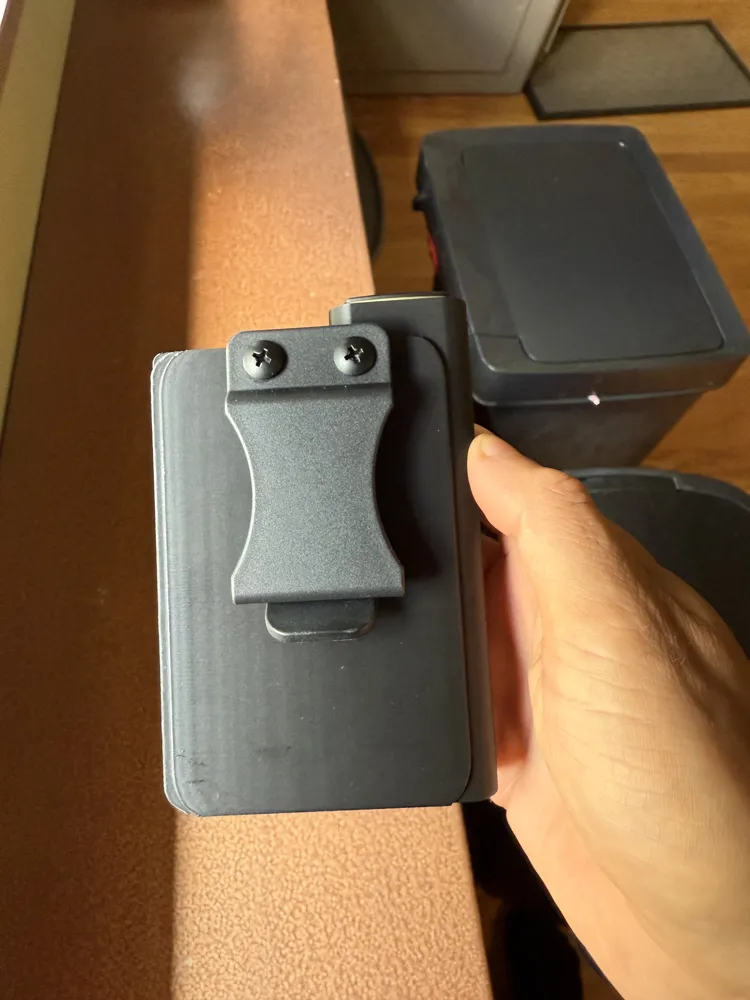

Belt Clips - I find these to be much more robust than anything I tried to print on the model. I have included indented holes to account for this specific clip. Also it allows for easy on and off the belt functionality. https://www.amazon.com/dp/B095VHFXTM?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1

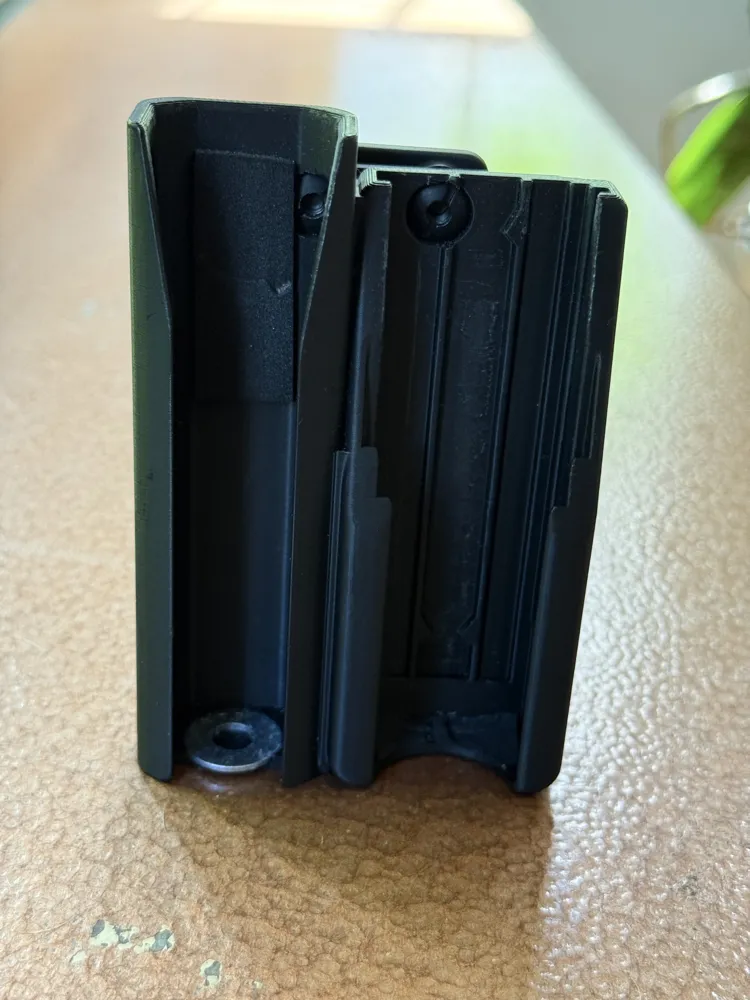

Washer x 1: 3/4in - This is necessary for the arkfeld's retention. It magnets to this and holds it in the sheath. The original designer included a cutout for this to be included and glued in.
Super Glue

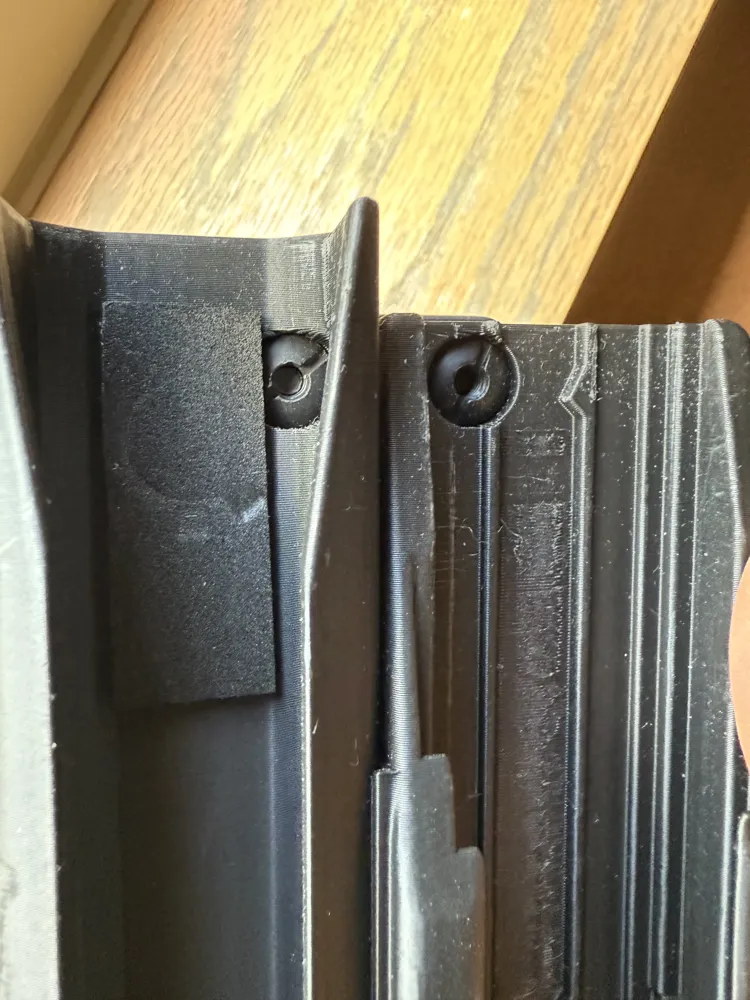

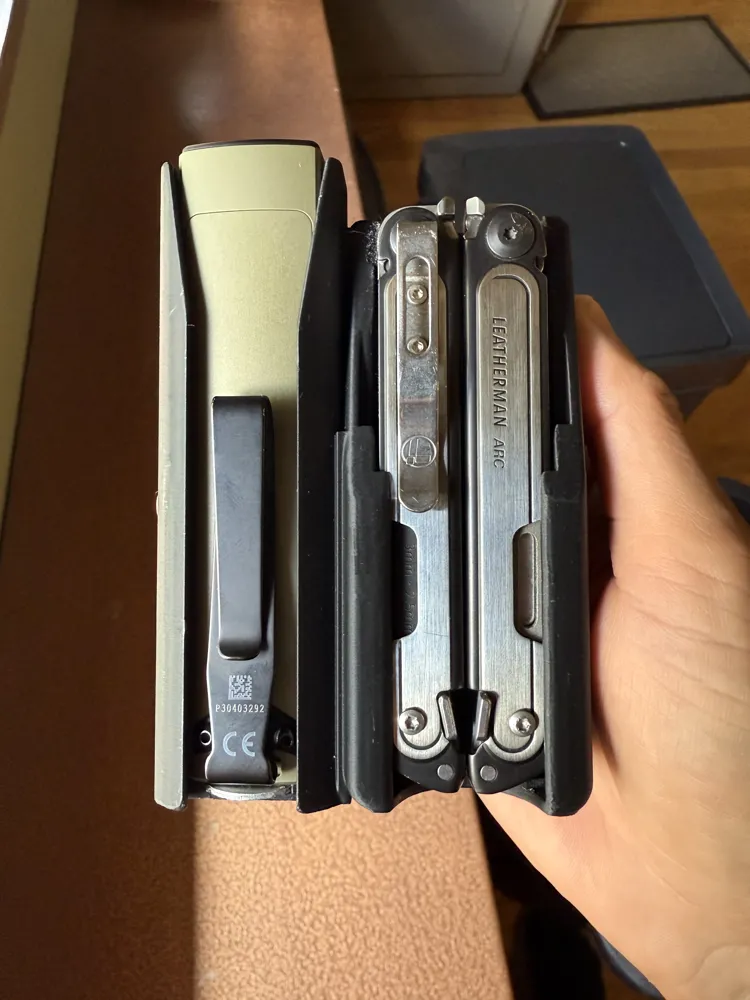

Sponge Foam - I use this for helping the rattle that occurs from movement when wearing the sheath. You can see in the picture where I put some on the arkfeld holster and the leatherman holster at the bottom. Additionally, I put some on my leatherman itself on the sides of the hammer end in order to help the rattle. https://www.amazon.com/dp/B076X52MYB?ref=ppx_yo2ov_dt_b_fed_asin_title
