Customizable Kwikset-Style Key Cover

Customizable Kwikset-Style Key Cover

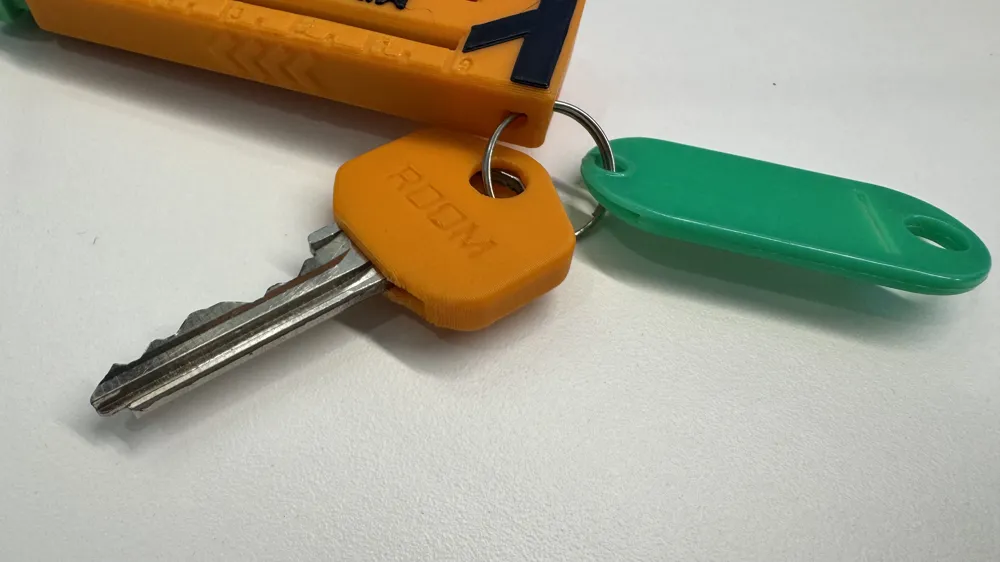

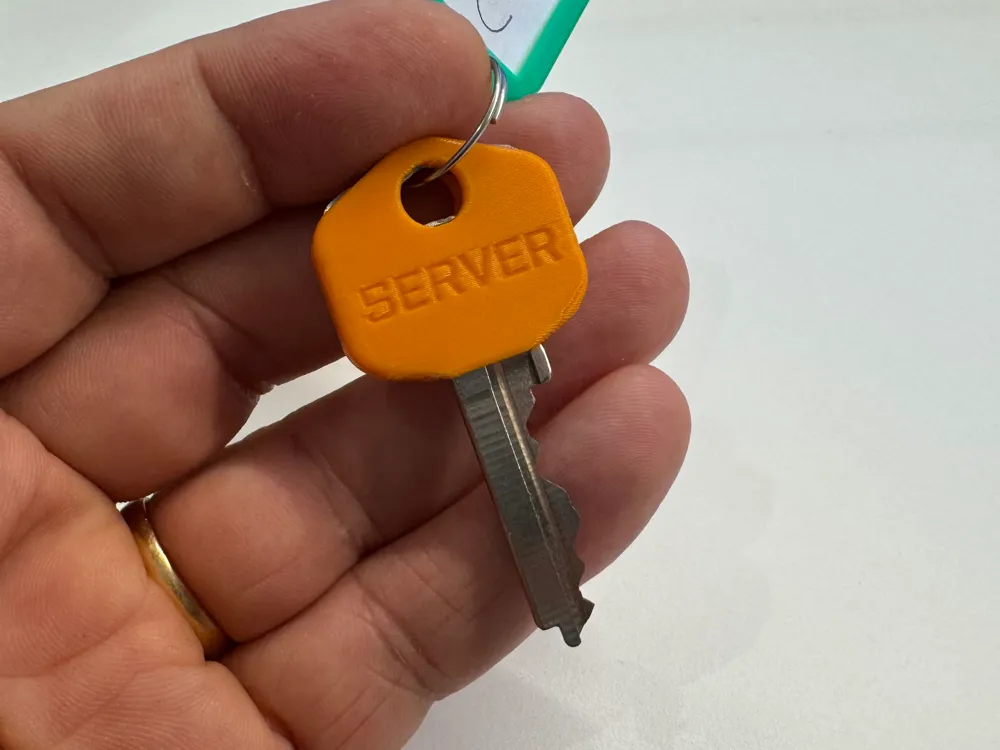

A fully parametric slip-on key cover designed for Kwikset-style keys, perfect for identifying and protecting your keys. This OpenSCAD model offers extensive customization options through MakerWorld's Parametric Model Maker interface.

Features

Easy Identification: Add different text to each side of the cover to quickly identify your keys at a glance. Perfect for labeling house keys, office keys, server room keys, or any other important keys in your collection.

Full Protection: The cover protects your key's teeth from wear while keeping the key functional. The open-end design allows the key to slide through for use without removing the cover.

Print-Ready Design: Optimized orientation with flat base for support-free printing. High-resolution curves (150 facets) ensure a smooth, professional finish.

Customizable Parameters

Text Options

• Custom text for each side - Add different labels to front and back
• Font selection - Choose from Google Fonts library via dropdown menu
• Text size - Adjustable from 2.0 to 8.0mm
• Text depth - Control engraving depth from 0.5 to 2.0mm

Visual Customization

• Color picker - Select any color for visualization (for multi-color printers or filament planning)
• Rendering quality - Adjustable from draft to ultra-smooth finish

Dimensional Fine-Tuning

• Key thickness - Accommodate keys from 1.5 to 3.0mm thick
• Cover scaling - Separate X, Y, Z scale controls for outer shell (0.80-1.00)
• Inner cavity scaling - Precise control over internal dimensions for perfect key fit
• Default dimensions - Pre-configured for standard Kwikset keys (24.7mm wide handle, 11mm blade)

Perfect For

• Home and office organization
• Property management
• Server rooms and secure facilities
• Airbnb hosts
• Anyone with multiple similar-looking keys

Printing Recommendations

• Layer height: 0.2mm
• No supports required
• Infill: 20-40%
• Print with text facing up for best quality

Note

While designed for Kwikset-style keys, the parametric scaling options allow this cover to be adapted for various key sizes. Measure your key's width at the handle and blade, then adjust the inner cavity scale parameters for a perfect fit.

Compatible with MakerWorld's Parametric Model Maker for easy online customization before downloading.
