Description

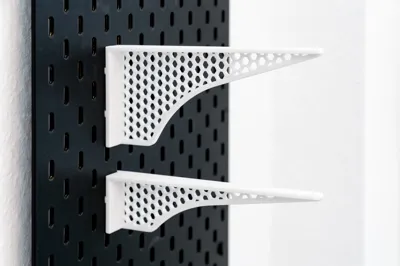

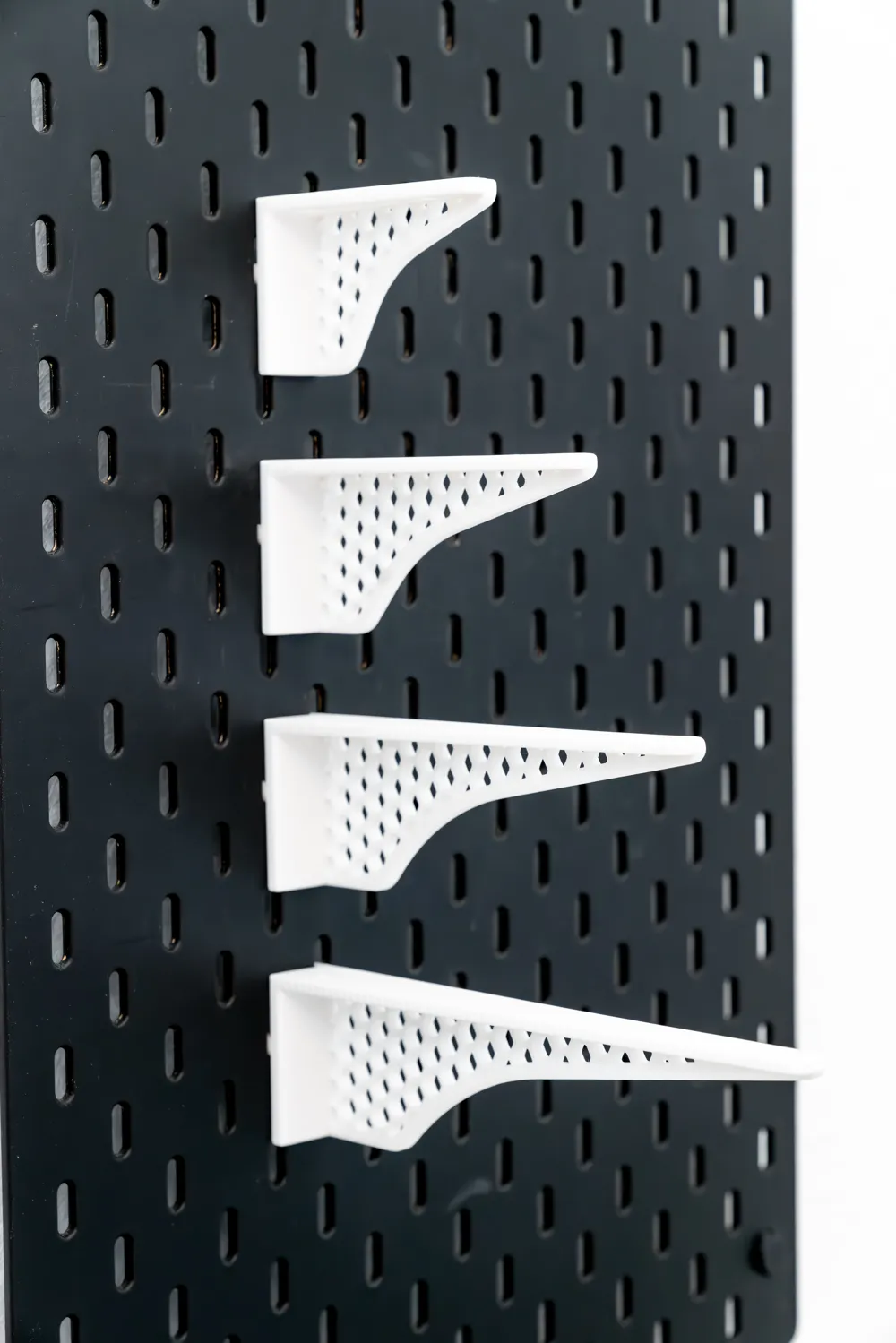

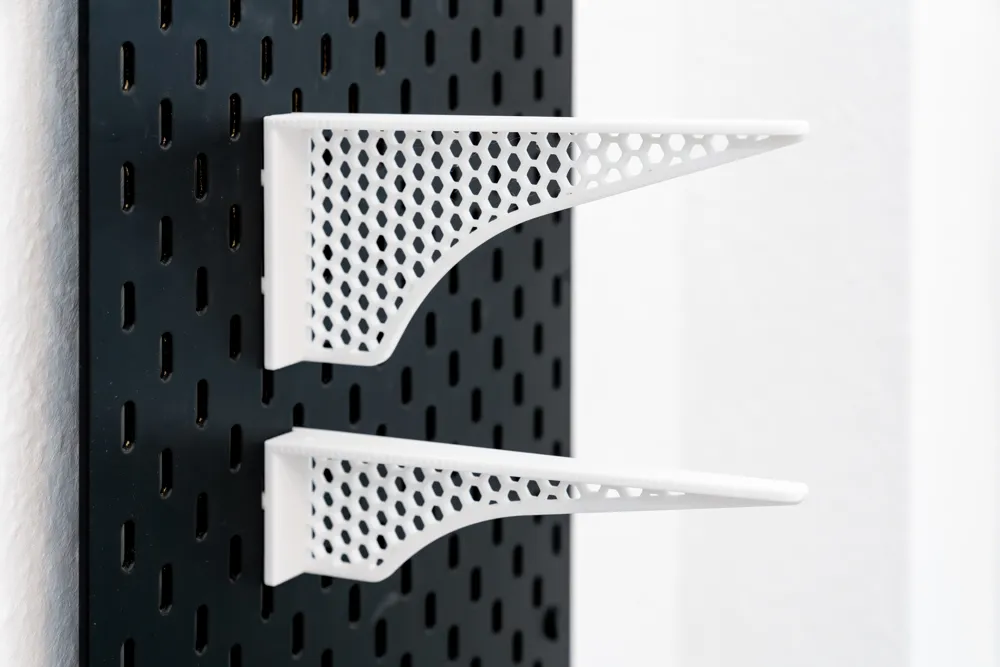

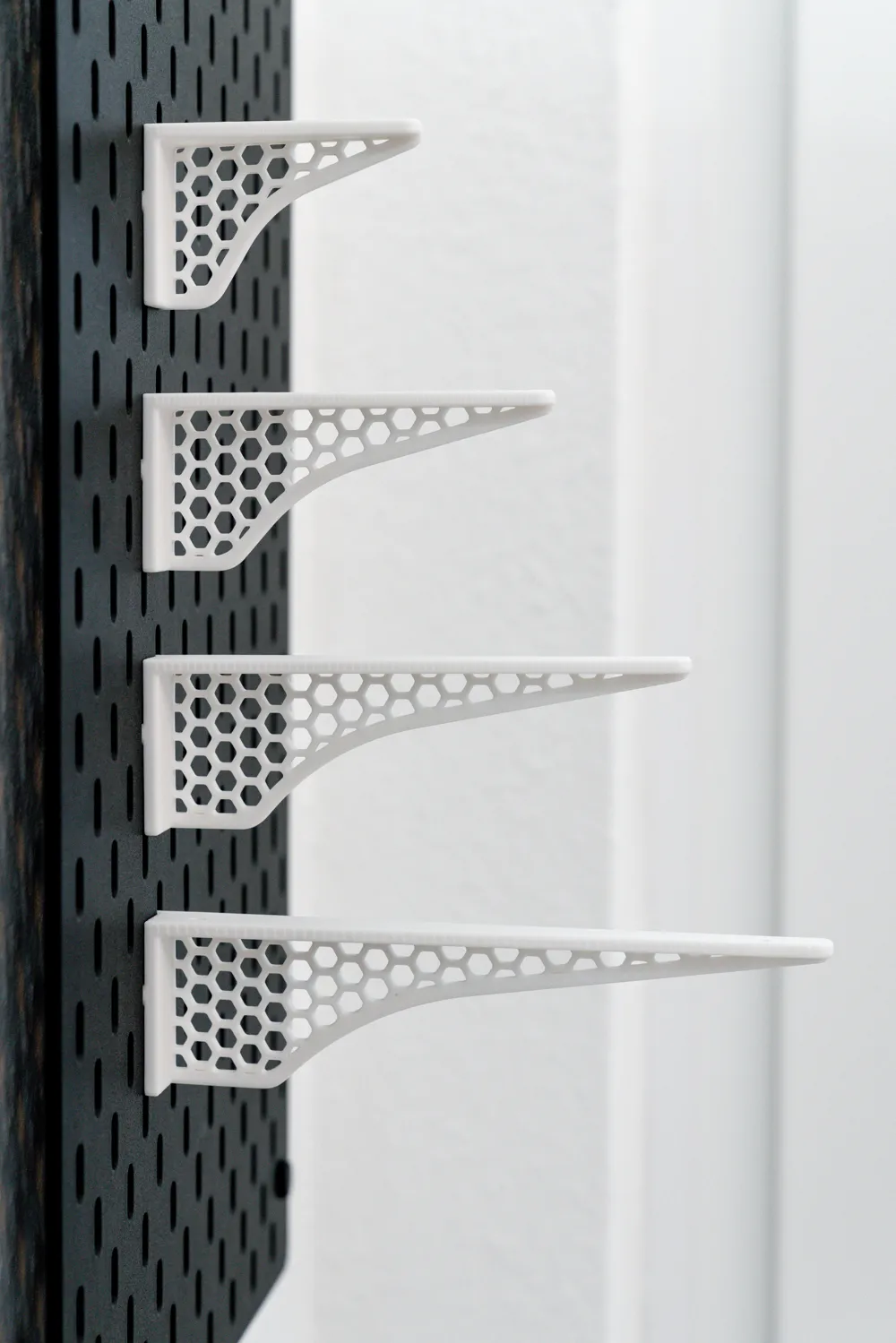

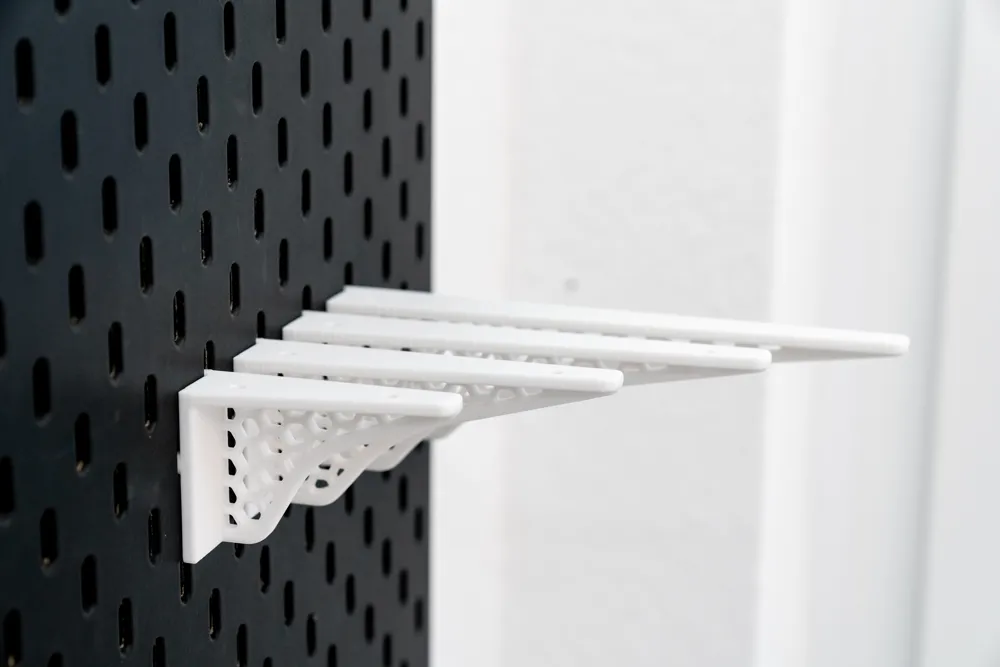

This shelf support is designed for the IKEA Skadis system and is available in various depths (60–200 mm) and heights to accommodate different load scenarios. Each bracket features two screw holes for securing a wooden board on top—use panhead screws for optimal mounting.
Important usage tips:
- Ensure the wooden shelf is not significantly deeper than the support bracket. As a rule of thumb, the shelf should not exceed 150% of the support depth. For example, a 200 mm support should carry a shelf no deeper than 300 mm.
- For heavier loads, add additional supports between the outer brackets to reduce stress and improve stability.
The parts are printed on their side to maximize strength and durability. STL files include only one side; all provided print profiles include the mirrored version as well. If you're creating your own print profile from scratch, be sure to mirror the part accordingly.
To accommodate different board thicknesses there are two profiles available:
- 4.8mm Hooks Clearance for thinner boards.
- 5.0mm Hooks Clearance for thicker boards.
To determine your board's thickness, use the Hooks Clearance Tester provided. For additional stability, consider adding the Compensation Plate if the printed part doesn’t offer enough friction with your board.
Disclaimer: Use at your own risk. I accept no responsibility for any damage to Skådis boards or attached items resulting from the use or failure of these shelf supports. Please ensure that the chosen size and material are suitable for your specific load and installation requirements. Please beware that the Skadis board itself can flex on heavy loads.
Lock Plug
For a permanent and even more secure installation, I highly recommend utilizing my IKEA Skadis Lock Plug in 9 or 10mm. This accessory effectively prevents any slippage, ensuring maximum stability.
