Mini Train Single Box - for Beginner Kit

You haven't found a project for the motor from your beginner kit yet? Then you're in the right place.

This box uses the motor and battery box components to power your favorite Mini Diorama from the Series. →Collection

The battery compartment is integrated and the switch included is also printed.

All you need is the beginner kit and 4x AAA batteries — then the fun can begin!

Insta Reel

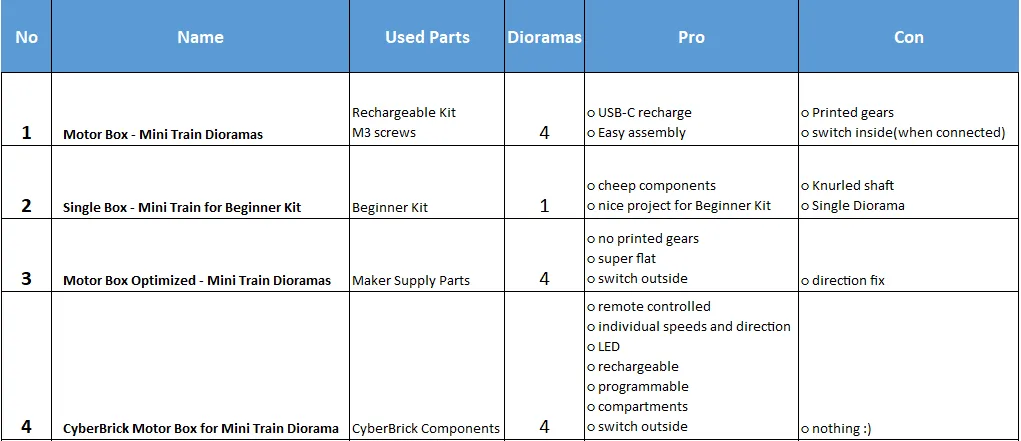

Motorbox Overview:

Assembly:

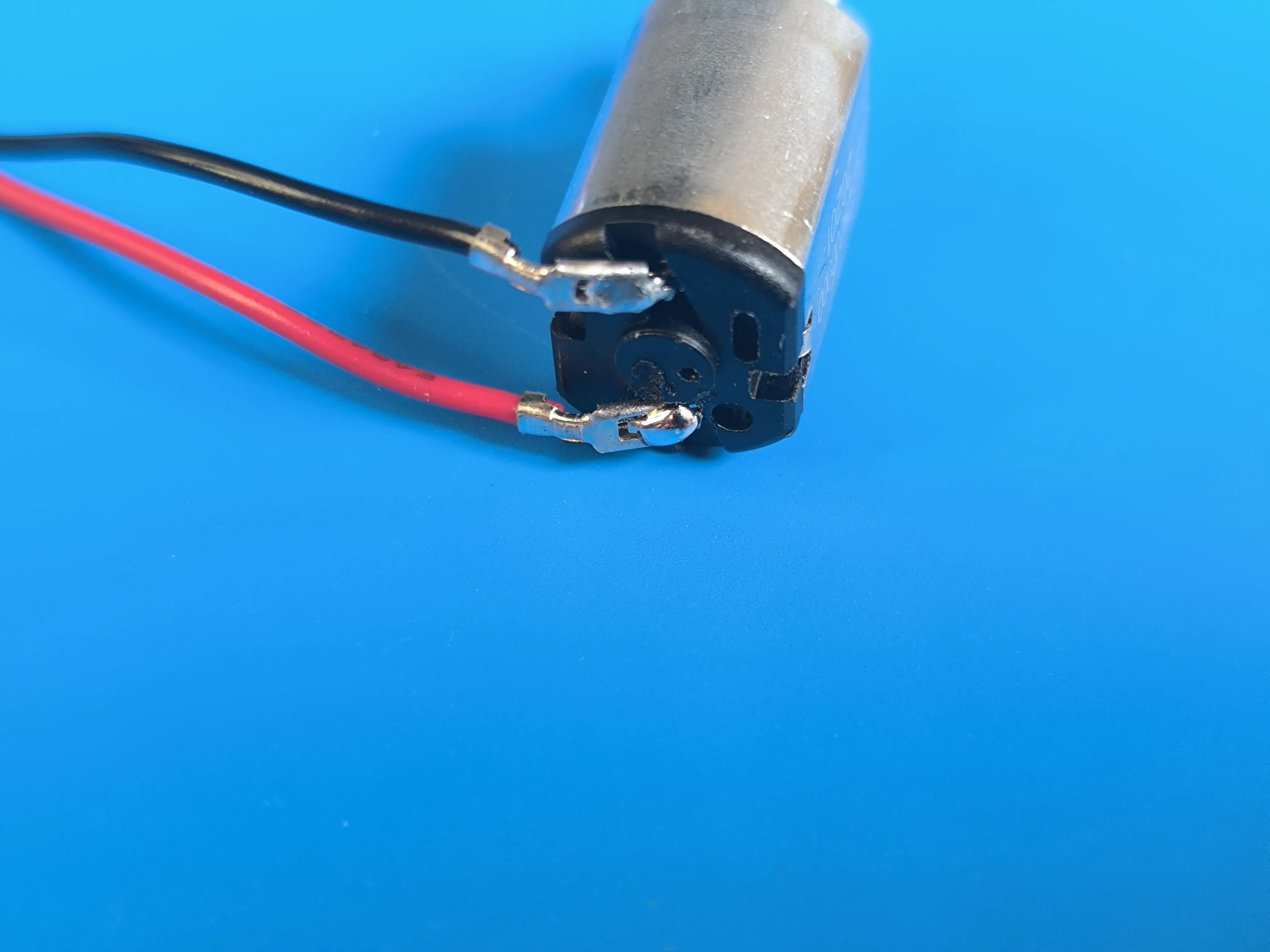

**Plug in the cable and bend the connectors. If possible solder or glue connection so that it does not slip out.**

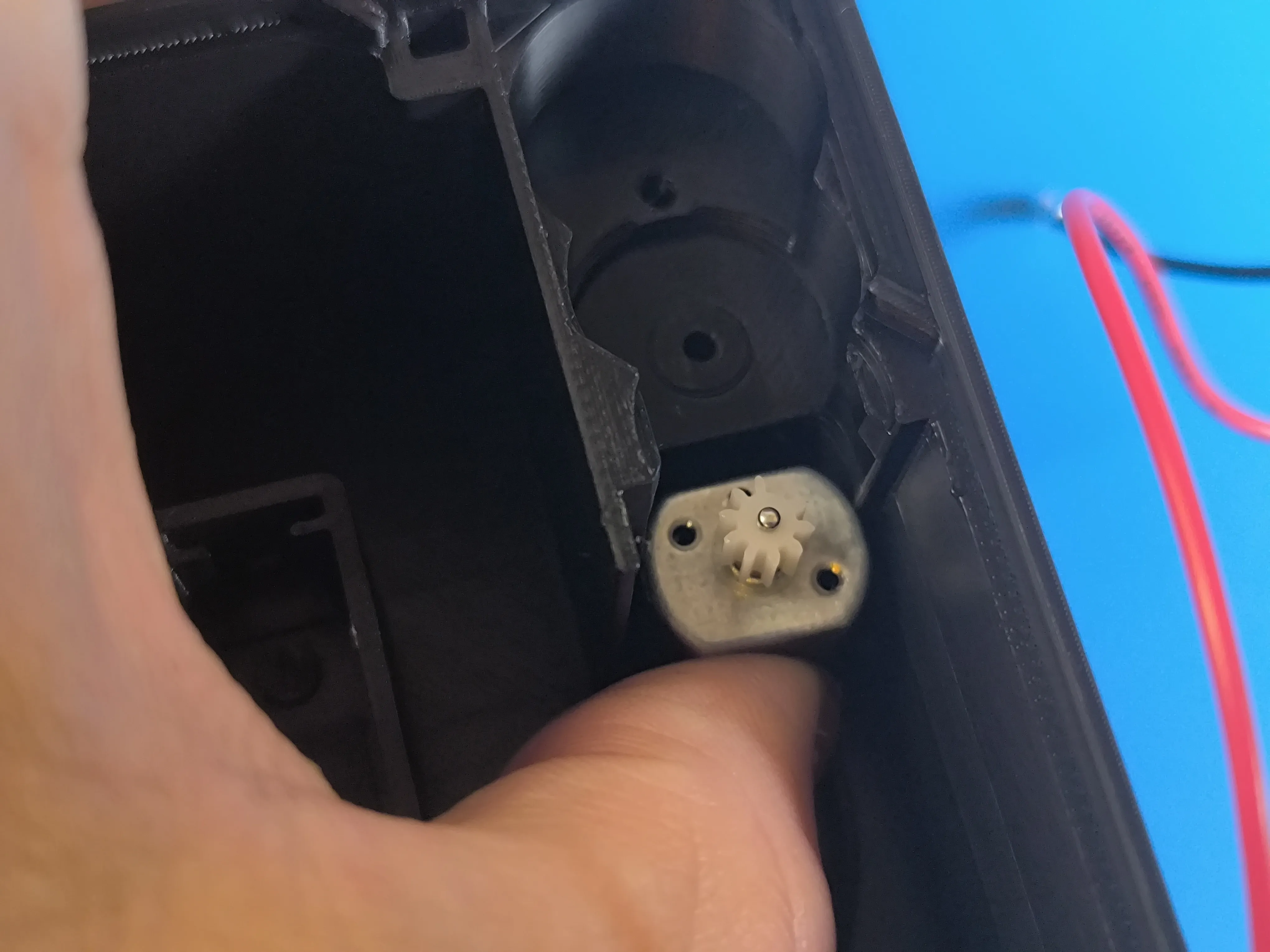

**Add the small gear and clip motor into position**

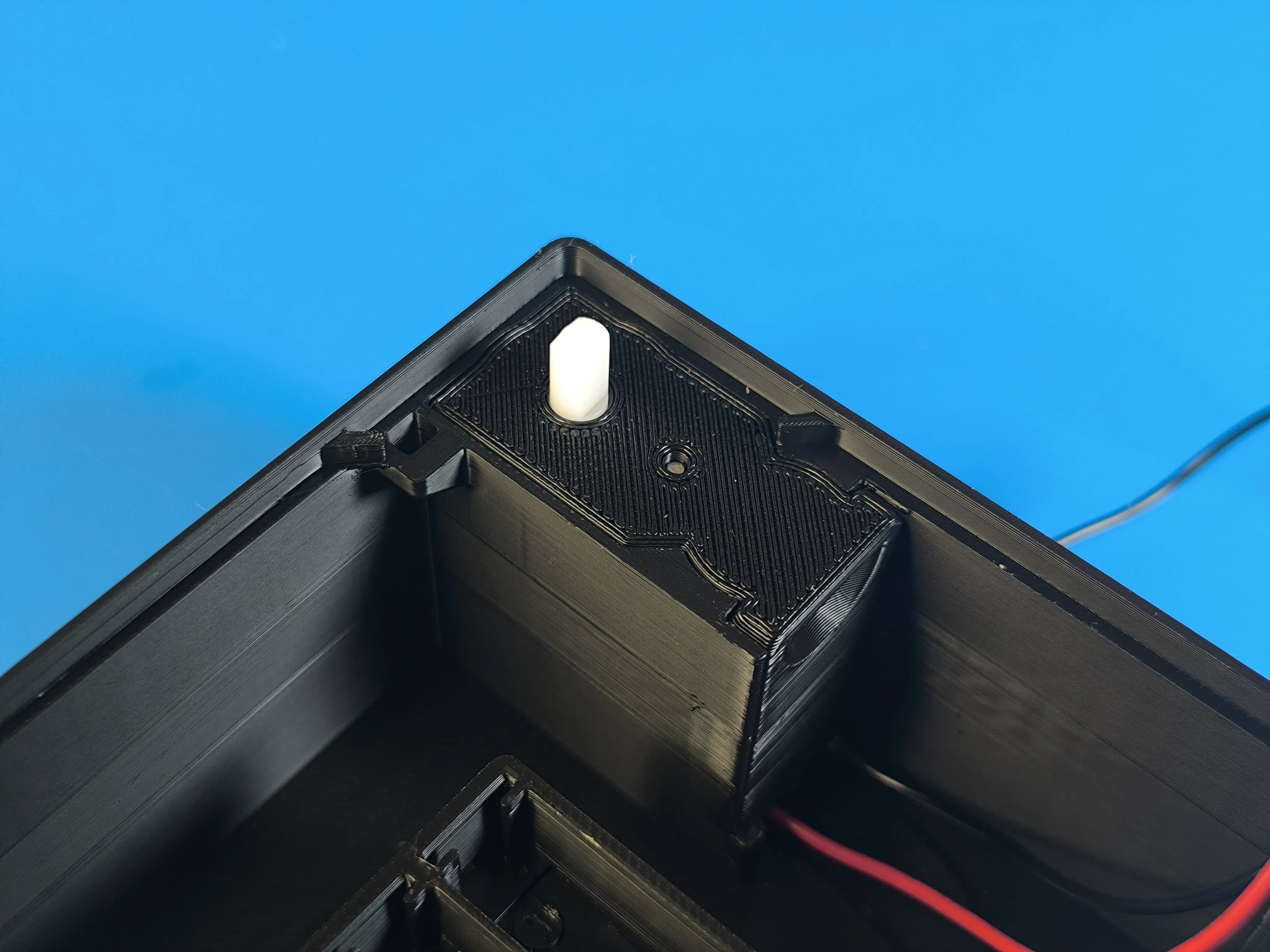

**Insert the longer pin on the left side** (Tip: you can sand down the knurl on the top side a bit) **and the shorter smooth one on the ride side. Insert gears as shown, use the translucent gear on the left side.**

**Push all the way down! It should be even with the frame**

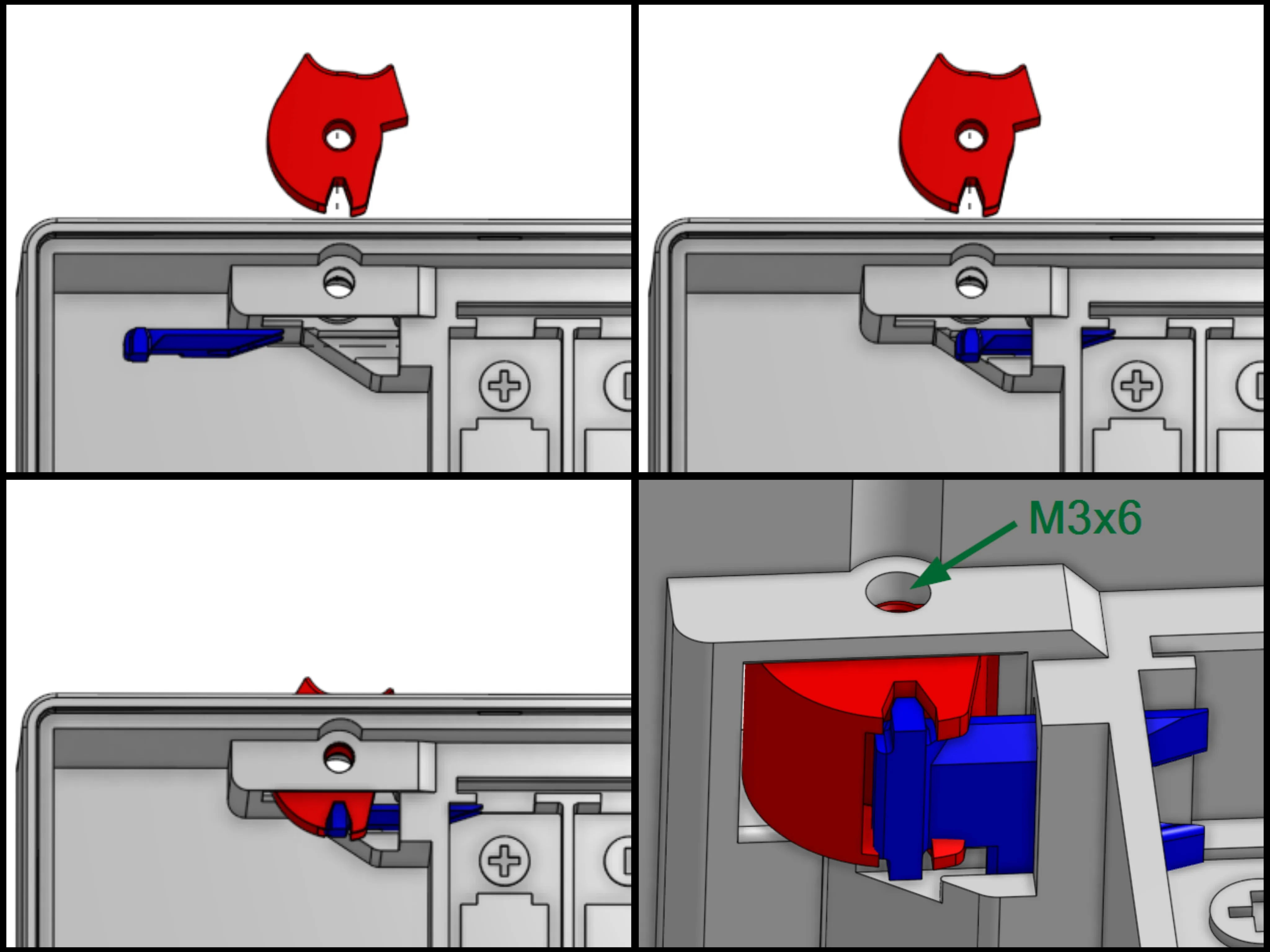

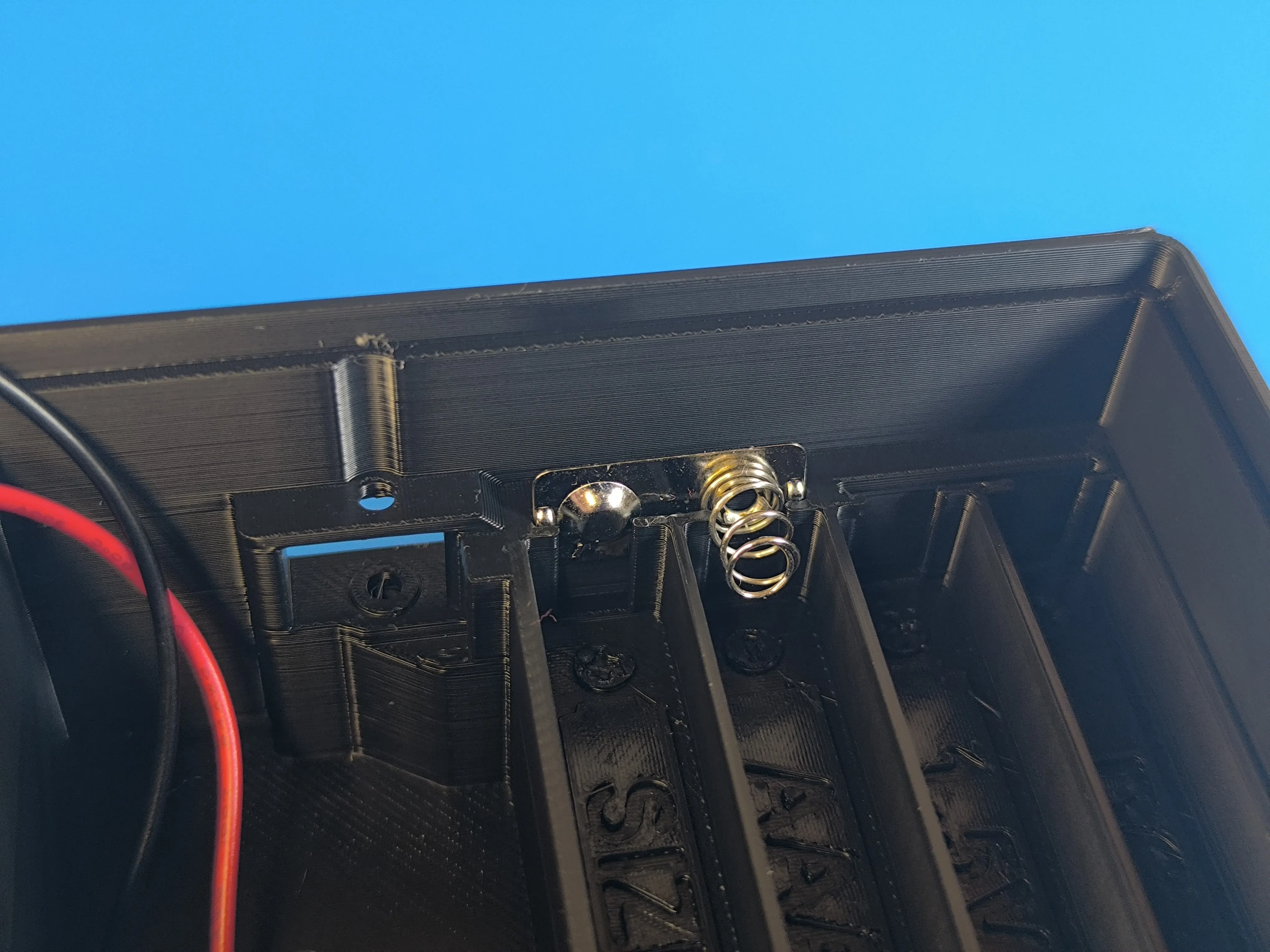

Assemble the integrated switch: 1. Slide the small “switch plate” into the slot 2. Insert the switch. The switch must catch the small plate as shown. 3. Screw M2,5x6 and also add a M2,5x6 screw from the bottom, as well.

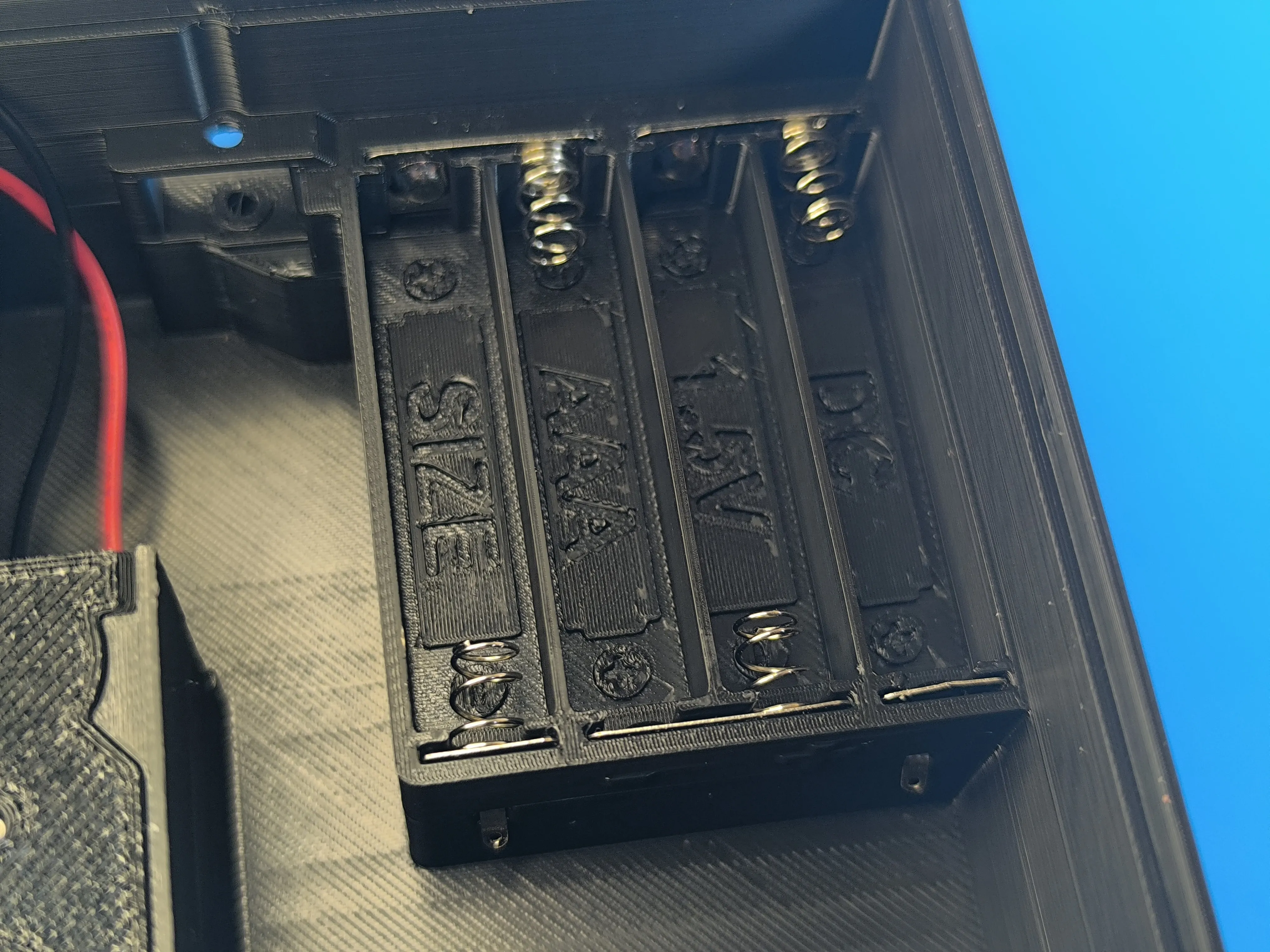

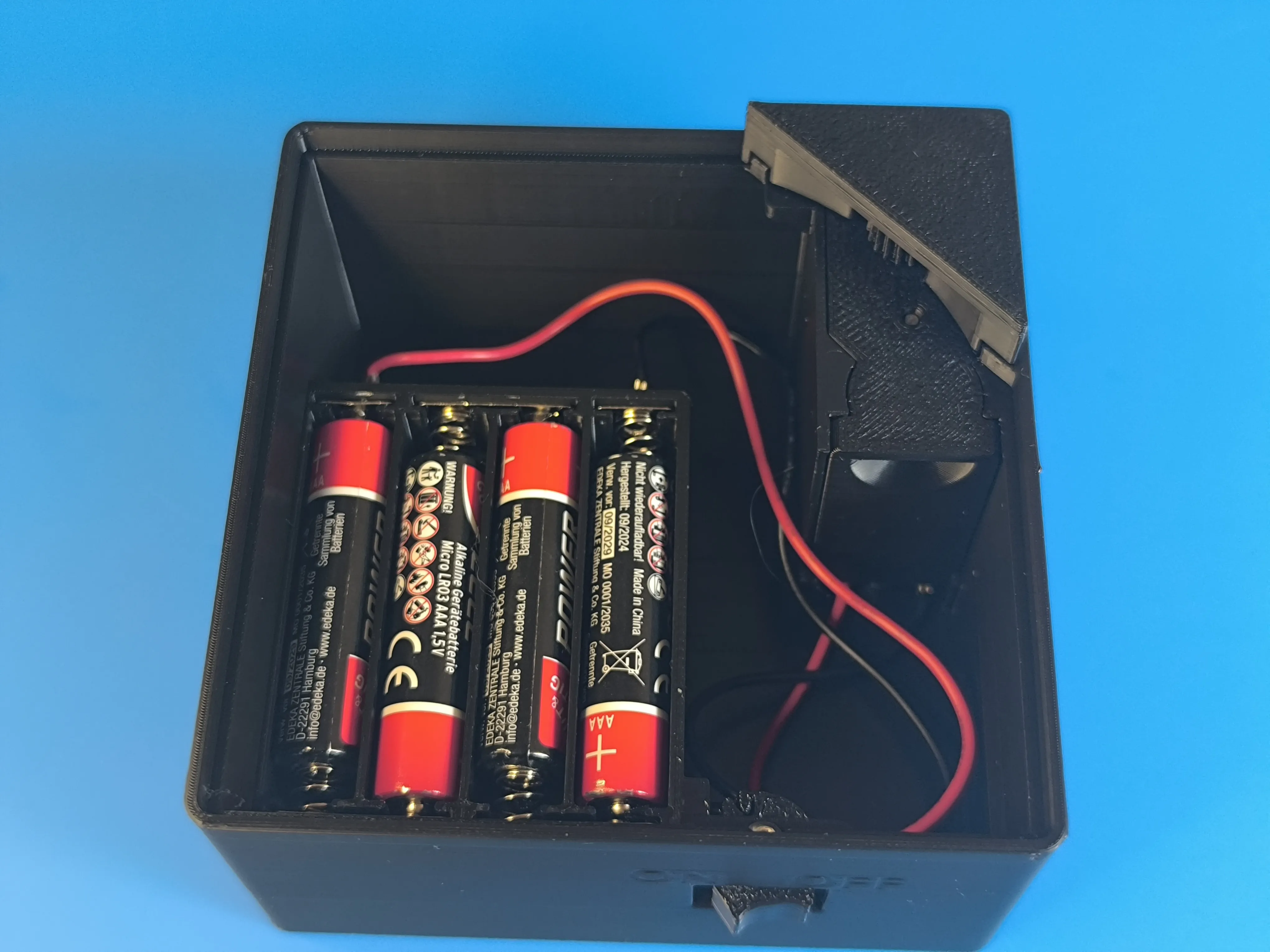

**Battery connectors should look like this**

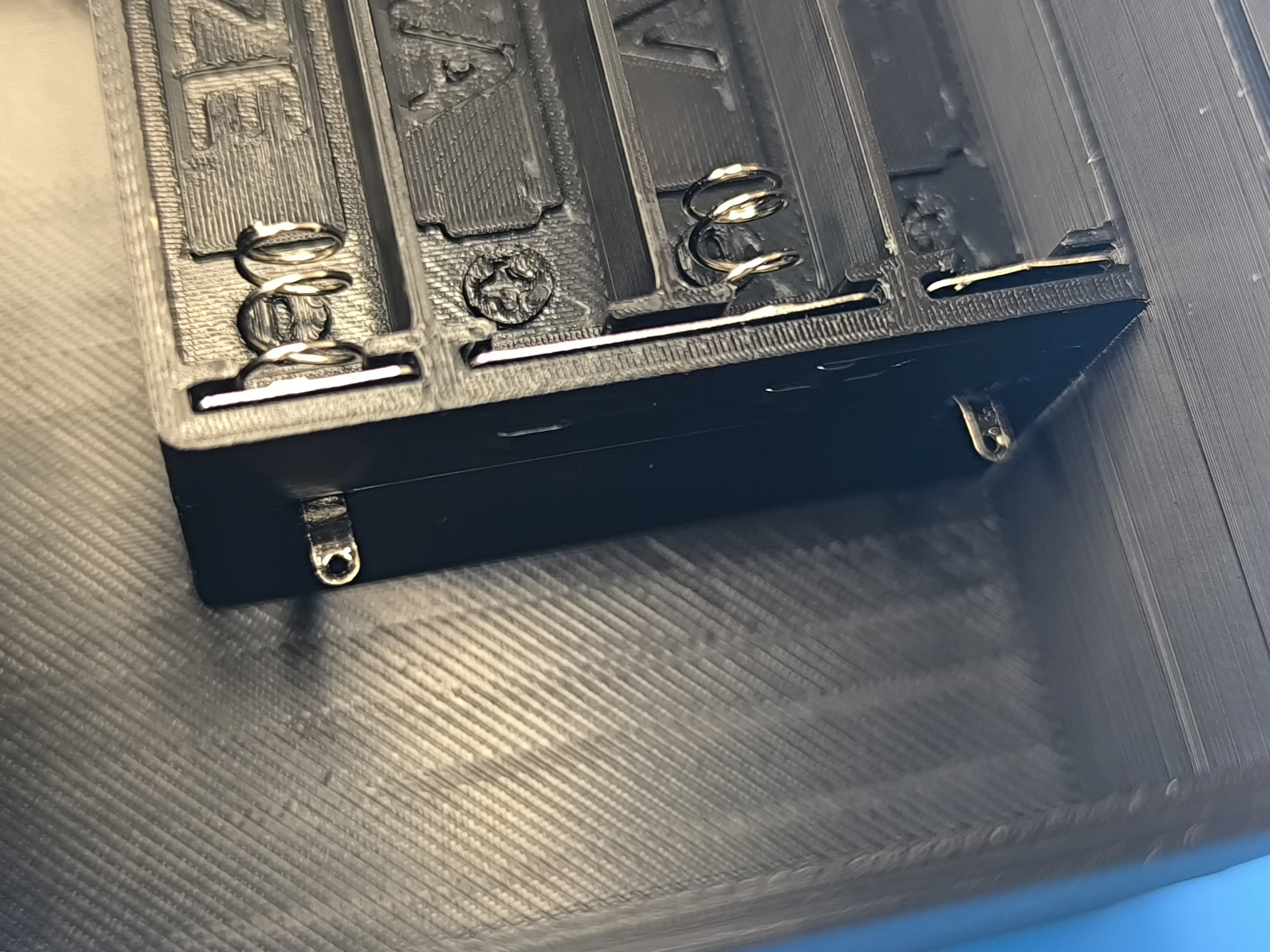

**Bend the contacts at the end slightly upwards with a flat object**

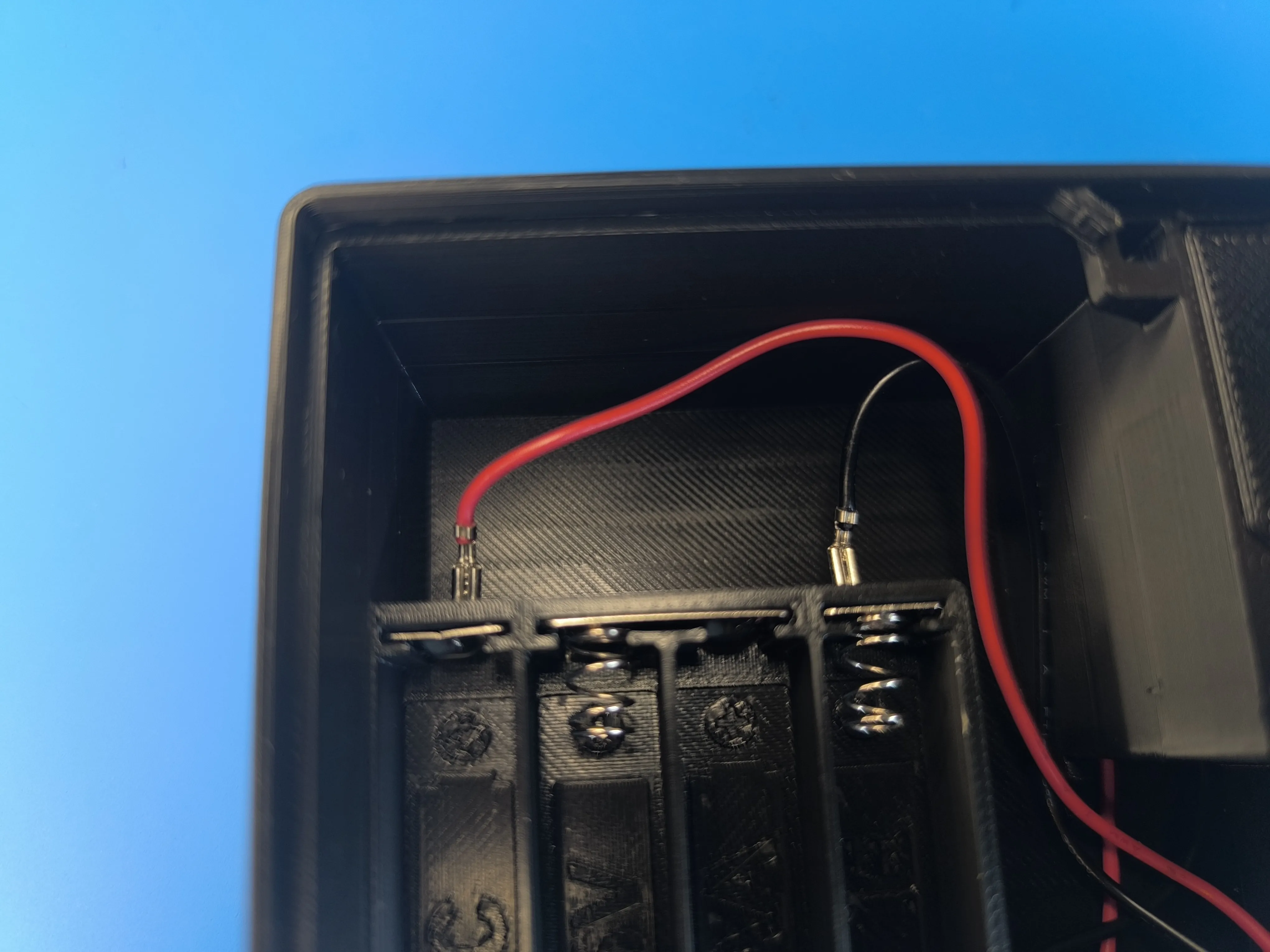

**Connect the cables** (Tip: You can connect the cables the other way to make the train run in the other direction)

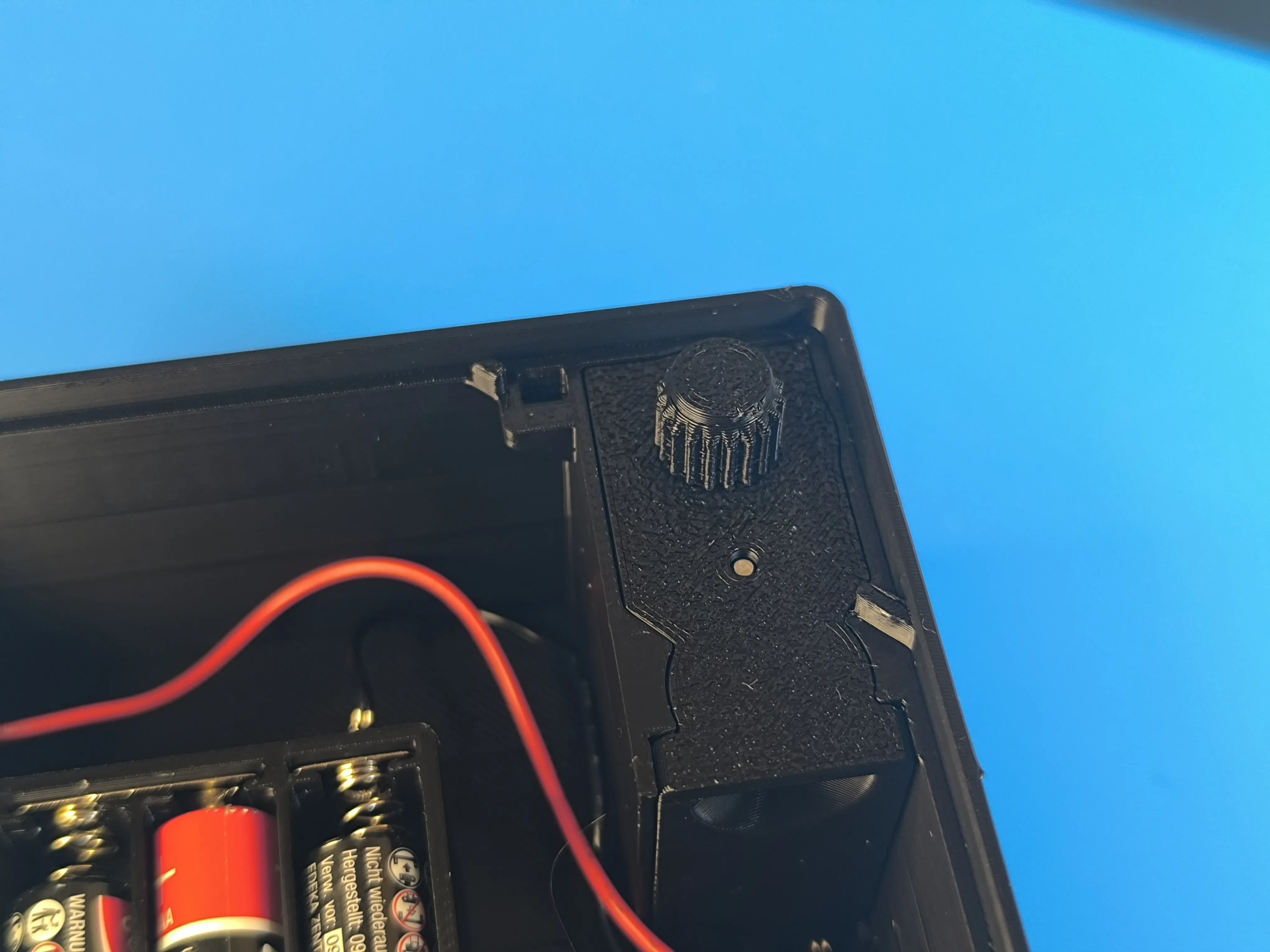

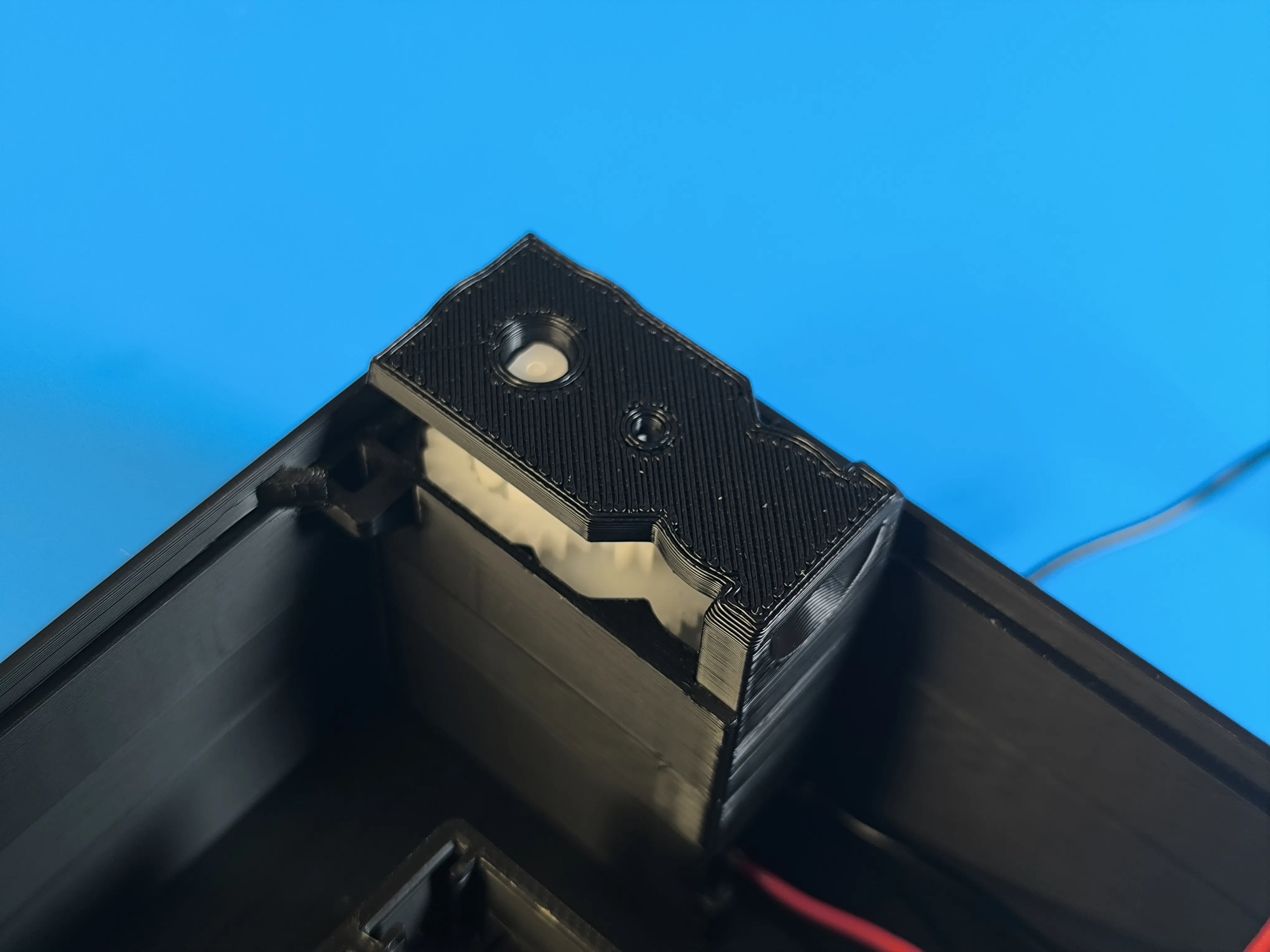

**Push edge cover above the gear into the correct spot.**

I hope you like this motor box and the whole Mini Train series.
