MCU Fuse Panel - 4 fuses inline

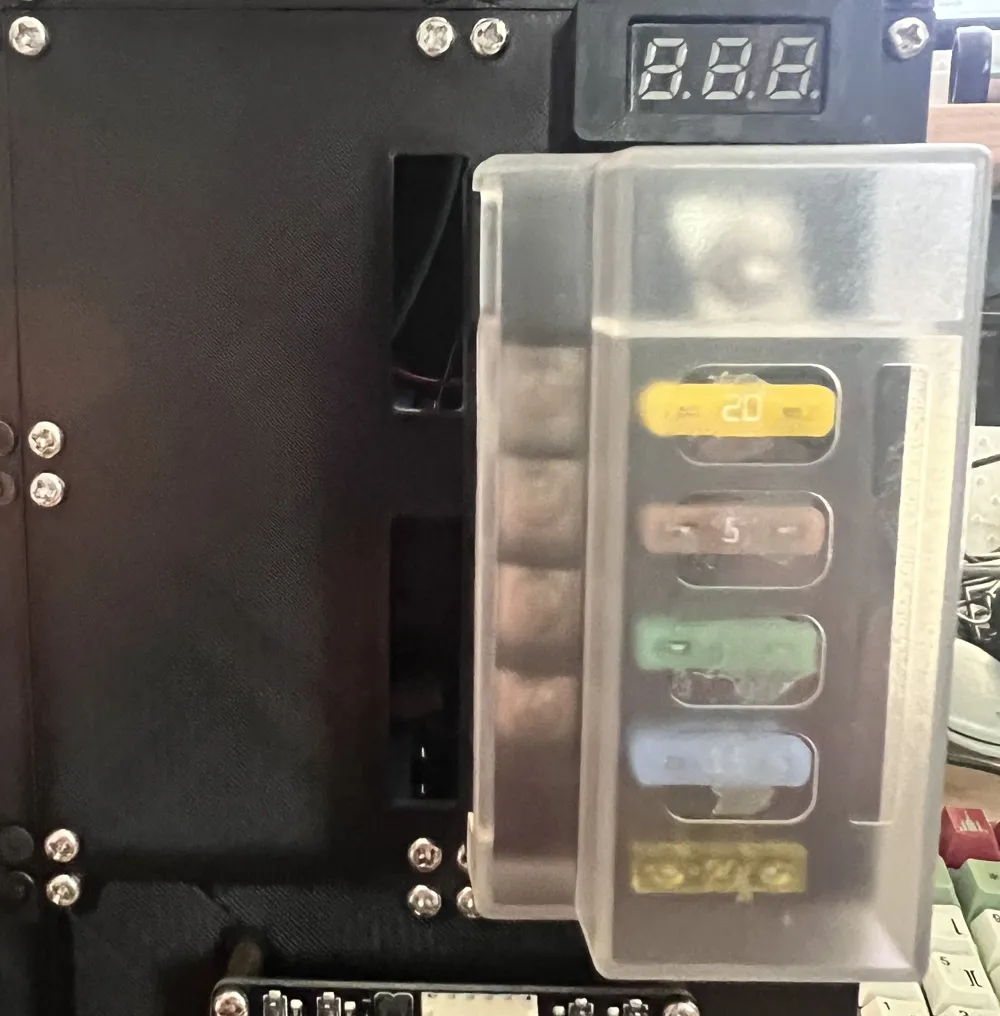

Heres another panel for PrintingBuddy's MCU. I spliced his panels and Jason Charlton's Voltage meter together to create this. Ive also adjusted hole placement for routing cables, and cut an opening in the back panel for the voltage meter because I noticed the meter i purchased had a voltage adjustment screw that didn't align with Jasons original file. The Meter Cover provided has not been altered from Jasons original design

Use hot glue to attach the meter cover

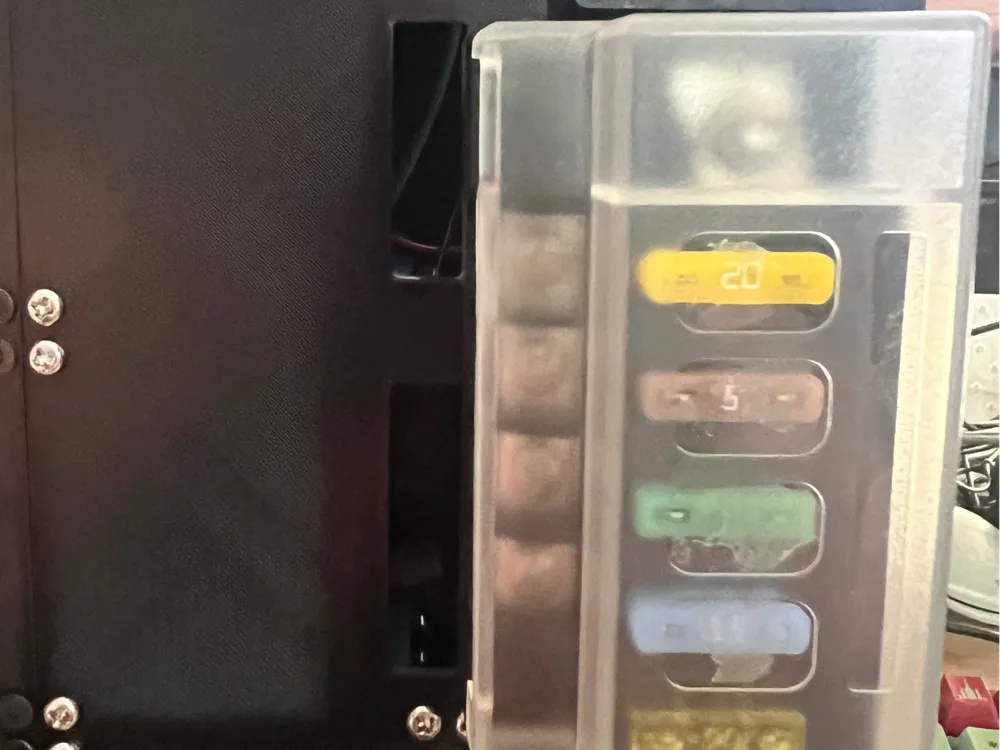

The fuse panel I used for this is an 4 inline fuse block you can find on amazon. See pics for the style. There is no ground on the fuse block so you'll have to either find a place on the panel or use another location. Also to note I mounted the fuse block in a specific way to allow for easy removal of the fuse block lid. You will need to drill and bolt the fuse block to the panel.

The Voltage meter is the same type used in Jason's file. See link below.

PrintingBuddy's Original Files:

https://makerworld.com/en/models/664782-r2d2-modular-control-unit-mcu#profileId-592188

Jason's Original files:

https://www.printables.com/model/218560-voltmeter-brackethousing
