Description

Content has been automatically translated.

Show original

Boost Me (for free)

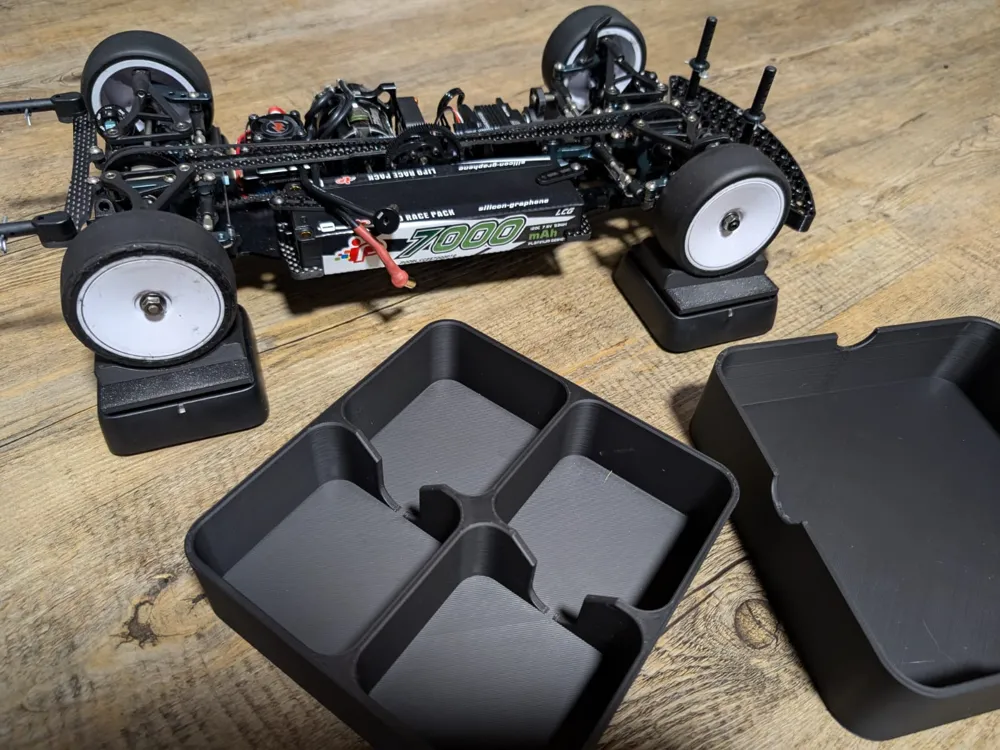

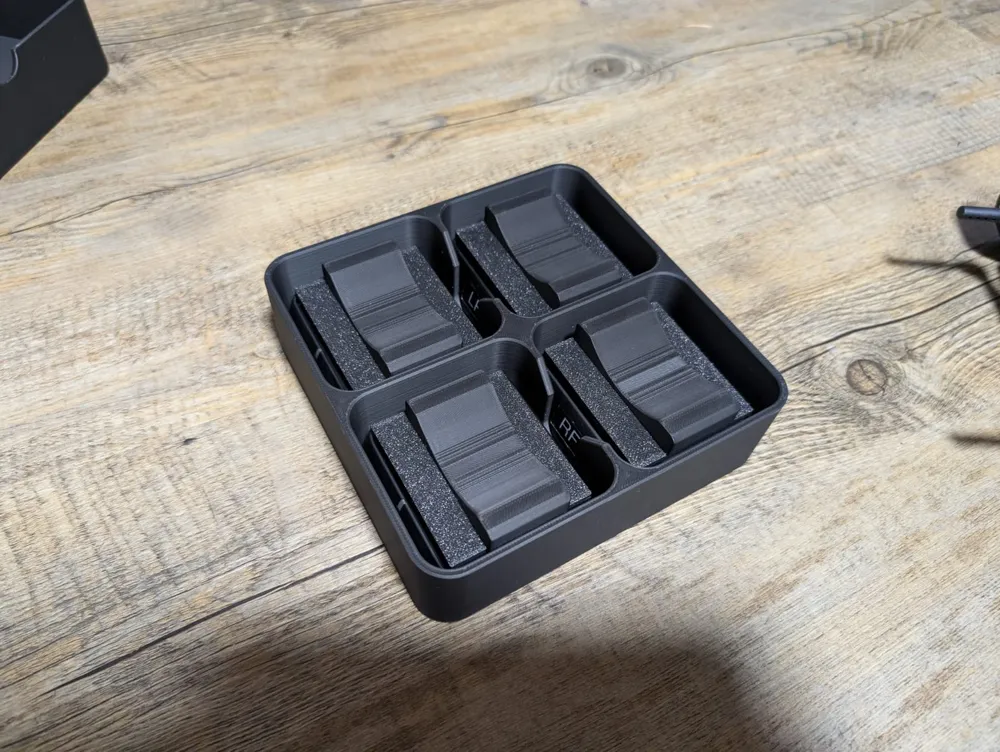

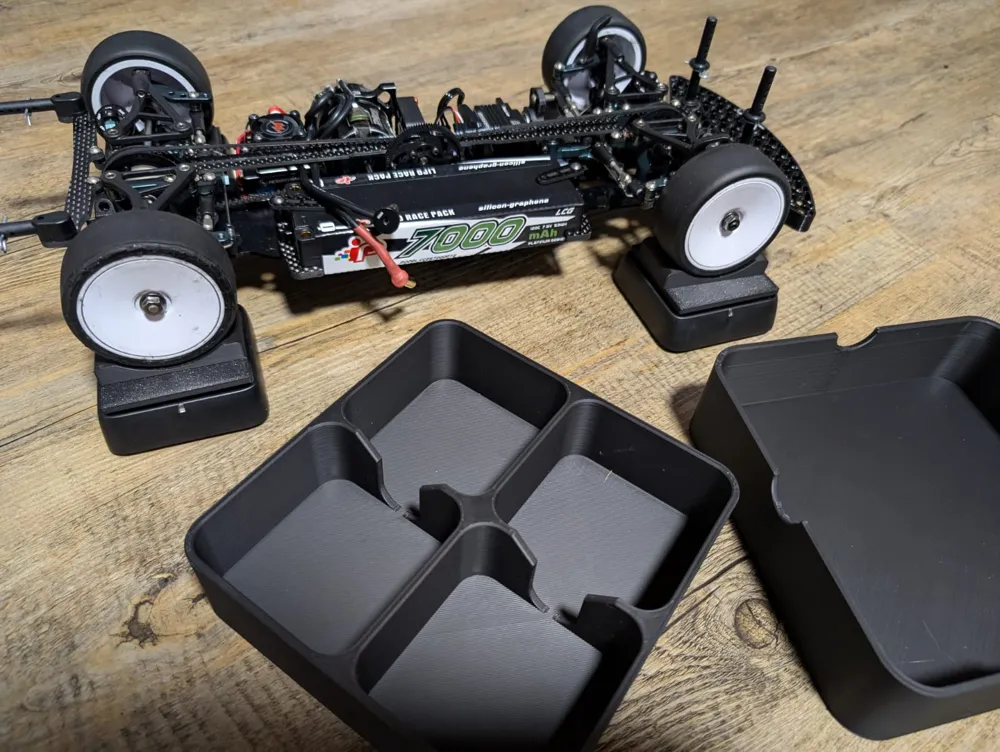

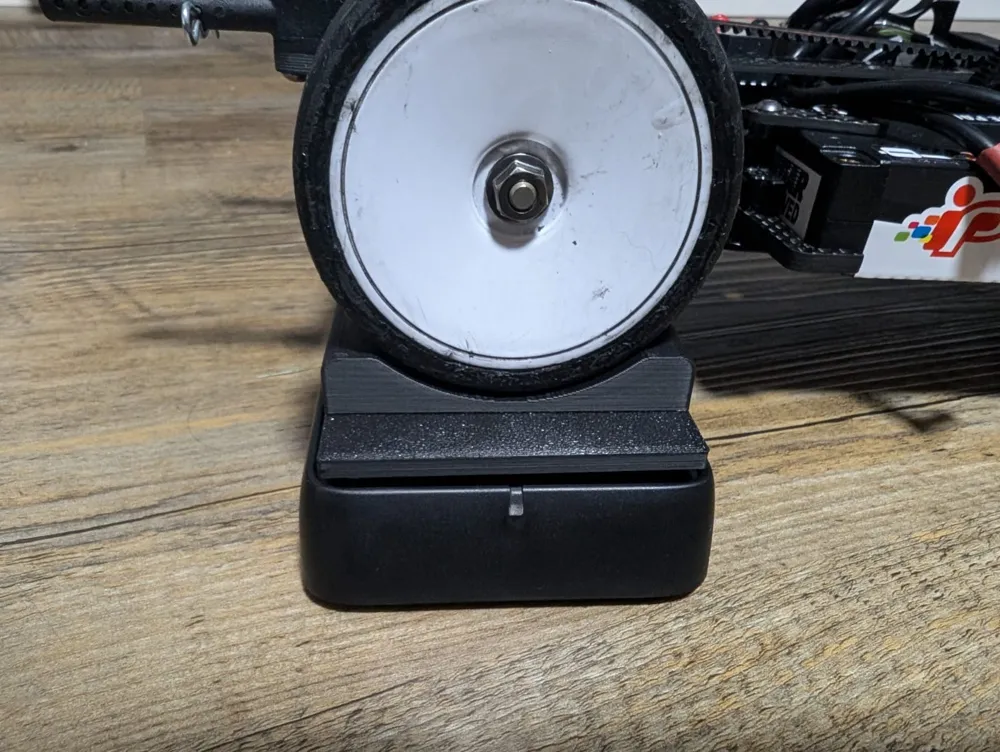

I have designed a storage box here for the SKY RC Corner Weight System Additionally I have made recesses for the tires so that the model stands stably on the scales

I printed it with PLA+

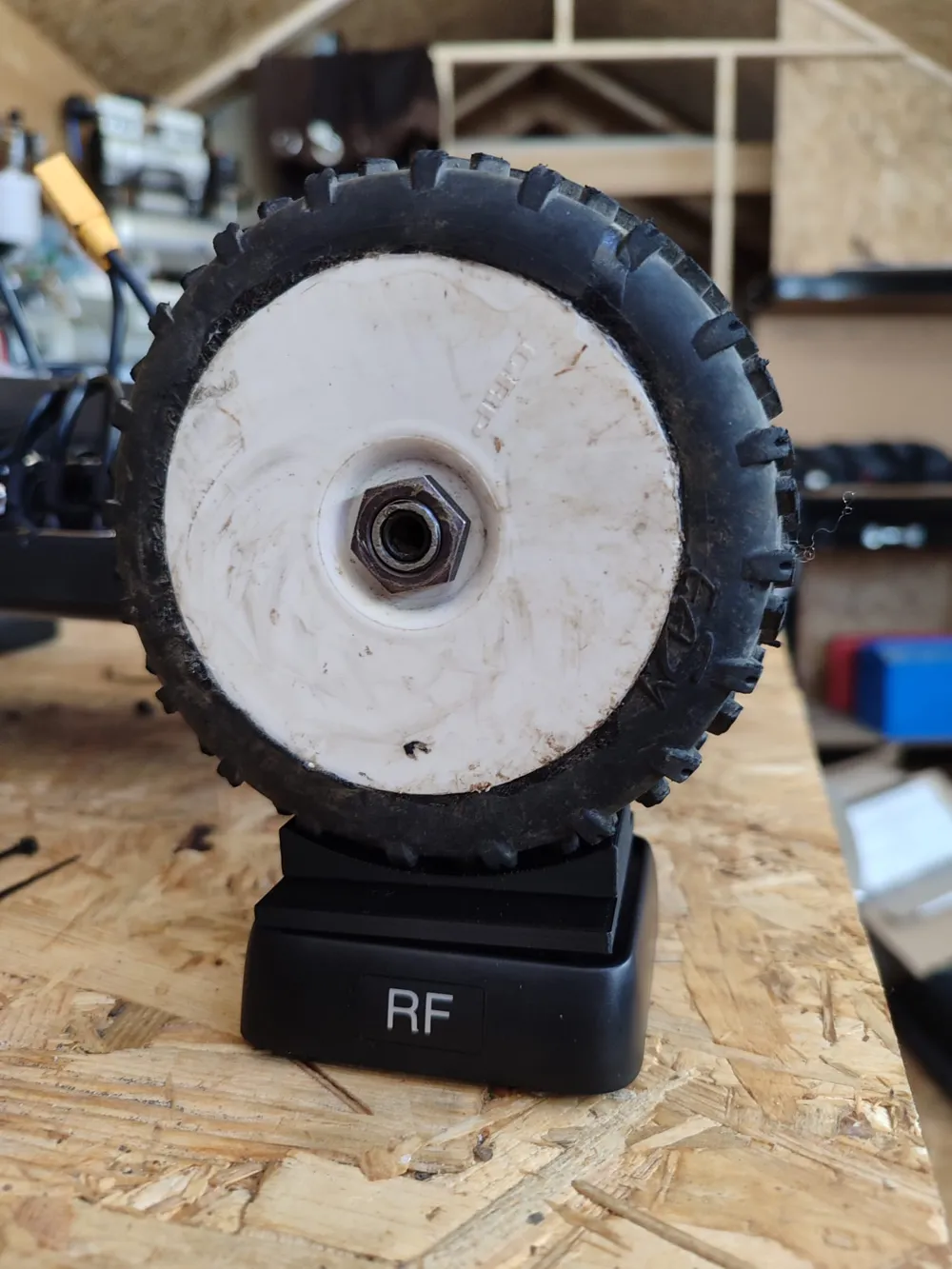

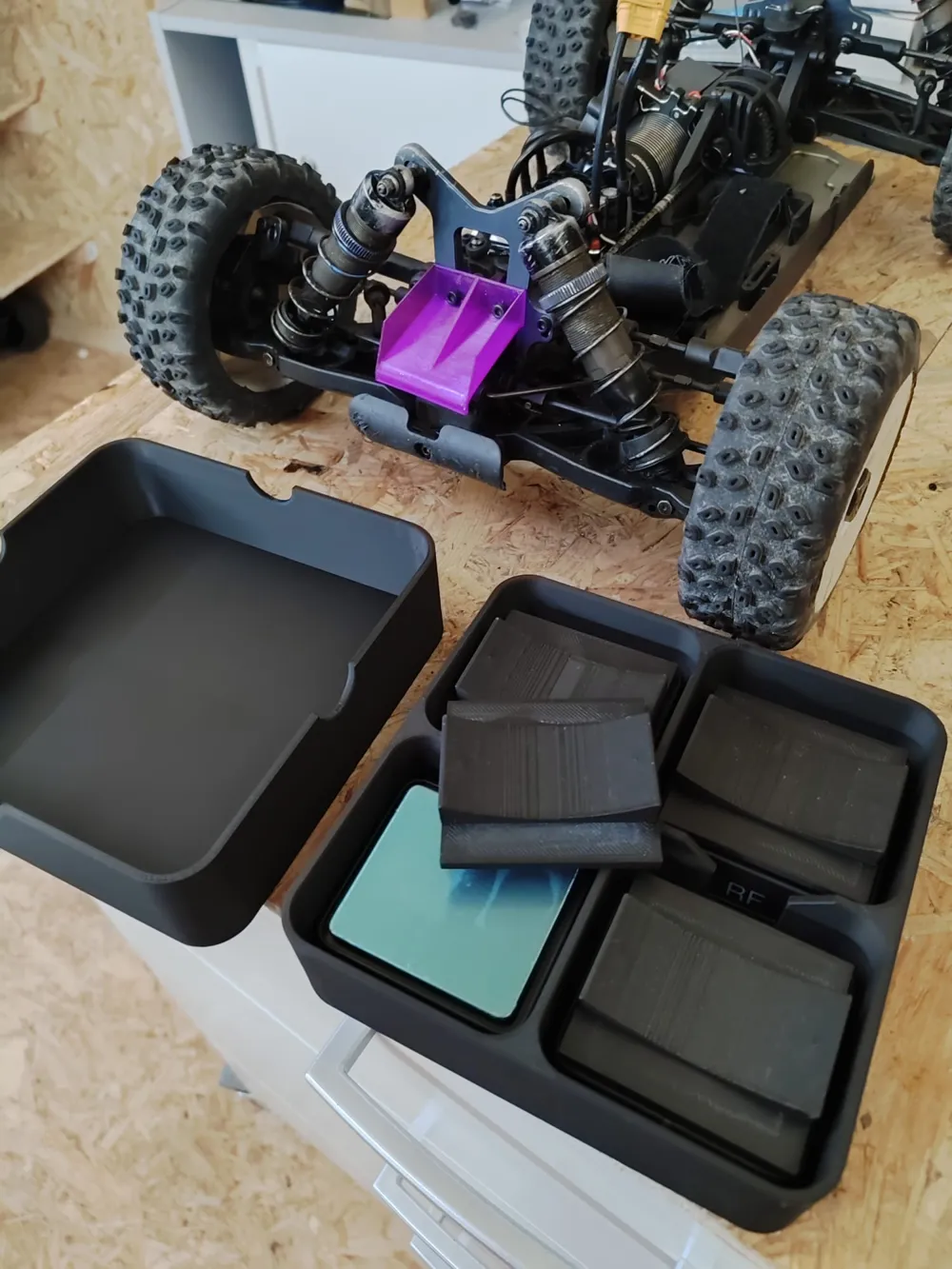

I have 2 different sizes for 1:10 touring car tires and for 1:8 buggy tires

Comment & Rating (26)

@user_131826297

Excellent I made one As mentioned in other posts it would be helpful if metric screws were also available but since I won't be attaching and detaching it I secured it with adhesive and UV resin Perhaps it would be fine to just create some marks and glue it in place

Show original

@MatthiasO

Boosted

Print Profile

0.2mm layer, 3 walls, 23% infill

Very good print It will be very useful to me

Show original

@wrong17

Boosted

Other than the screw hole size everything fits perfectly. I had the remix the model, so it works with M3 screws. I wanted to use M4 screws instead, but that head is too big. So, the best thing to so is remix it to accommodate M3 screws. I also printed the parts with a carbon fiber texture, and I am very happy how it turned out. For the part where the tires sits on, I printed the parts sideways, so it has a smoother curvature.

@floodo1

THANKS. Bambu PLA Basic. Painted stripe in slicer and printed those parts on side for better curved surface. Box has tight fit like premium electronics! Did notice that the lid fits better one direction than other. Interior divider might be better with with curves on all 4 dividers for easier access to the scales. Very cool model ❤️

@jwerkman.abca

Printed the scale tops for the touring car and thought the screws would be m3 but they are not.. What size screws did you use to assemble these? Would it be possible to make the screw holes for a M3 as that is more common in what I would have in my RC stuff..

The designer has replied

@Tobey

I used flanged nuts

Show original

@jwerkman.abca

Replying to @Tobey :

Do you have a picture of them or a link for what you used?

@tronstr

Replying to @Tobey :

M3 would be WAY better, not sure how you got flanged nuts in there

@user_2847890092

Print Profile

0.2mm layer, 3 walls, 23% infill

(Edited)

@user_2514711465

I made this and the print was perfect. I did make some changes though. I turned the centering blocks on their side so they printed smoother. I also resized the hole to accept M3 screws. (thanks for the STL files!) Thanks Tobey!!

(Edited)

@floodo1

I took photos of prints for you (-8

@Jimmy3258

Boosted

Print Profile

0.2mm layer, 3 walls, 23% infill

Need to know what size screws you're supposed to use ?

@MikeTek506

Print Profile

0.2mm layer, 3 walls, 23% infill

thanks for helping me keep this tool in one piece. my scales were banging around hauler bag getting messed up

@RoydeLeon

This should work regardless of what scale I'm using the Corner Weight System for. Correct?
