Bill of Materials
List other parts
- Arduino Nano RP2040 Connect x 1:
- Stepper Drivers x 1:
Description

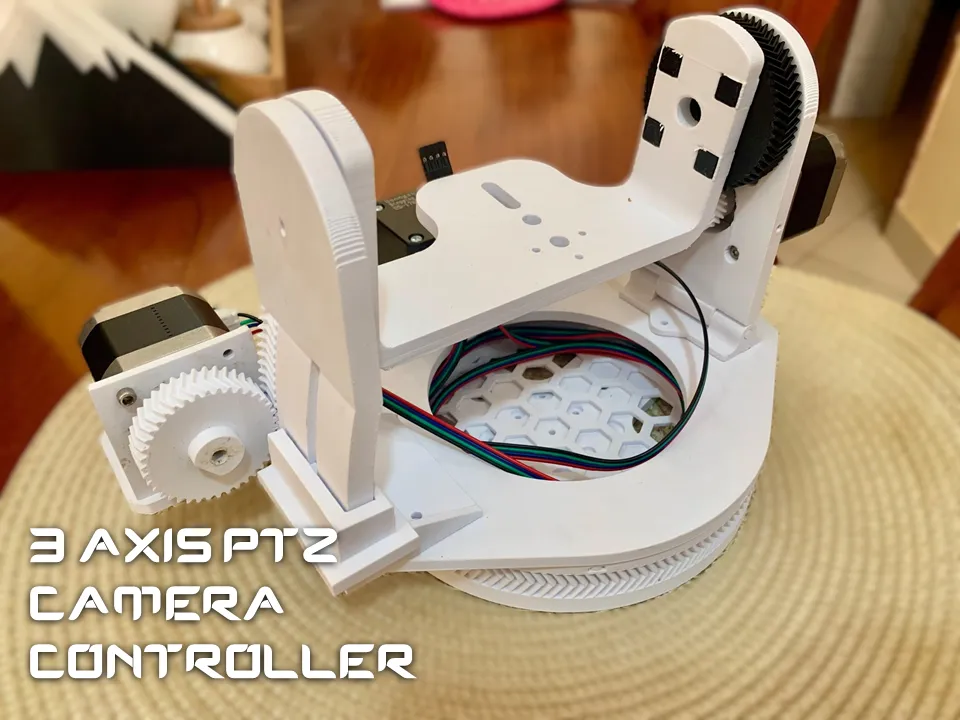

📷 3-Axis PTZ Camera Mount (Stepper Motor Controlled)

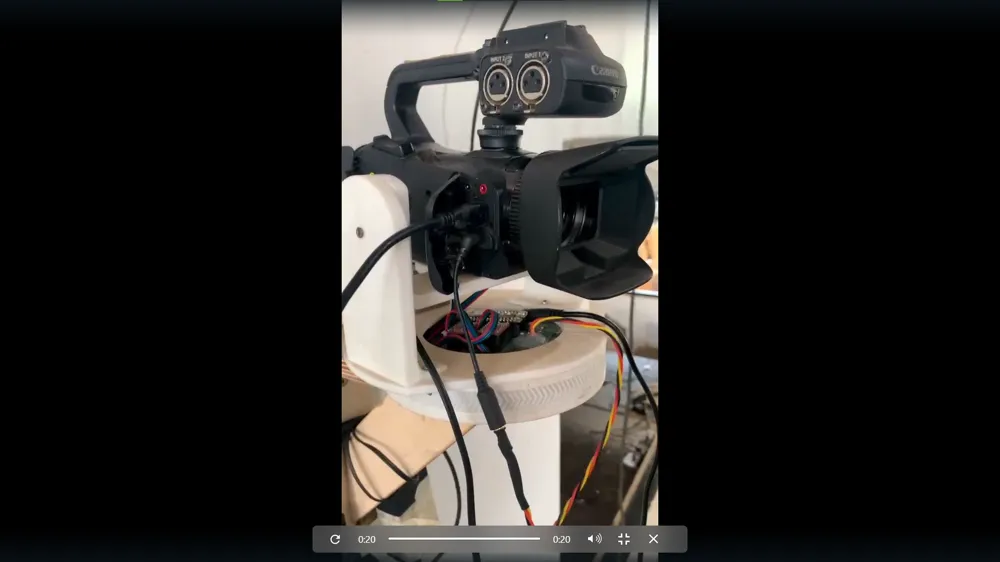

This is a fully 3D-printable, Arduino-powered Pan-Tilt-Zoom (PTZ) camera system designed for precise and smooth camera positioning. The model features a modular and compact design ideal for robotics, video capture, surveillance, or remote FPV use.
🧩 Features:
- 3 degrees of motion: Pan, Tilt, and Roll — each driven by stepper motors
- Designed to fit NEMA 17 stepper motors and A4988/DRV8825 drivers
- Compact design optimized for Arduino Nano RP2040 Connect
- Lightweight frame with wire routing channels and mounting holes
- Customizable base for tripod or surface mounting
- Supports integration with custom controllers, joysticks, or software interfaces
🛠️ Electronics:
- Controlled by Arduino Nano RP2040 Connect
- Stepper motion via A4988 (or compatible) stepper drivers
- External joystick or serial interface for movement control
