8-way Y-splitter with holder for H2D
Print Profile(3)
Bill of Materials
- Schraube x 4: M3x12
- doppelseitiges Klebeband x 1: 7 cm
- PC4-M10 x 8:
- PC4-M6 x 2:
Description

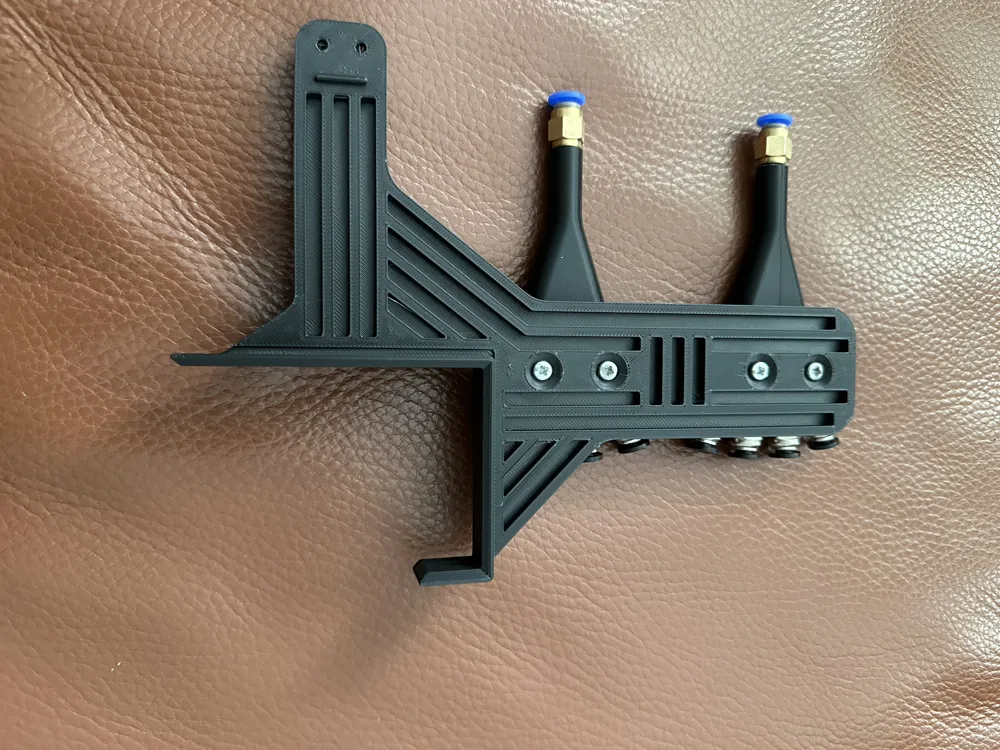

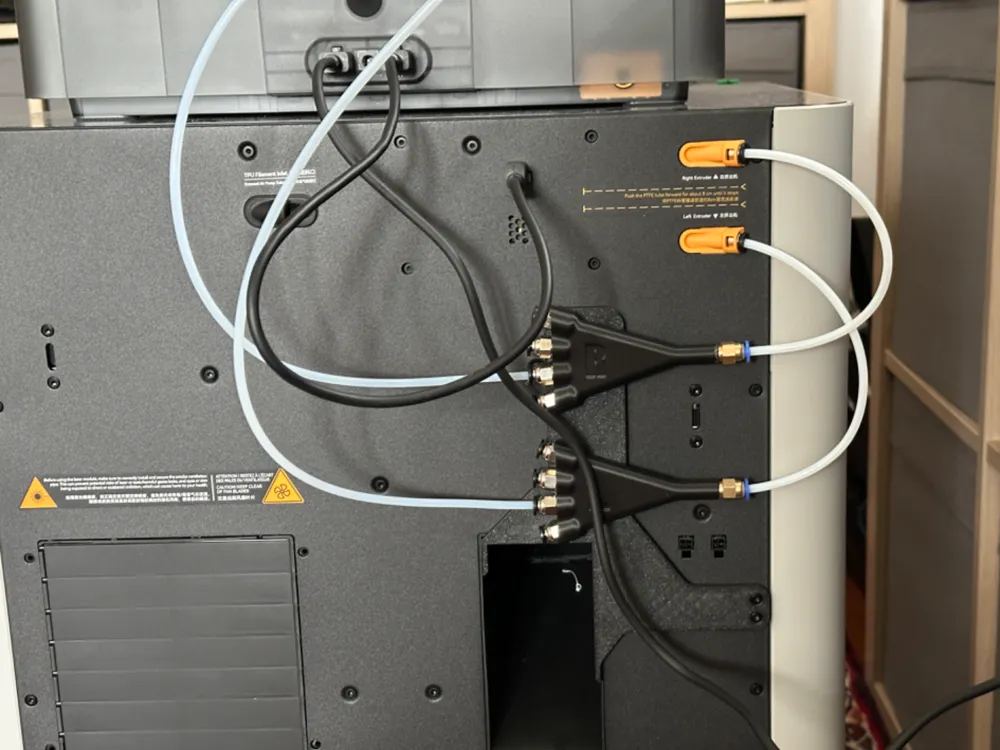

Up to 8 Connections to the H2D
(max 20 colors: 4x AMS + 4x AMS HT)
NO access points are installed (4-pin connector and belt tensioner)
Although I only have 2 AMS currently, I have designed 4-way Y-splitters with holders for the H2D to be prepared for more in the future.
The upper spool mounting point is used as a fixing point. Additionally, adhesive tape can be used.
Either AA109 or AA144 or M3x12 screws can be used.

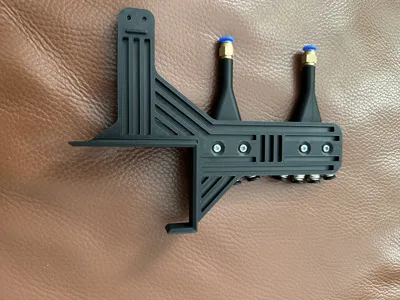

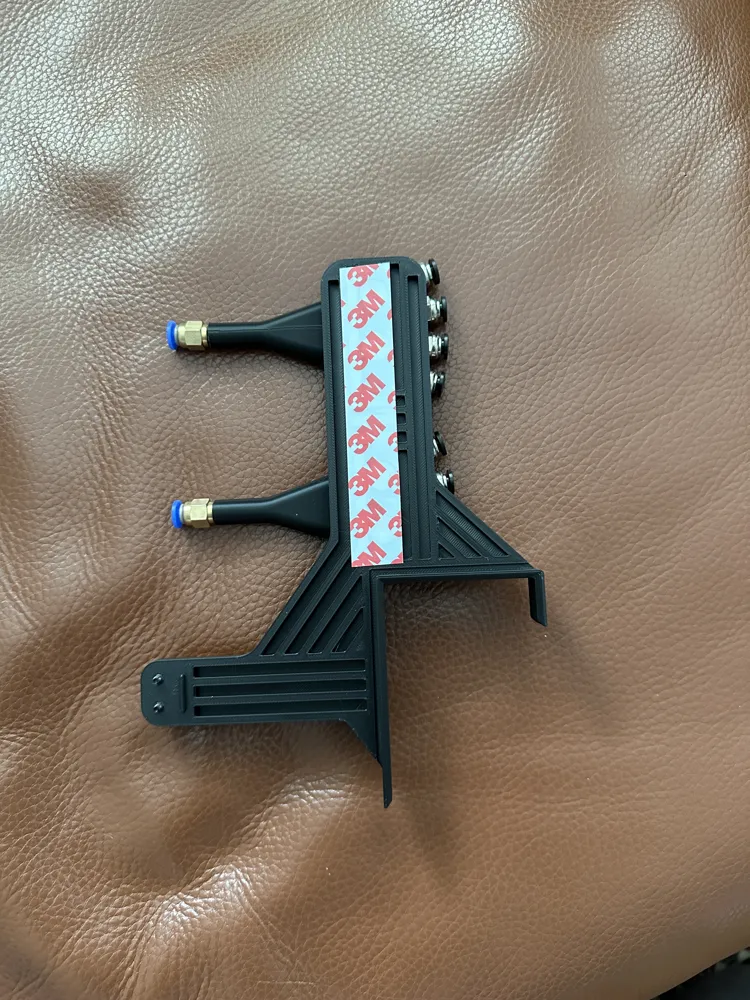

ZH052 or double-sided adhesive tape approximately 7 cm in length.
8x PC4-M10 and 2x PC4-M6 (FC001)
For attachment to the spool mounting point, I used the existing screws.
Design Note:

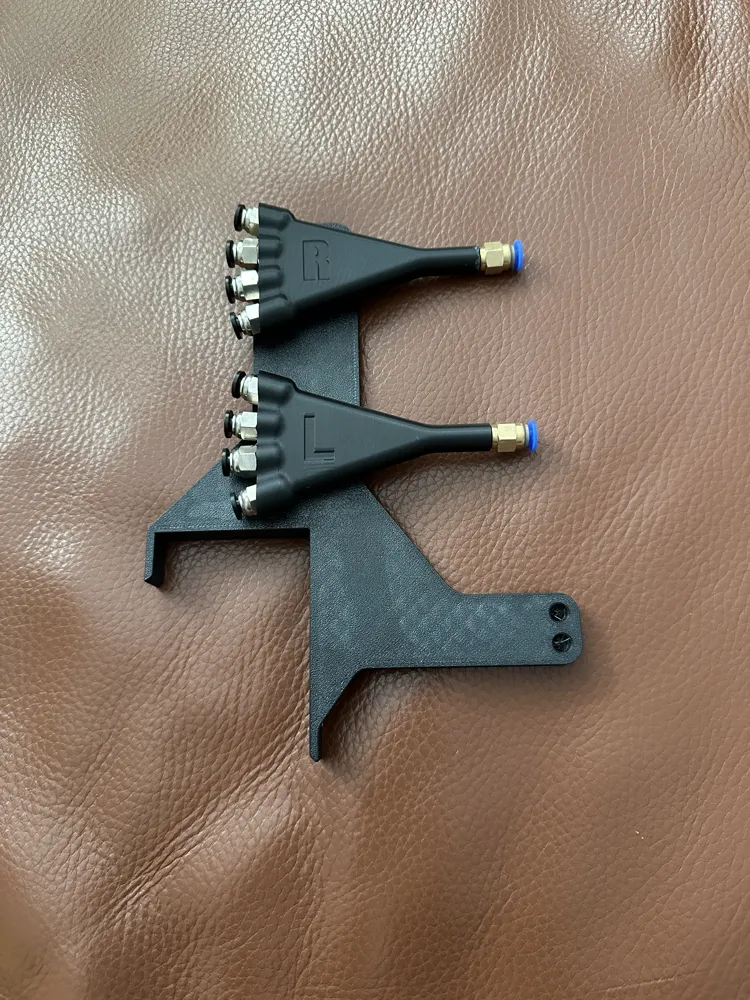

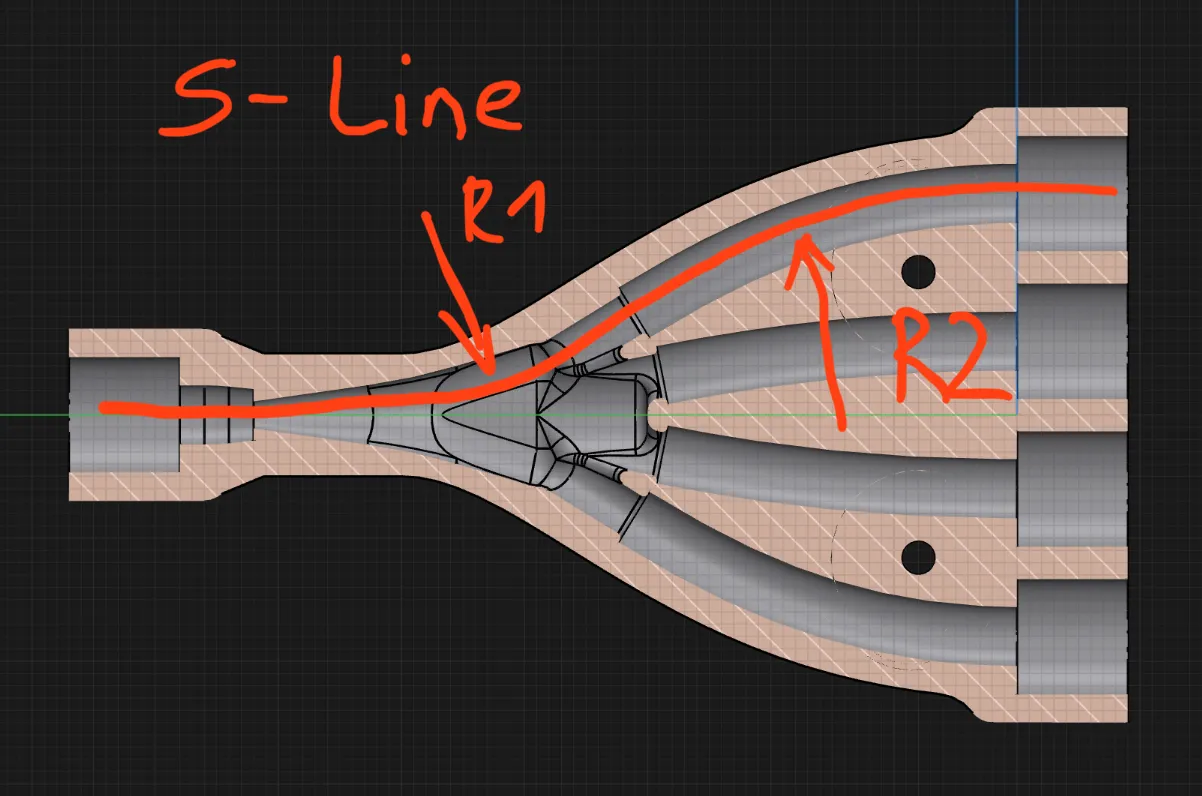

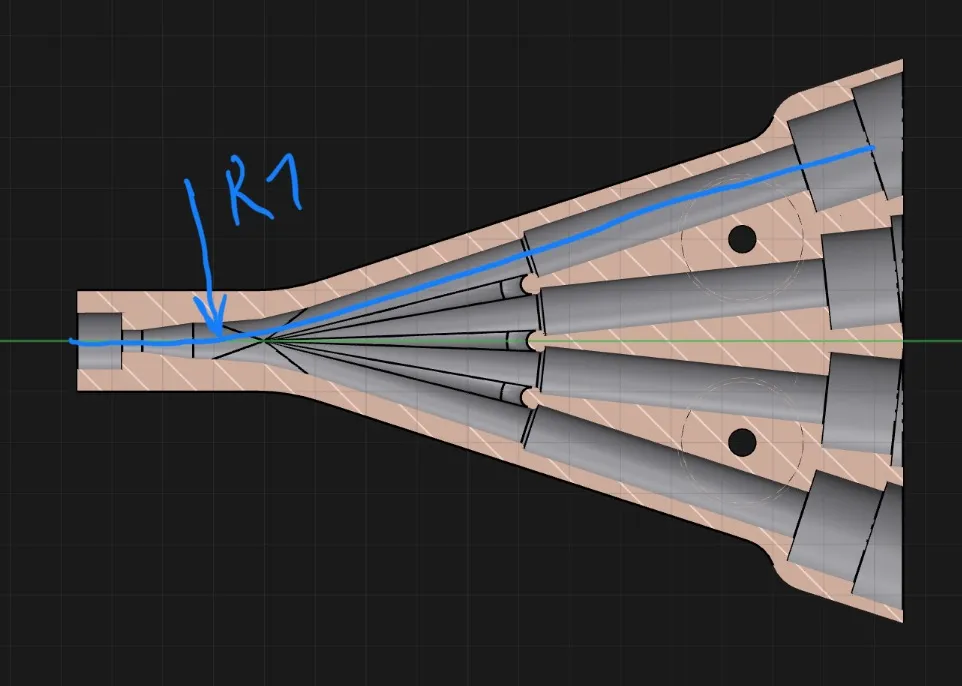

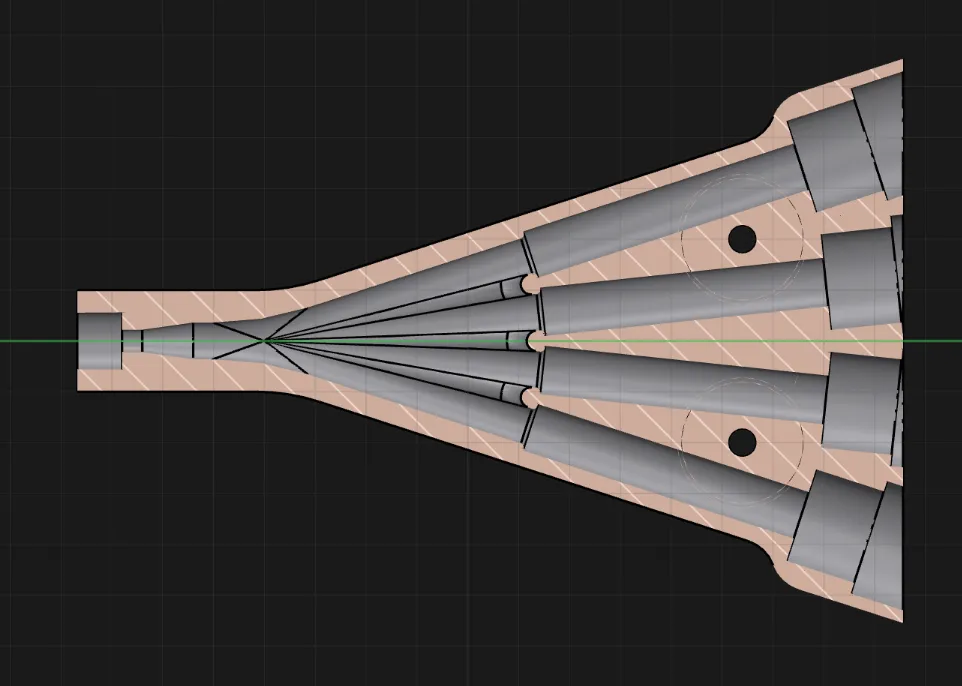

The 4 inlets are not designed in parallel, as an S-bend only creates additional friction.
