NR200 "North Edition"
IP Report
Print Profile(4)
bottom grid_0.2mm layer, 2 walls, 15% infill
59 min
1 plate
grid top_0.2mm layer, 2 walls, 15% infill
57 min
1 plate
3D Printed Slats (and Magnets)
14.4 h
4 plates
Top & Bottom front Panel & Clips 0.2mm, 2 walls, 15% infill
5.9 h
3 plates
Open in Bambu Studio
Boost
186
331
29
14
163
35
Released
Description
Been using the NR200 for a few years, but gotten a bit tired of the plain front panel.

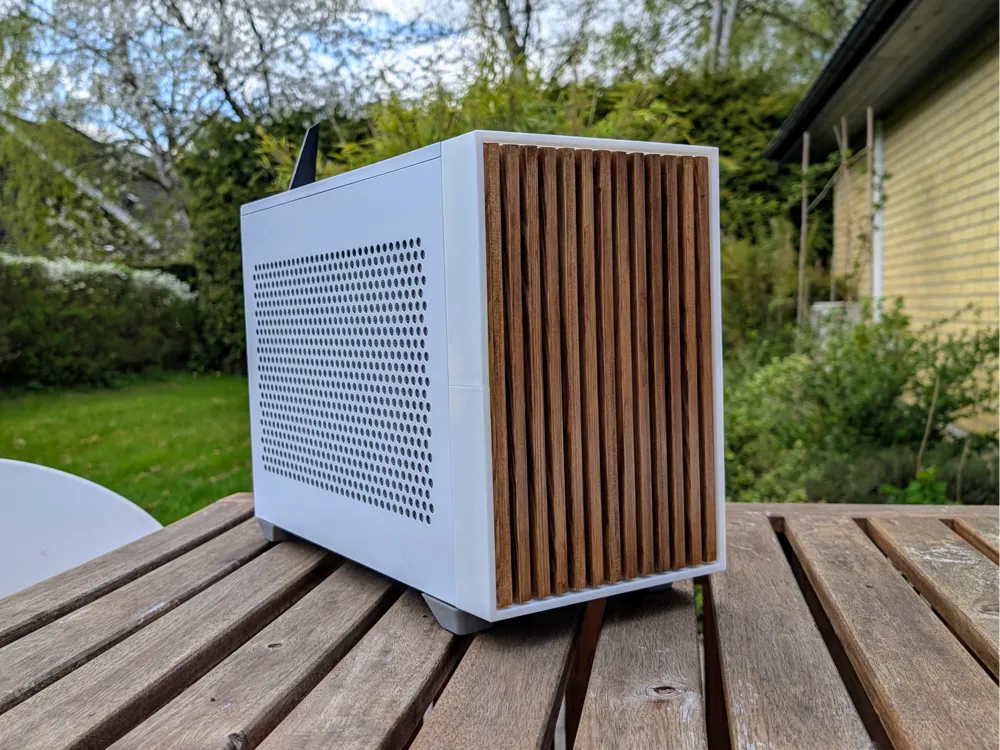

So I built myself a "North Edition" inspired by Fractal Design North and other cases with wood accents.
Big printer:

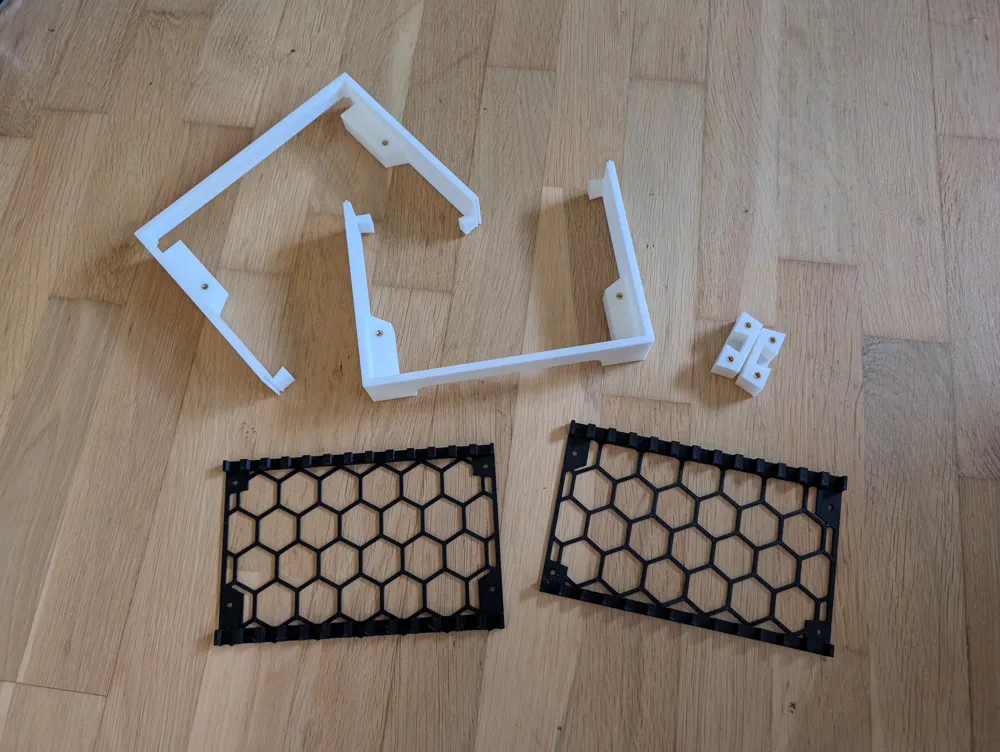

Print the two parts named: -1pc and 4x of the NR200-case-clip-4x.
Small printers, about 220x220:
Print the other 4 parts and 4x of the NR200-case-clip-4x

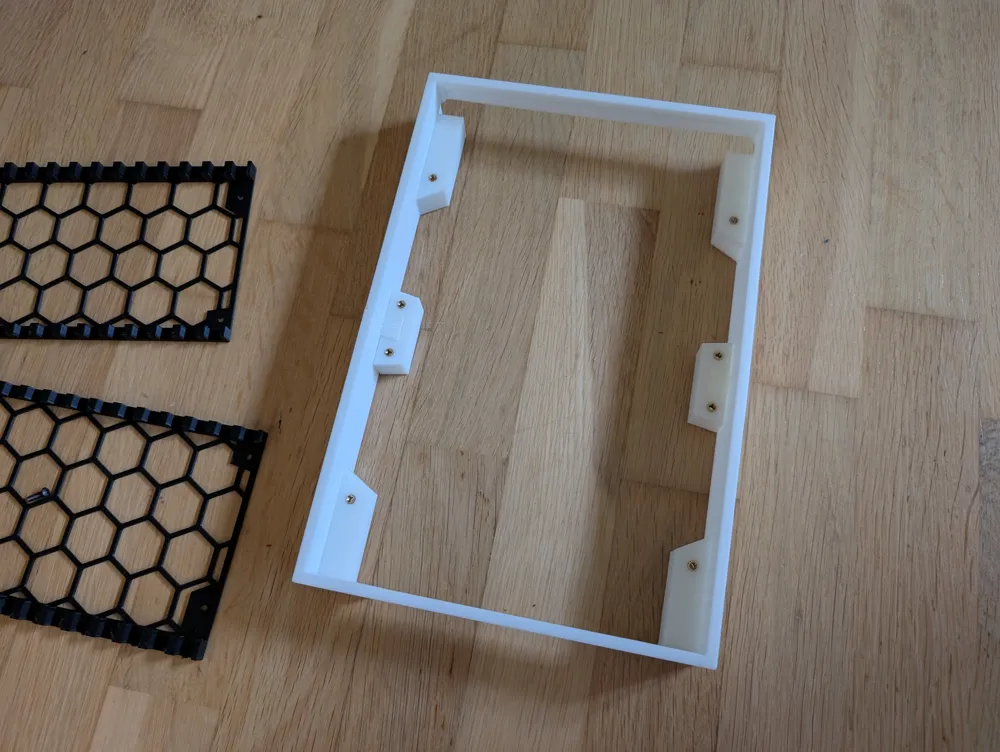

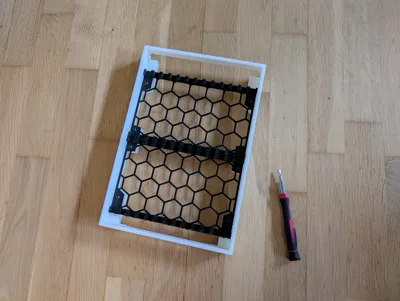

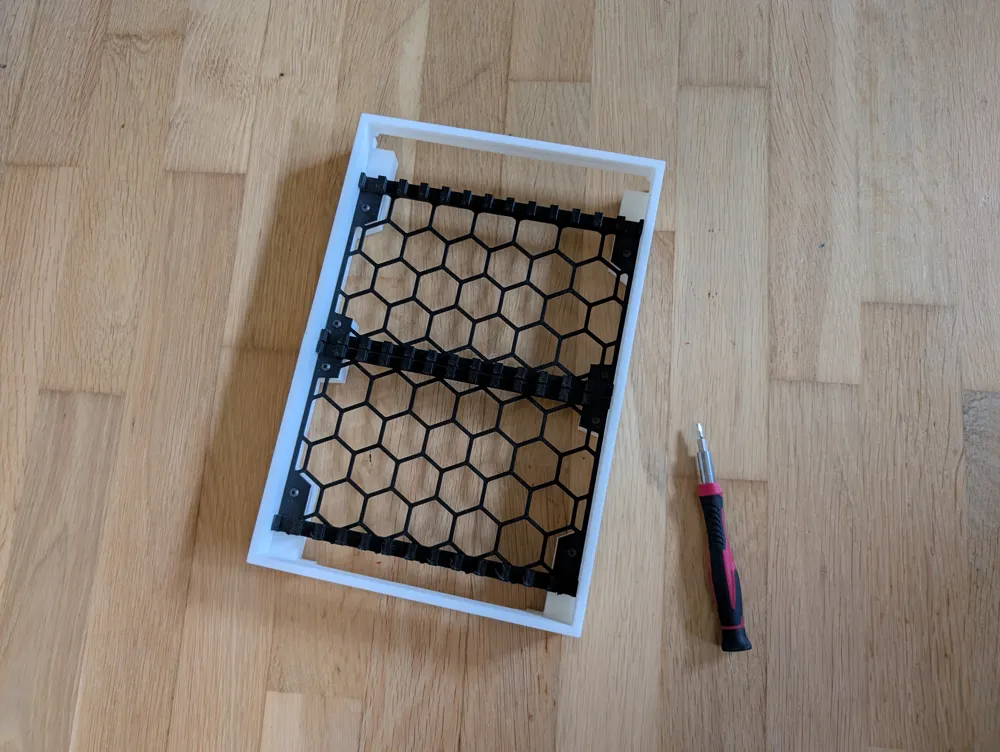

- Print either the full size or the 4-part, depending on how large your printer is.

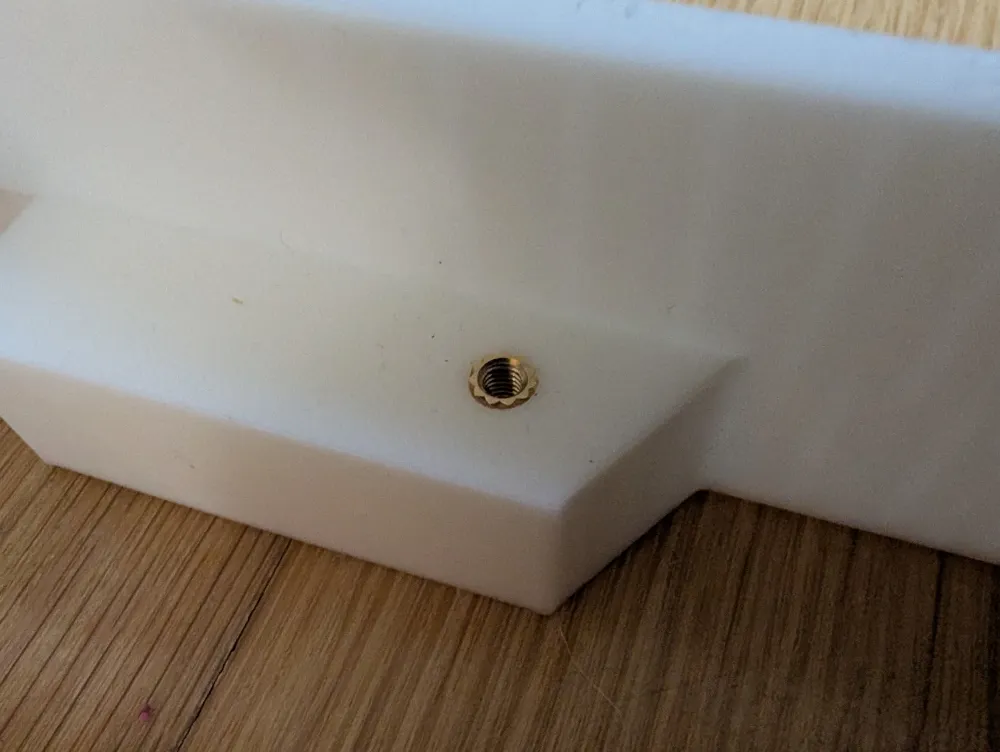

- Use M3 brass inserts and M3 screws, or just glue it.
- Add wooden slats - 8x15 mm.
