CheapTwist (900g, 52cm, A1 Mini)

V3 UPDATE:

• Increased Strength
• Height:  32cm → 52cm
• Filament Usaget:  1.2kg → 900g
• Closed Height: 5cm → 19cm

Huge thanks to 3DThing for helping me test this model: https://makerworld.com/en/@3Dthing

___________________________

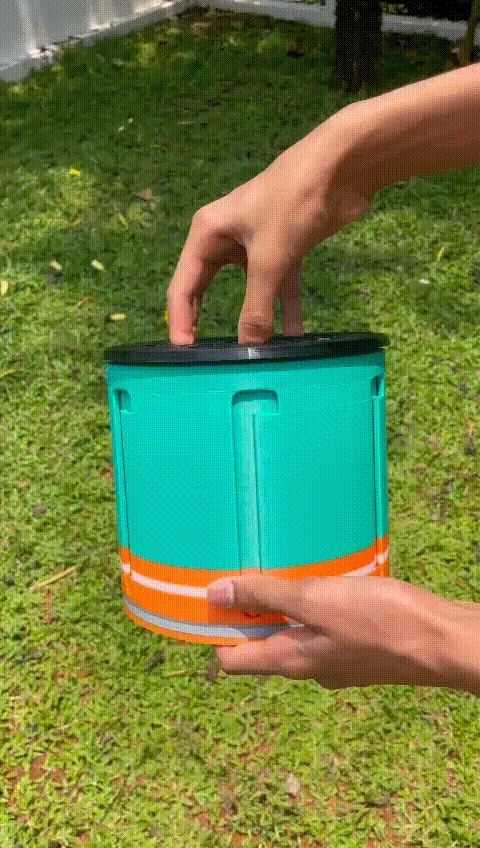

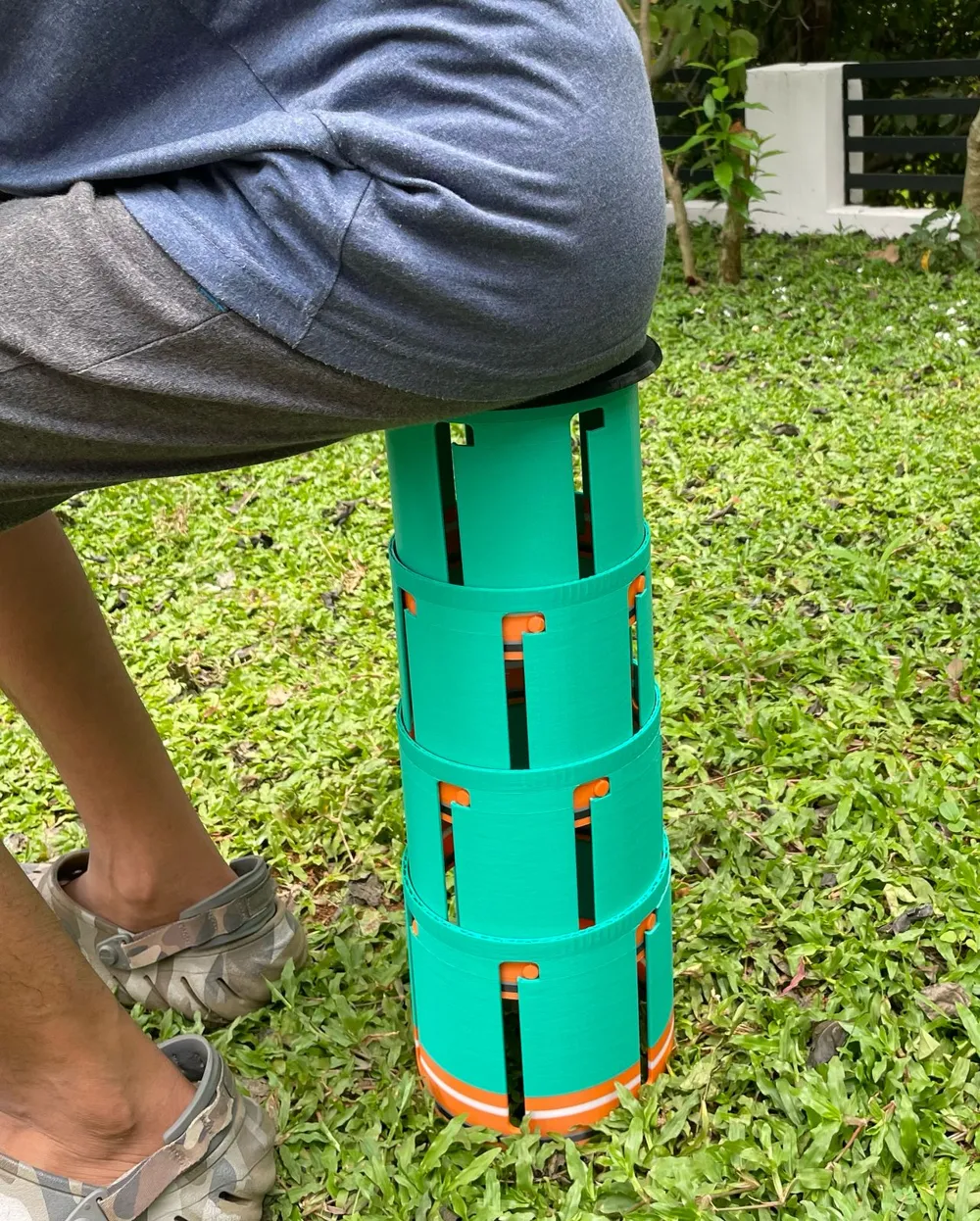

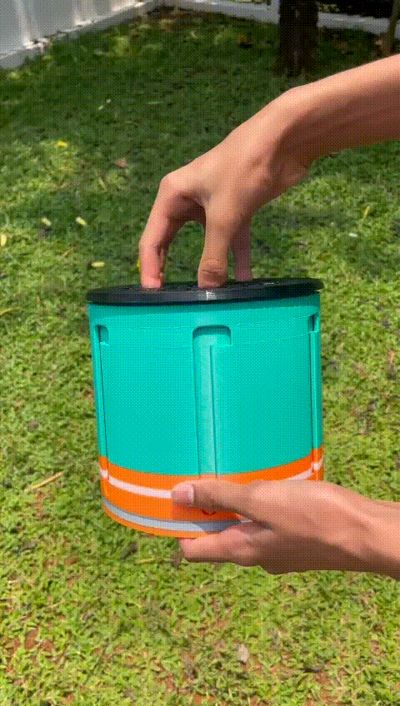

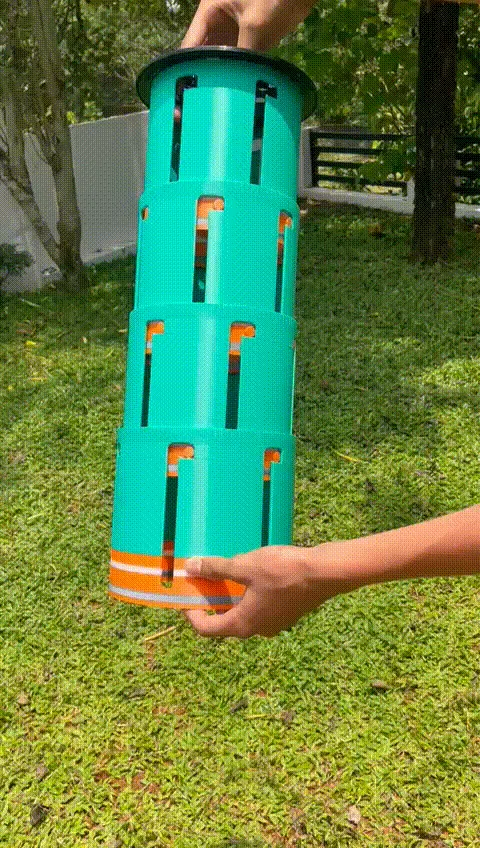

TwistSeat is a fully 3D-printed portable chair designed for strength, convenience, and affordability. With a unique pull-and-twist mechanism, it expands from a compact disc into a sturdy seat in seconds.

Sizes Available:

• Average: ⌀18cm | Expands to about 52cm in height

Dimensions:

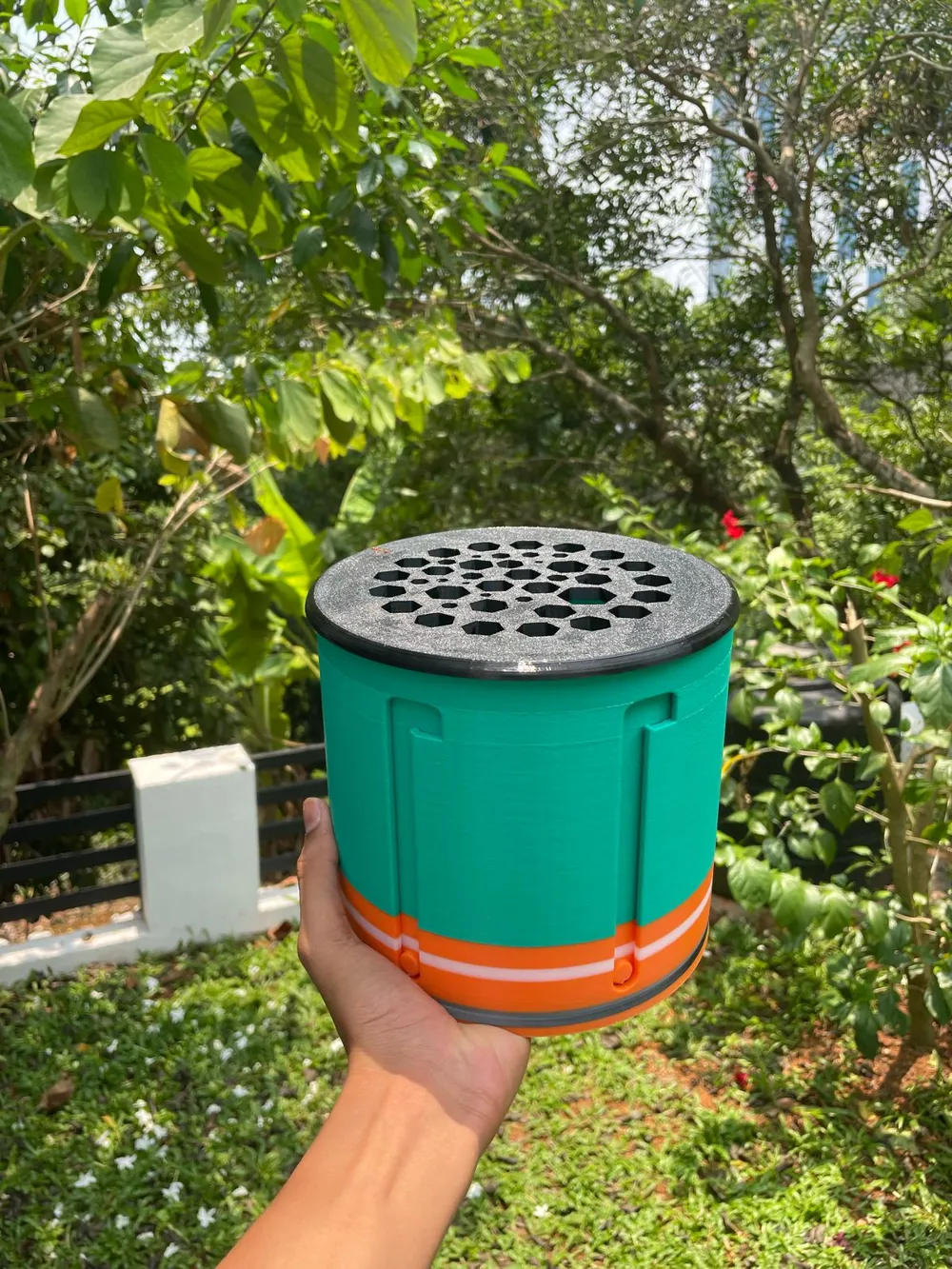

• Height (Closed): ~19cm

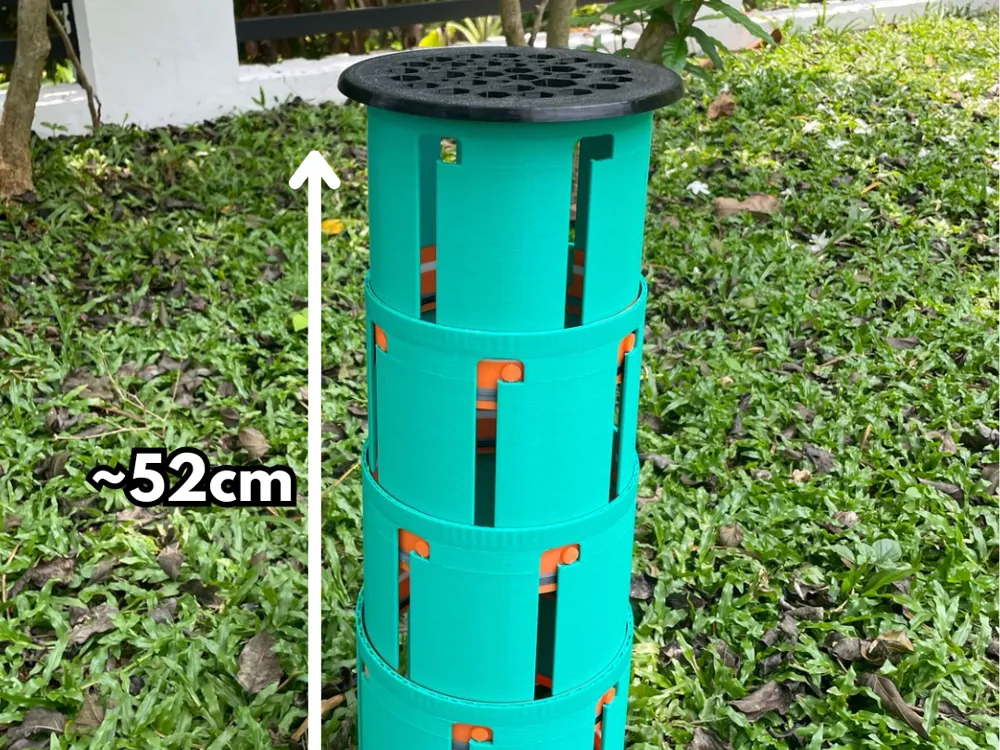

• Height (Opened): ~52cm
• Diameter: 18cm
• 4 Rings

4 Levels:

• Strong: The Strongest (100kg+, 8 Walls)
• Sturdy: Less Strong (80kg+, 3 Walls)
• Medium: Weak, just for children (50kg+, 2 Walls)

You can just change the wall settings in your slicer based on your preference!

_________

The top section features alignment holes to guide assembly, but for optimal strength and durability, it’s recommended to apply glue when attaching the top. The mechanism is a bit stiff to offer the best gram-to-strength ratio; it might be a little hard to open and close, but you get the most strength for less filament.

Perfect for camping, travel, or quick seating solutions, TwistSeat offers a firm yet portable design for everyday use. If you want to use it but its too tall, you can just partially open it, there are 4 levels!

If you like this model, please leave a boost! It took me 20+ hours to design and multiple rolls of filament to refine. Your support means a lot!

Recommended Profile:

• 3 Walls
• 15% Infill
• PETG Filament or stronger
• No Supports

Please give me a feedback on any improvements or any issues in the comments!
Thank You 😊
