UPDATE 4/11/2025:
NOW THE MODEL IS BOTH AMS / AMS 2 PRO COMPATIBLE.

Boost Me (for free)

If you enjoyed this model, please consider boosting it to support creator.
Thank you!

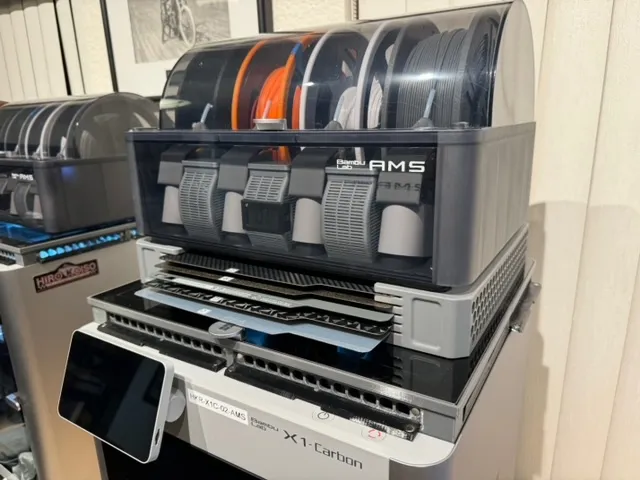

This is a clean sheet design of build plate storage for Bambu lab P1 and X1 series build plates.

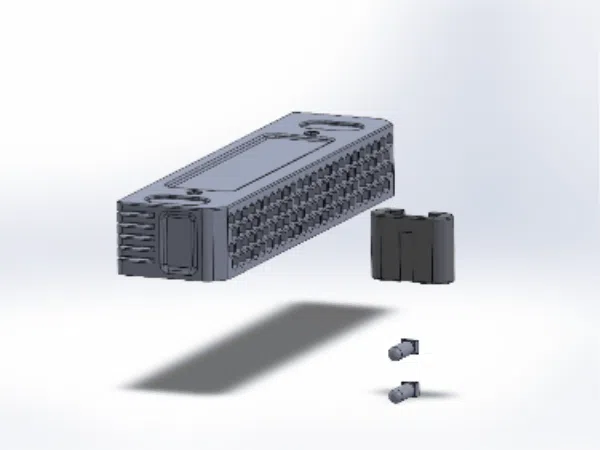

Simple construction for minimize assembly effort.
Parts geometries are optimized for easy and clean printing. No support or brim required.

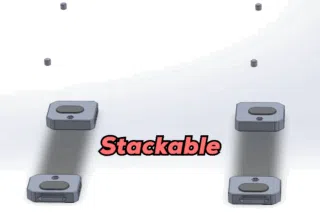

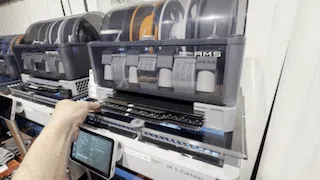

Pair of HKR storage holds 5 build plates. You can add storage capacity by simply print more and stack them up.

Originally designed for X1C with DK riser https://makerworld.com/en/models/21259#profileId-19505 in mind.

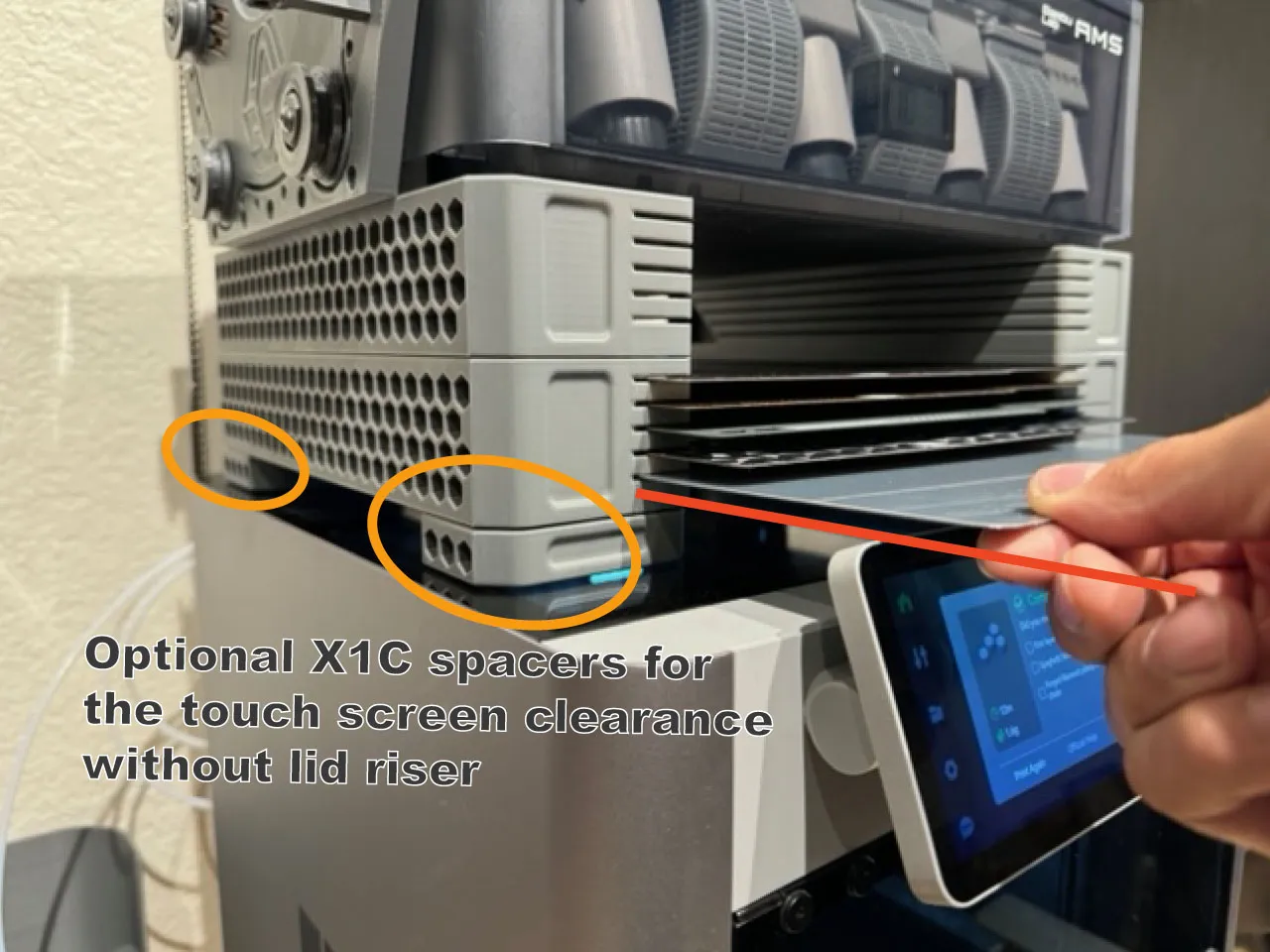

Add extension legs for people who doesn't run riser on X1C. So the bottom plate in the storage clear top of the touch screen.

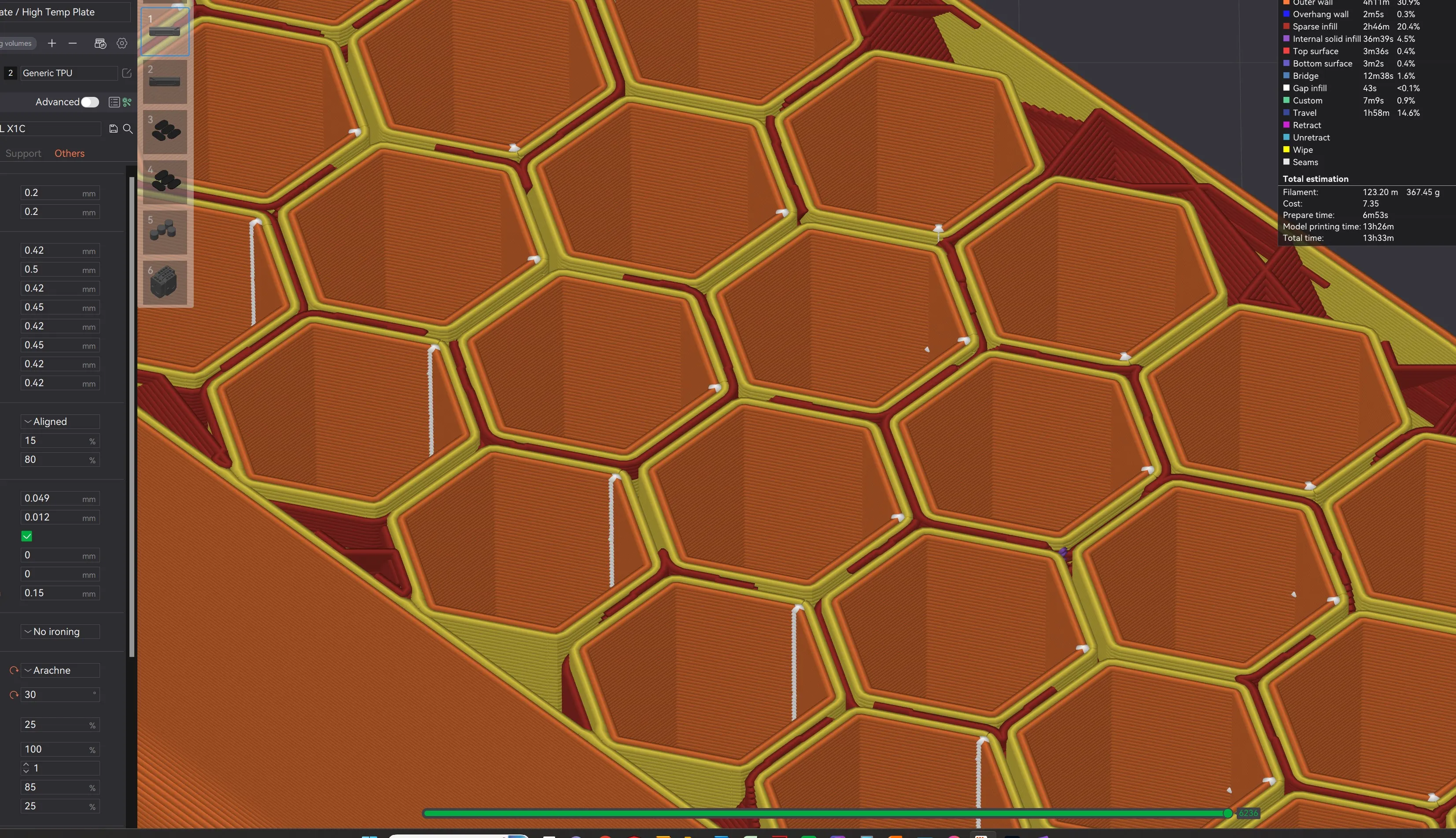

Hexagon shaped hole design is not only for cosmetically pleasing, also plays essential part for rigidity of the part
Strength of the component is significantly improved by having number of holes since each hole calls for wall loops for printing.
It takes longer to print but in the end, you will get well balanced strength per weight characteristics.

Boost Me (for free)

If you enjoyed this model, please consider boosting it to support creator.
Thank you!

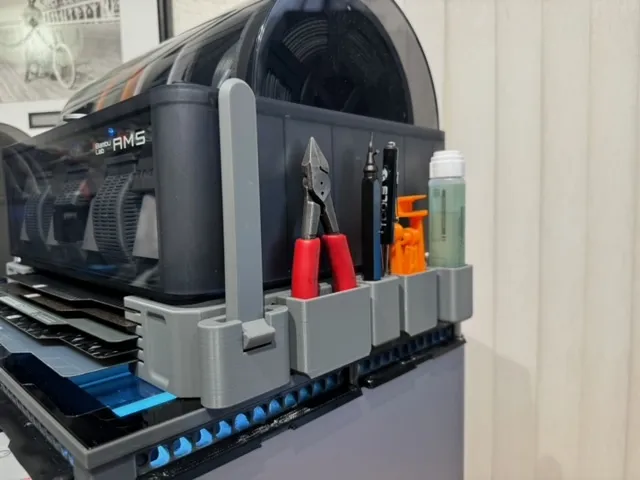

Check out side mount storage attachments.

UPDATE:

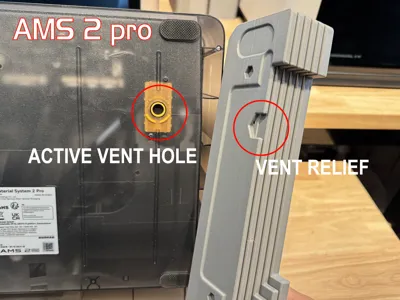

Design has been updated to accommodate active vent on AMS 2 pro.

Relief for the active vent hole is added for AMS 2

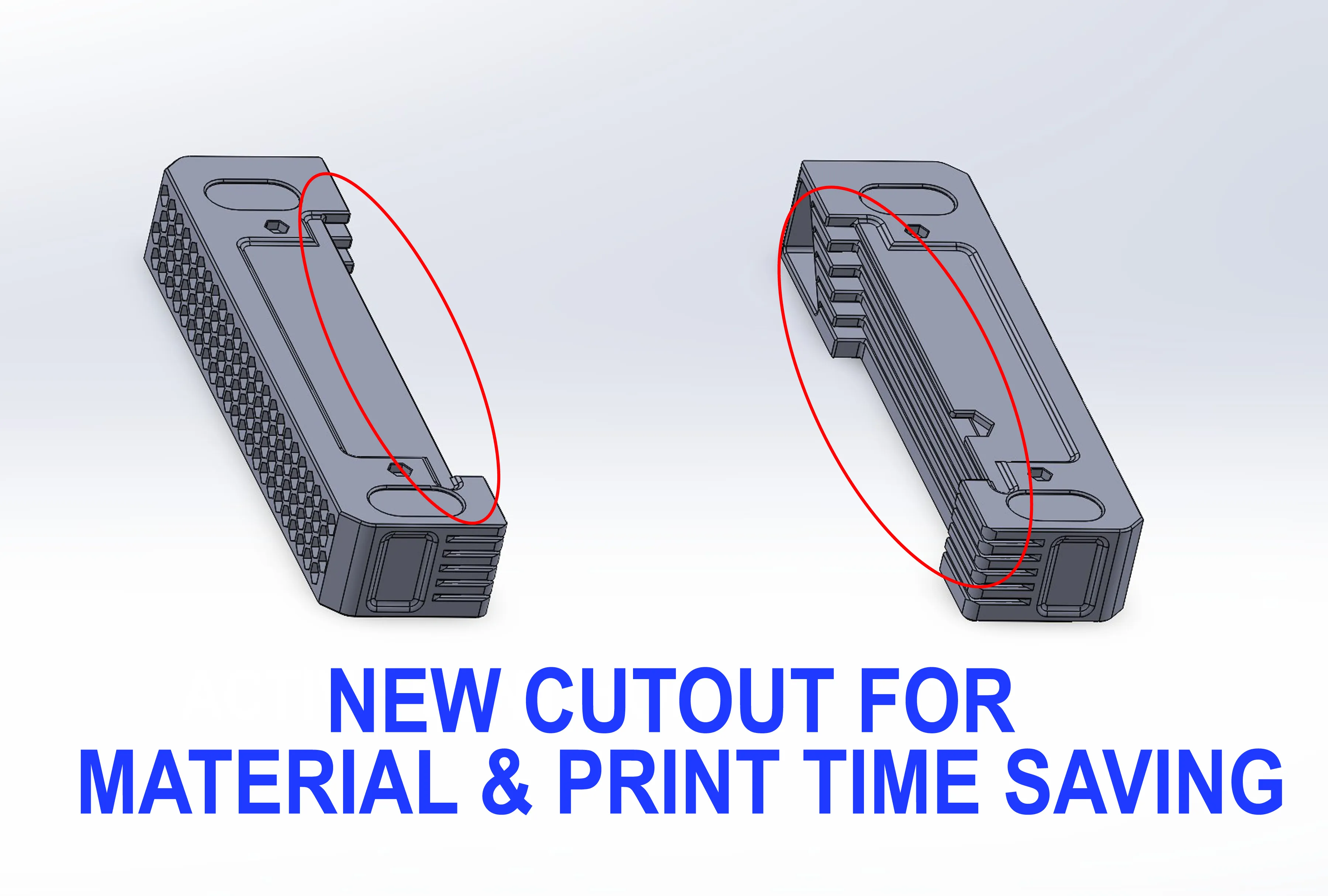

Cut nearly 100g of material and 2.5hrs of print time.

Boost Me (for free)

If you enjoyed this model, please consider boosting it to support creator.
Thank you!

All existing accessories are compatible with the new version.

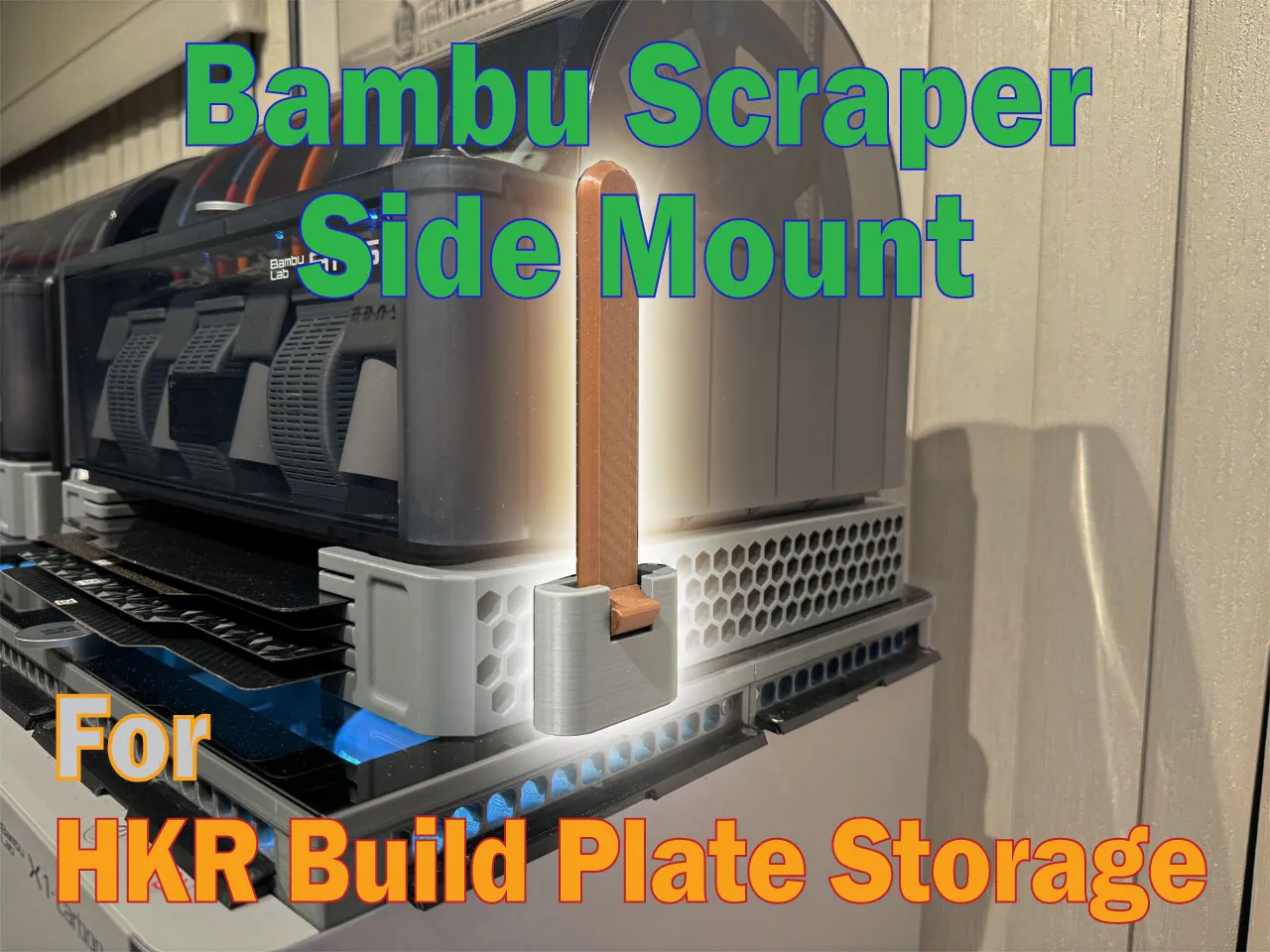

・Bambu Scraper - Side mount: https://makerworld.com/en/models/127894#profileId-138413

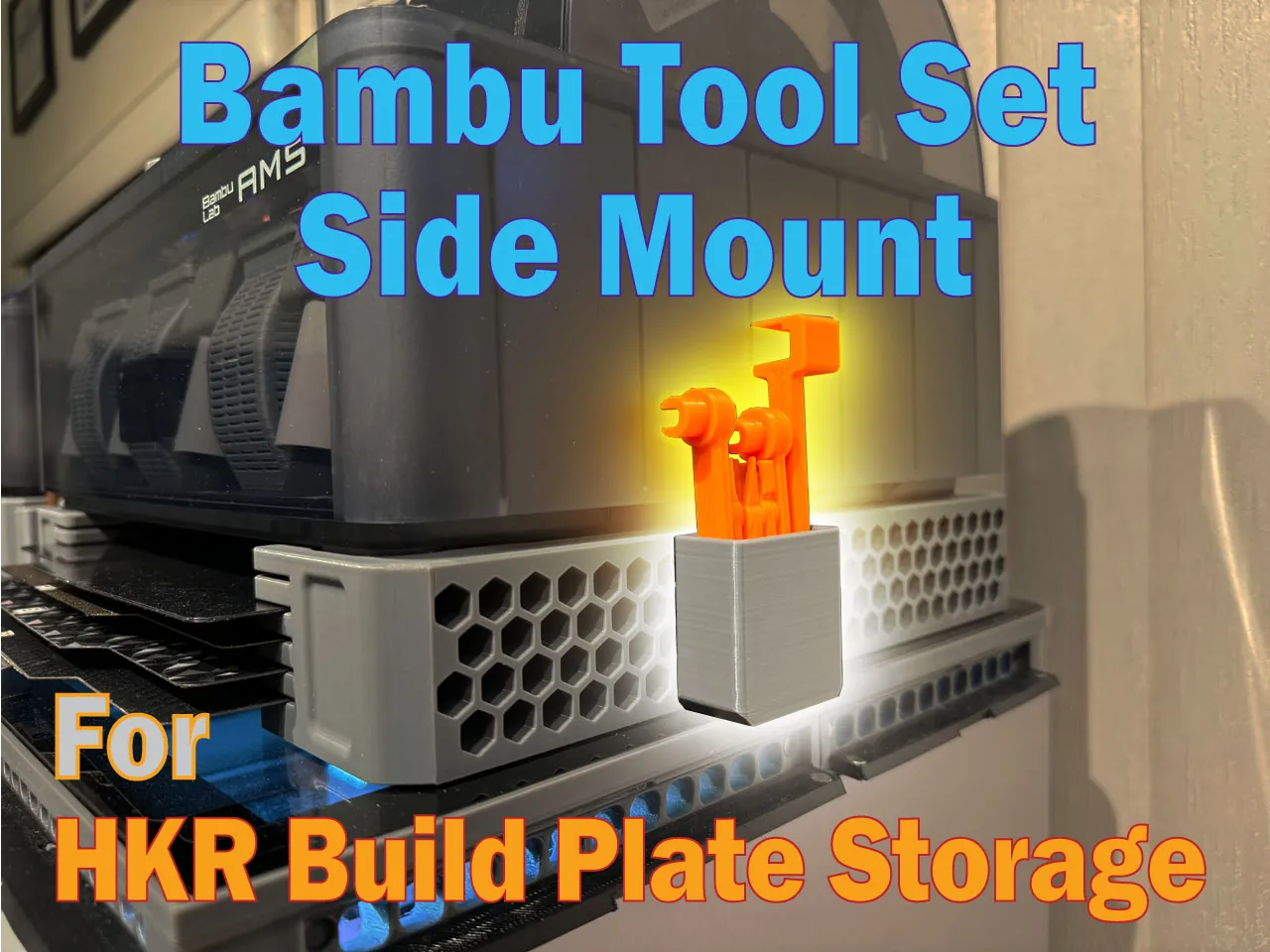

・Bambu Disconnect Tool Set Holder - Side mount: https://makerworld.com/en/models/128120#profileId-138639

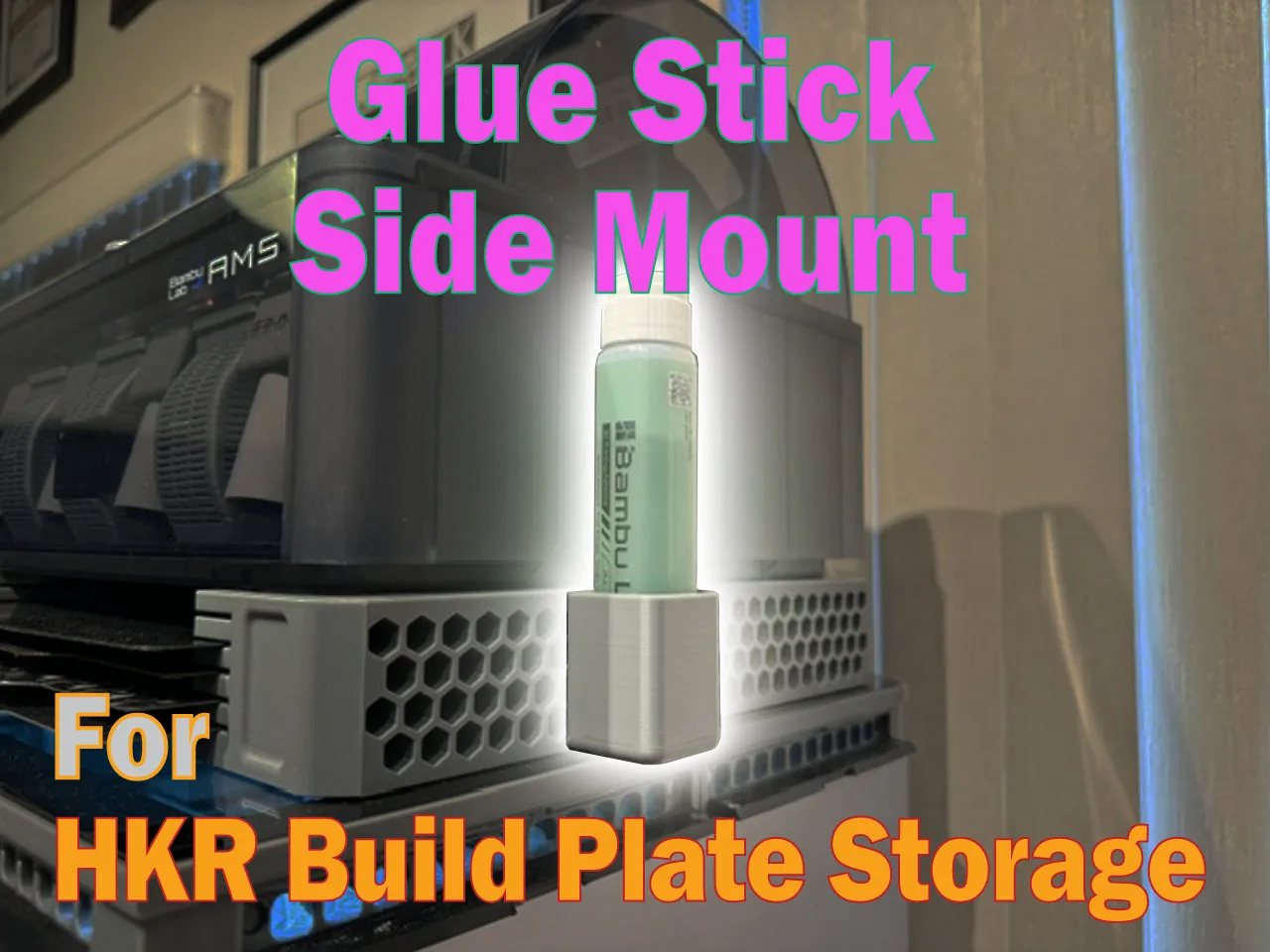

・Glue Stick Holder - Side Mount: https://makerworld.com/en/models/129474#profileId-140356

・Filament Cutter - Side mount: https://makerworld.com/en/models/129494#profileId-140382

・Deburring tool & Allen Wrench - side mount: https://makerworld.com/en/models/129514#profileId-140406

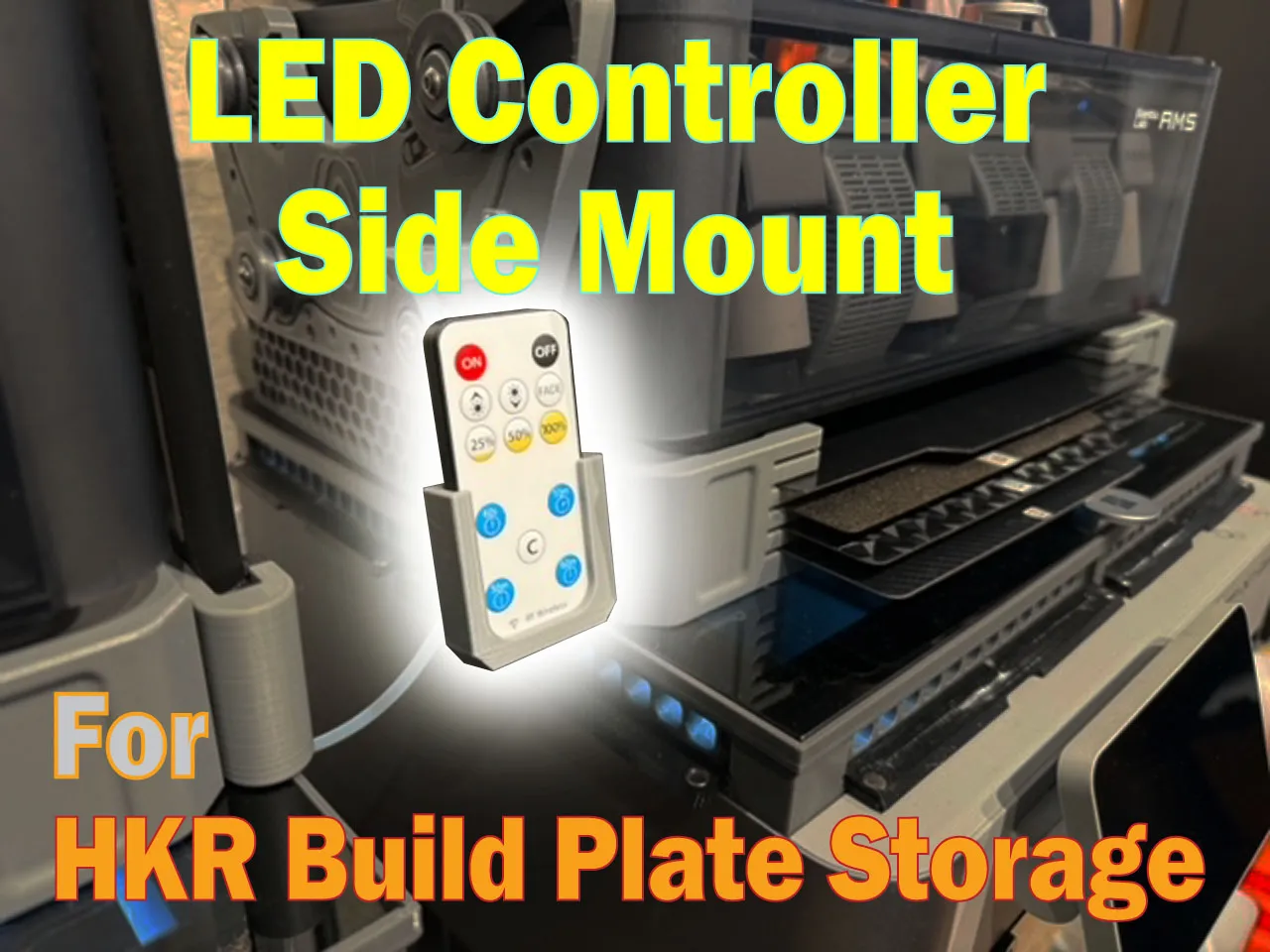

・LED Controller - Side mount: https://makerworld.com/en/models/129536#profileId-140433

Check out other AMS side mount accessories

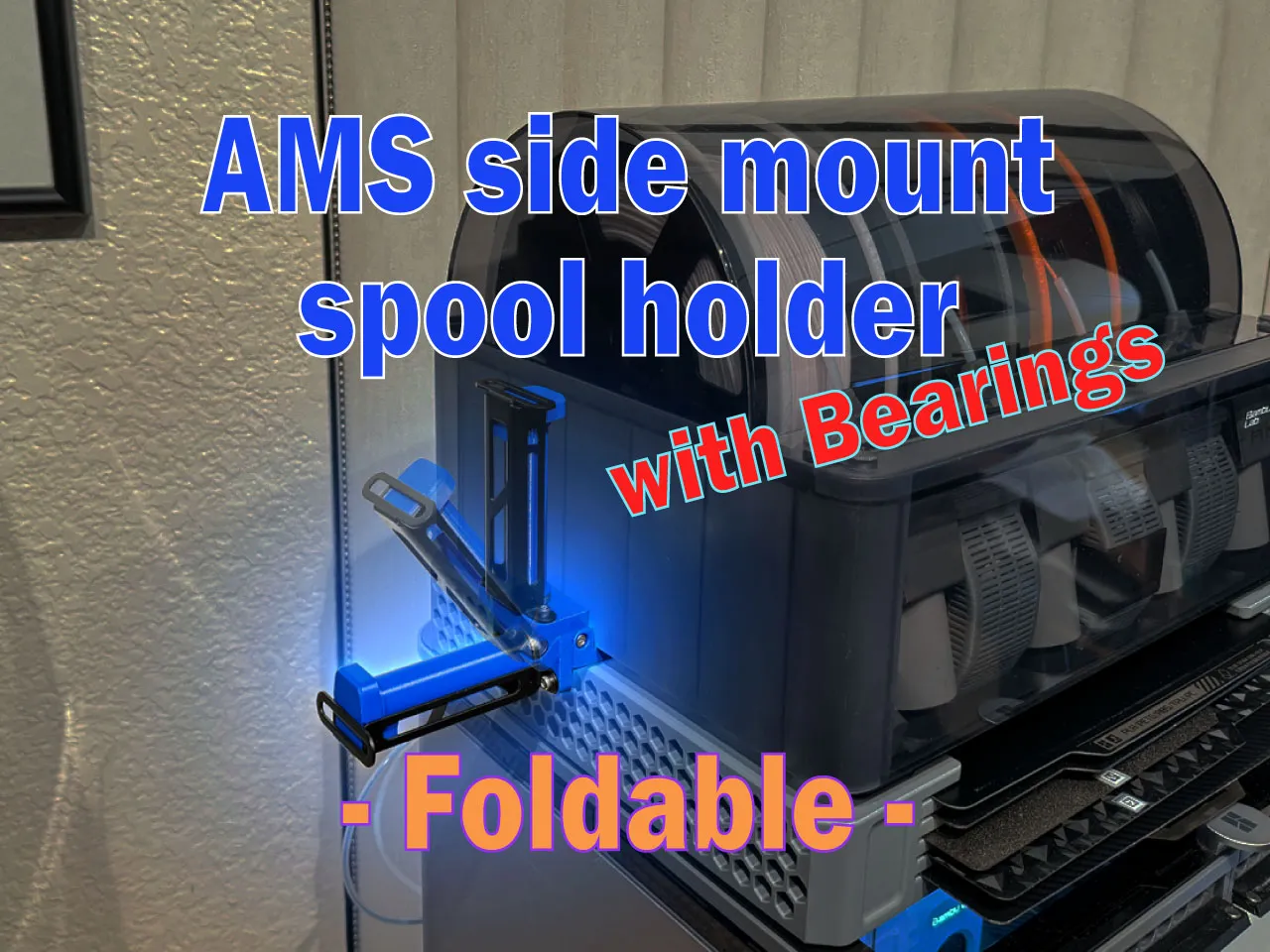

・Foladable AMS side mount spool holder - with Bearings: https://makerworld.com/en/models/153090#profileId-167255

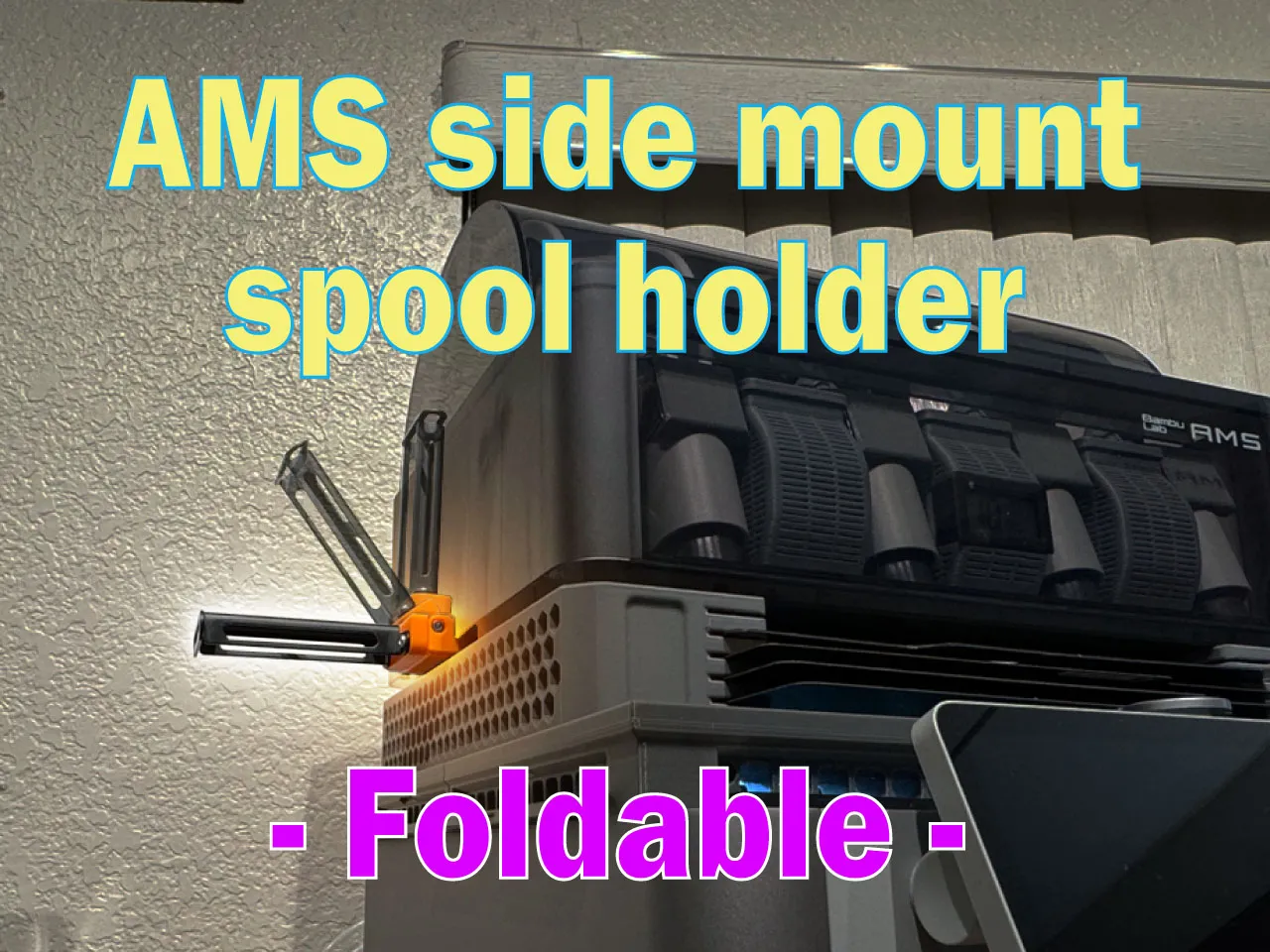

・Foladable AMS side mount spool holder - No Bearing: https://makerworld.com/en/models/145321#profileId-158083

Without bearing;
https://makerworld.com/en/models/145321#profileId-158083

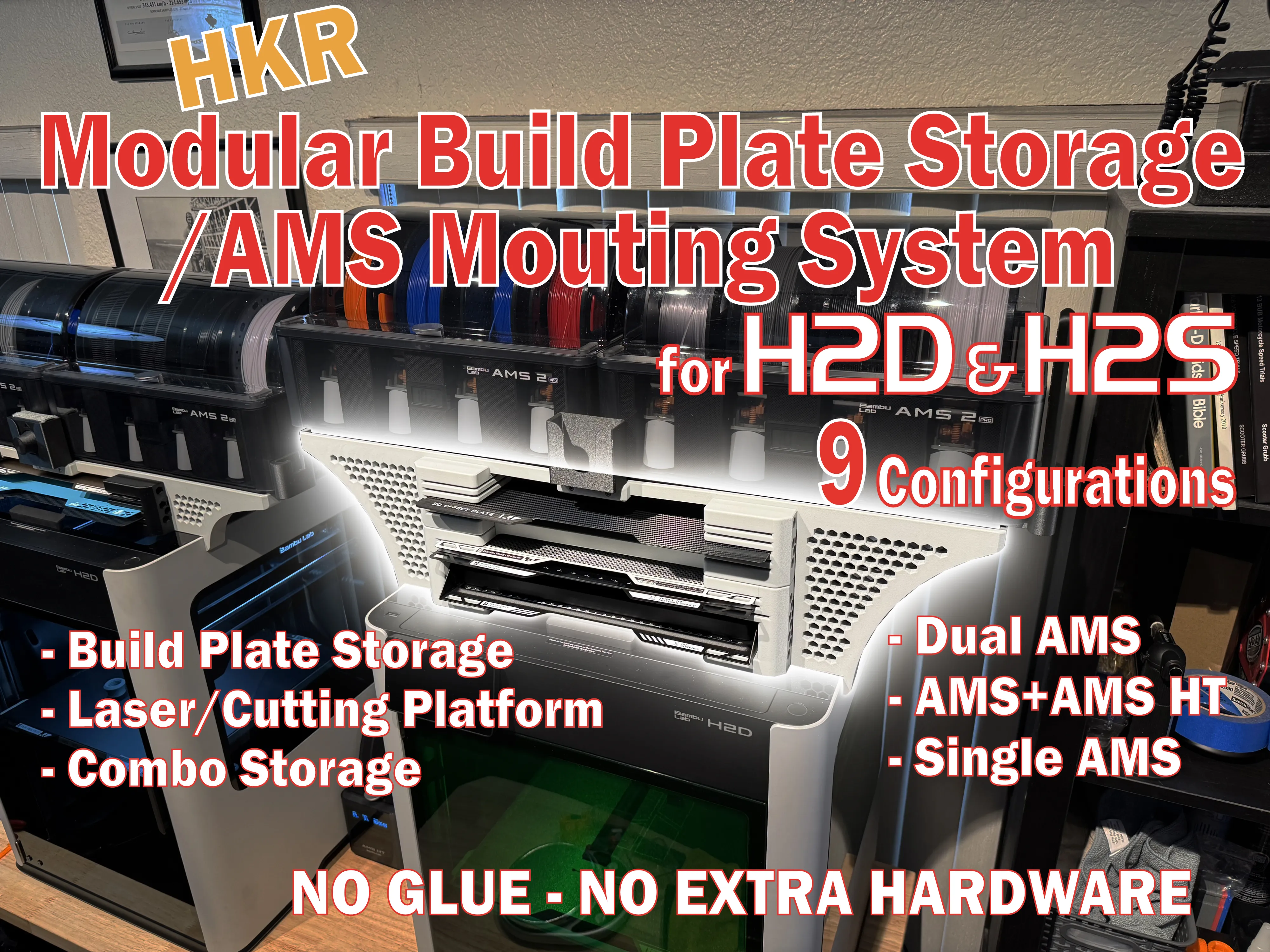

H2D version of HKR Build Plate Storage / AMS Mounting System: https://makerworld.com/en/models/1519437-hkr-modular-h2d-build-plate-storage-ams-mount#profileId-1592141

Happy printing.
