Foldable AMS Side Mount Spool Holder - with Bearings Remixed by Hiro Koiso Racing

Remixed by

Hiro Koiso Racing

3D Printer>3D Printer Accessories

GIF

Print Profile(2)

All

X1 Carbon

P1S

P1P

X1E

All components on a plate 0.2mm layer, 3 walls, 15% infill

Designer

2.3 h

1 plate

5.0(67)

0.16mm layer, 3 walls, 35% infill

3.8 h

1 plate

5.0(2)

Boost

127

277

417

360

Released

Description

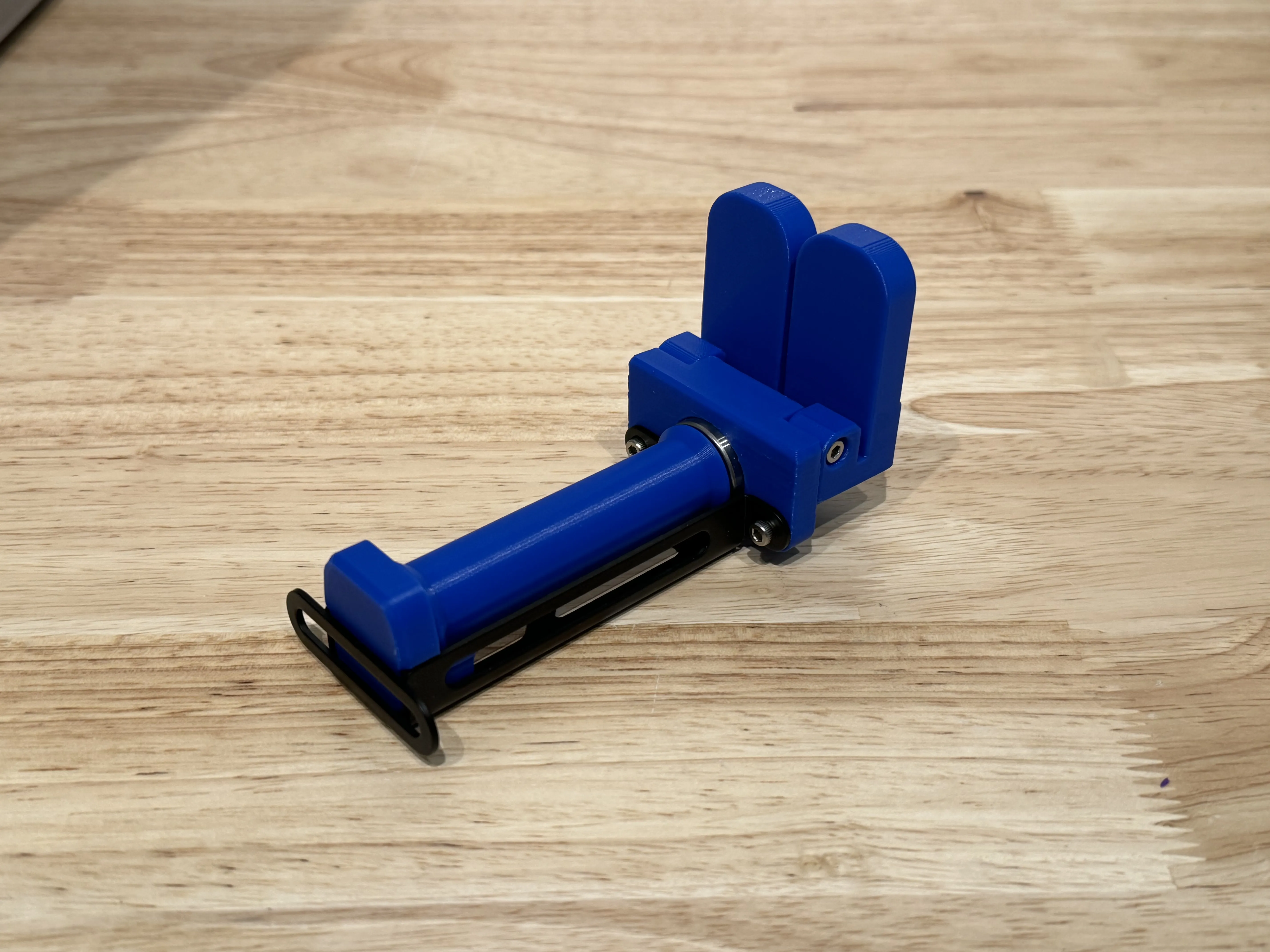

Popular HKR Foldable Spool Holder for AMS is now with bearings!

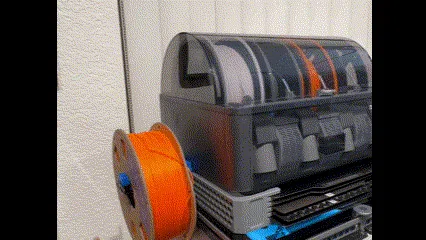

Relocating stock spool holder from back to side for better accessibility and ease of loading filament.

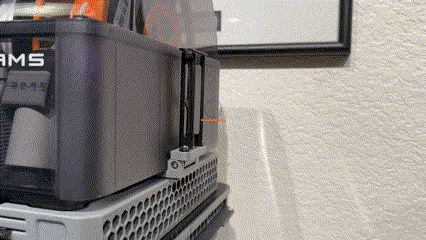

When the spool holder is not in use, you can fold up so it doesn't getting in your way.

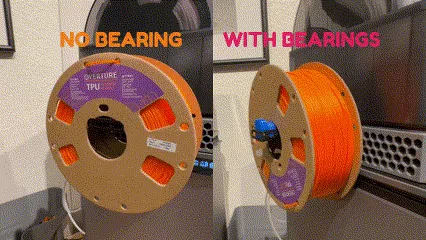

Bearings further reduce friction over stock spool holder. Ideal for precise extrusion.

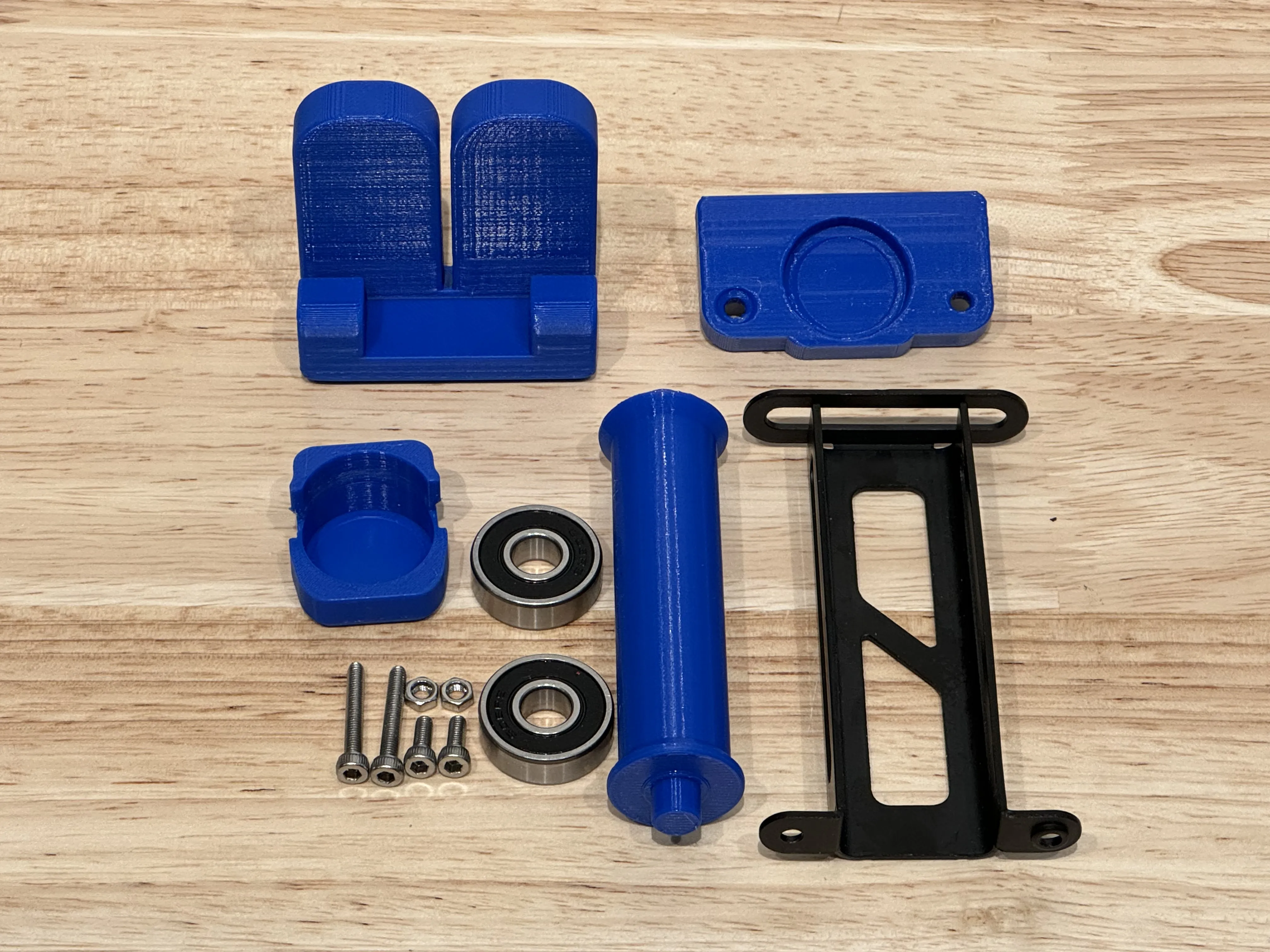

BILL OF MATERIALS
ITEM	QTY.
M3 nut	2
M3x8 (allen head)	2
M3x20 (allen head)	2
608 bearing	2

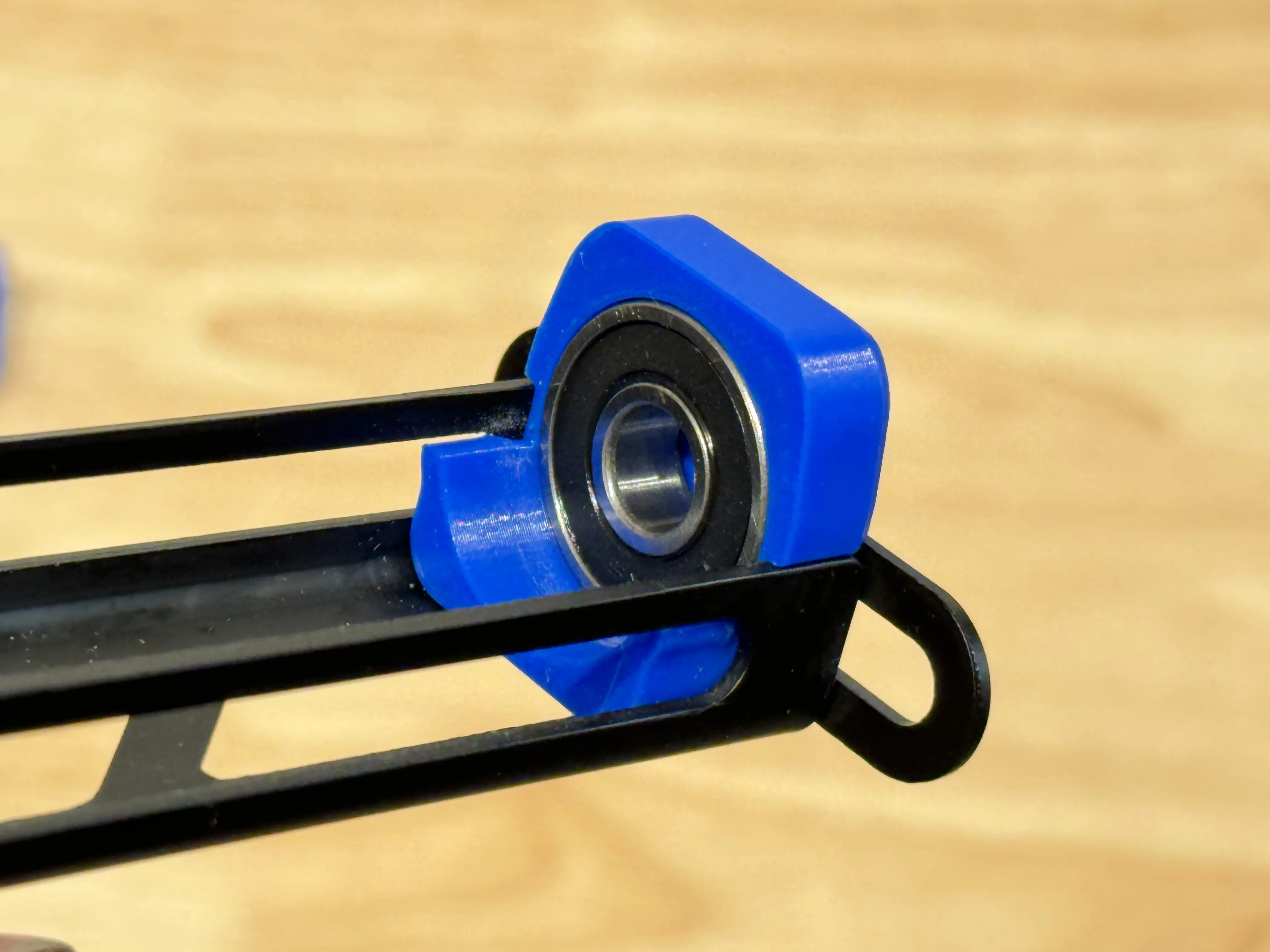

Snap outer bearing support in the end of stock spool holder

Insert roller in the outer bearing support.
Supported end (rougher finish) of the roller should face AMS side of the bearing.
Followed by the inner bearing support with M3x8 screws &nuts.

If you don't have or don't want bearing, Here is the original Non-bearing version:

https://makerworld.com/en/models/145321#profileId-158083

Check out HKR build plate storage and side mount accessories

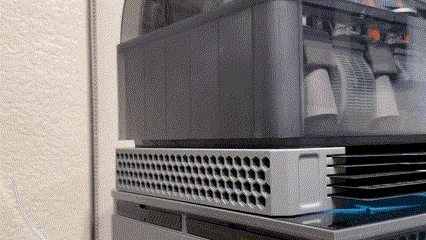

・HKR Stackable Build Plate Storage: : https://makerworld.com/en/models/120963#profileId-130105

・Bambu Scraper - Side mount: https://makerworld.com/en/models/127894#profileId-138413

・Bambu Disconnect Tool Set Holder - Side mount: https://makerworld.com/en/models/128120#profileId-138639

・Glue Stick Holder - Side Mount: https://makerworld.com/en/models/129474#profileId-140356

・Filament Cutter - Side mount: https://makerworld.com/en/models/129494#profileId-140382

・Deburring tool & Allen Wrench - side mount: https://makerworld.com/en/models/129514#profileId-140406

・LED Controller - Side mount: https://makerworld.com/en/models/129536#profileId-140433

Happy printing.

Comment & Rating (80)

@AdvantageousCre

Boosted

Print Profile

All components on a plate 0.2mm layer, 3 walls, 15% infill

I still absolutely love this design! Great profile, I did space mine out a little on the plate to allow for better cooling with petg cf

@lucyferror

Print Profile

All components on a plate 0.2mm layer, 3 walls, 15% infill

Easy and smooth print. Now waiting for bearings for arrive.

@Somerockenguy

Print Profile

All components on a plate 0.2mm layer, 3 walls, 15% infill

5 star design, slight fitment issue with BLV - AMS riser. Great design. I really like how it uses the factory metal bracket. I printed this after using LPSH for the first time with sainsmart TPU and having issues with too much drag causing the filament to stretch and under extrude. This side spool holder spins freely and TPU feeds without issue. My one issue with this is it interferes a little with the BLV - AMS Riser but still works. I might remix to fit a little better.

(Edited)

@Balzo98

Print Profile

All components on a plate 0.2mm layer, 3 walls, 15% infill

really nice model!

@skywurz

Print Profile

All components on a plate 0.2mm layer, 3 walls, 15% infill

love it!

@Ricecakes3

Print Profile

All components on a plate 0.2mm layer, 3 walls, 15% infill

looks and works great, I did struggle a bit to get one of the M3 x8 screws to go in, so I opted for a 12 instead. it’s a little long, so I would recommend using a 10 if you can.
