Description

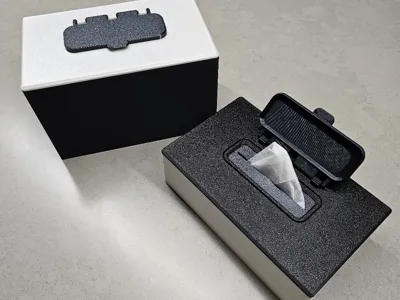

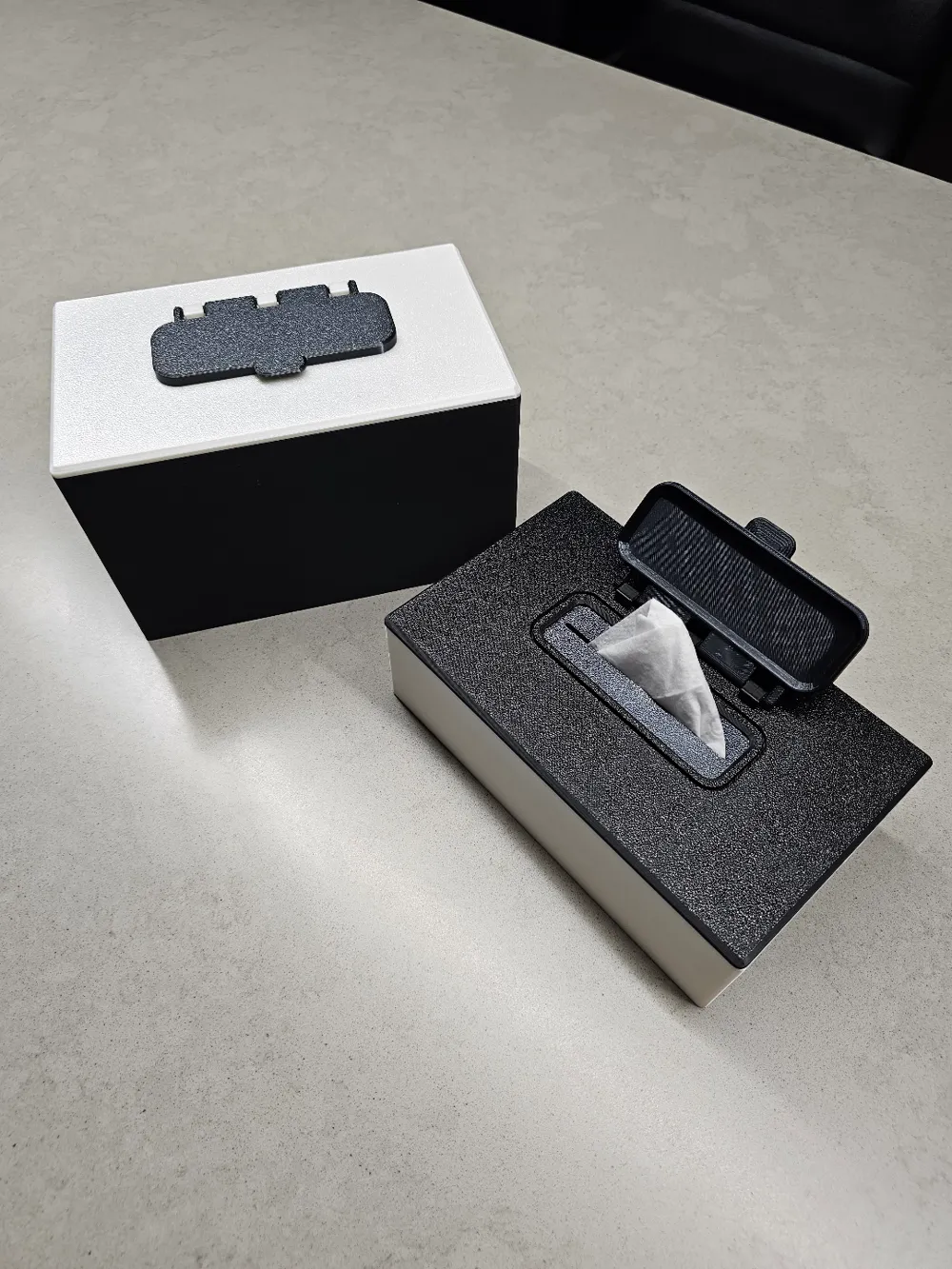

Baby Wipes / Wet Wipes container with magnetic lid and TPU seal



Perfect box for most sizes of wet wipes if you buy the refill packs or if you want to remove from store packaging and place in a nicer box.

Two heights available on plates - Internal dimensions are 170mm x 100mm with 50mm & 100mm heights as labelled.

  • TPU press in slit to keep wipes moist
  • TPU top flap to also aid in moistness
  • Push together hinges for lid
  • 10x2/10x1 magnets or 6x2/6x1 magnets with adapter ring
  • Please change filament settings to your preference. These work for me, they may not work for you.
  • Dry your bed. Wash your filament. I think?

Boost Me (for free)

PLS



I'M NOT RESPONSIBLE IF YOU'RE PRINTING TPU FROM YOUR AMS

DRY YOUR TPU AND/OR PRINT FROM A DRY BOX IF YOU'RE UNSURE



Assembly

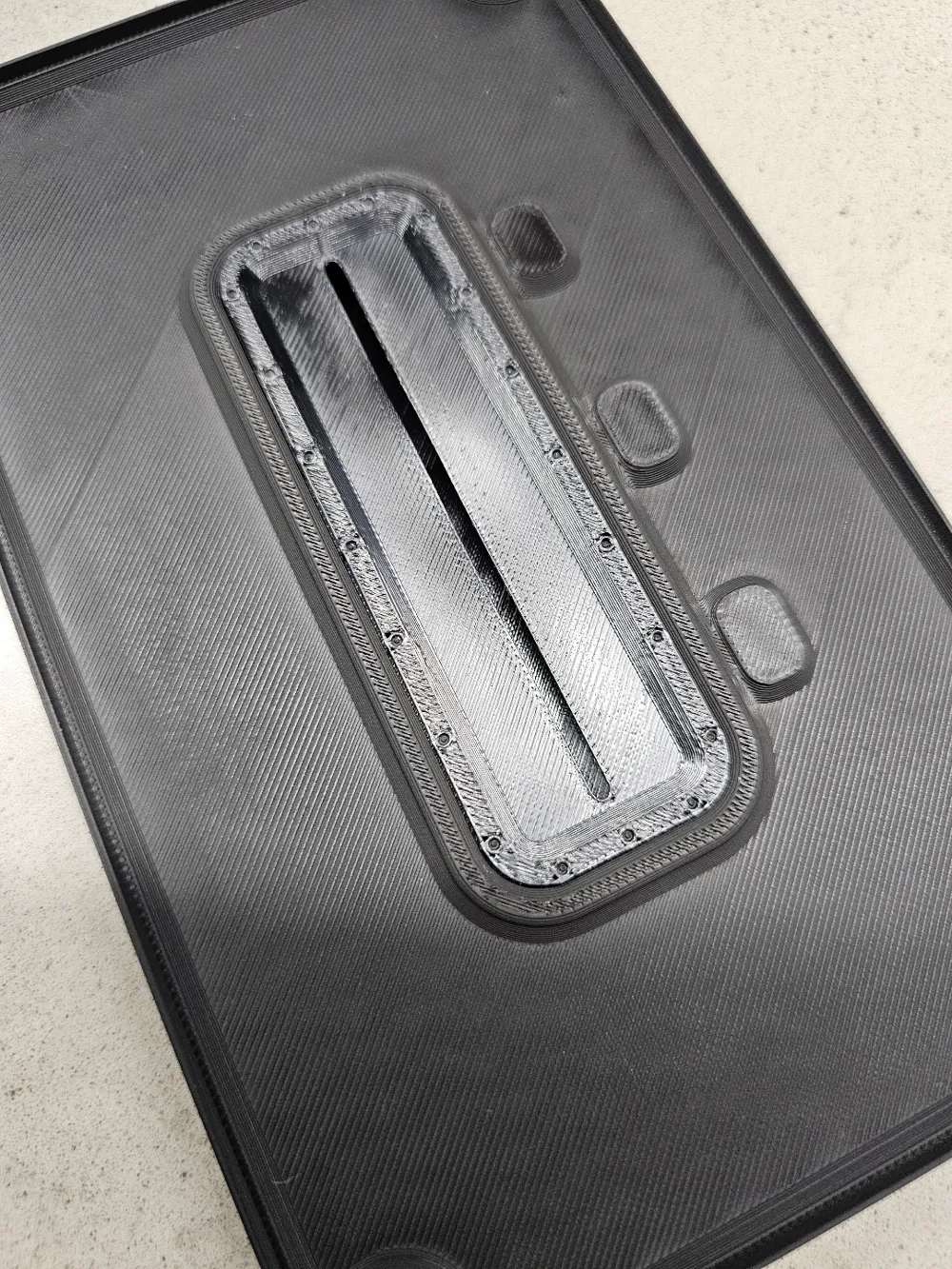

  • Push the TPU slit gasket into the lid slowly and carefully over the pins. This is meant to be tight and is easier doing each pin individually in a circle around 1mm at a time
  • Push the 3x hinges into the top of the lid with the opening facing away from the hole
  • Clip the TPU flap into the hinges and check closing, you may need to wiggle hinges

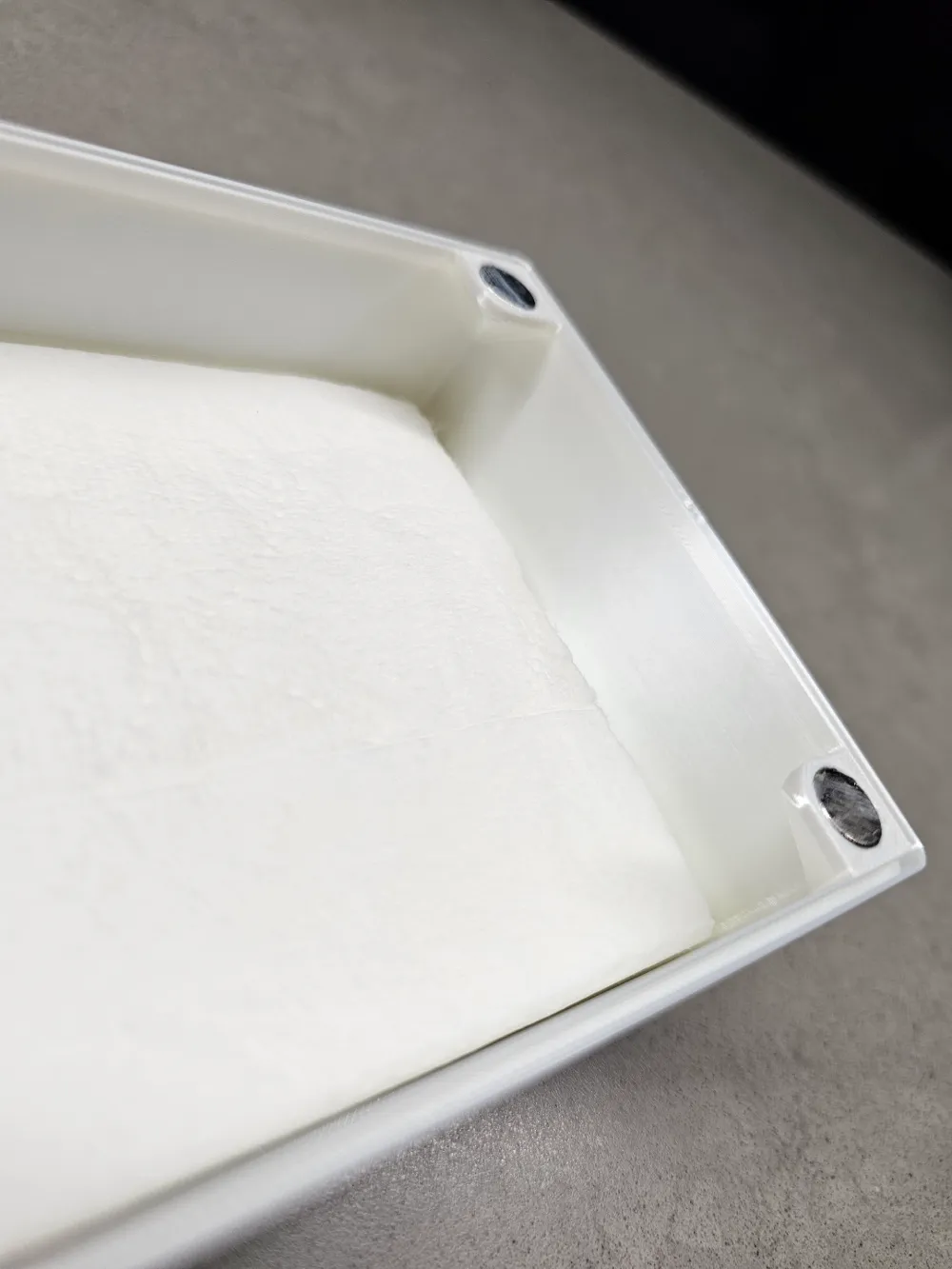

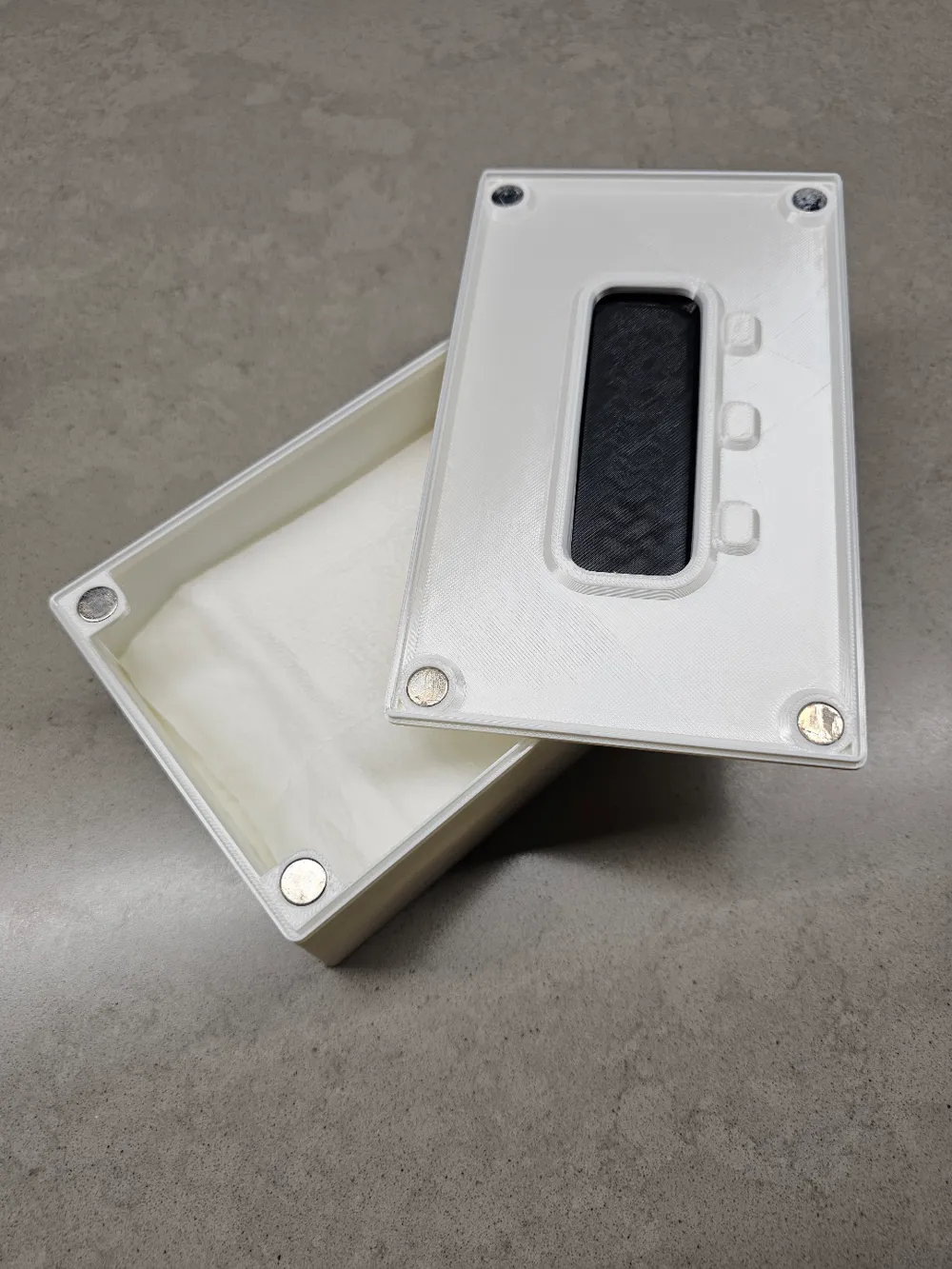

  • Glue 10mm magnets or 6mm magnets with rings into recesses in container & lid and let dry
  • Fill with wipes and pull top wipe through the slit
  • Clip lid down



THE PRINTED MODELS ARE USING THE BELOW FILAMENTS

 - Siddament PLA Matte Black

 - Siddament PLA Silk White

 - Sunlu TPU Silk Black



Thanks.
