push-to-open actuator support
Print Profile(1)
Description

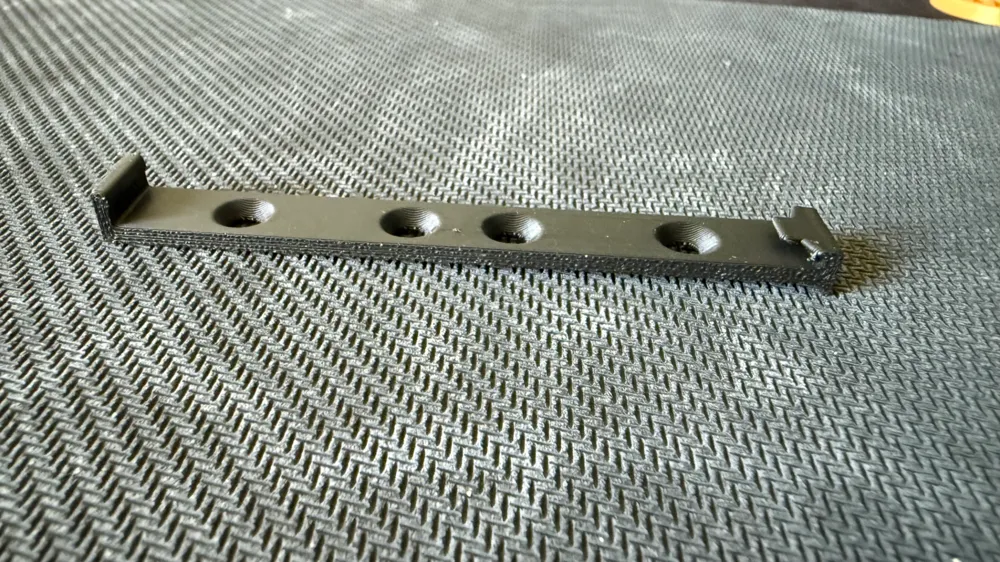

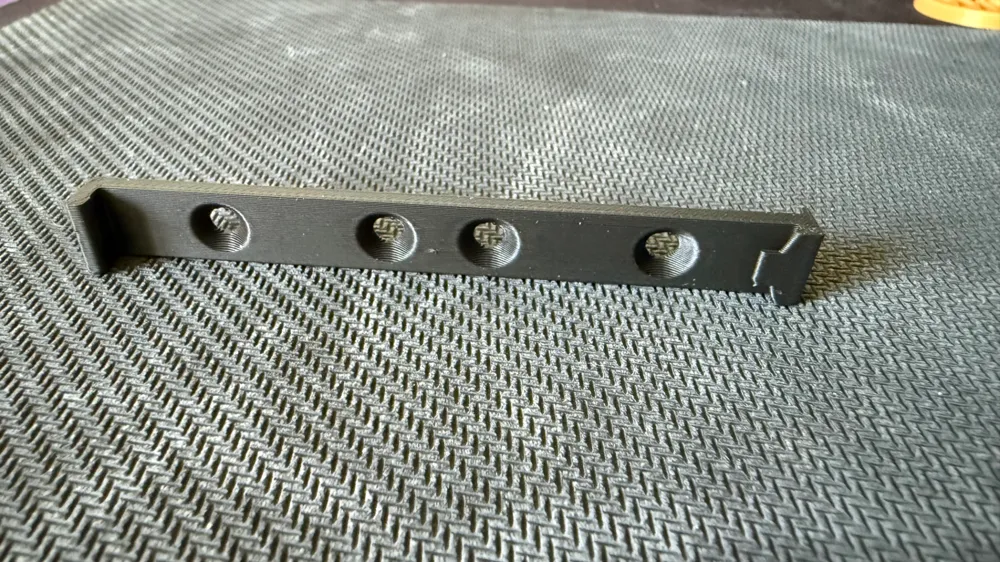

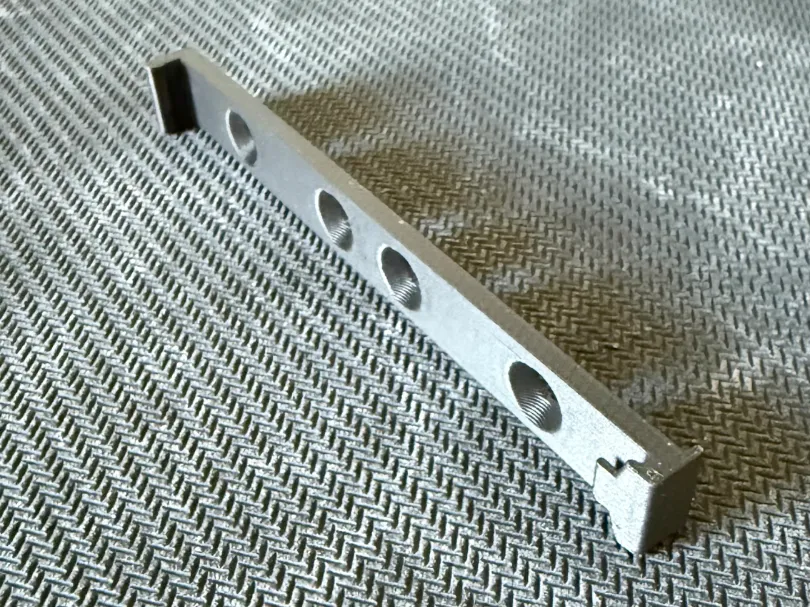

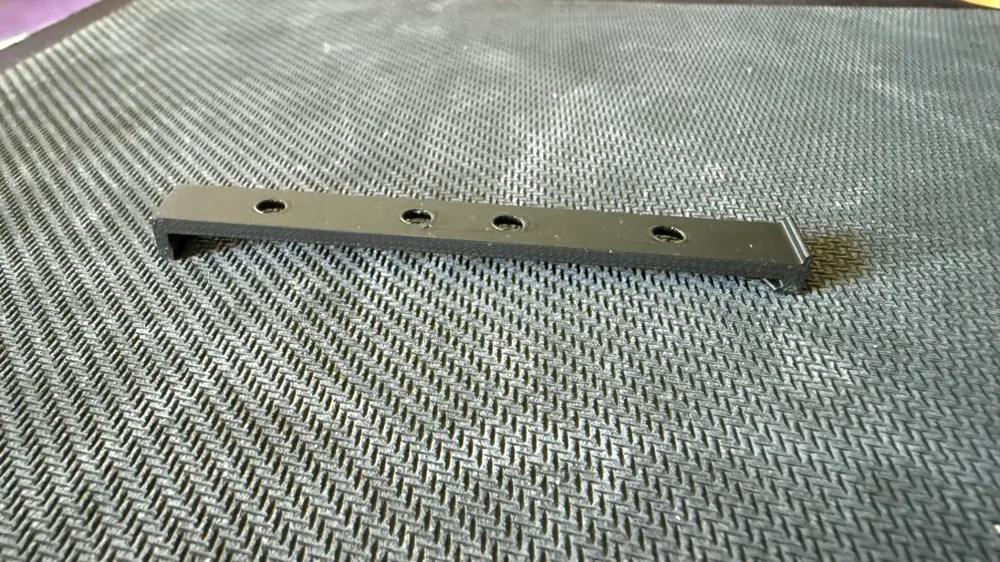

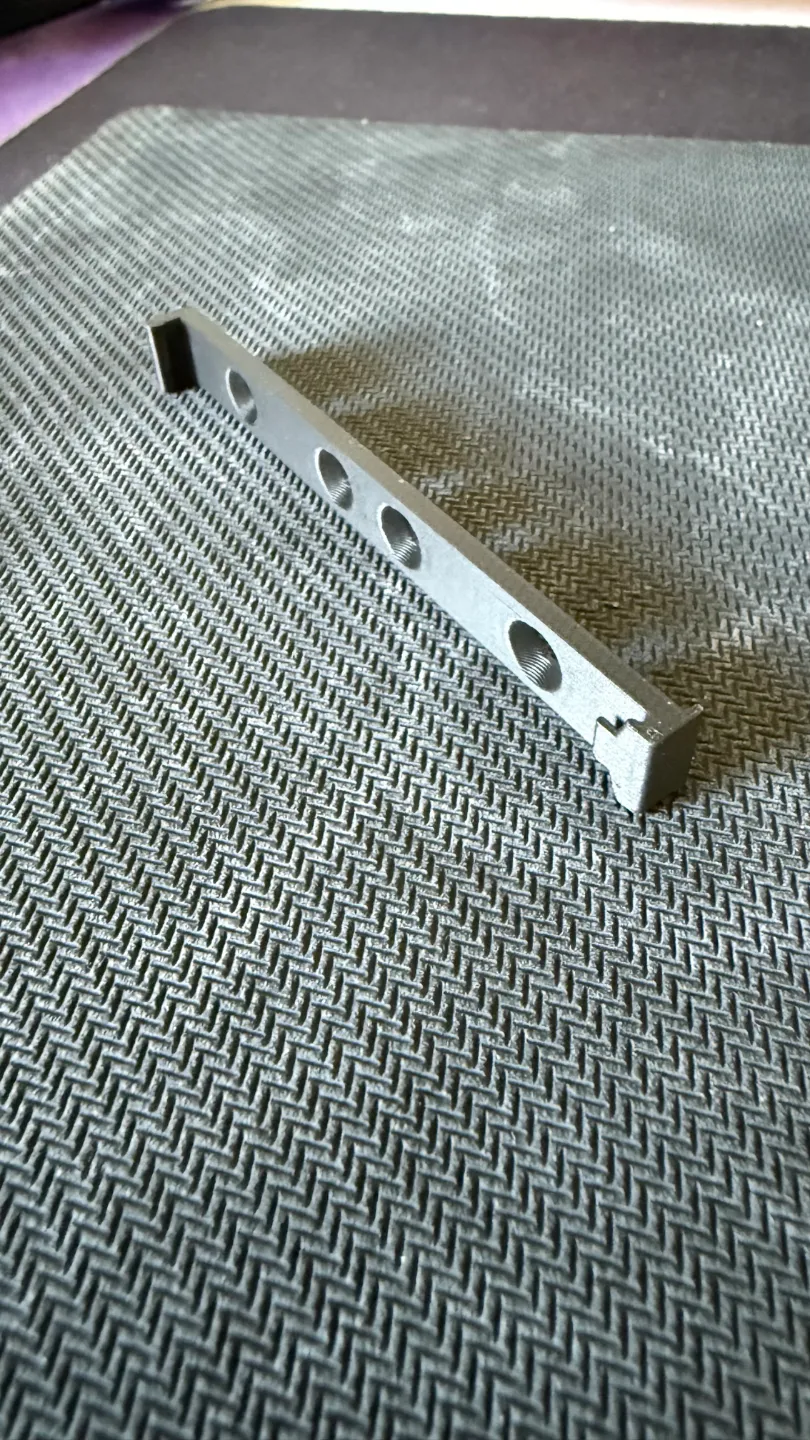

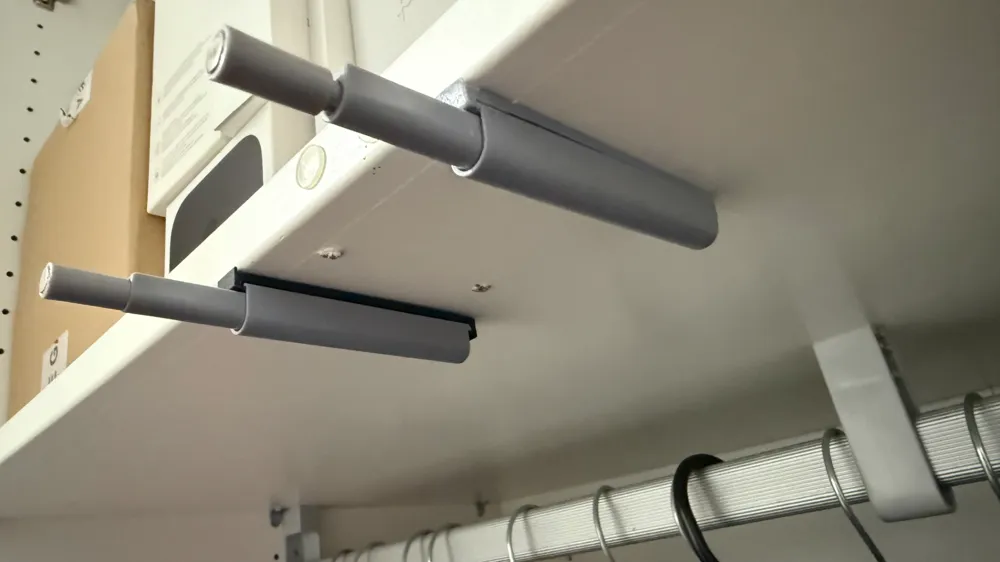

Push-to-open actuator support, 3D printed as a replacement for an original support that broke after a door closure that was a little too forceful.
Quick print
Standard 0.20 profile for a 0.4 nozzle
Layer height 0.2
Wall thickness 2
15% infill using grid pattern
Print the model on its side for better solidity with supports enabled
Supports on build plate only
Disable small overhangs
This allows for a support for only the actuator fixing notch; if desired, you can uncheck the 'on build plate only' option to also get supports for the screw areas
