Gridfinity for MICKE drawers (SLIDER)

Gridfinity system optimized for IKEA MICKE drawers.

Be aware: This system uses a different grid size than original Gridfinity system.

To use as much space within the Ikea Micke drawer, the grid was modified to 39x39mm size and height of 37mm.

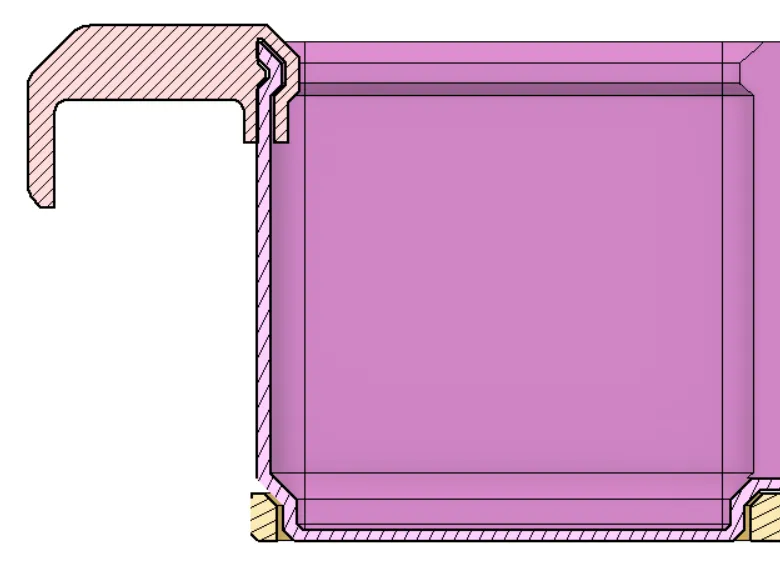

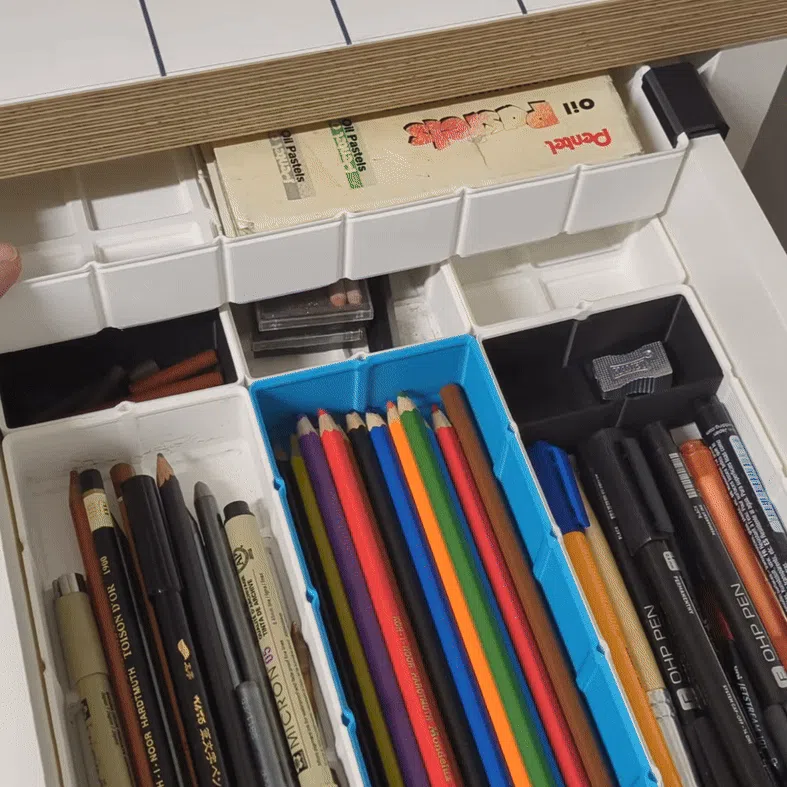

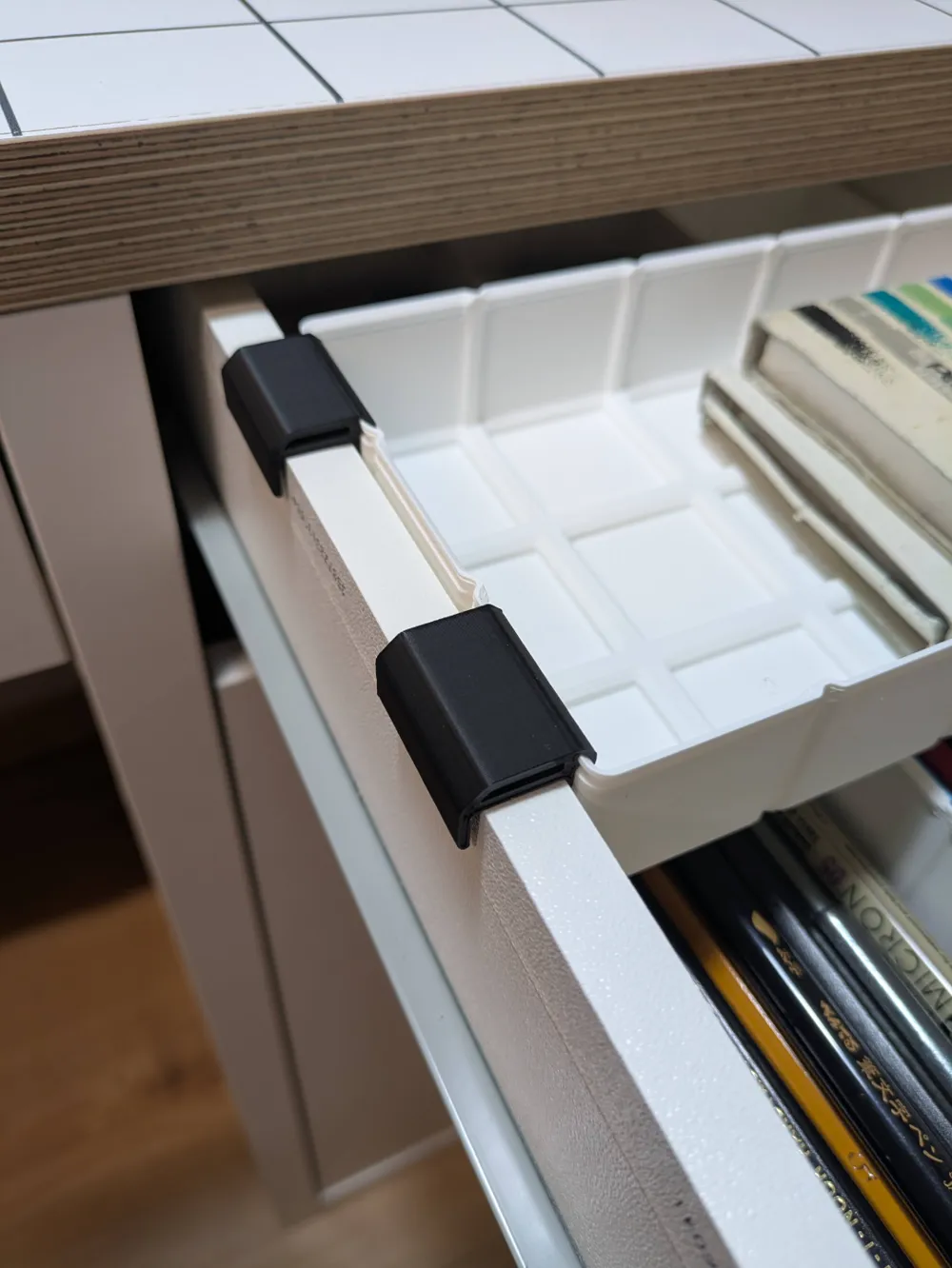

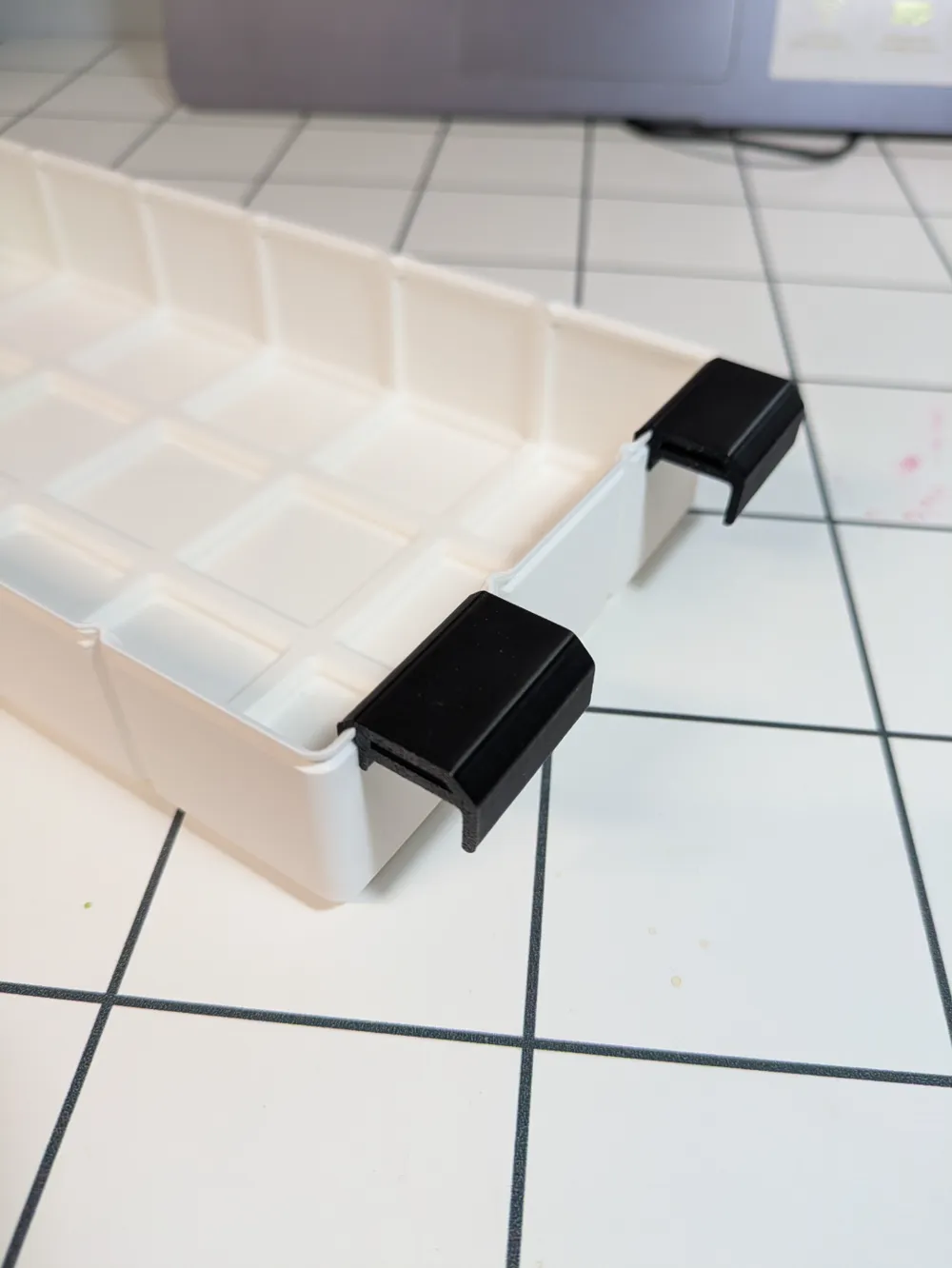

Slider clips, which you can snap in place on 6 wide bin which transform your bin into small drawer that will slide on the drawer edges.

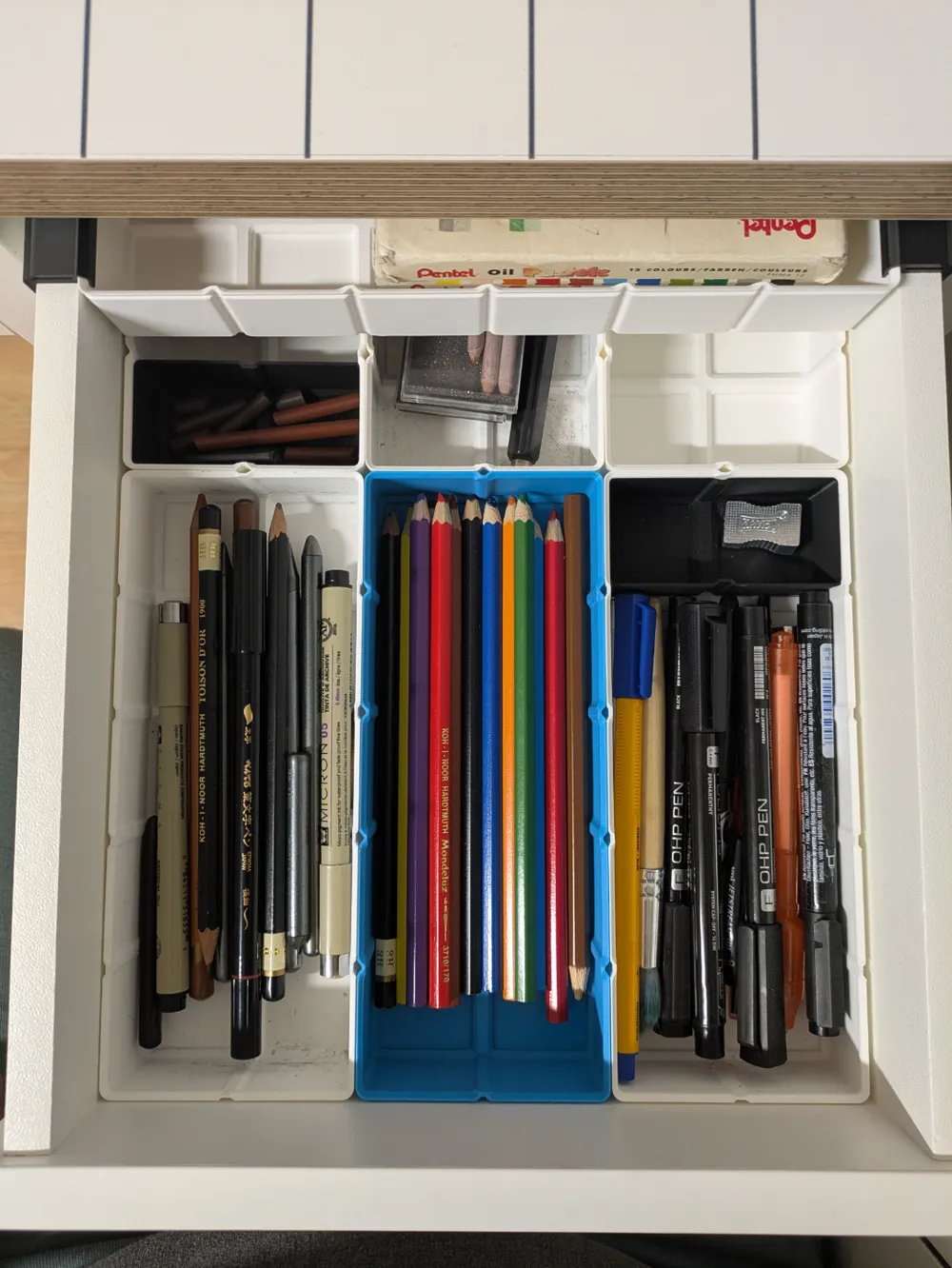

Drawers in Micke unit won't slide fully outside so bins in the back are hard to reach and the content is hidden (especially if you fill the drawer fully in 2 layers). I have found out that the most efficient way of ogranizing the drawer is to keep 1 layer of bins + the slider bin on top of them.

Go to my profile or follow below links to get other parts of the system:

• Baseplates: https://makerworld.com/en/models/1097035#profileId-1091566
• Inserts for Bins: https://makerworld.com/en/models/1073850#profileId-1064259
• Bins: https://makerworld.com/en/models/1073756#profileId-1064325
