Rugged Screw Unit Collection

(Gridfinity Stackable)

★ Many Versions Available - NEW Add-on Drawer Stacks! ★

CUSTOM LABEL GENERATOR - Click Customize for Small & Wide (BETA)

Next to the DOWNLOAD button.

Check out the FULL RUGGED COLLECTION

Also fits my Rugged Organizers & Rugged Drawers & More!

Don't forget to Follow!

Thank you so much for your Downloads, Like and BOOSTS!

What's Special about the Rugged Screw Unit?

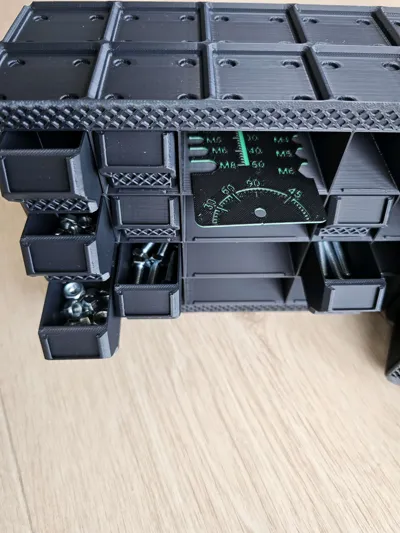

Added drawer stops!!! Don't accidentally spill your screws.
Gridfinity for easy stack-ability
Rugged Tray Topper (for top and in front of ScrewUnit) with magnet option to hold spare screws/parts while in use.
Toppers take 2 magnets stacked for more magnetic strength.
Scoop and no scoop drawers

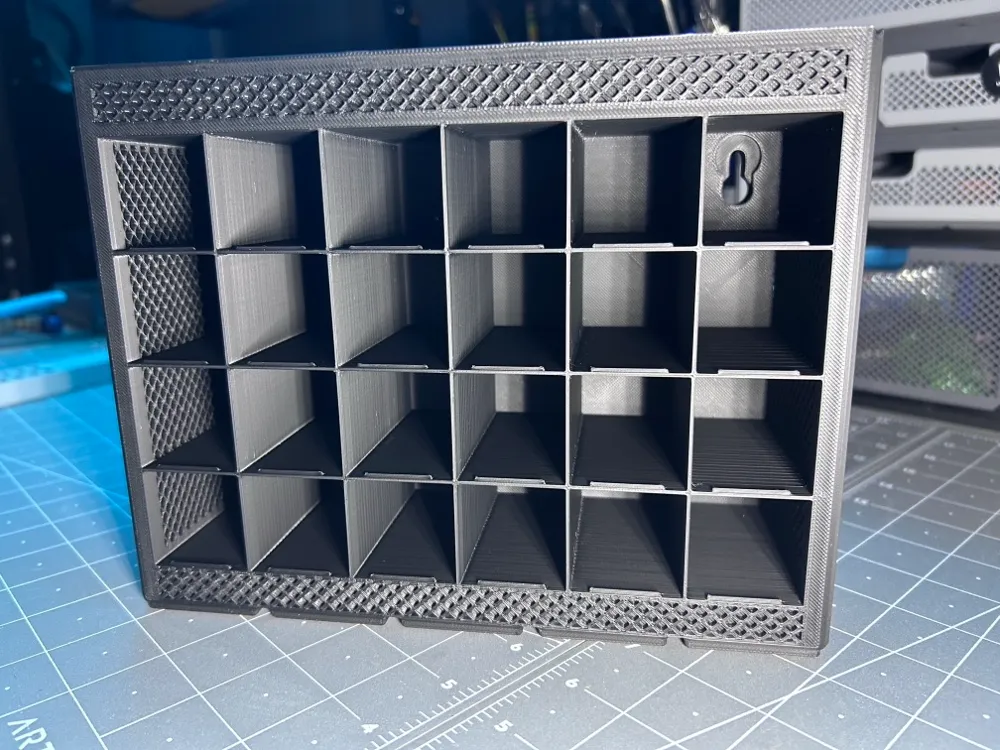

Large Screw holes for wall mounting.
Compatible with all Rugged Organizer drawers (lines up perfectly offering the ability to overlap toppers or other items.
6x2 magnets with glue. Glue in hole(s)

PRINT SETTINGS:

Layer Height: 0.2mm
Supports and Brim Ears added for cleaner gridfinity and drawer fronts. RECOMMENDED (Normal Supports on front lip ONLY)
Build Plate: Large prints like this are prone to warping. I recommend using GLUE / Nano Polymer on your build plate, and lower the AUX fan speed to 20-50% prevent warping!

Q&A - What does Gridfinity 2x5, 3x4, 2x5, etc. mean?

Gridfinity is a modular, open-source organization system that uses a grid to attach/organize multiple boxes or holders to items.
Gridfinity Baseplates are optional, not required for these models. Profile for Gridfinity Baseplates added, you can overlap your drawer across multiple baseplates to secure multiple drawer frames together horizontally.
2x5 is the grid size on the top/bottom of drawer frame and other gridfinity models dimensions.
Optional Magnet baseplates offer the option of a very secure platform (Only a few magnets should be more than enough)
The drawer frame sizes are based on the Gridfinity Grid, but you can mix sizes.
