One and only free and 3D printable commodore 64 case on the internet!!!
boost for future projects.

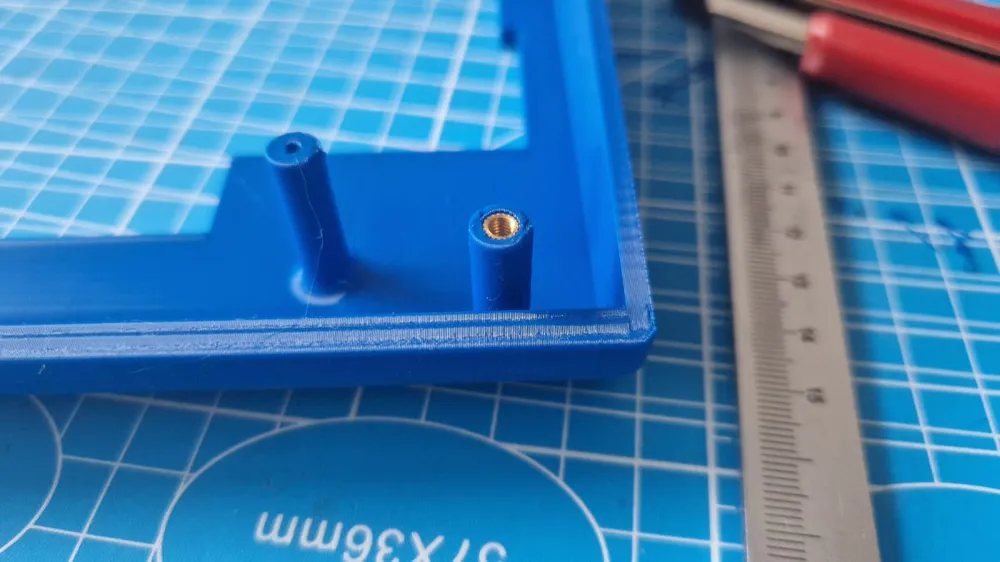

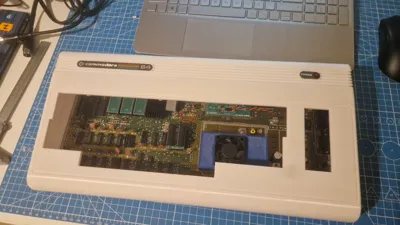

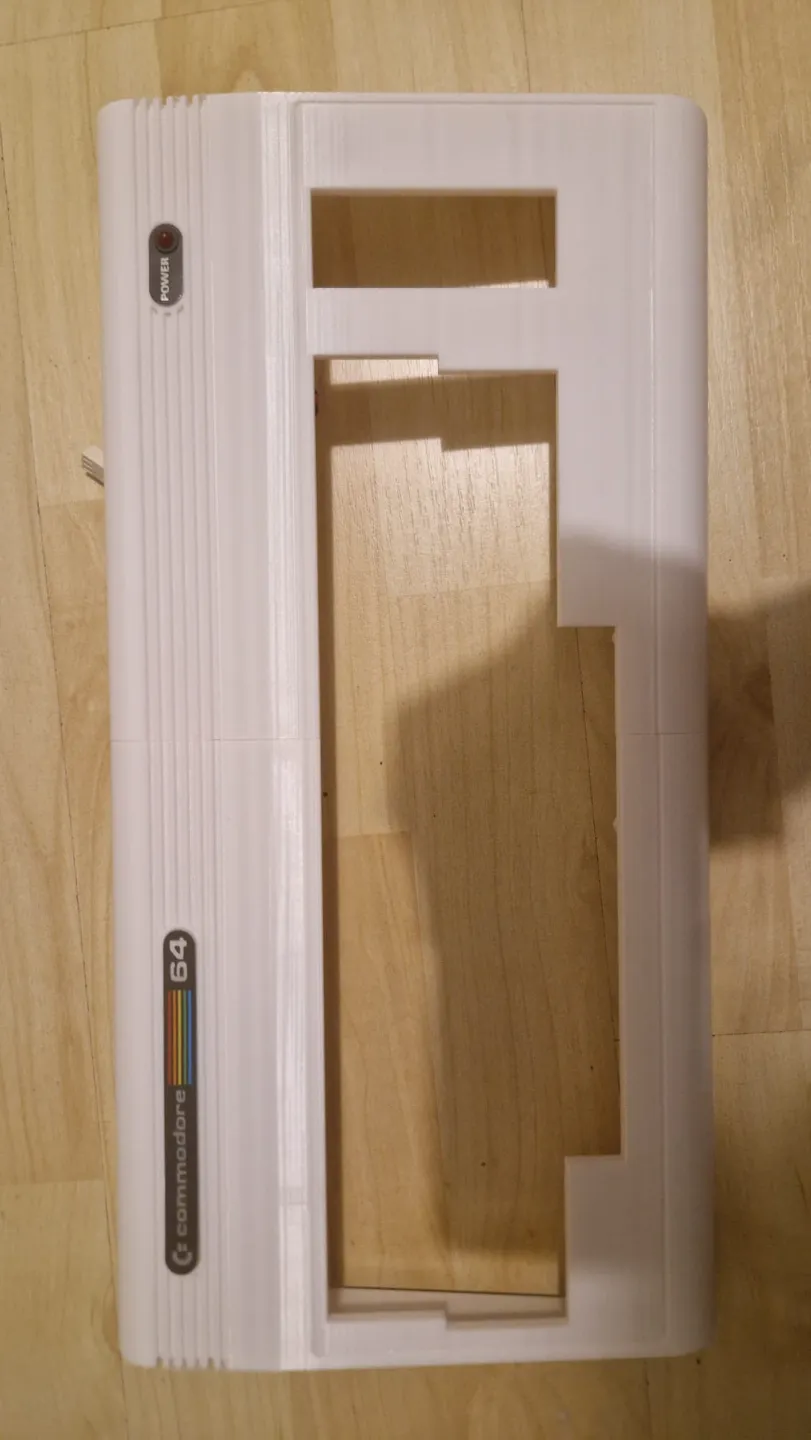

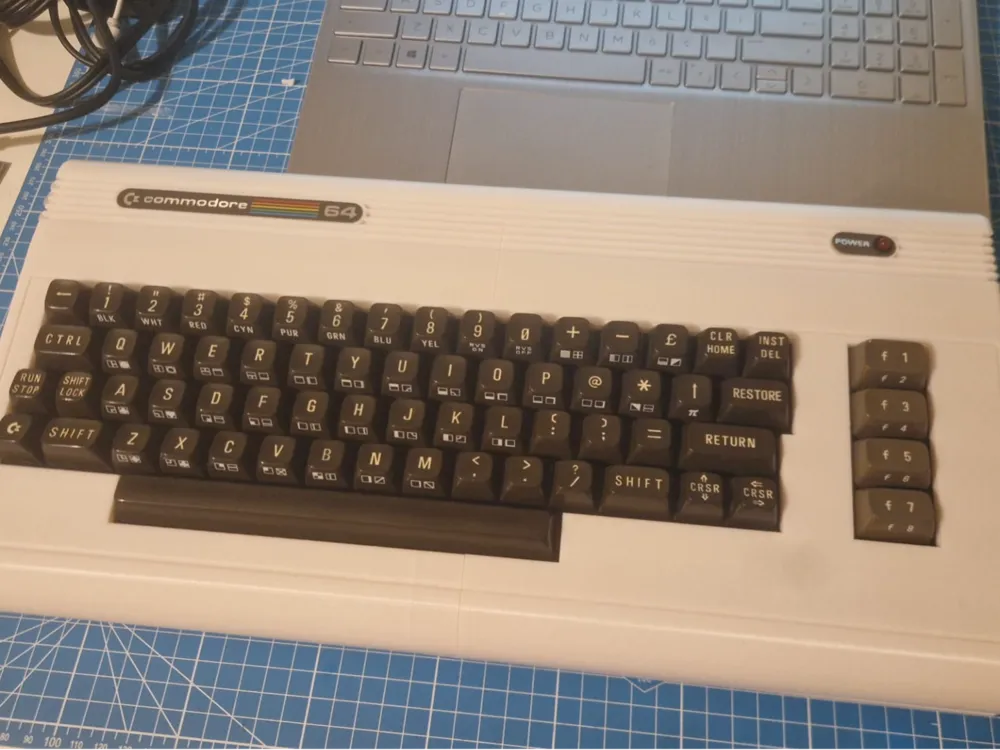

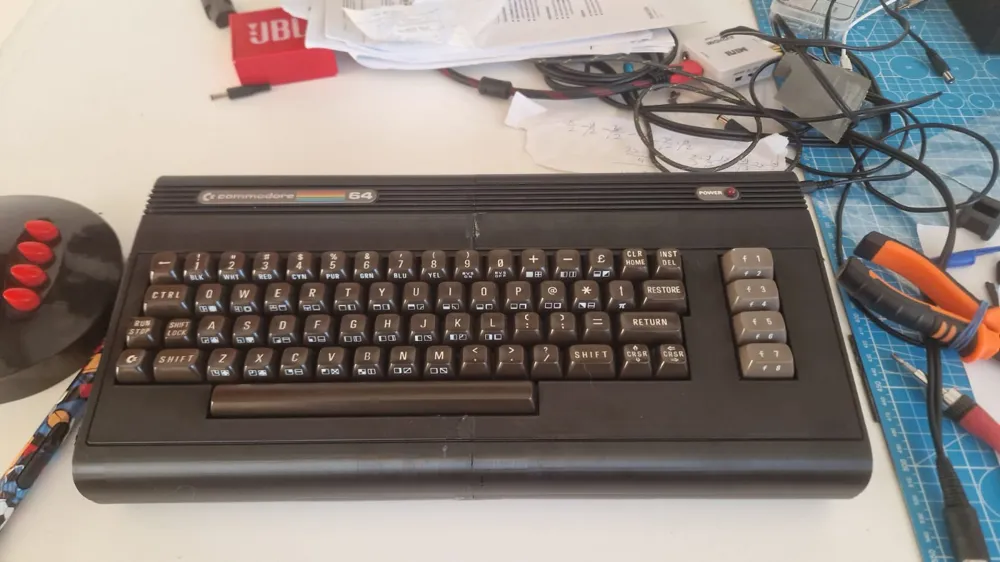

This case is consisting of 4 pieces, so it is compatible with 3D printing. bottom half is very similar to original case. even vents and supports are in original place. top part is a little different. biggest change to top part is it uses M3 size threaded insert on mounts that connect it to bottom. Top part is missing the middle screw mount to keep it compatible with 3d printing. but the threaded inserts are holding perfectly fine.

Because of the long and thin nature of parts I suggest you to print it in silent mode.

Changes to Original Design:

Added cutouts for ports

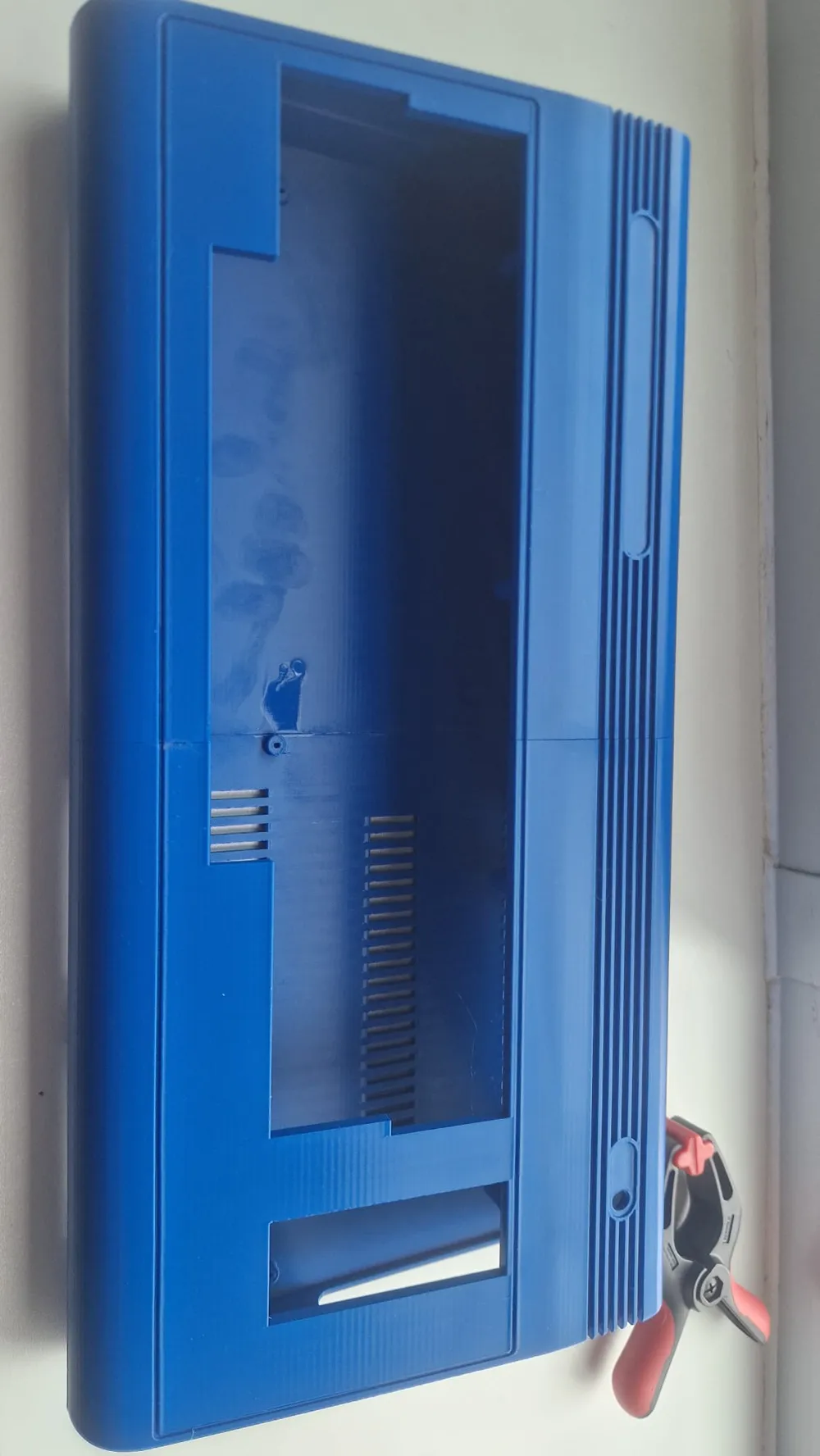

added vents

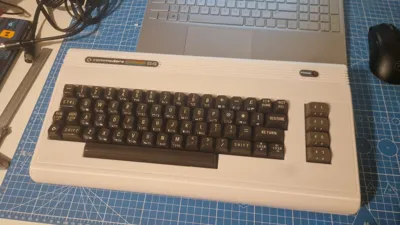

added keyboard brackets

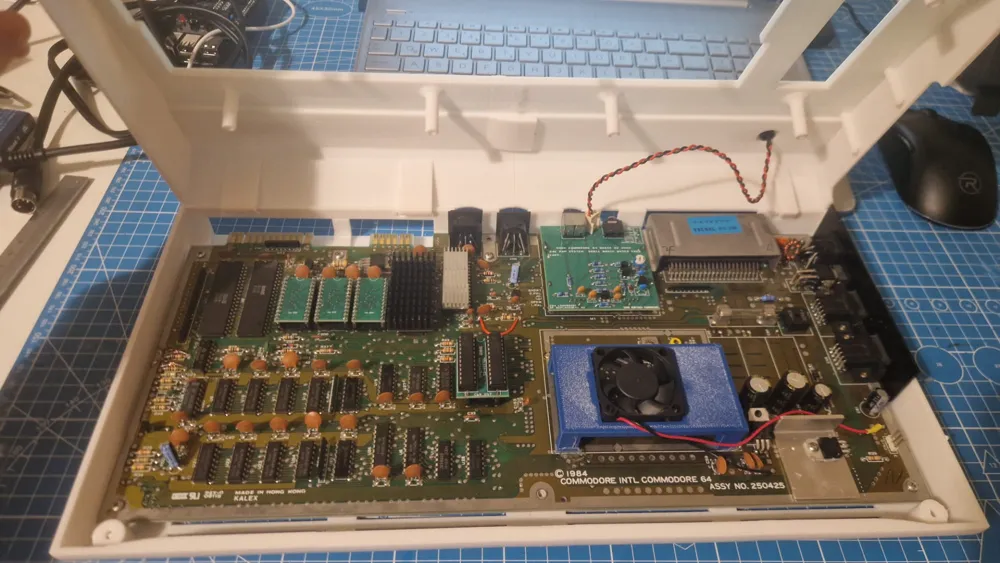

added standoffs for board
added place for feets

V1.1

I tought I solved every problem on V1.0, but I wasn't , so V1.1 is here.

V2.0

added compatibility with shortboards.

made changes in the sizes of the vents, now its less like the original but more compatible with 3d printing.

V2.1

fixed issue of cartdtidge port clearance

fixed some geometry issues

added alignment brackets to bottom half

shorthened keyboard brackets by 2mm

added more clearance to rf modulator ports for modern replacements.
