Filament Rack System (Spool & Filament Holder) - Free 3D Print Model

Description

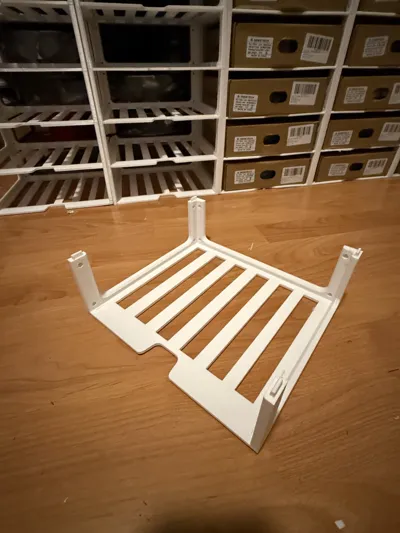

Fully optimized filament/spool rack system.

This system is based upon functionality and a minimum amount of filament used in the process.

The whole system is based upon a snap-on princip, which makes it easy to both stack them, and remove a rack from another part.

Easy snap-on.
A minimum of filament required.
A minimum of time consumption.
A full system containing: Spool Rack, Top Rack, Spacer & Flat Top Rack.
Print Profiles in both PETG & PLA.
The LAST rack system you will ever need.

Measurements

Height = 86mm

Length = 215mm

Depth = 242mm

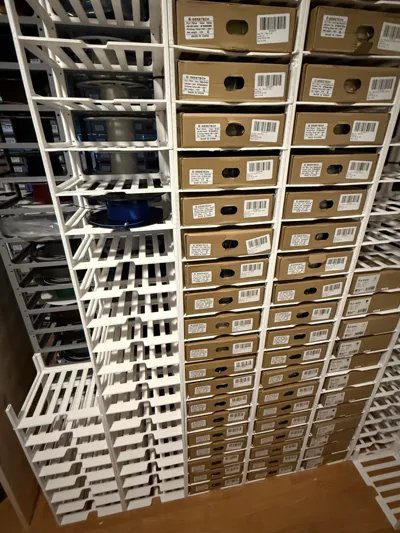

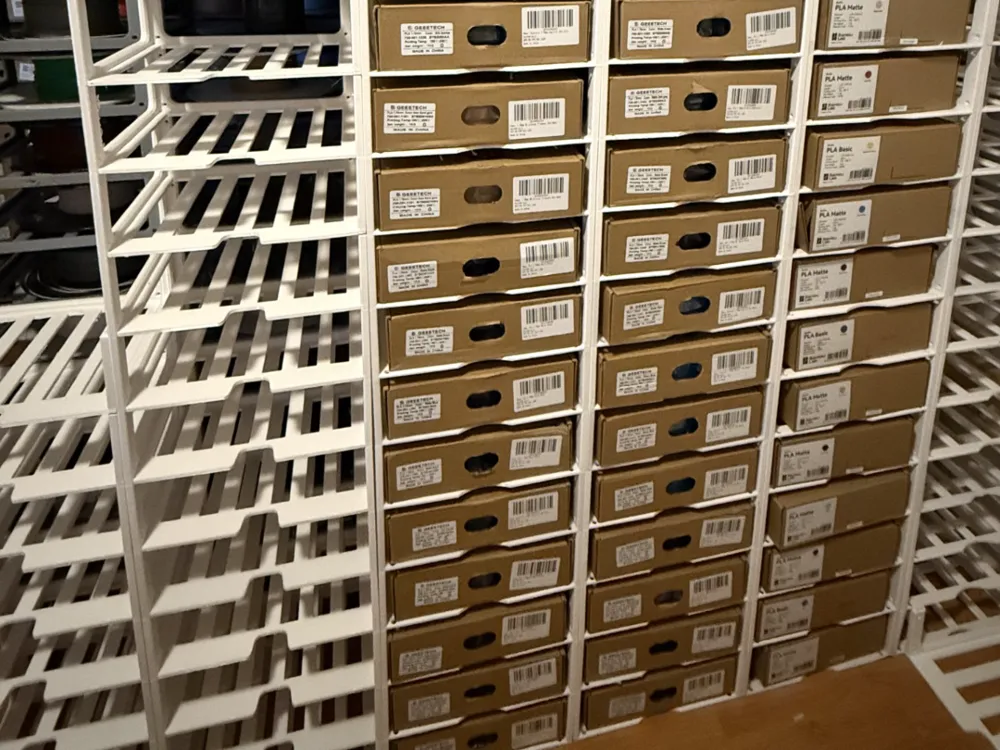

Confirmed Filament Boxes that fit:
Bambulab Refill Box

Bambulab Spool Box

Geeetech Box

Sunlu Box

___________________________________________________________________________________________________________________

Update 1:

Decrease in filament required.

Slight decrease in time required.

Snap-on system optimized.

Update 2:

Added a taller version in PLA - From 86mm → 100mm

Added a taller version in PETG - From 86mm → 100mm

The new extended versions use screwholes instead of bolt holes.

Update 3:

Created Folders containing all STL files (categorized)

Increased initial layer height by 0.1mm on all PETG Versions.

Fixed a weird bug reported by 2 people.

Update 4:

Preperation for modules & attachments.
* Rack Base “Snap-To” (Will stabalize racks in rows).
* Glue/Scraper/Pencil Holder “Click-On” Attachment.

* Buildplate Holder “Click-On” Attachment.

* Hygrometer Holder “Click-On” Attachment.

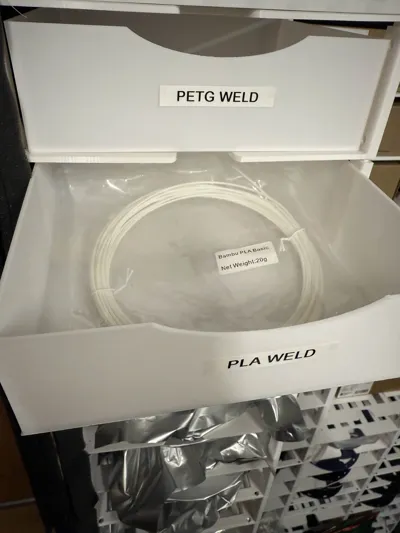

* Silicia Gel Beads Shelf (With built in Hygrometer - To easily keep moisture down).
* Shelf for Racksystem - 7mm & 14mm.
