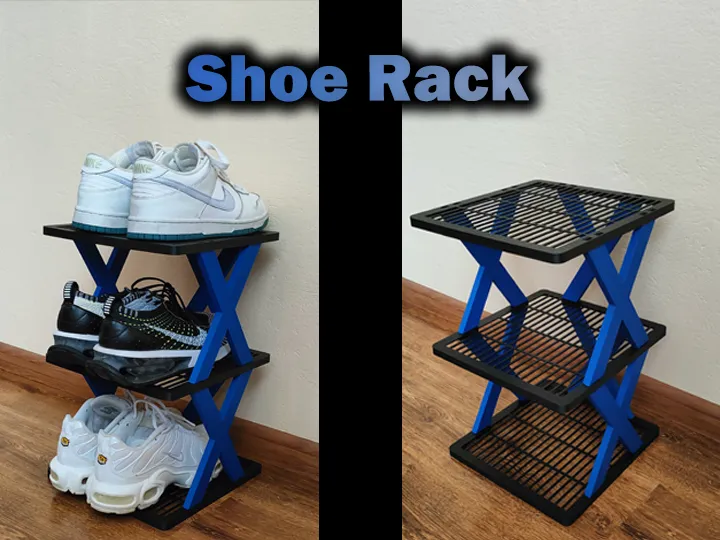

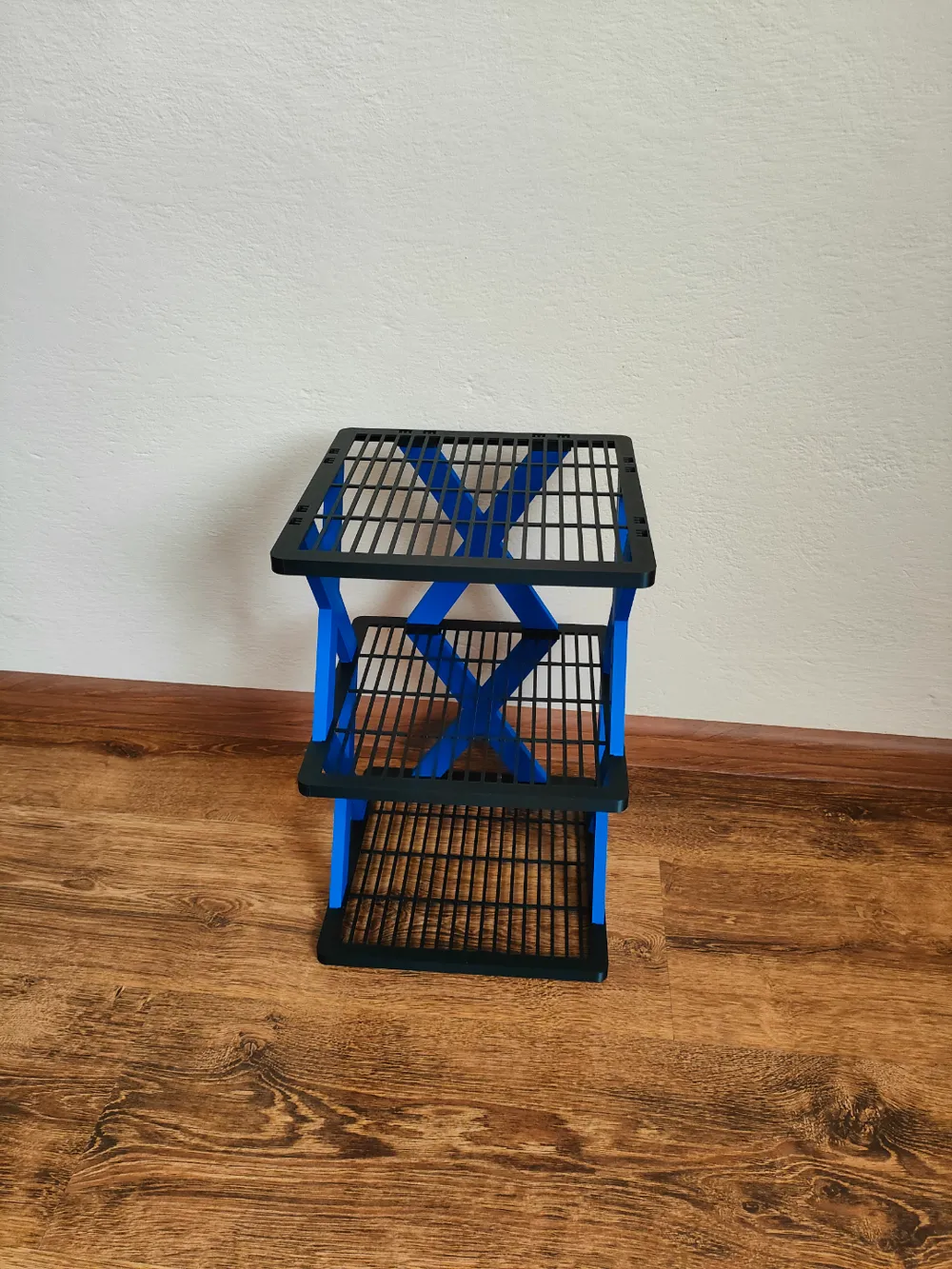

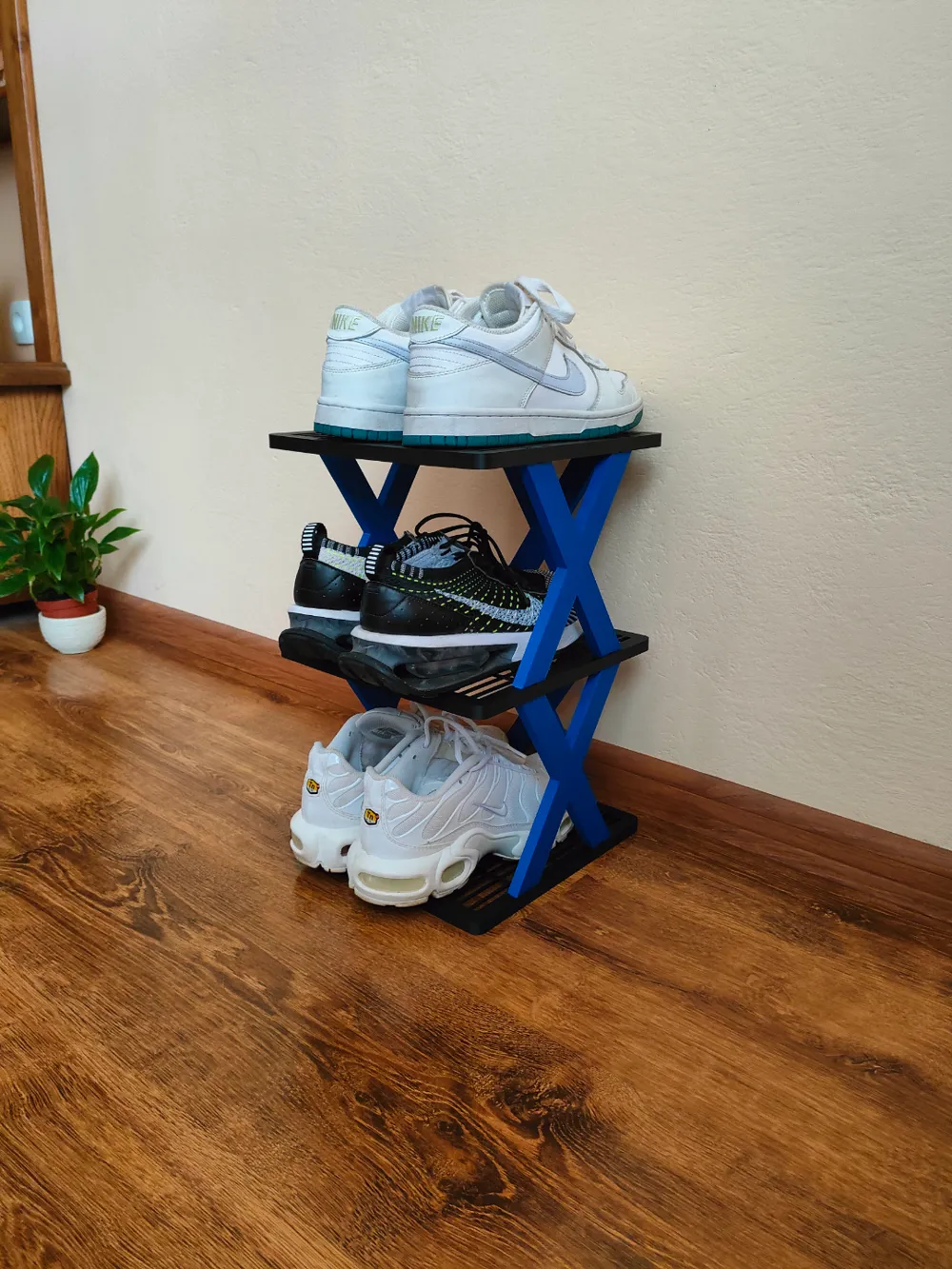

Modular Shoe Rack

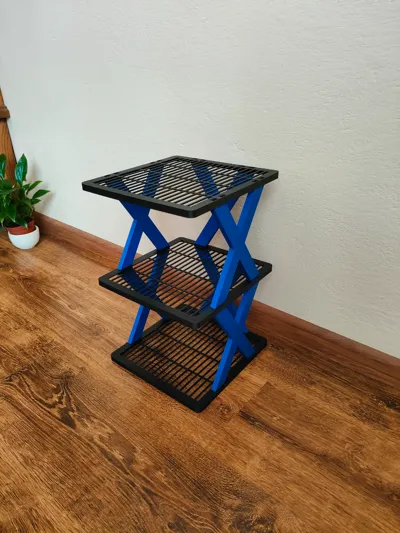

Modular shoe rack model. The model is adjustable, so you decide how many modules high it should be.

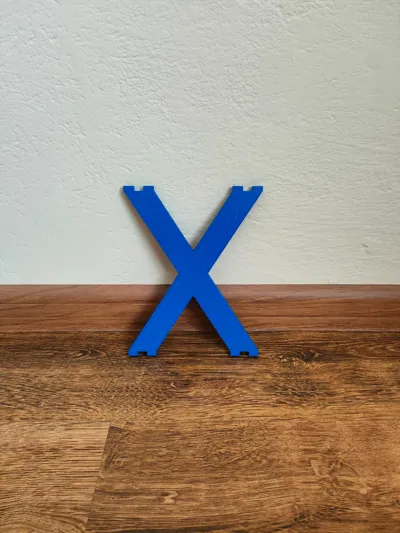

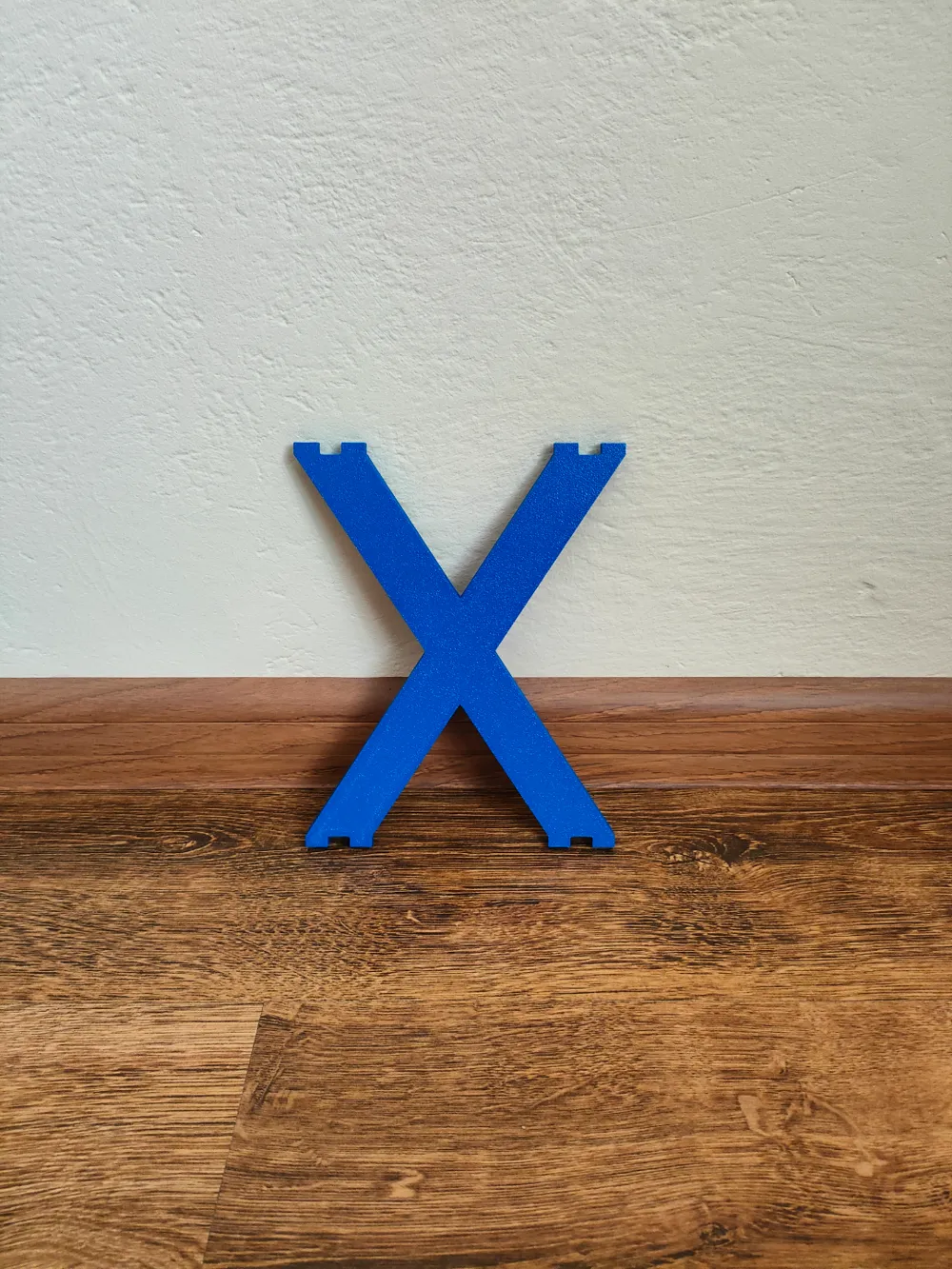

In the printing profiles, you also have larger sizes of X's (supports) available for higher boots. They are 20 cm tall.

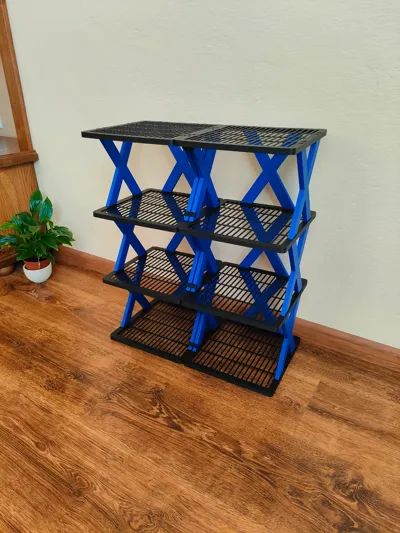

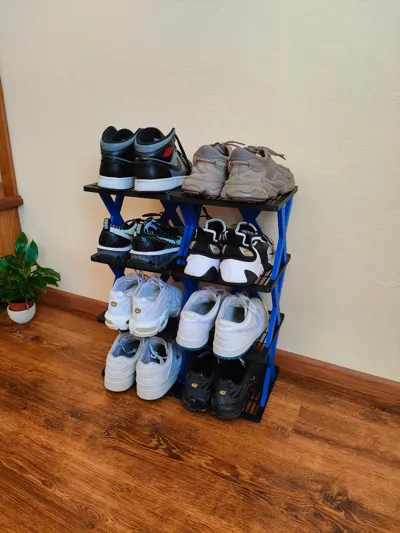

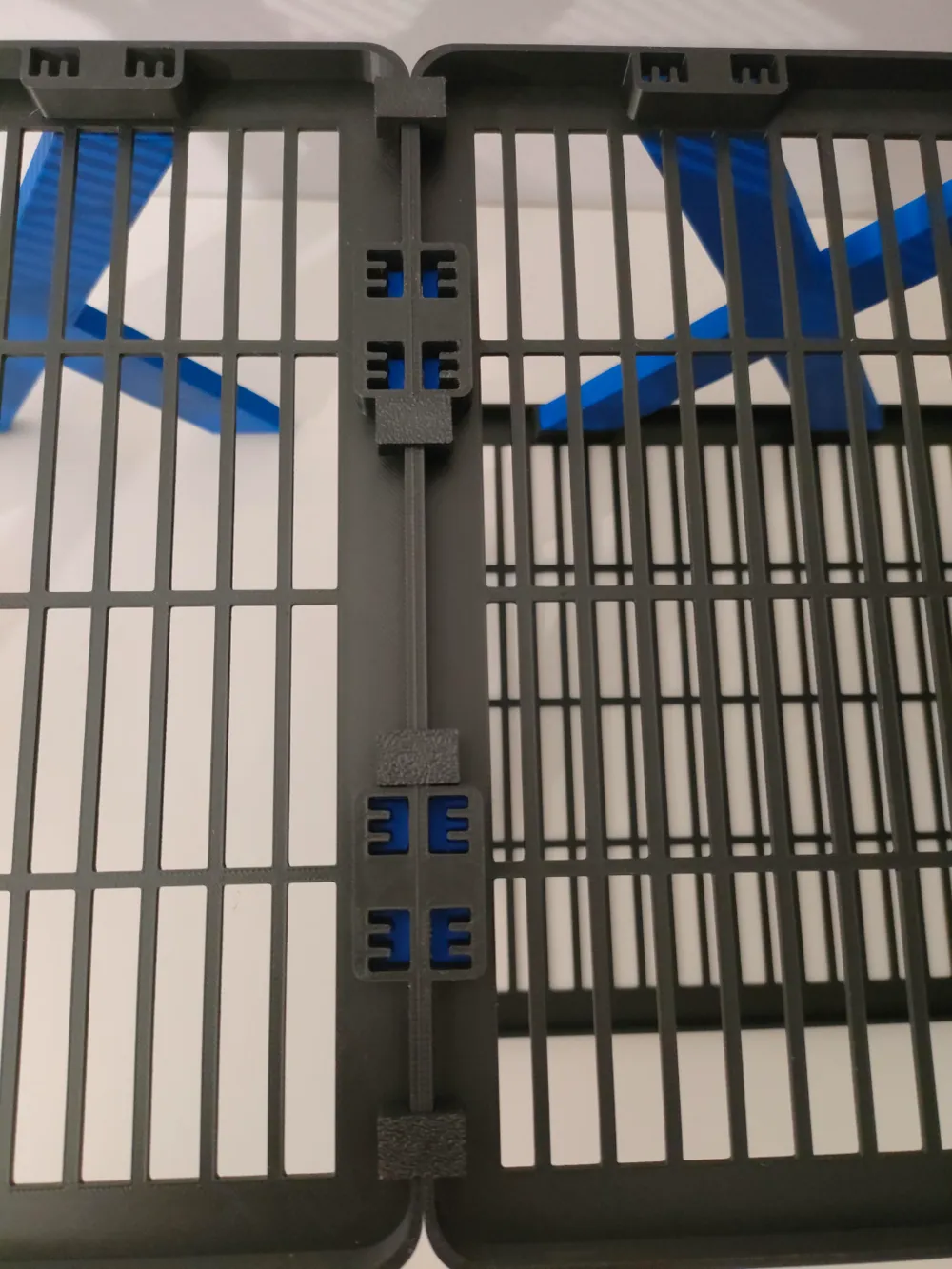

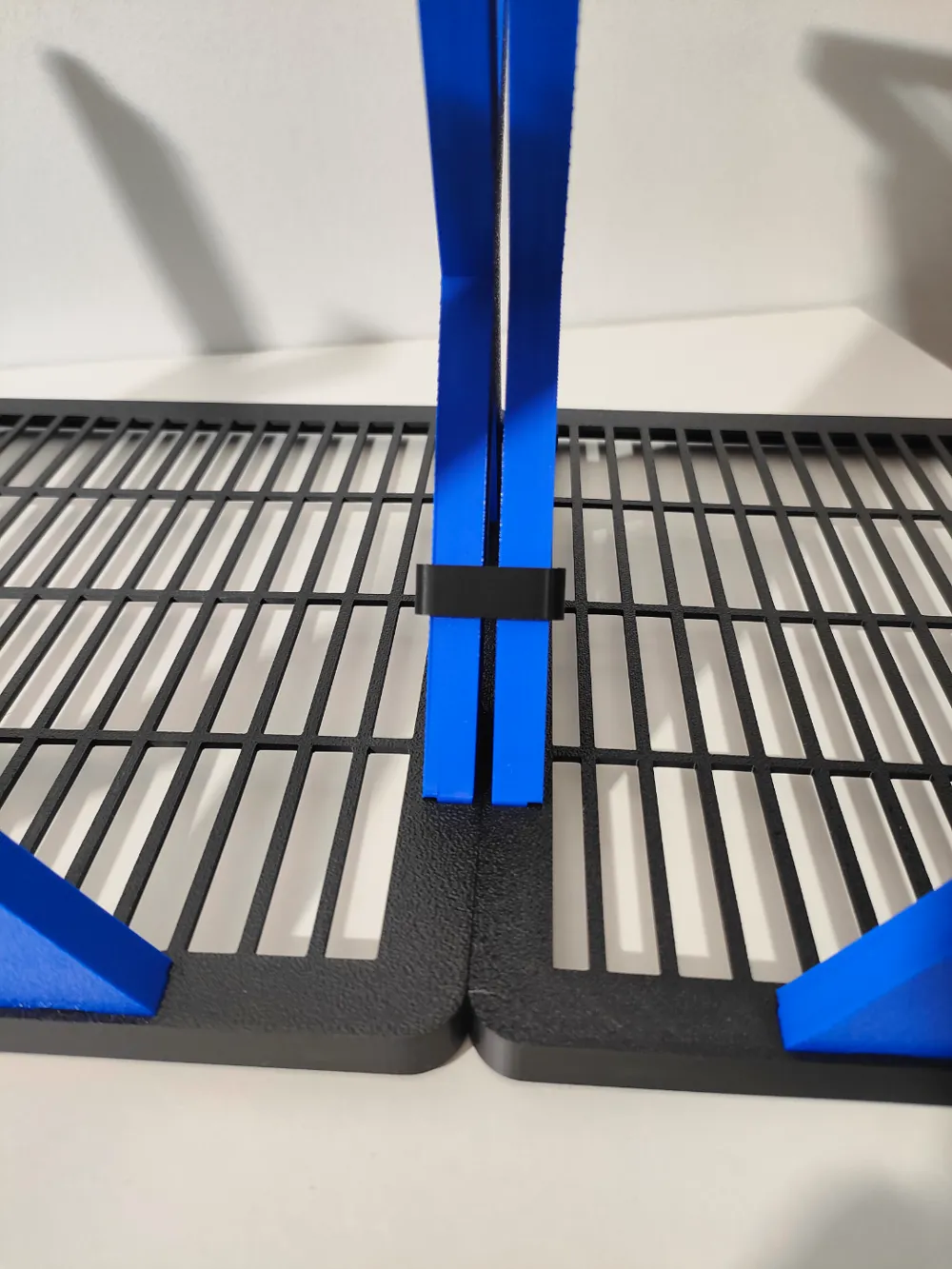

Clips are included with the model to connect two stands together, so there's no need to make one tall stand.
WARNING!

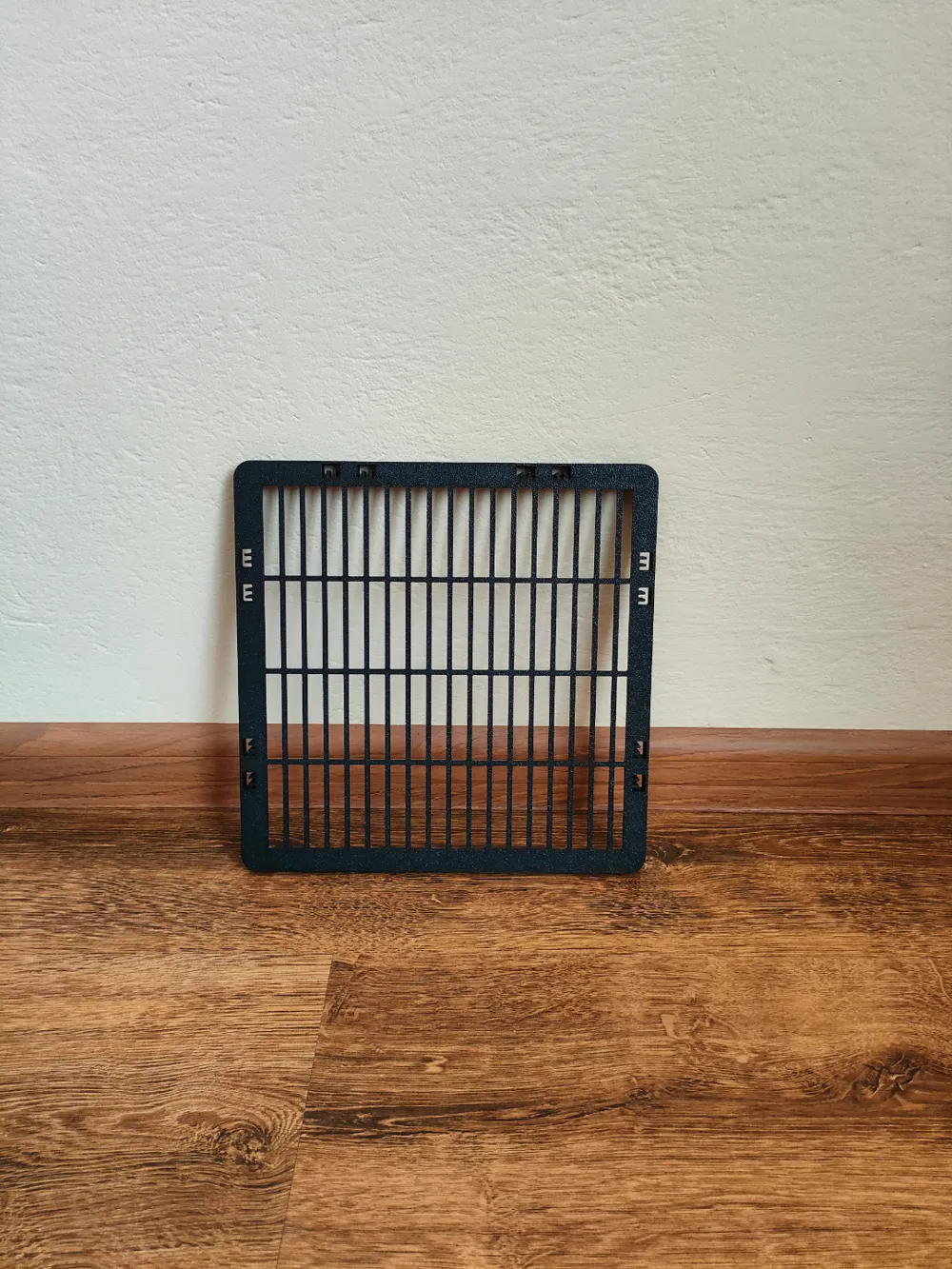

For the A1 printer, the stand base dimensions are 240x240mm. If you want to print the model on other printers, use the print profile "Other Printers Set" and "Other Printers STAND." The base does not fit in printers with a chamber because they have an exclusion area; therefore, I adjusted the dimensions to 236x240mm for printers other than the A1.
Recommended Settings
Stand:
- 0.2 mm layer
- Elephant foot compensation: 0.15 mm
- Infill: 15% gyroid
- Seam position: back
- No brim
Support (X)
- 0.2 mm layer
- Elephant foot compensation: 0.15 mm
- Infill: 8% gyroid
- Seam position: aligned
- No brim
- wall loops: 3
