Shoe Rack Stackable by emay.design

emay.design

Household>Decor

Print Profile(2)

All

P1S

P1P

X1 Carbon

X1E

0.2mm layer, 2 walls, 15% infill

Designer

8.3 h

3 plates

4.8(31)

0.2mm layer, 3 walls, 5% infill Gyroid

7.4 h

3 plates

4.9(20)

Open in Bambu Studio

Boost

1173

2310

102

1.7 k

451

Released

Description

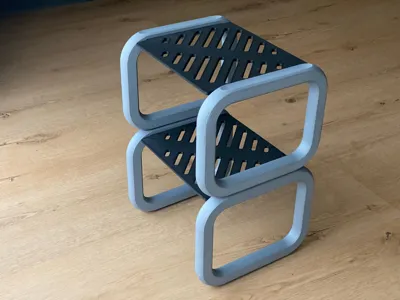

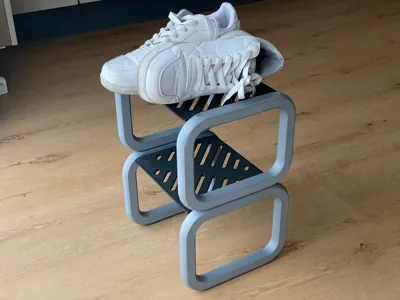

This shoe rack is very simple to set up and easy to put together.
No screws or other materials are required for assembly!

It consists of three parts:
- Side frames
- connecting frame
- plate

The shoe rack can be expanded horizontally and vertically.

If you want to expand horizontally, you need to print the connection frame.

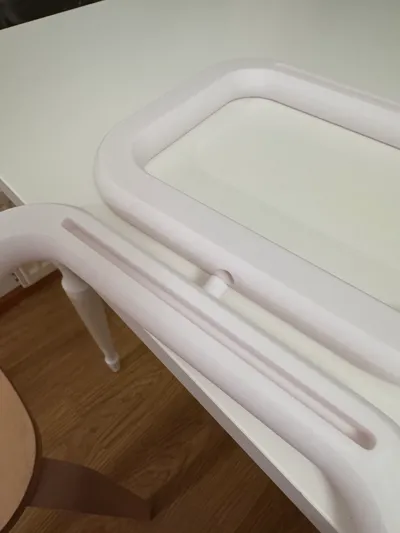

(It has two plug connections in the frame).

If you only want to expand vertically, the side frames are sufficient.

These can simply be stacked on top of each other in the trough.

All three elements are on extra plates in the file.

You can decide which frames you want to print.

Stability must be checked. If necessary, help with glue. But I didn't use anything in my case.

Like, share, comment!
Let me know if you like it! Thanks

Comment & Rating (79)

@user_2455139855

Boosted

I opted for this design and it was definitely the right choice, a truly beautiful and robust design 💪

Show original

@alphazuludelta

Sieht super aus!

@Boeghs

Boosted

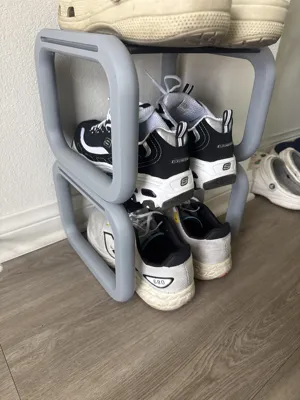

Modified the model a bit for the base level.

@jpizzle

can you upload this mod?

@Boeghs

Boosted

Replying to @jpizzle :

I'll try.

@DeepHeat

I’ve yet to commit to printing these. They look superb - It’s simple, modular and inexpensive. My concern is how does it cope with sideways movement? Other than the partial stability offered by the top plate, it’s difficult to tell from the pictures if this is just a visually appealing item or a completely functional piece. How much lateral movement will it take from everyday usage before it is necessary to reprint a damaged part?

@user_3038180165

Print Profile

0.2mm layer, 3 walls, 5% infill Gyroid

some parts on top are stringy but overall good quality

@redpelon

Stringy has nothing to do with the model; its your filament settings.

@hj.johannes.lee

Boosted

I really like this design. I printed to replace my old shoe rack. I want have only one column with many floors, I made it stable by editing a little bit. 9.8mm male, 10mm female holds each other very well.
