Vine Dragon

Vine Dragon

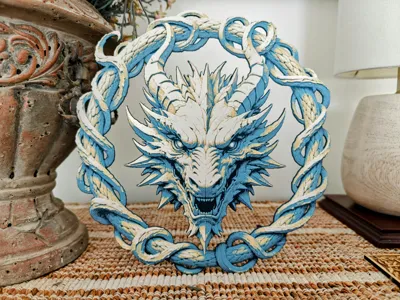

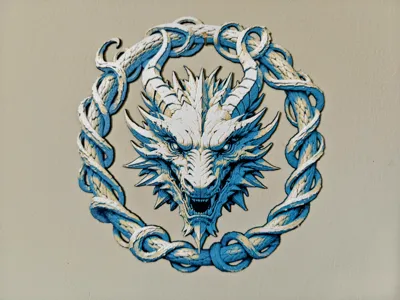

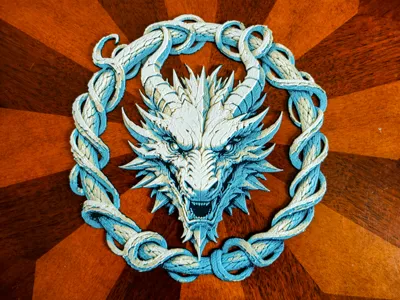

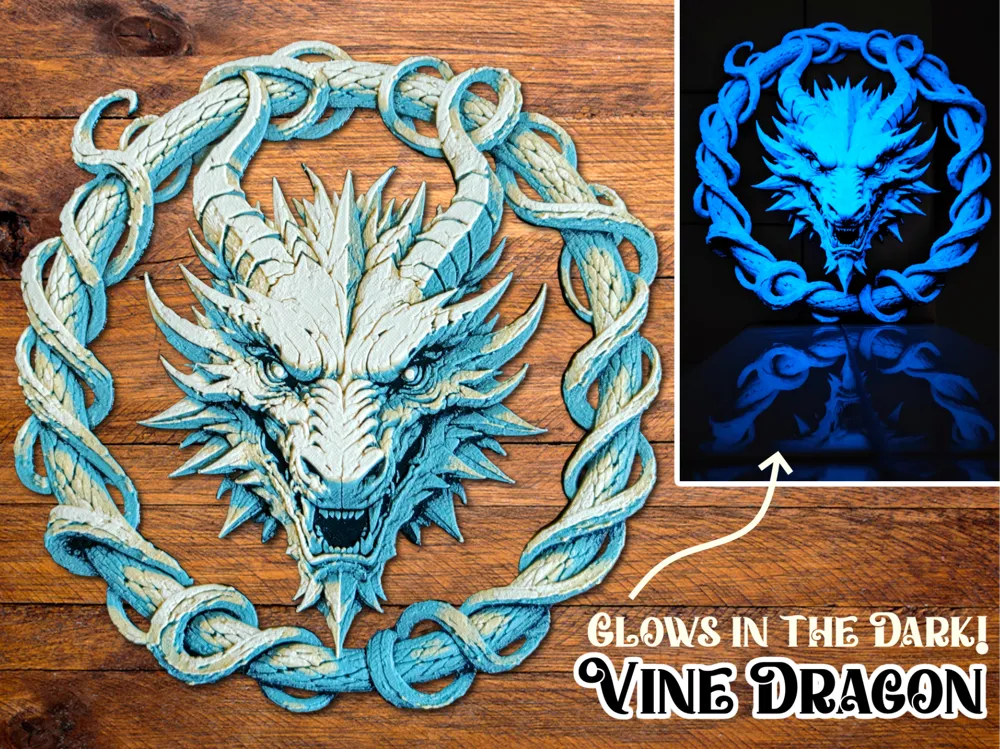

This is an extremely detailed portrait of a dragon set within a circle of vines. Due to all the detail, prints do take longer - so I'm providing 2 profiles for 200mm and 150mm options.

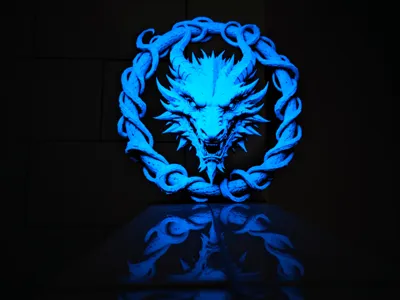

This print has two sizes: 150x144mm and 200x192mm. It uses 4 colors of Black, Grey Blue, Skin/Beige, and White. If you replace the white with a glow in the dark white filament, you can get amazing results!!

When slicing, if you get any warnings about floating regions you may safely ignore those!

You may scale this on the X/Y axis but NOT the Z axis - this will reliably scale down to 150mm or so without losing details.

For those who wish to set the print up themselves and not use the provided profile, read below:
Be sure to use both the layer # AND layer height when putting in color changes. Since I use height modifiers in my profiles for faster prints, they may not line up - in that case, always use the layer height.

Print at 100% infill with a layer height of 0.08mm with a base layer of 0.16mm
You may print at higher layer heights below the Min Depth of 0.72mm


Filaments Used:
    PLA Overture Black Transmission Distance: 0.1
    PLA Overture Gray Blue Transmission Distance: 3.3
    PLA Kingroon Skin Transmission Distance: 3.6
    PLA Overture White Transmission Distance: 4.2

Swap Instructions:
    Start with Black
    At layer #12 (1.04mm) swap to Gray Blue
    At layer #20 (1.68mm) swap to Skin
    At layer #25 (2.08mm) swap to White for the rest.
