Enhance your Milwaukee Packout system with this innovative M18 battery holder, designed for effortless installation and removal without the need for additional hardware.

I have a similar design that fits a bit more securely: Dovetail M18 Battery Holder

Features:

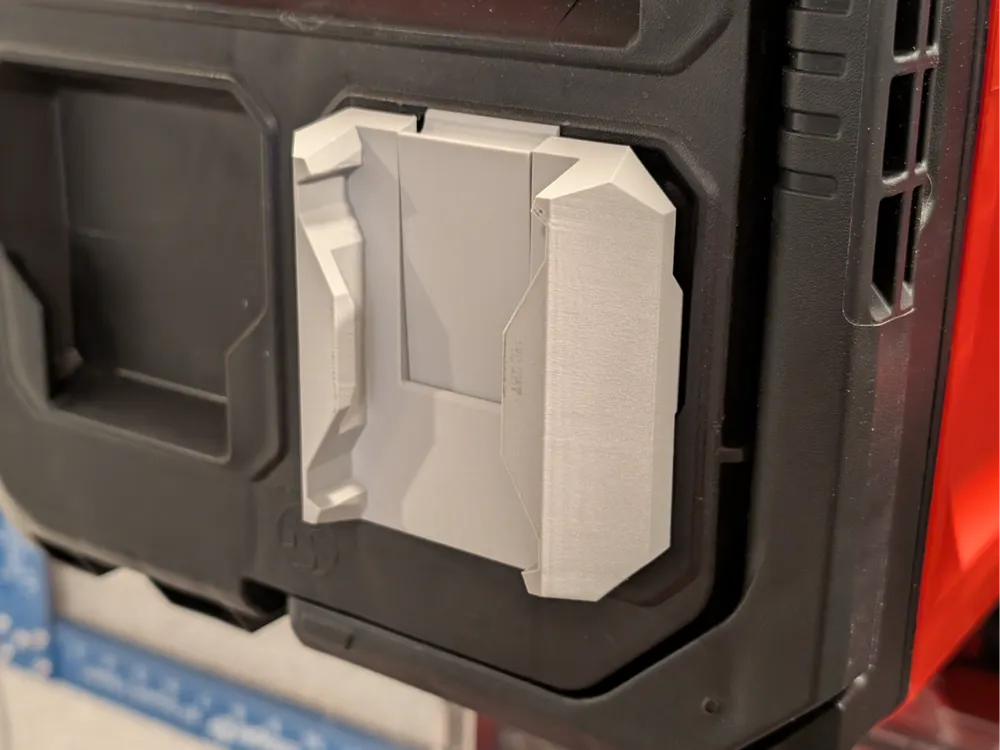

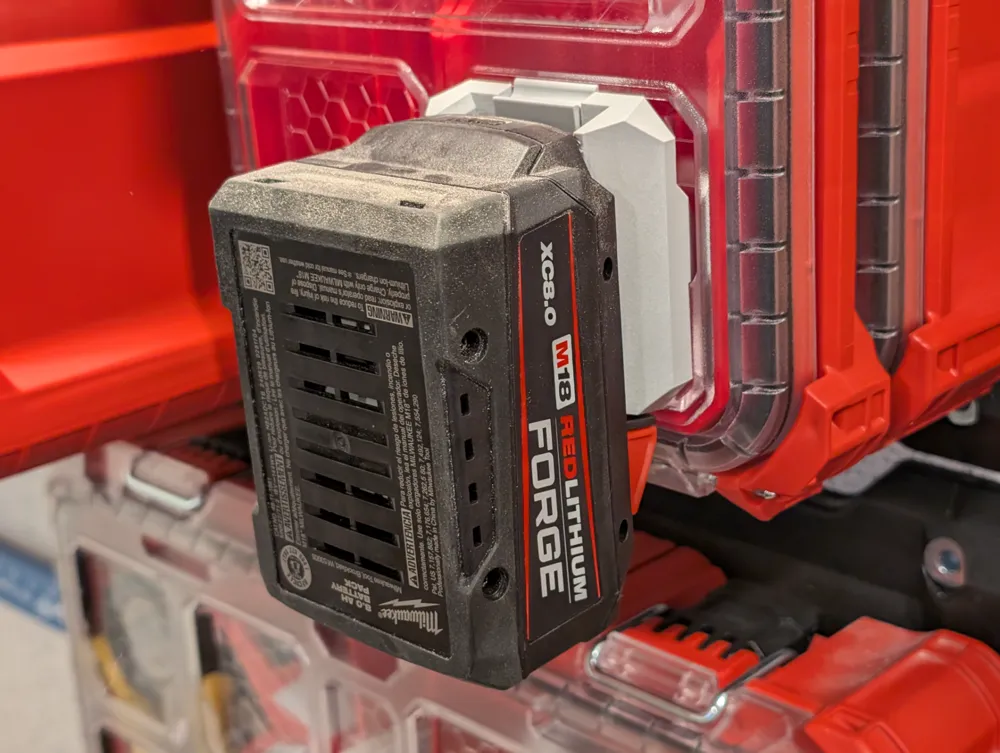

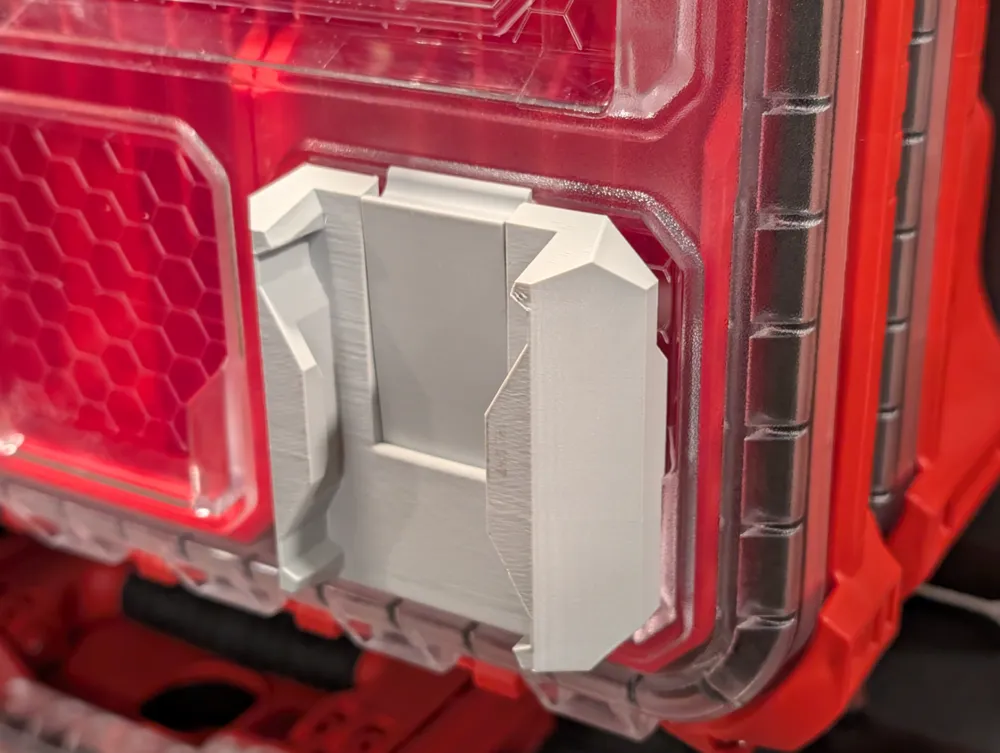

Packout Compatible: Seamlessly integrates with your Milwaukee Packout boxes, providing secure storage for your M18 batteries.

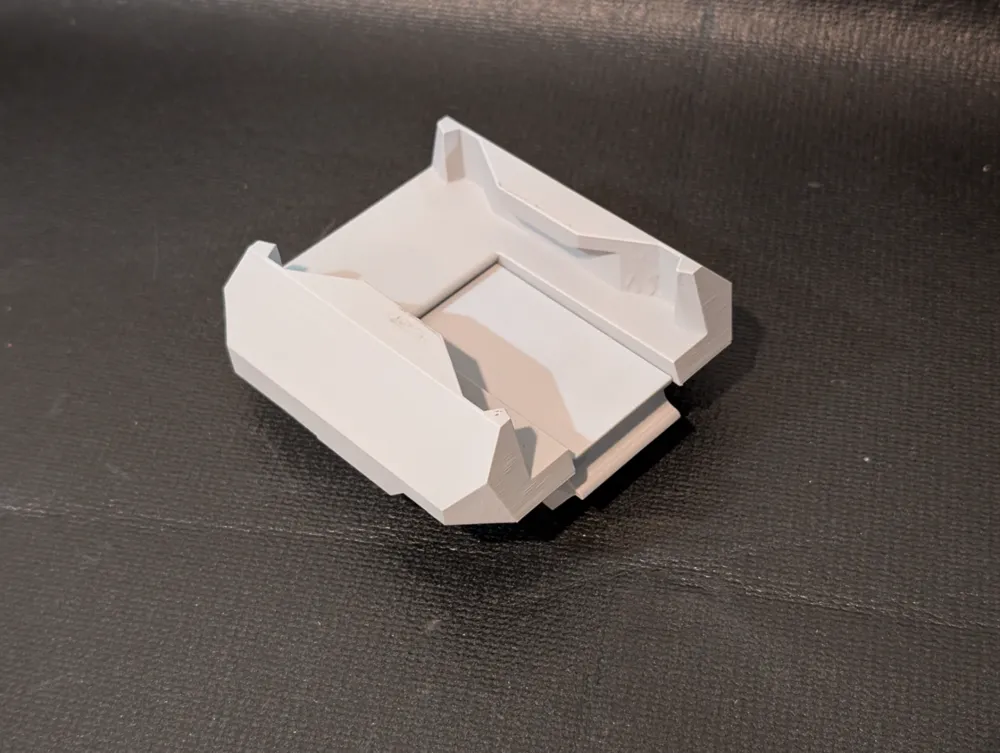

Two-Piece Design: Prints in two parts that easily assemble, ensuring a strong and reliable hold.
Toolless Installation: Press the locking tab into the slot on the body. It should snap firmly into place.

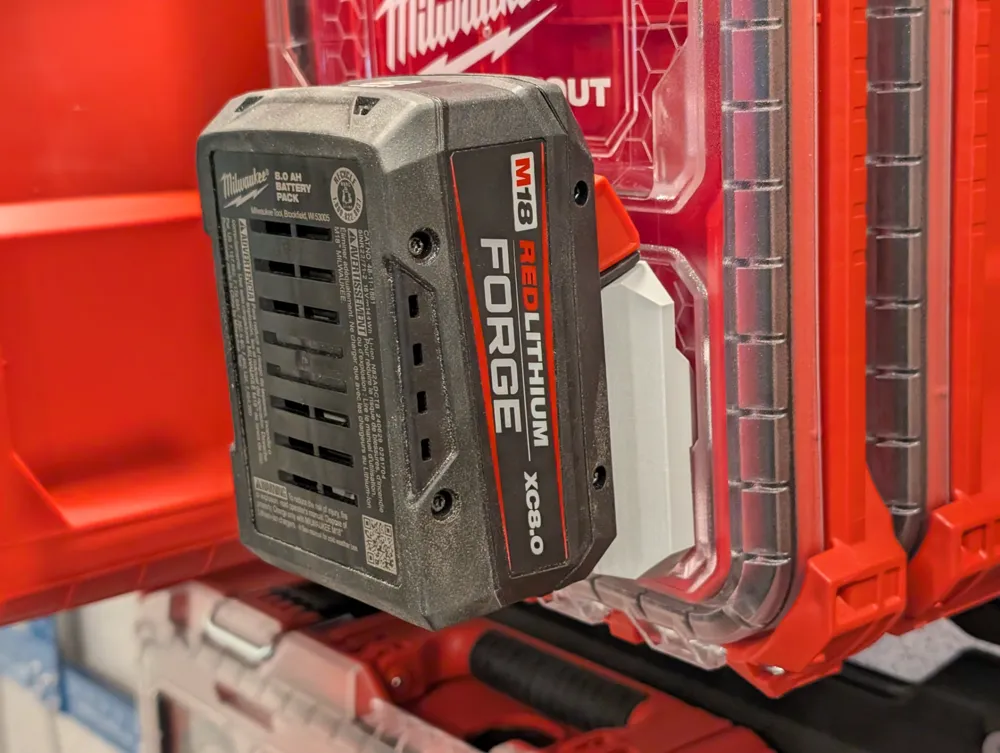

Reversible Mounting: Allows batteries to be inserted from either direction, offering flexibility to suit your workflow.

Printing Recommendations:

Material: For optimal results, print using PETG or Nylon.

Enhance Your Setup:

Boost Me (for free)

Thank you for your support! Every boost/like inspires me to continue creating and investing in the MakerWorld community. Together, we can bring more innovative designs to life!

Comment & Rating (102)

@22222222222

Boosted

Really well designed! love how when the battery is locked on it can’t come off very clever. Also extremely handy that the battery can be attached in both directions. Printed perfectly. Thank you for this file, will be very handy to keep a spare battery on my Packout Vacuum!

(Edited)

The designer has replied

@zekesnack

Glad you like the design! This one took me quite a bit of time and a lot of iterations

@zekesnack

So glad it worked out well for you! Please keep me posted on how it holds up and any potential improvements

@SLUGNUTMAGE

I'm confused. guy in comments shows picture where it prints in 2 pieces, here it 1, with nu supports. what am I missing?

The designer has replied

@zekesnack

They are spit in the 3MF file, if you download the step you will need to split it to obects.

@SLUGNUTMAGE

Replying to @zekesnack :

I'm still new to printing. How do I split it into two objects? I have luban and orca. Or can I just use 3mf and print it in petg straight away?

@Peteg918

Replying to @SLUGNUTMAGE :

What I do is instead of downloading the 3mf, I select open with bambu studio. Once there it shows both pieces then I can either slice there for my Elegoo Carbon or I can select File export as STLs so that I can slice with my slicer of choice. I am sure their is an easier way but this takes me less than a minute to complete.

@user_1712573740

Print Profile

0.16mm layer, 3 walls, 15% infill

works great gots a little snug but after a little back and forth it fits great.

@Coffinsnail

Boosted

I created this in pla and it worked perfectly i have 4 of them.

The designer has replied

@zekesnack

Great to hear! I would love feedback after you have used them for a while. I have a few professionals using them and the feedback is invaluable

@Coffinsnail

Boosted

Replying to @zekesnack :

no prob the only problem is its hard to unclick battery on the back so you should make a reversed one for the back. or take two and put them back to back pointing up i would those the best.

@user_4002486509

Great part but had problems with it fitting on my pack out wall plates as this slot dimension are a little bit different than the regular packout cases. Did a little bit of shaving on the slots for it to fit and it’s perfect now! Wish you made the same part with a little bit different dimensions on the slot for the wall packout. Thank you for the design.

@galaxyprintsUS

Boosted

Print Profile

0.16mm layer, 3 walls, 15% infill

perfect

@user_2026314502

nice

@user_1547379324

Print Profile

0.16mm layer, 3 walls, 15% infill

works great! Thank you for great model

@kenndowl

Printed great.

@user_4228071043

Print Profile

0.16mm layer, 3 walls, 15% infill

came out perfectly!
