Parkside PPWD 30 A1 Vaccum Eurobox Cyclone
Print Profile(1)
Description

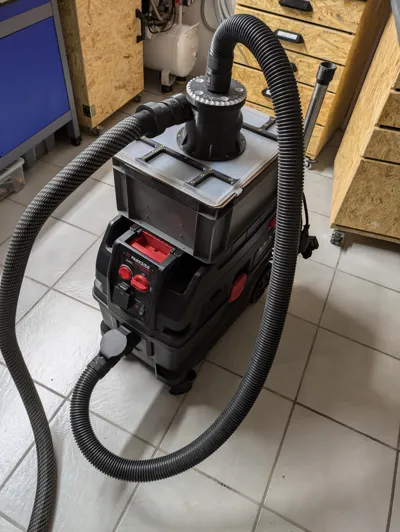

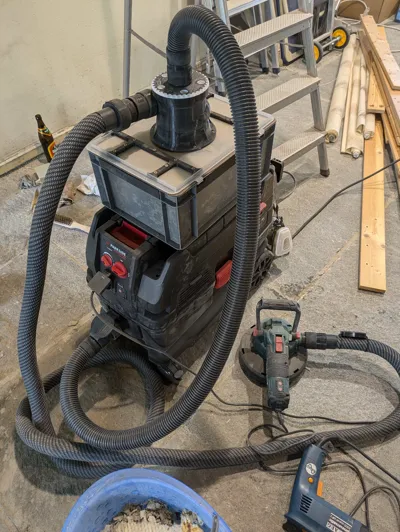

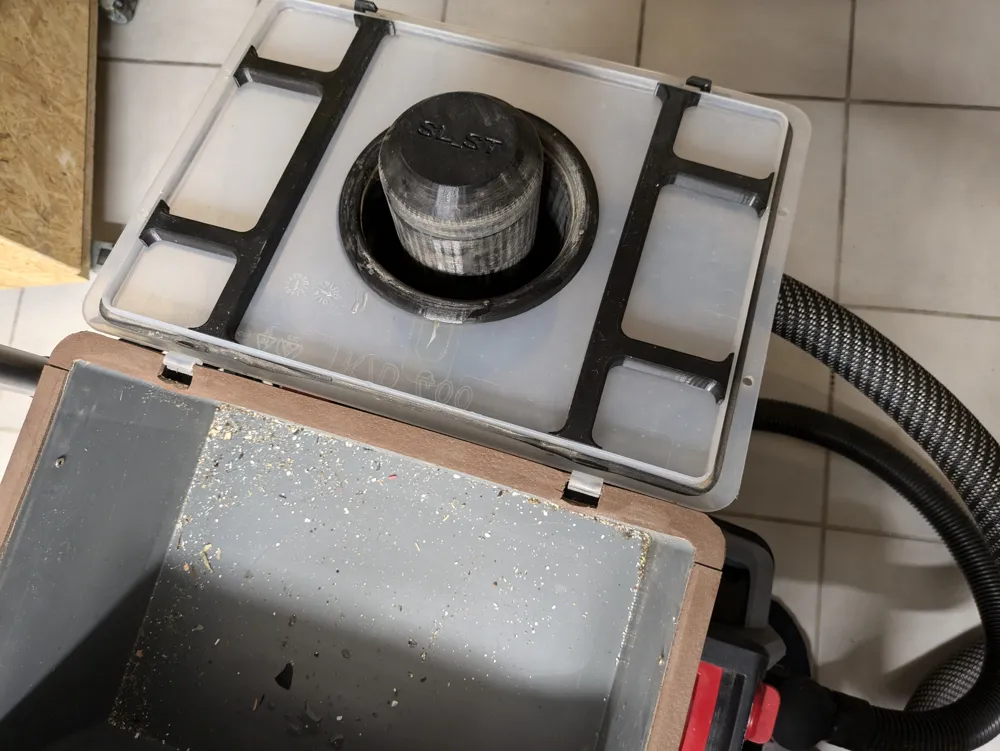

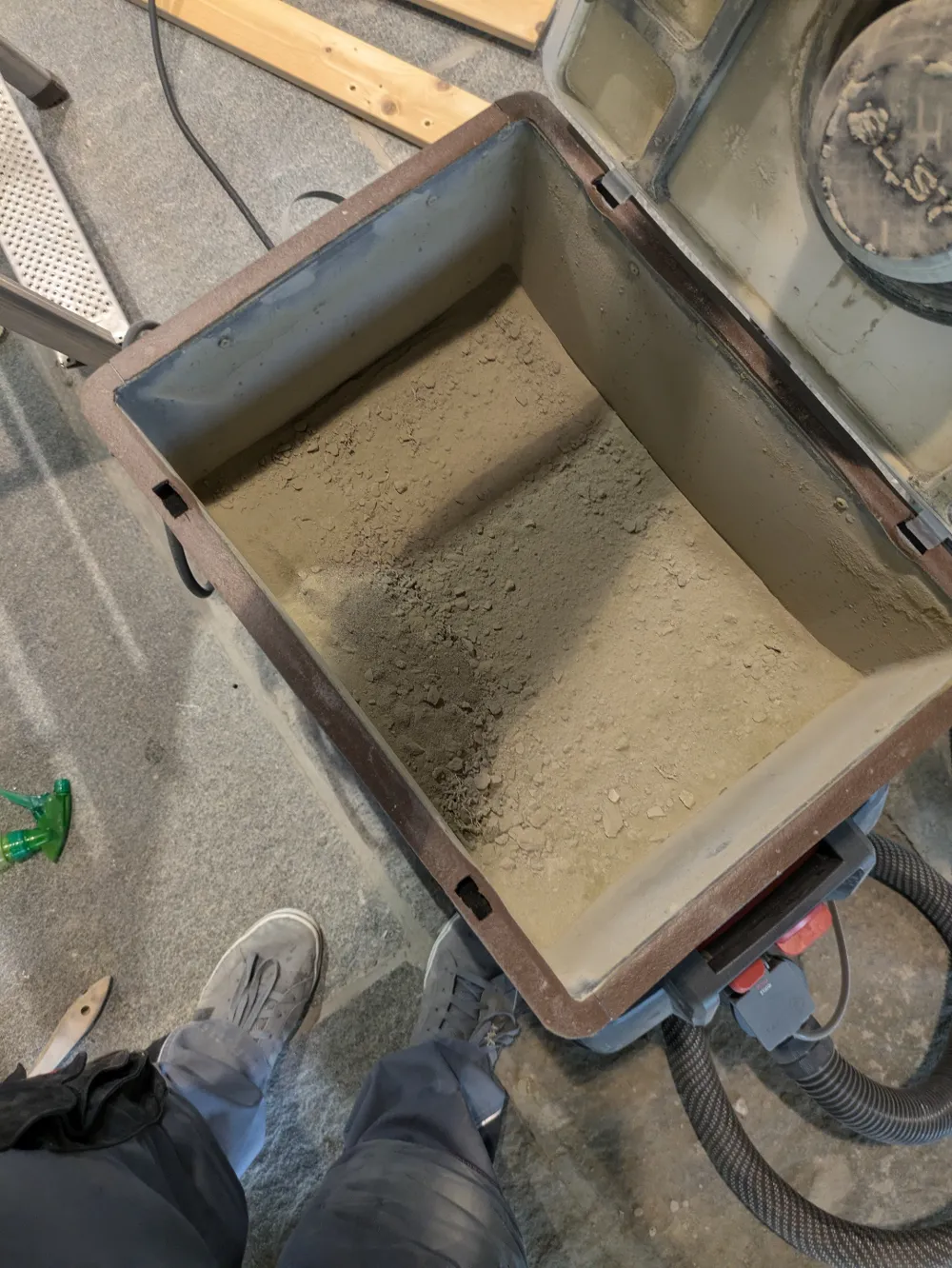

Clip in Eurobox Cyclone for Parkside PPWD 30 A1.

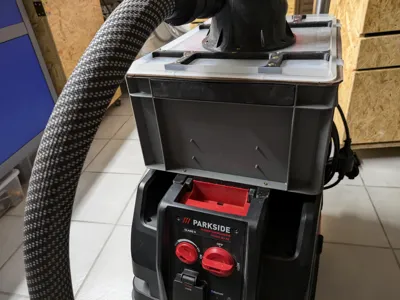

Eurobox used: 1a-TopStore Design Eurobox 40x30x18 cm. Foam seal needs to be added to the lid.
https://www.1a-topstore.eu/?a=5642&lang=eng
Depending on the planned project, a higher box could be a better fit.

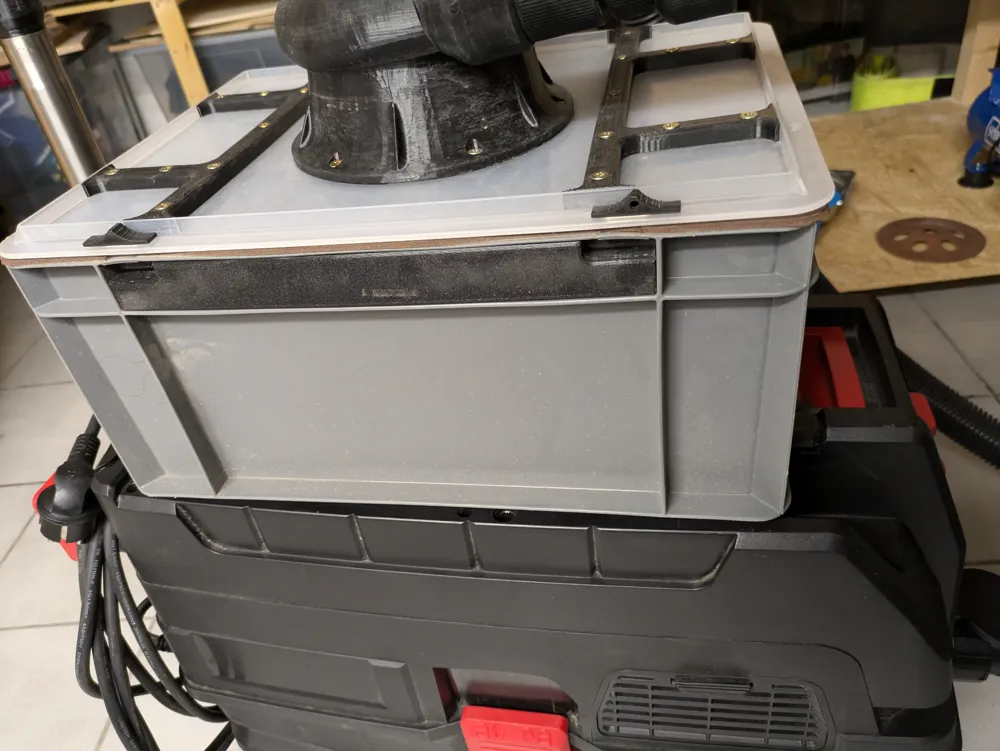

The printed Euro_Box_Support parts are needed so that the vacuum will not deform the box and create a vacuum leak.

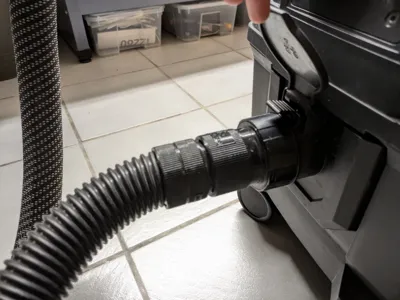

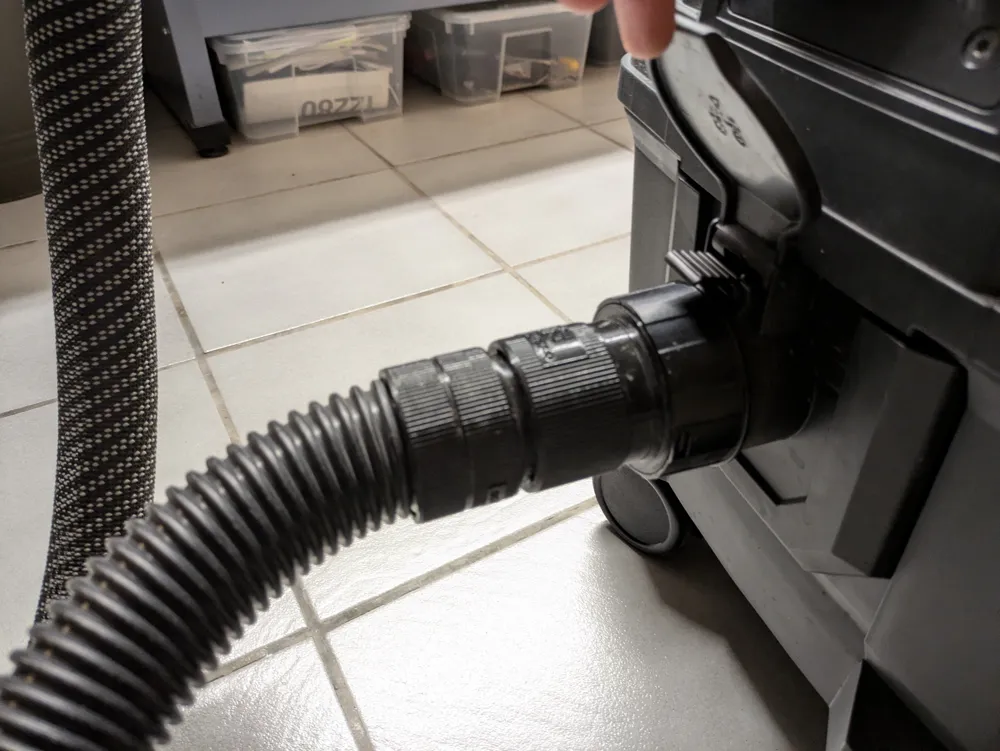

Original hose connectors need to be disassembled to fit 3D printed adapters.
Hose with an inner diameter of 38mm needed and a minimum length of 1.5m.
This cyclone is a remix of: https://www.thingiverse.com/thing:5579910
For assembly, see original cyclone.

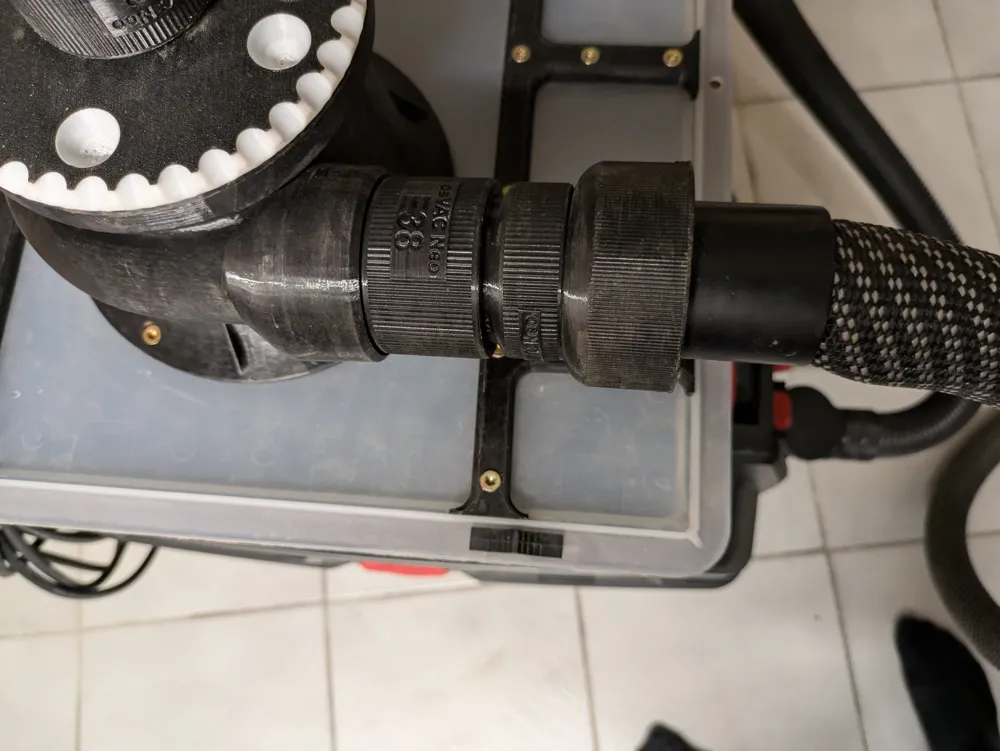

All connectors are osVAC neo for a 38mm Hose. See https://www.thingiverse.com/thing:5253018 for more information.
----------------------------------------------------------------------------------------------------------------
Following parts need to be printed twice:
Cyclone_Lid_Support_outerside.stl
Cyclone_Lid_Support_innerside.stl
Euro_Box_Support_1.stl
Euro_Box_Support_2.stl

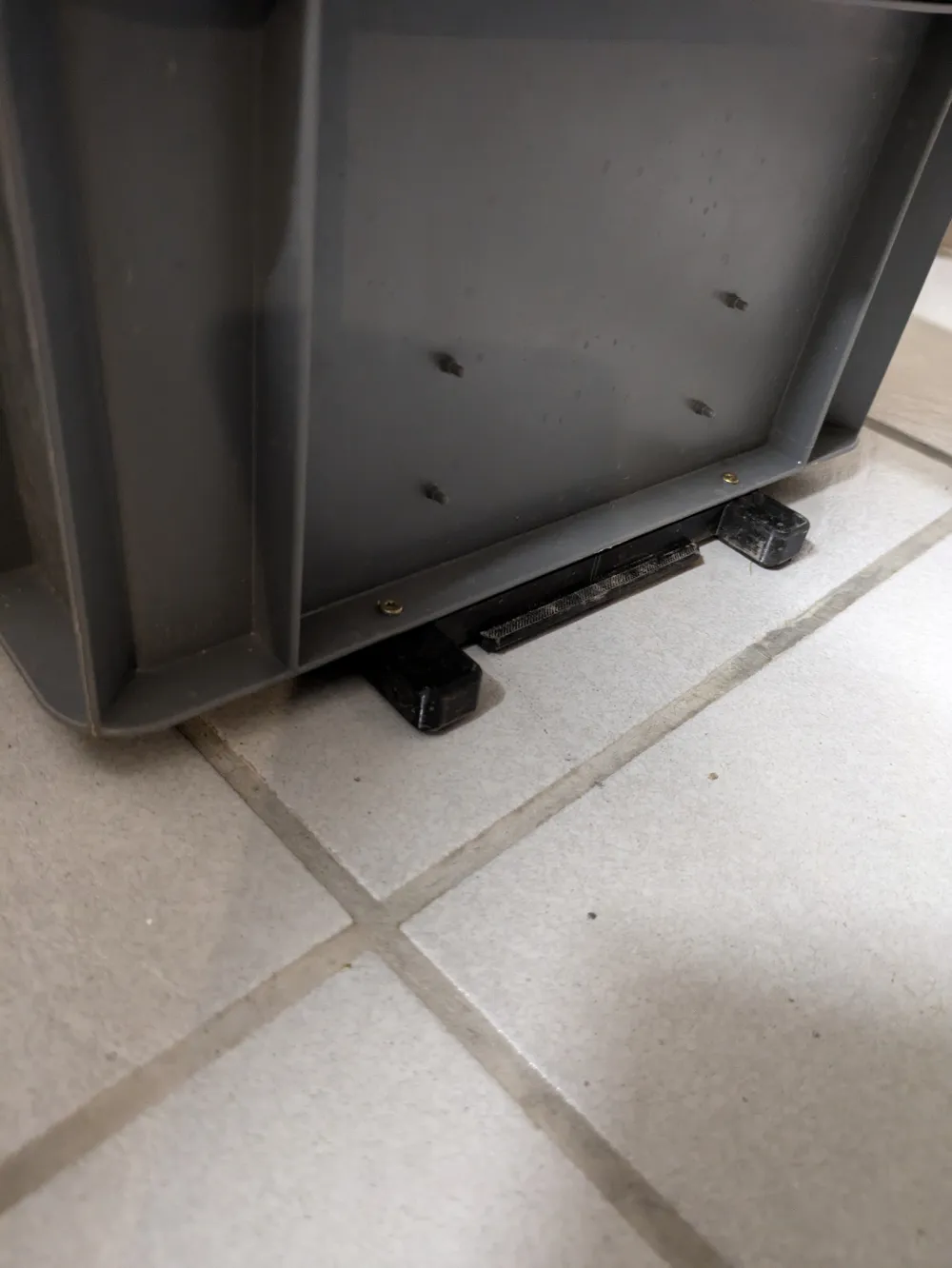

Cyclone_Box_Connector.stl (for assembly, mark middel of box and aligning with small notch on part)
----------------------------------------------------------------------------------------------------------------
The following parts are optional only if you want to use OsVAC connector on the end of the vacume hose:
Parkside_Hose_Connector_3.stl
Parkside_Hose_Connector_OsVAC_to_Nozzle.stl
-----------------------------------------------------------------------------------------------------------------
Tolerances changed for the newer PPWD 30 B2. So a different (slightly smaller) Cyclone Box Connector is needed.
https://makerworld.com/de/models/1153501#profileId-1158096
