Bambu A1 Camera Mount
Print Profile(1)
Description

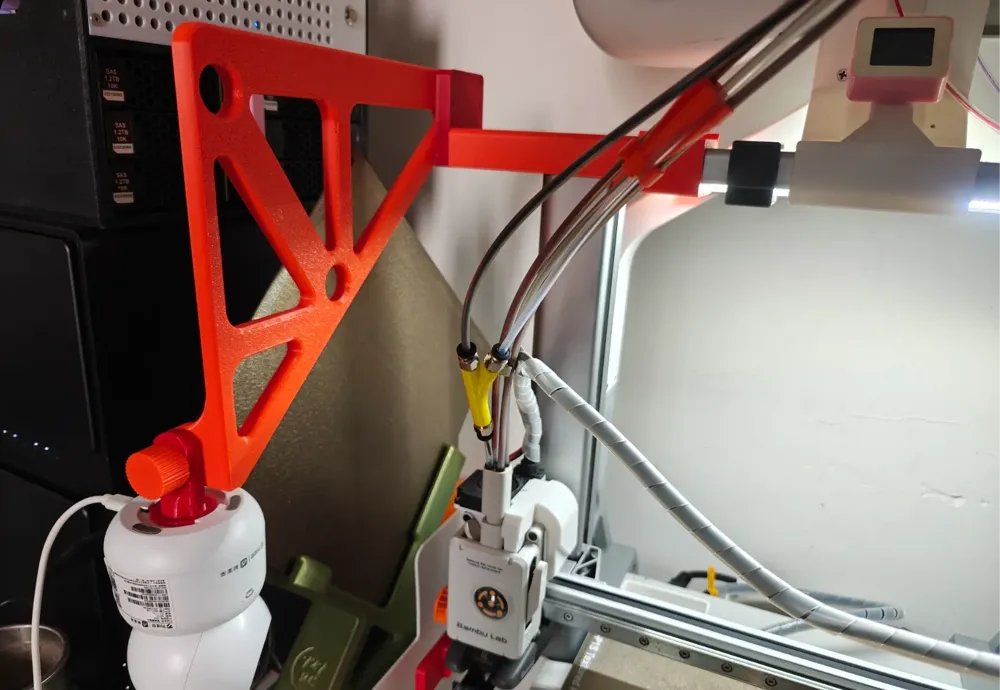

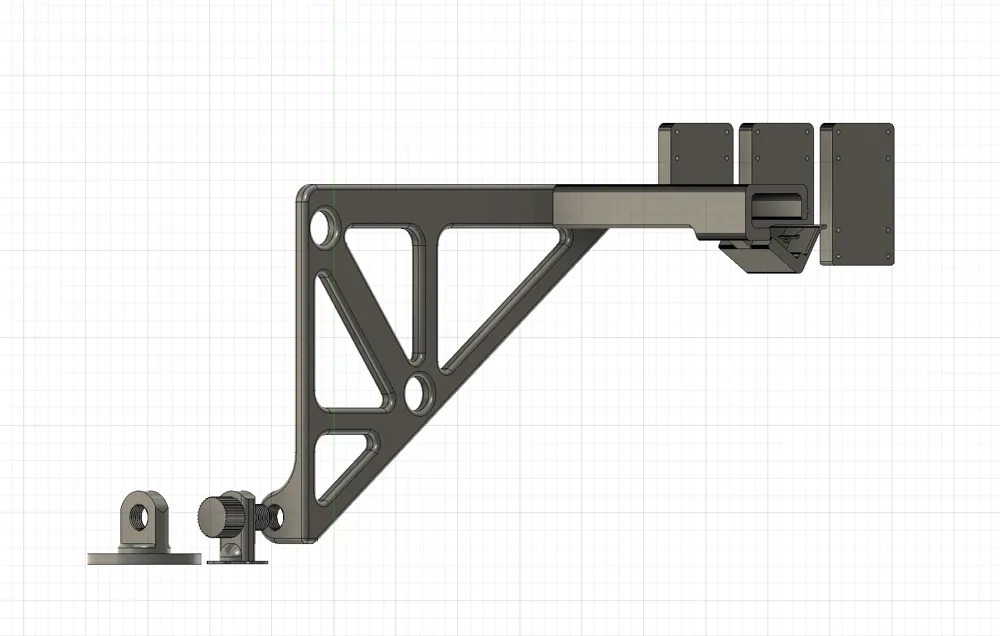

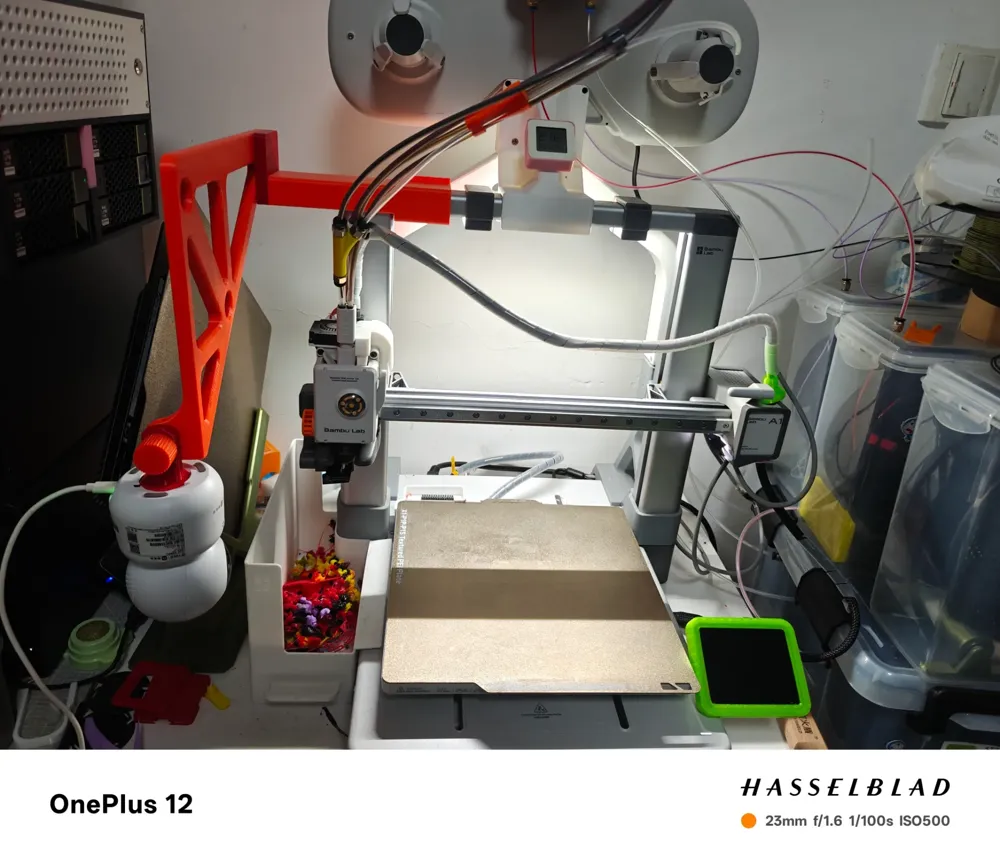

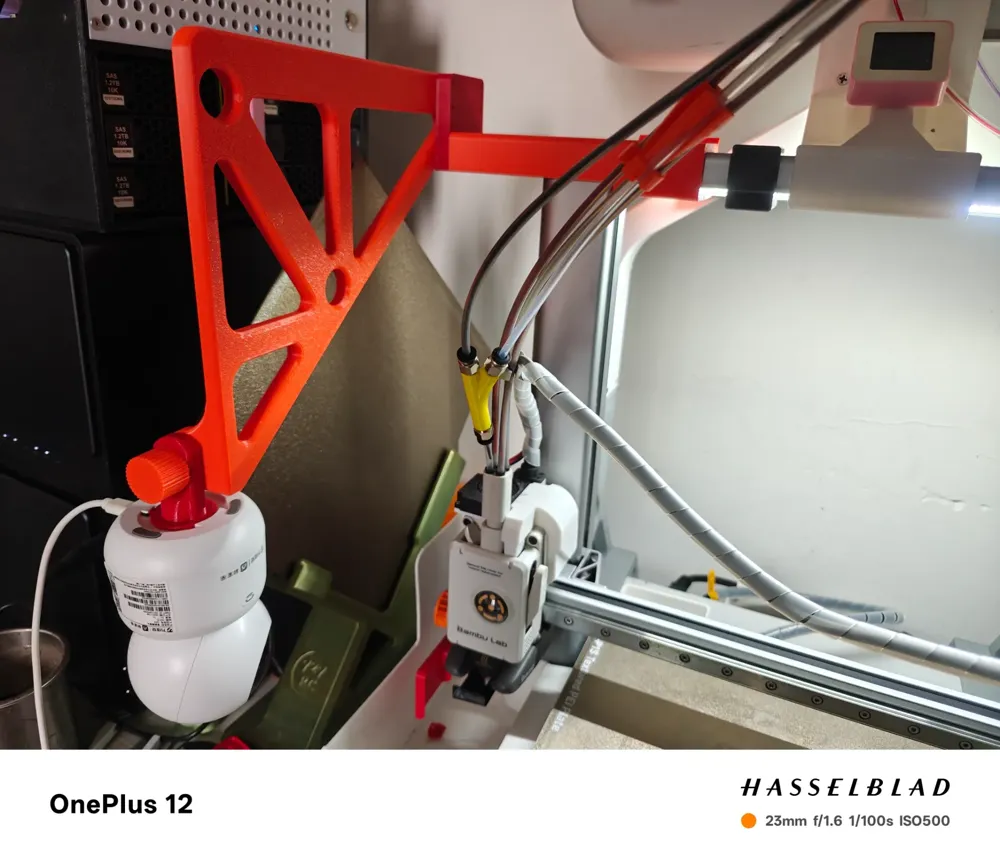

This is a modification bracket for Bambu A1 to add a camera, which can be installed on the left side of the crossbeam. The camera is installed by hanging, supporting left and right adjustment of the cantilever and pitch adjustment, as well as a universal base bracket, which can be used by installing the original base, the base bolts can use the original matching or M4*16, and can be adapted to more brands of network cameras and reduce interference with the extruder.

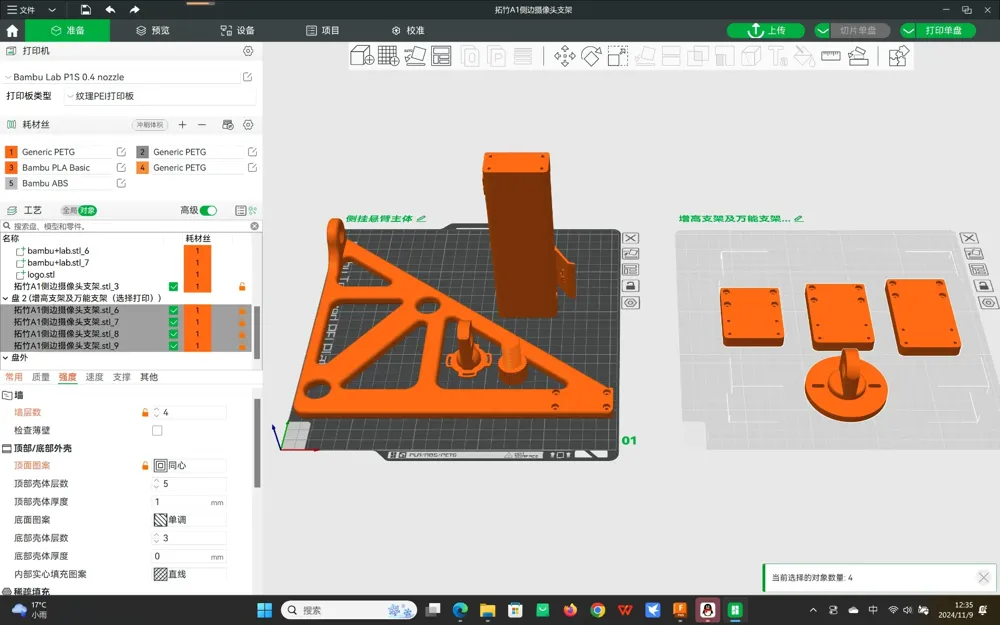

The second plate provides a cantilever heightening bracket, with 35mm, 45mm, 55mm options, and a universal base bracket (the base provided in the first plate is only suitable for cameras with a plate diameter of 32mm and a lug diameter of 38mm).
It is not recommended to install cameras and accessories with a certain weight on the X-axis motor, as this will accelerate the wear of the screw. Installing the camera on the crossbeam can avoid this problem and the picture will not shake.
Installation requires M3*12/14 screws 4pcs, if installing the cantilever heightening bracket, an additional 4pcs are required.
