PTFE Bowden Y Splitter (3 way) by laisch

laisch

3D Printer>3D Printer Accessories

Print Profile(7)

All

X1 Carbon

P1S

P1P

X1E

Standard PLA

Designer

1.2 h

1 plate

4.8(70)

Mounting Bracket Standard PLA

Designer

55 min

1 plate

4.8(31)

0.6mm nozzle, 0.18mm layer, 2 walls, 15% infill

1.7 h

3 plates

5.0(3)

0.2mm layer, 4 walls, 0% infill

1.2 h

1 plate

3.8(6)

Click to see more

Boost

207

419

122

960

645

Released

Description

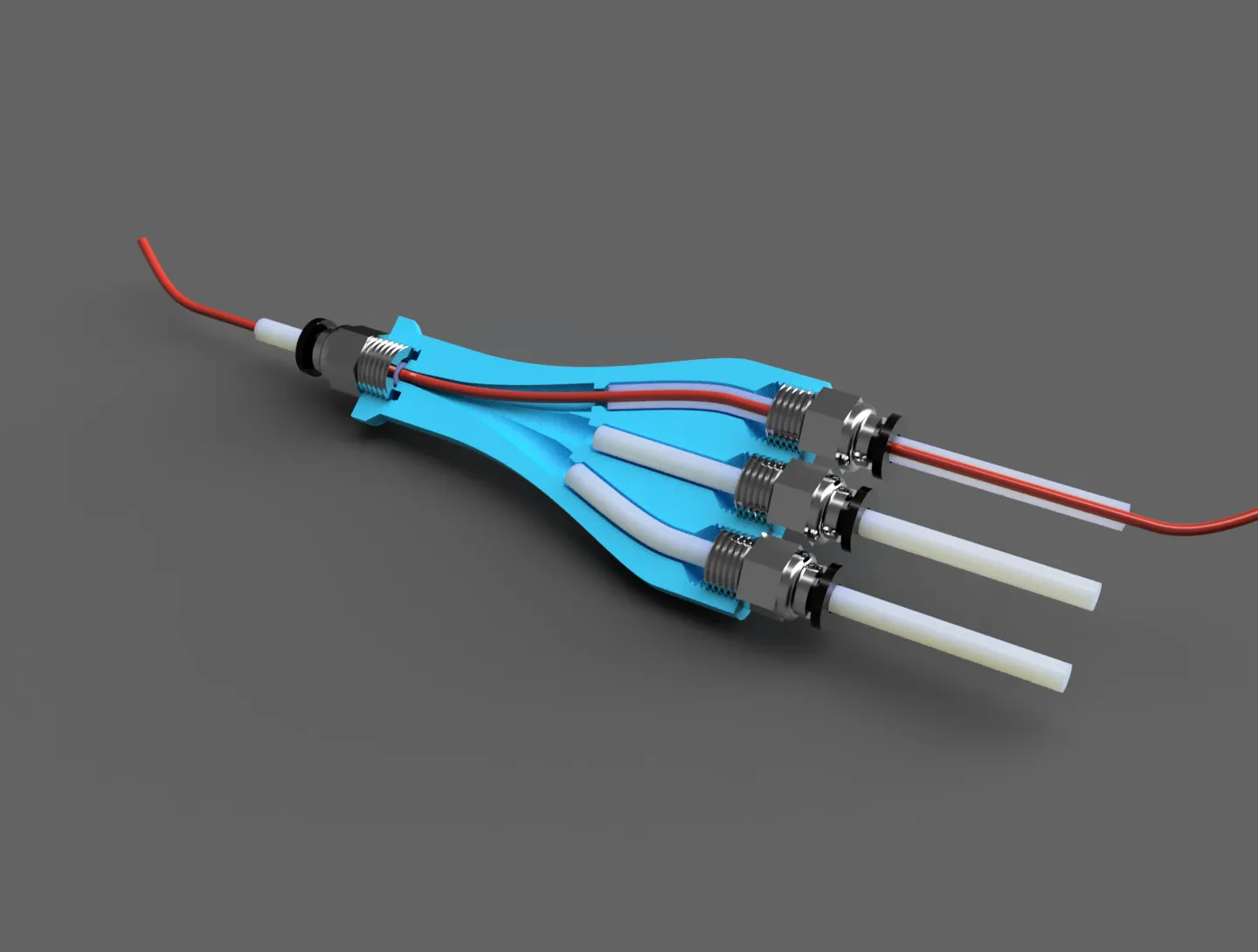

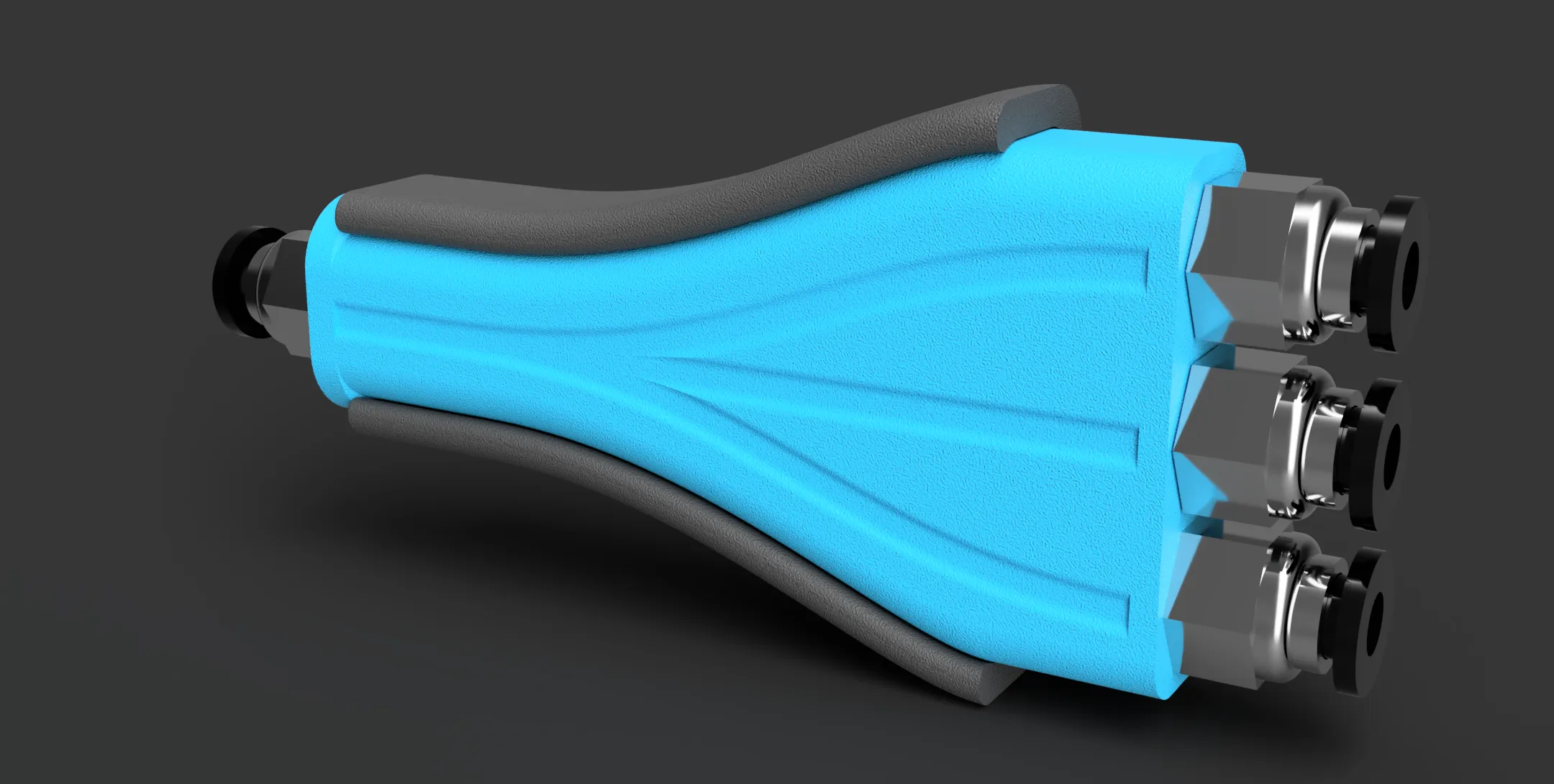

I needed a three way connector for my X1C when using the AMS, an external spoolholder and a Filament drybox. This is the design I came up with.

For external parts you need 4x PC4m10 bowden tube connector.

Make sure you have the connectors where you can put the ptfe all the way through the hole.

The PTFE has to be inserted all the way into the model, otherwise the filament can jam!

The AMS should be connected to the middle connector for less filament resistance and more reliability on automatic filament changes.

If you want to screw mount the splitter to the printer, you can print the mounting bracket optionally.

You have to replace the original M3 screw with a longer 6mm M3.
