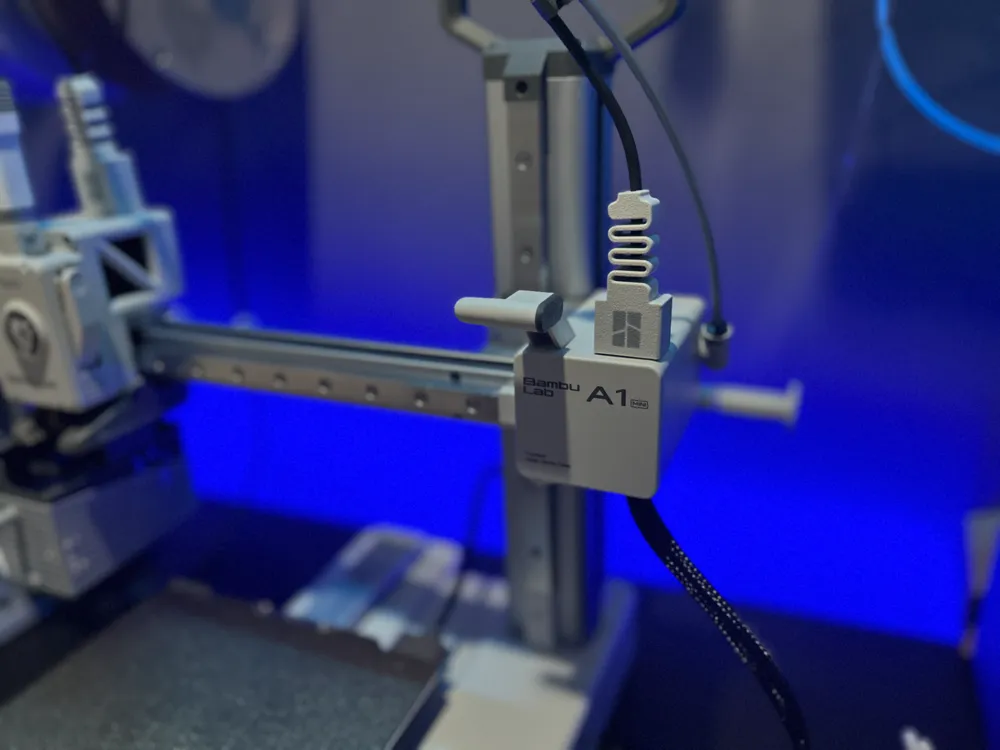

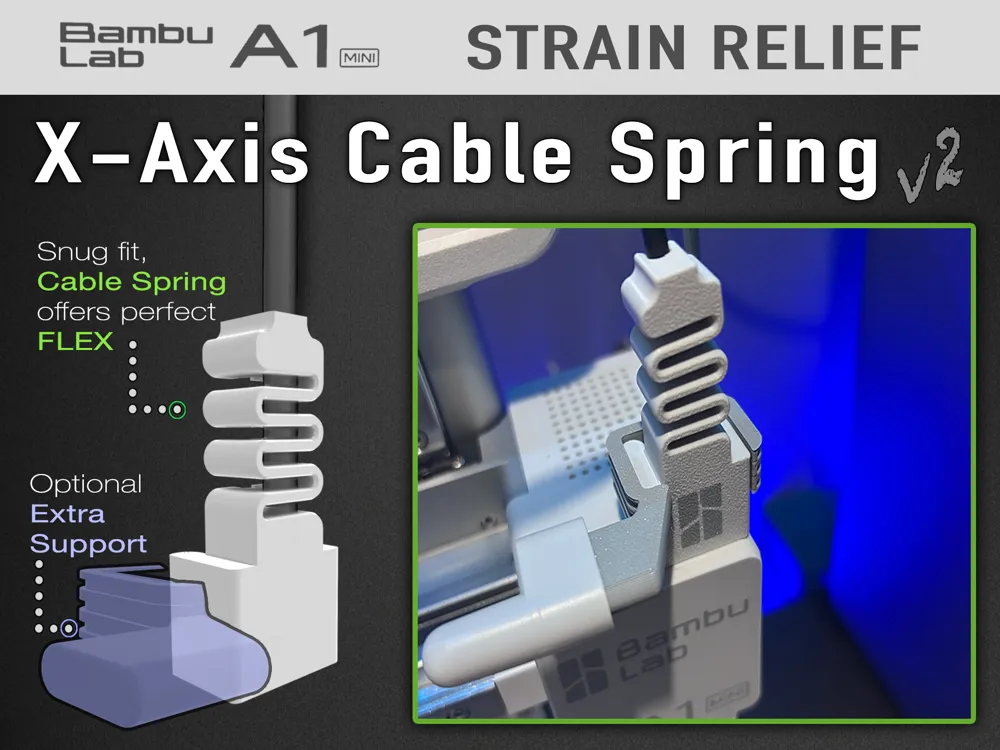

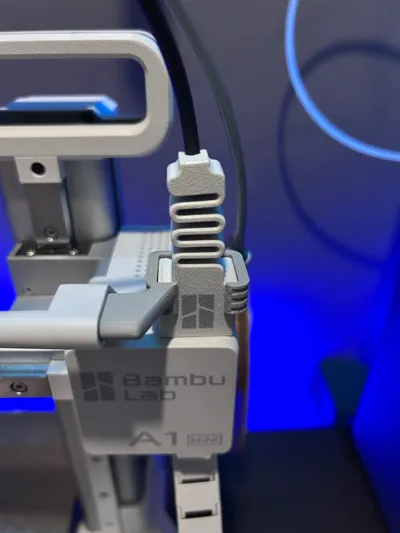

NEW X-Axis Cable Spring - v.2

Flexible guide / Strain Relief for the A1 / A1 mini. It will prevent the cable from sagging and support the connection to reduce wear on the X-Axis cable. Designed this to match my original Extruder Cable Spring below.

Don't forget to Follow!

Thank you so much for your Downloads, Like and BOOSTS!

Print Profile Options:

○ NEW VERSION - A1 & A1 mini Profile has new attachment connection to help support and fit both A1/A1mini.
Two Color option has Bambu Logo
NEW: Added an optional Cable Spring Support for A1 mini ONLY Profile.
TPU Profile - ○ NEW VERSION - A1 & A1 mini also has new attachment connection to help support and fit both A1/A1mini.
NO SUPPORTS required.
FYI: Found the best color match to the A1 chassis color is Bambu PLA Light Grey (Affiliate Link)

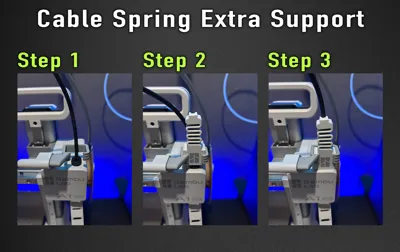

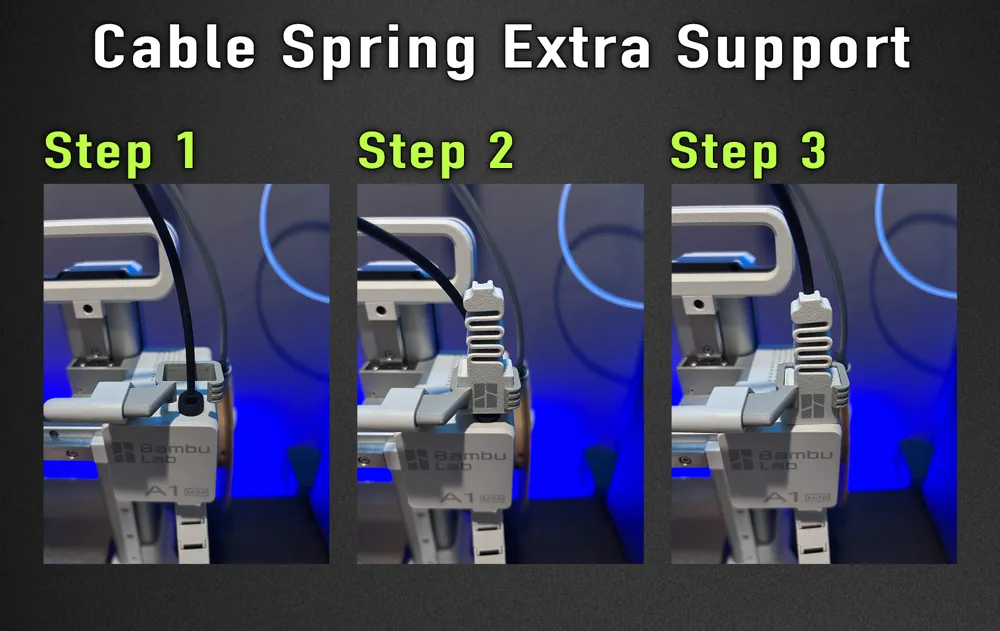

A1 mini ONLY - Extra Support Installation

STEP 1: Install Extra Support bracket into open cavity of the cutter.
STEP 2: Slide Cable Spring straight down into Support bracket.
STEP 3: Press fit the power cable deep into cable spring.
To snug it up even more, hold cable while pushing down on Cable Spring.

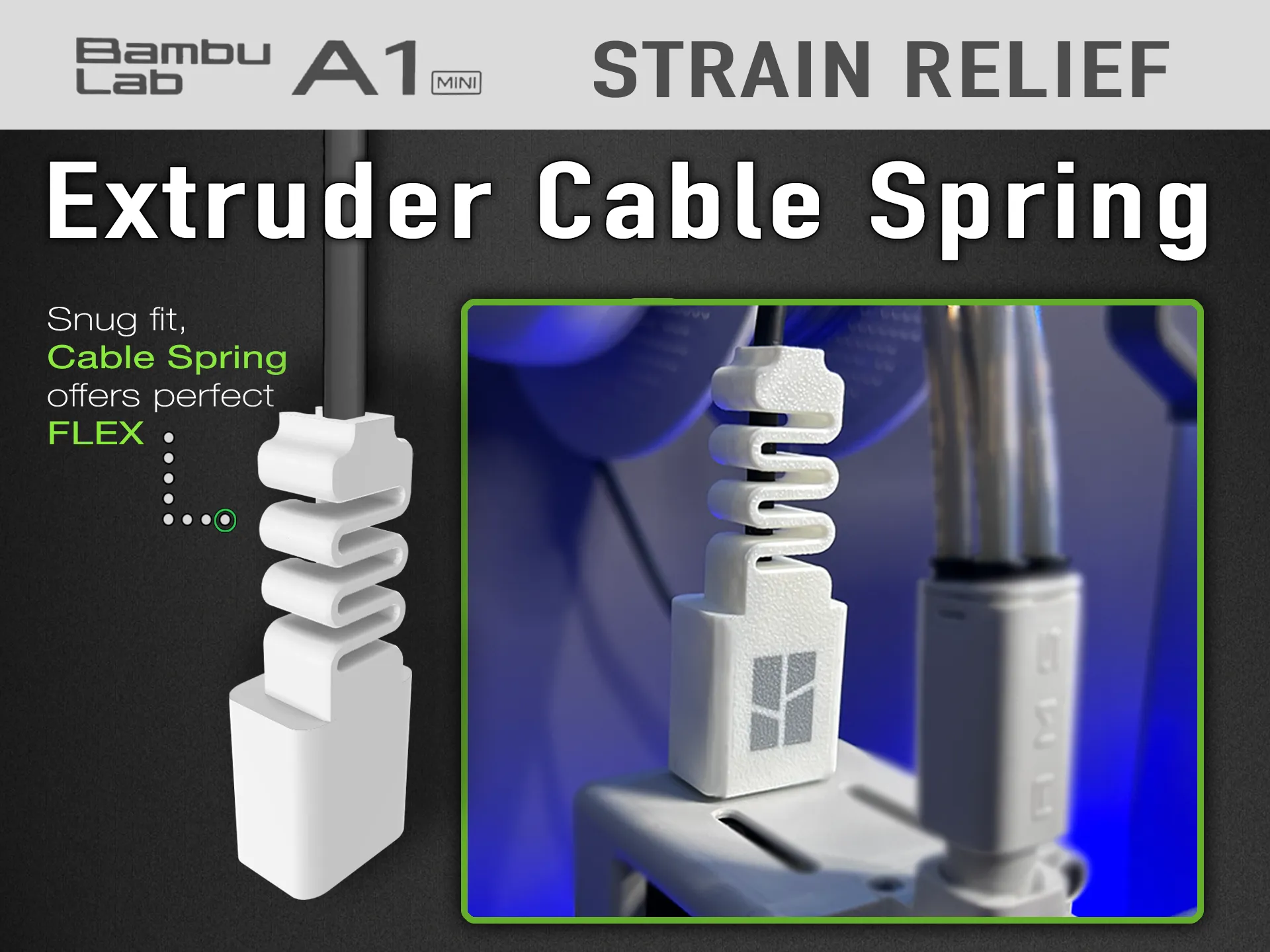

Extruder/Hotend (Left Side) Cable Spring available here:
