Spoolbox

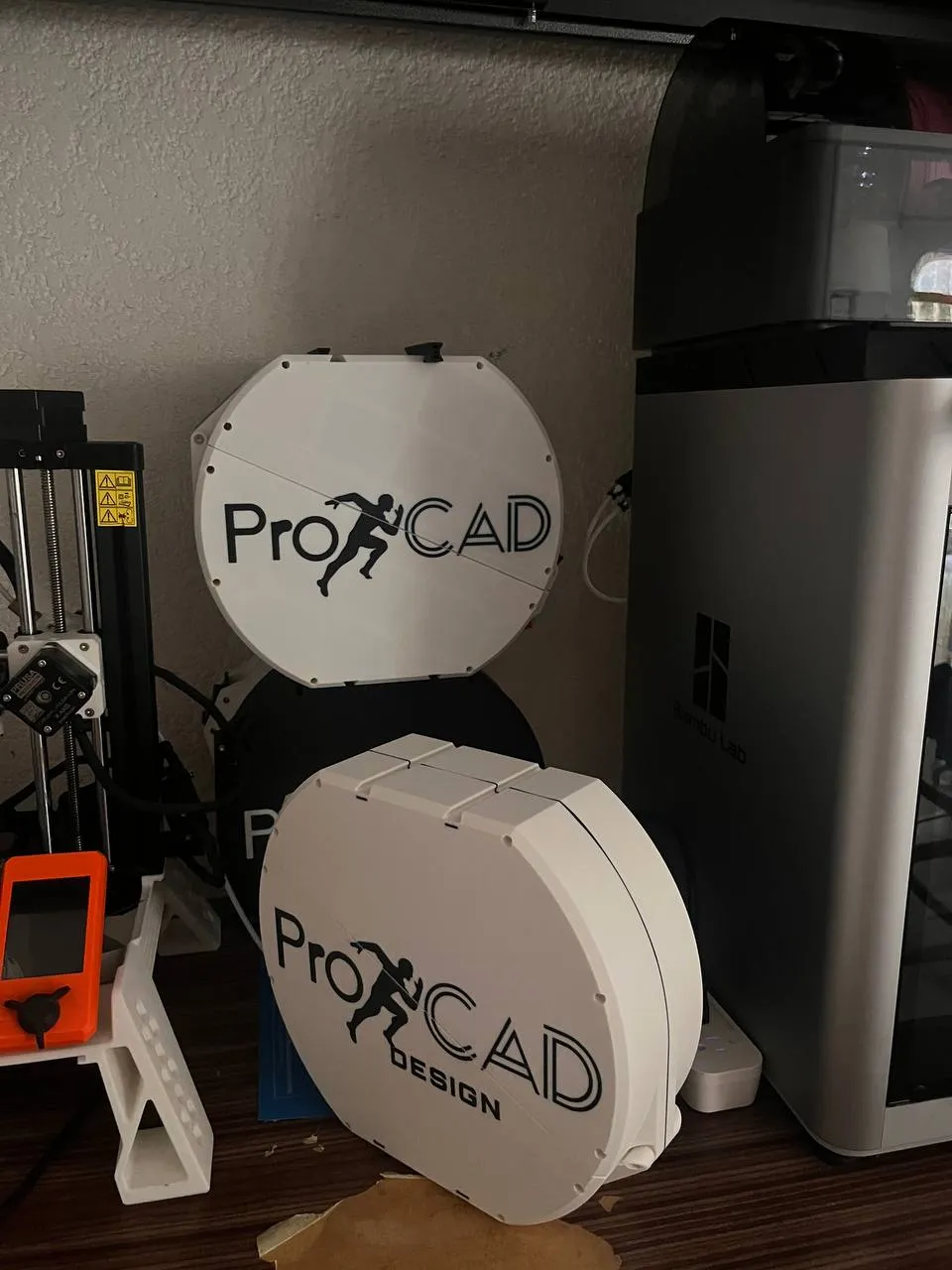

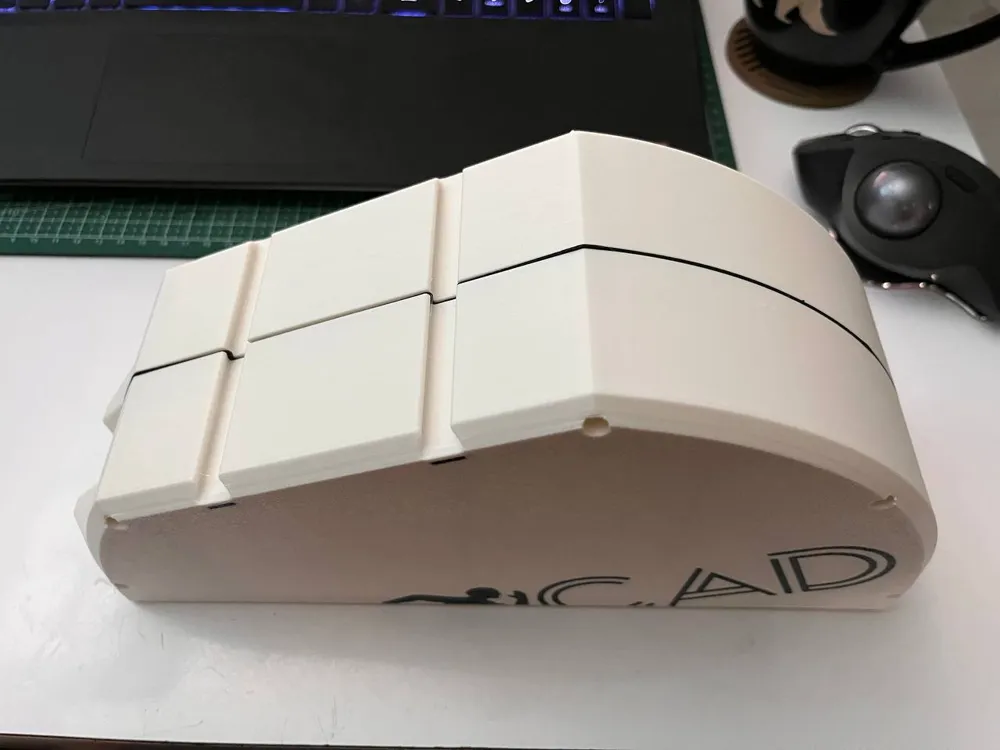

Hi! This is my version of a spool box.

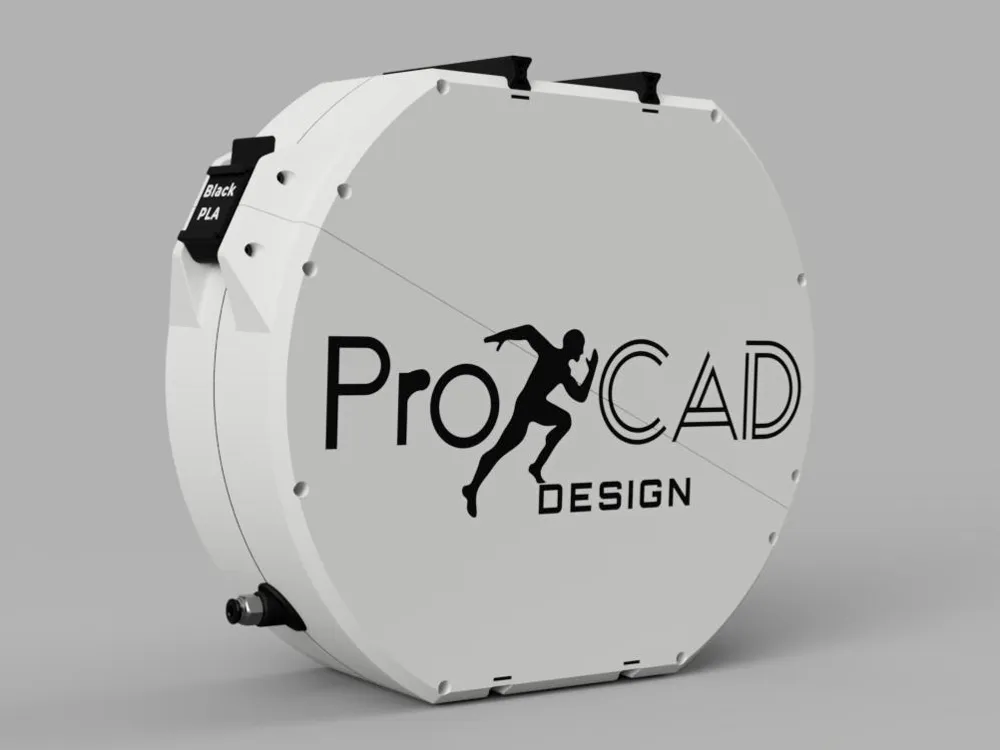

Check the model here: https://a360.co/4gUqgaz

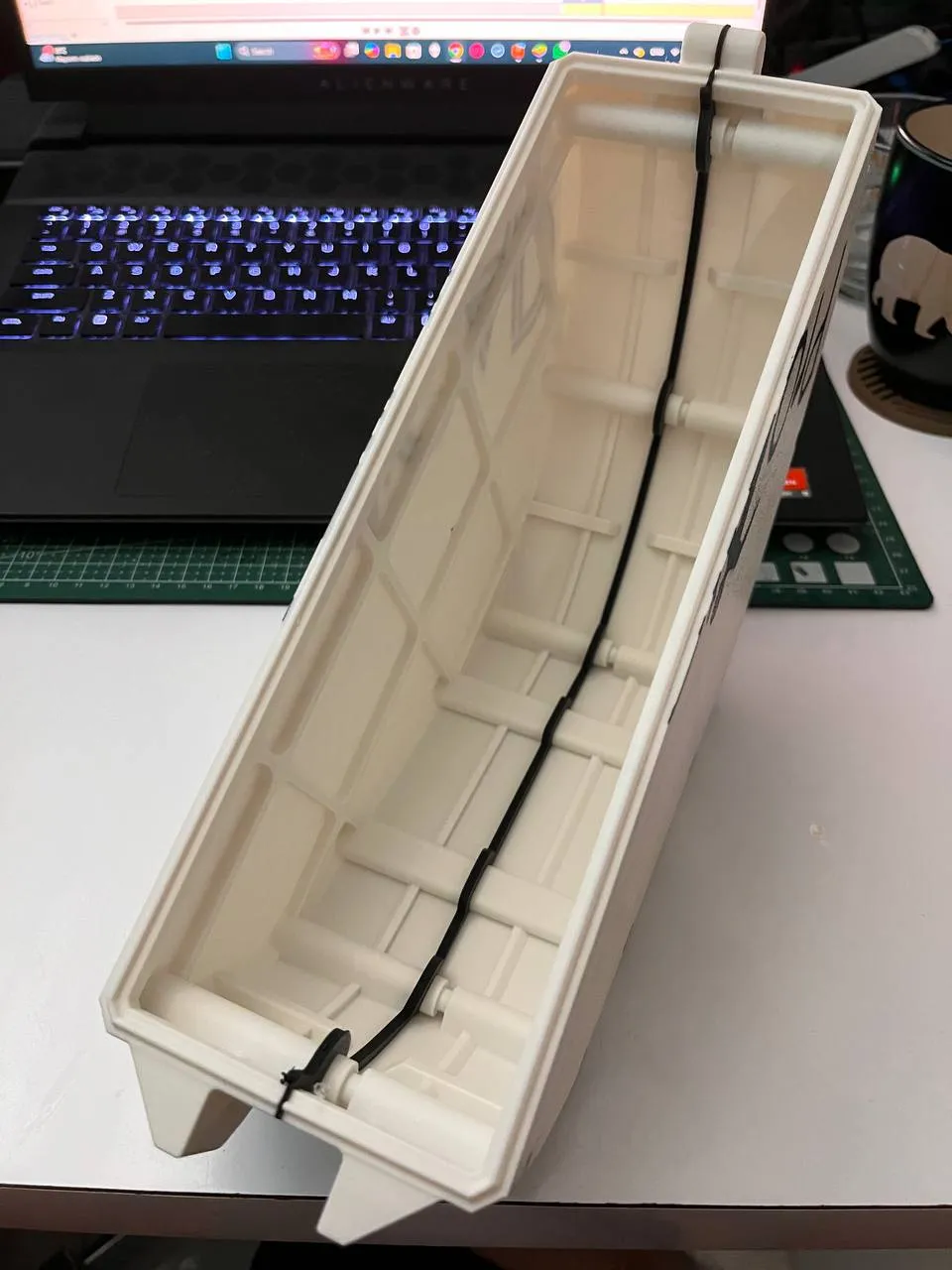

I used colorFabb Varioshore TPU for the seal parts.

BOM:

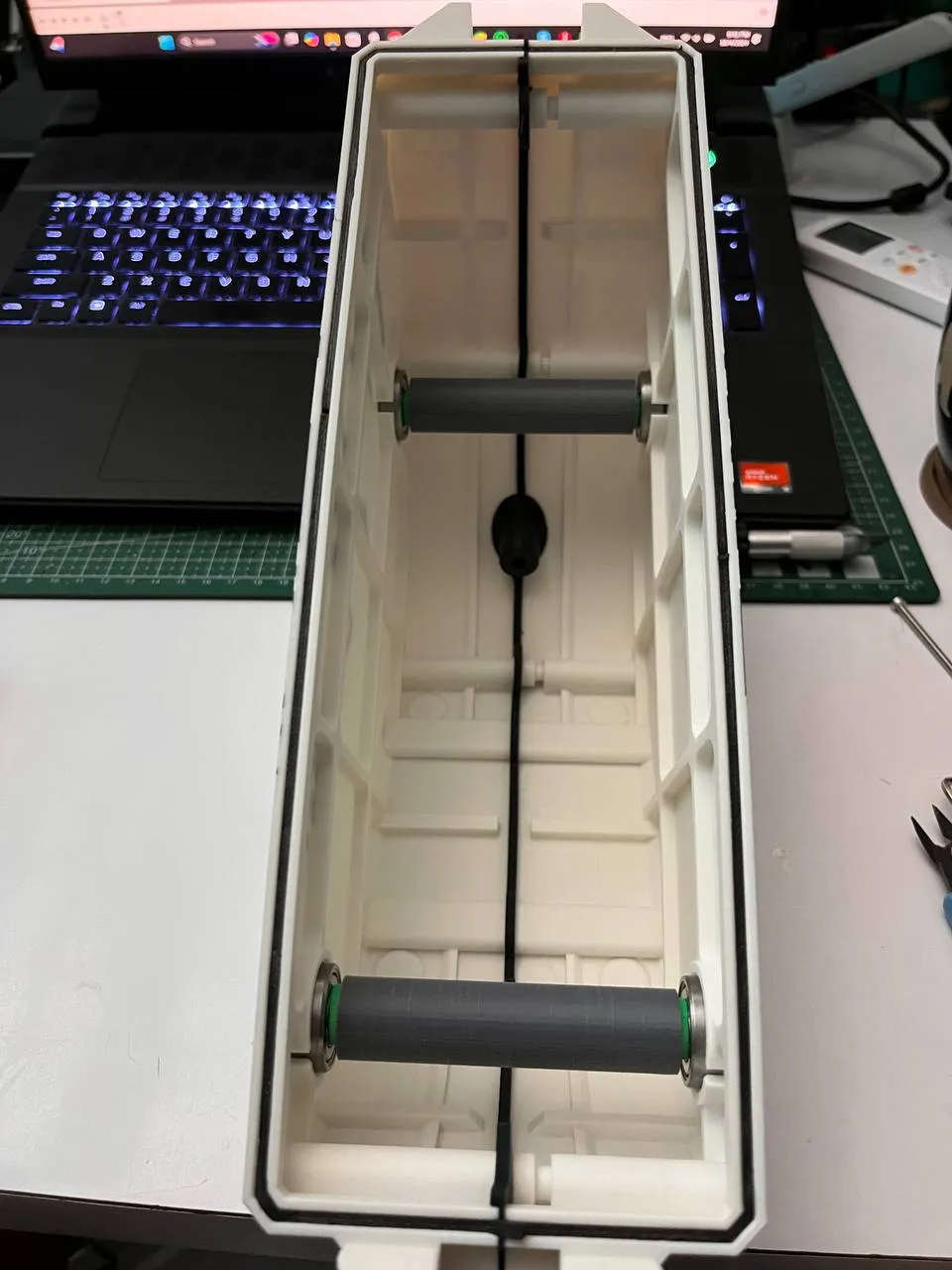

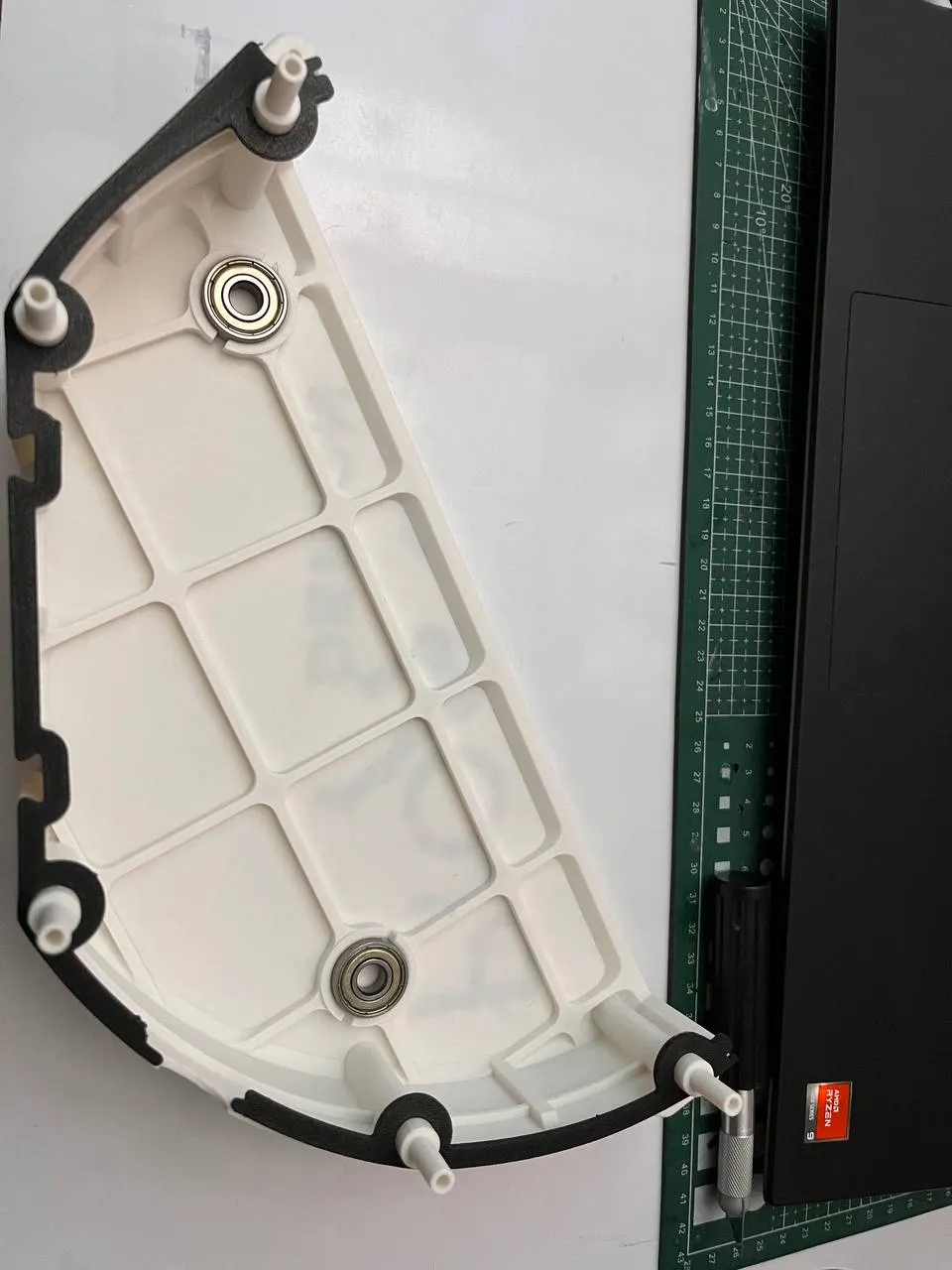

4 x Ball Bearing Shielded, Trade No. 688-2Z, for 8 mm Shaft Diameter
13 x Hex Nut Medium-Strength, Class 8, M3 x 0.5 mm Thread
2 x Socket Head Screw M3 x 0.5 mm Thread, 40 mm Long
10 x Socket Head Screw Black-Oxide, M3 x 0.5 mm Thread, 50 mm Long
1 x Socket Head Screw Black-Oxide, M3 x 0.5 mm Thread, 30 mm Long
1 x M10 Pneumatic Fitting
4 x 10 mm x 3 mm Round Silicone Anti slip shock pads

Assembly instructions:

I'll keep improving it and uploading other versions.
