Circular Embedded Electronic Digital Thermometer Hygrometer

Description

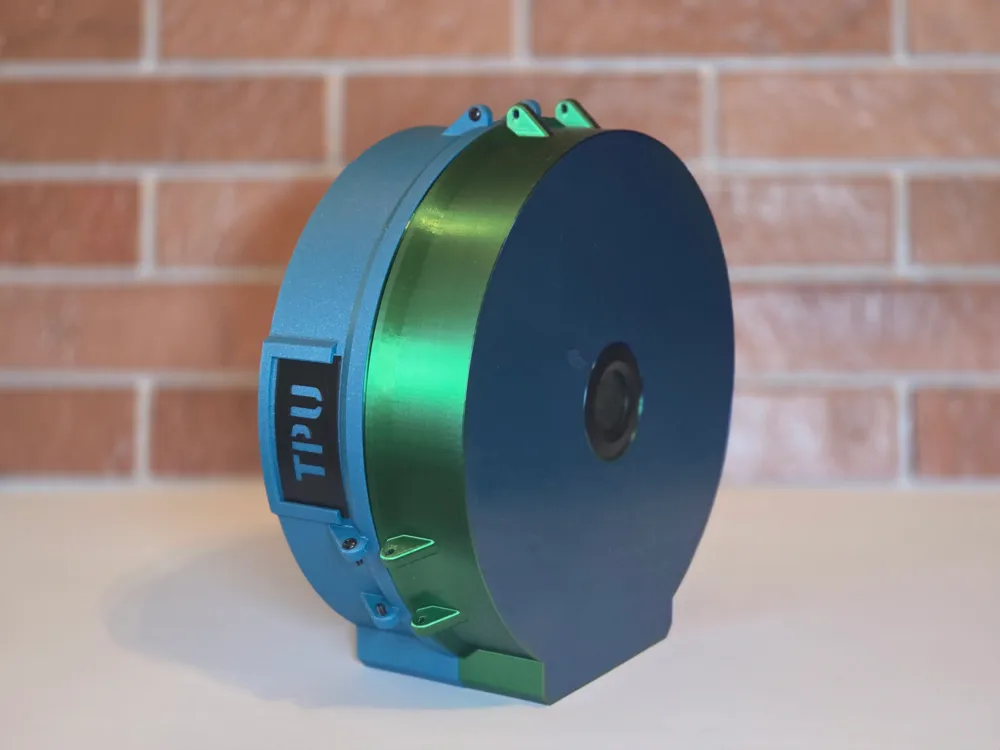

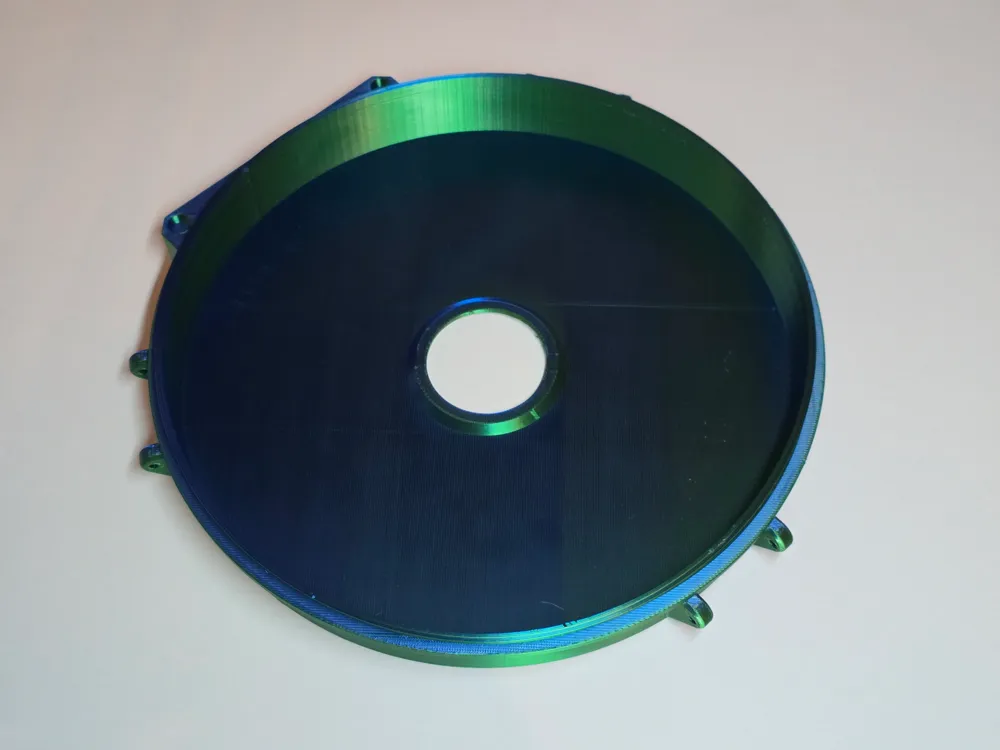

New version 2 with hole for Hygrometer. Added hole in top lid for round Hygrometer, it sits in flush so you can stack filament boxes on each other or close together. If you want to upgrade from first version, print just top lid for 85mm spools or top lid for 75mm spools and new desicant cap, all others parts are the same.

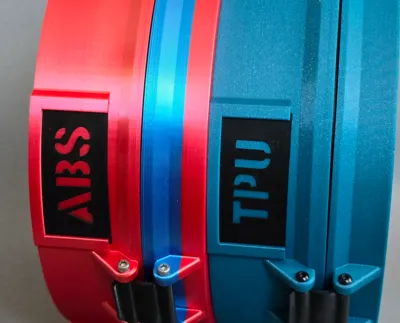

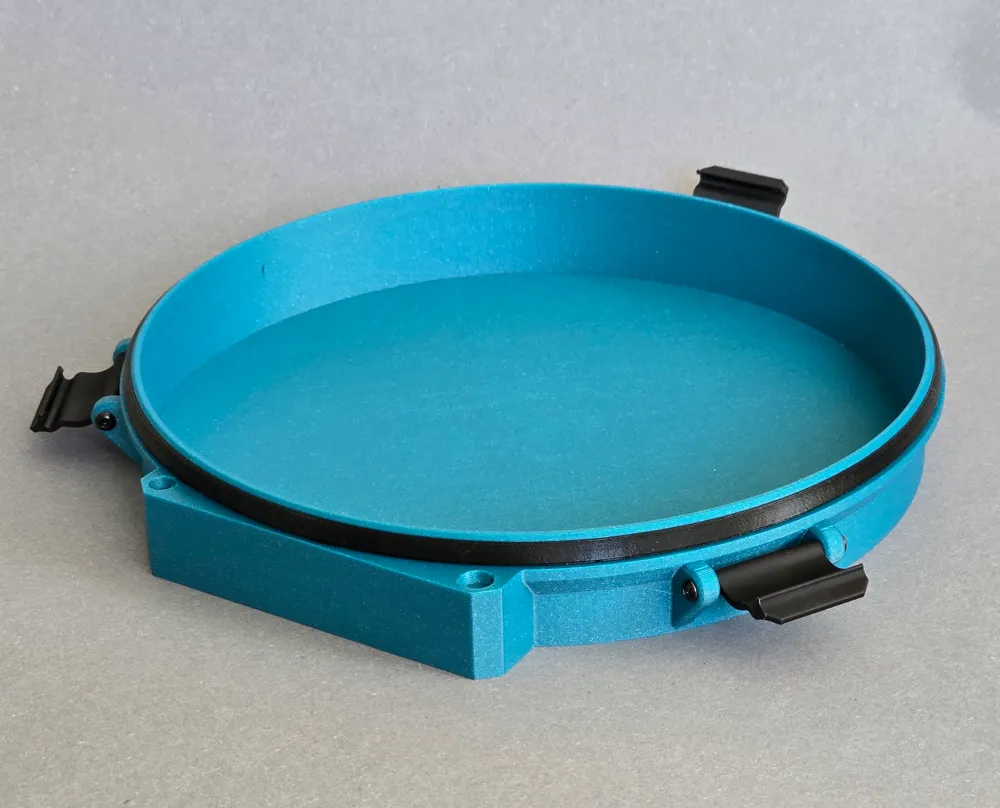

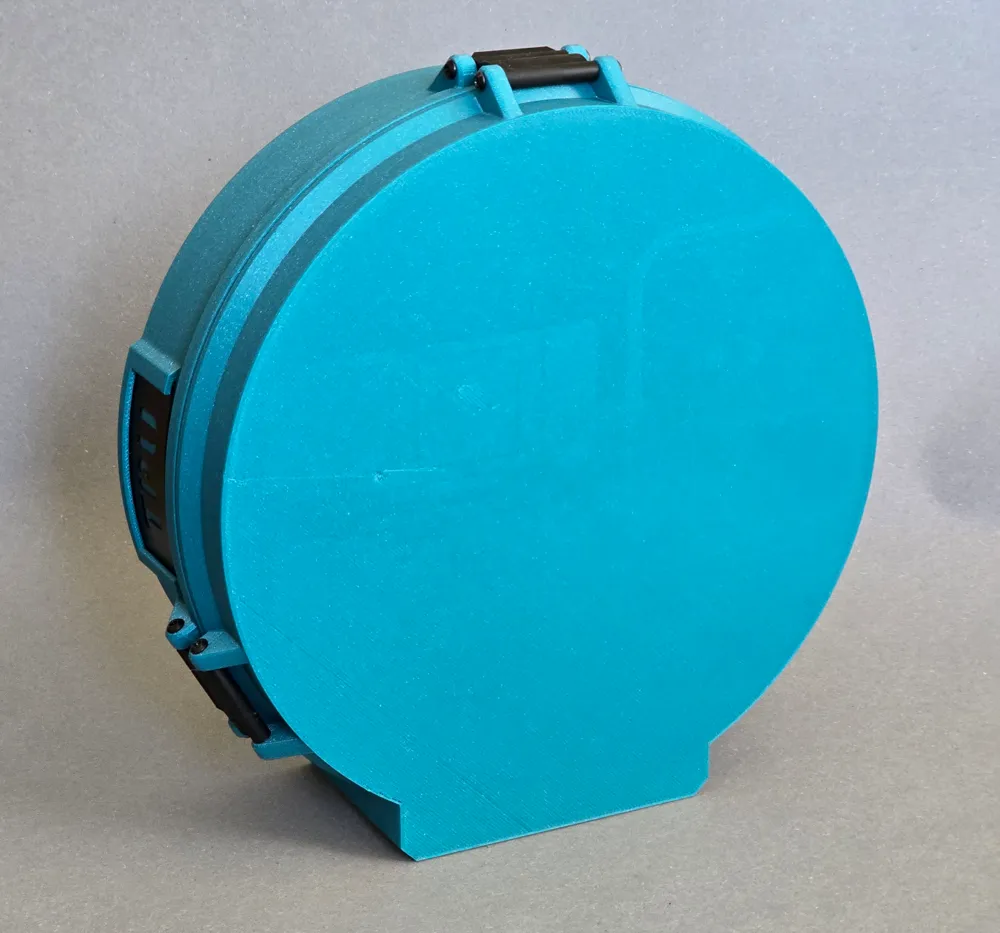

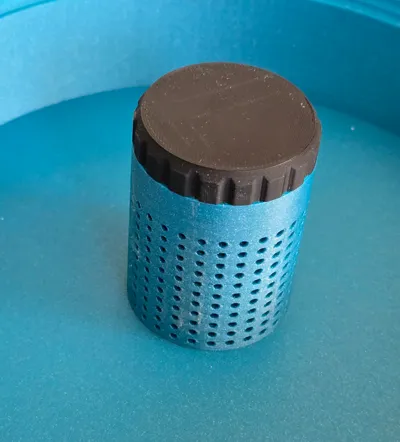

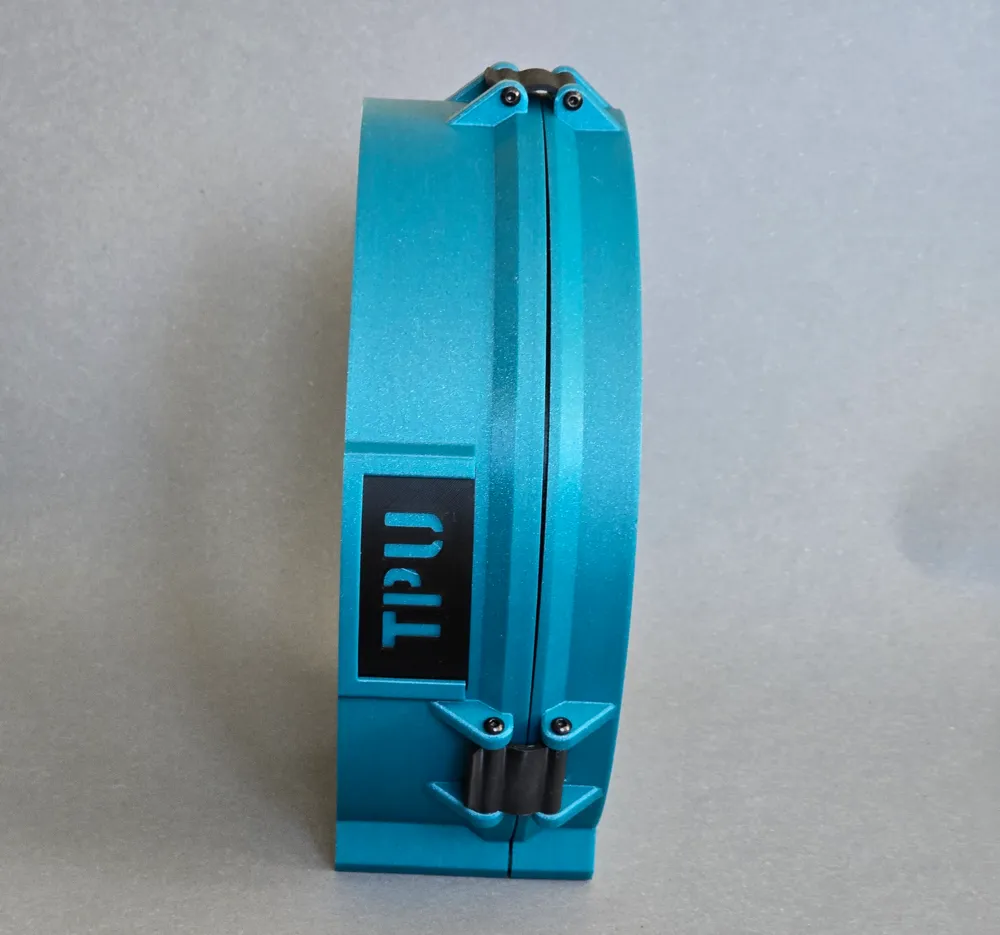

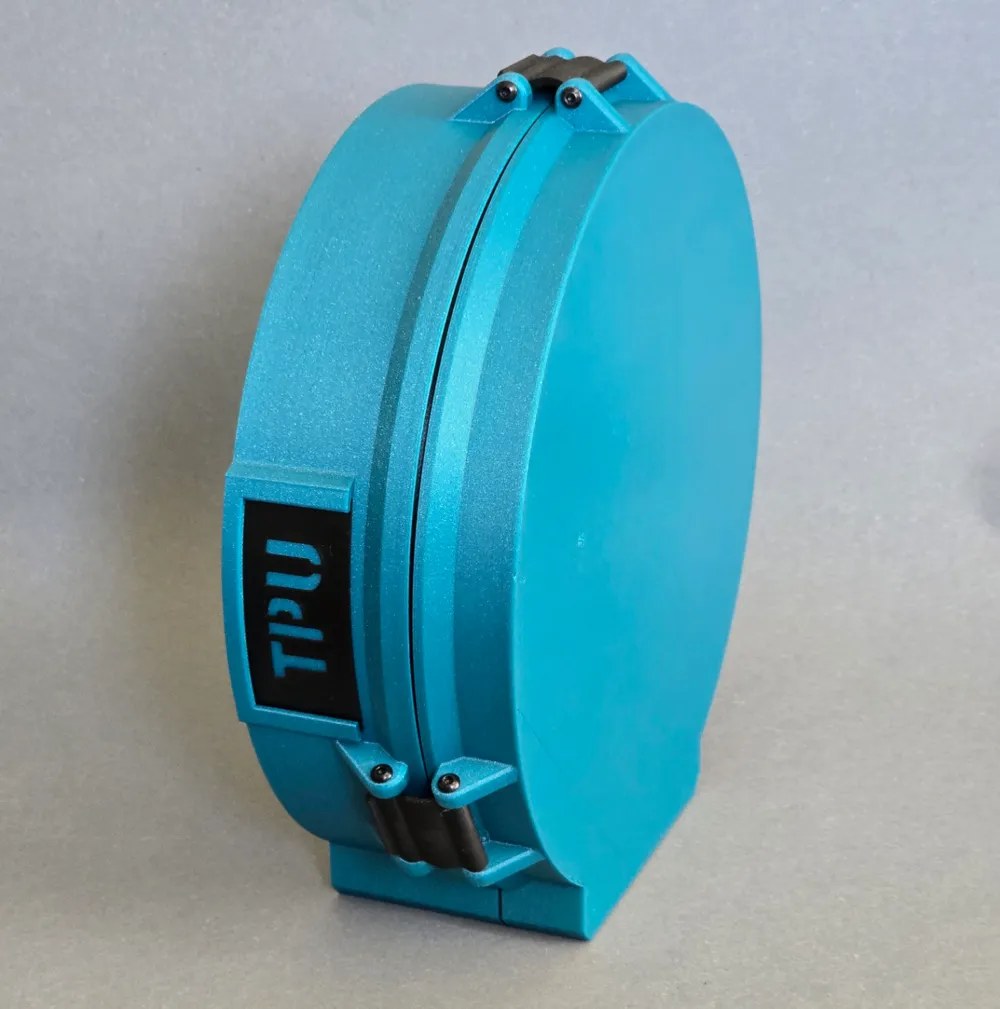

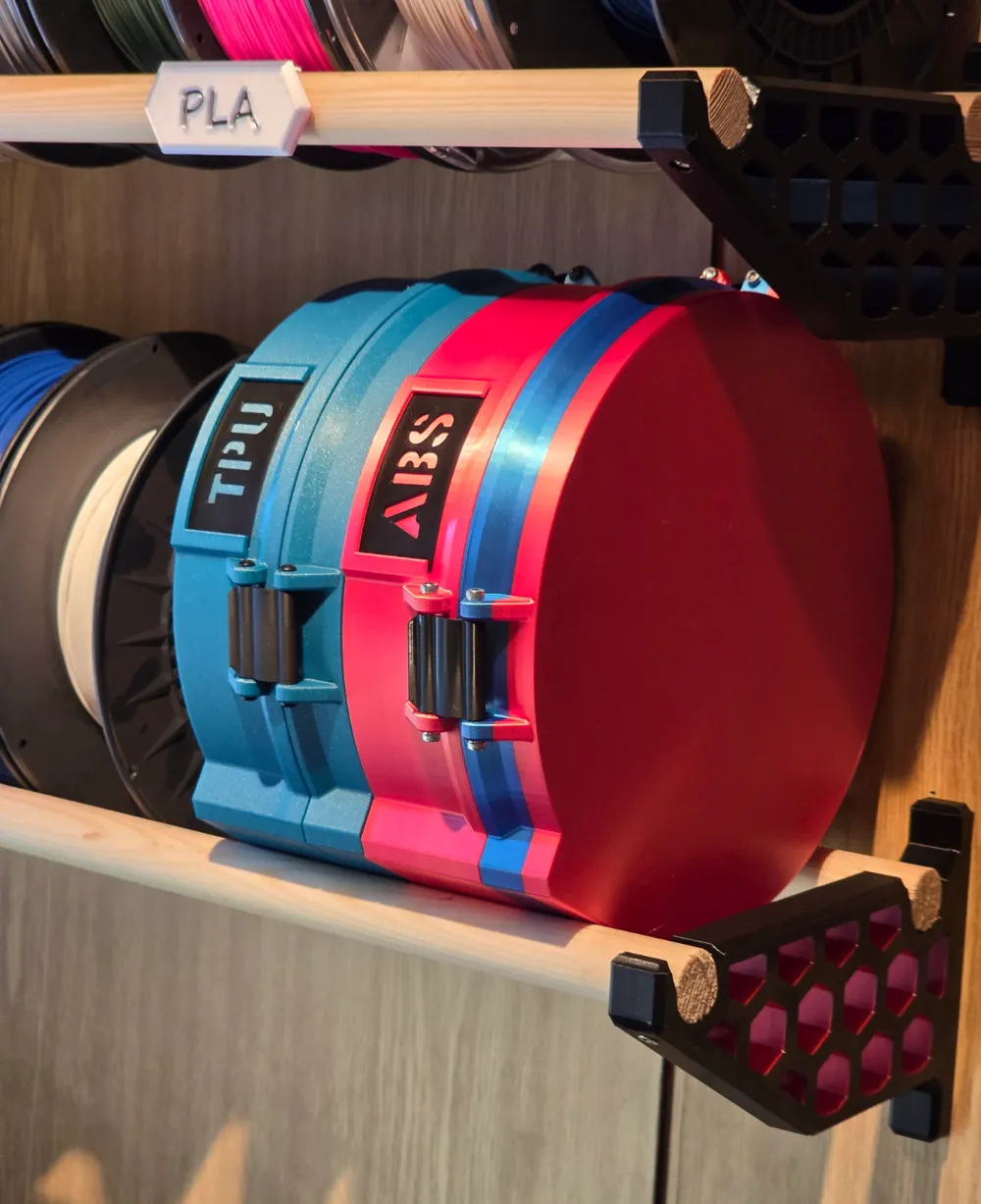

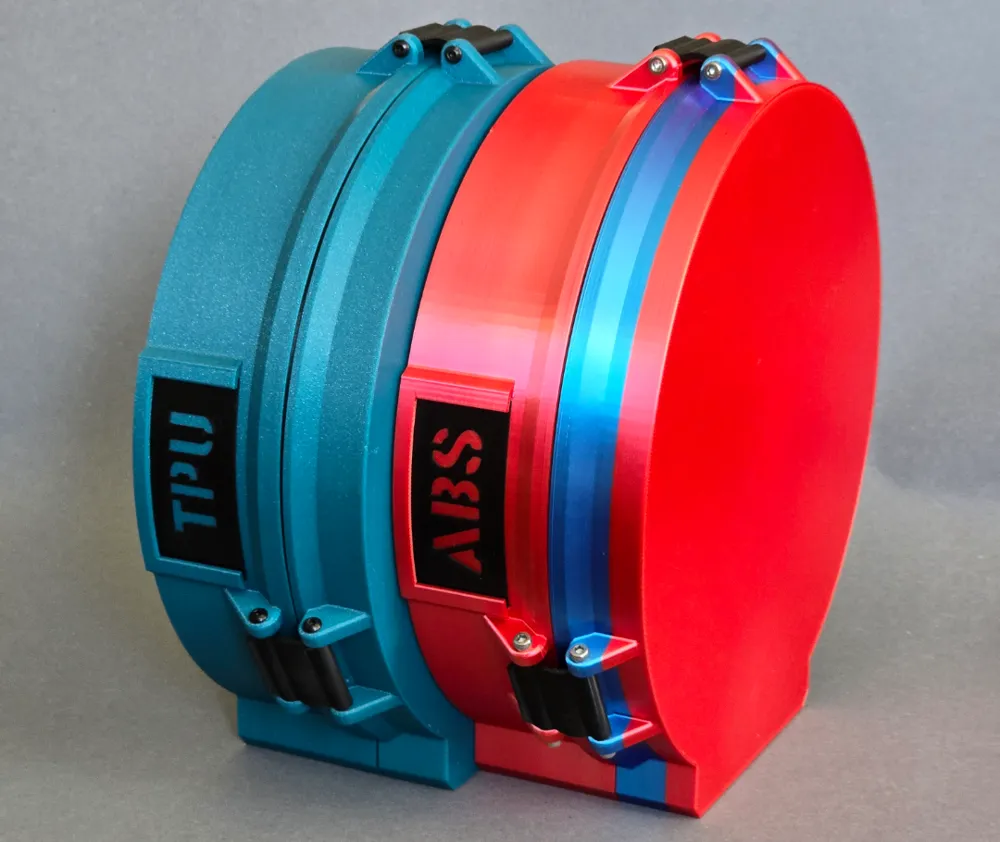

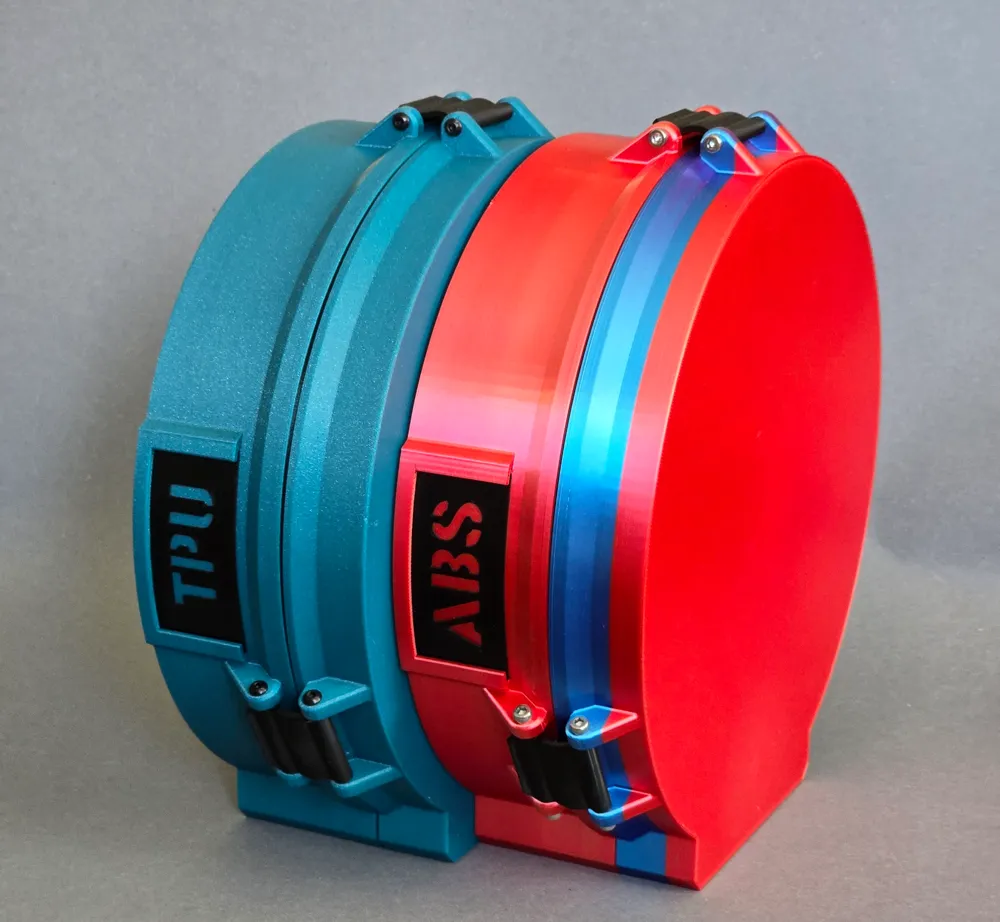

Spool box to keep your filament dry, made with flat bottom so it can stand on its own on your desk. Added desicant compartment. Need 6pcs M3x40mm screws or 12pcs some short ones. Rubber seal printed with TPU. Tags are printed in 62x30mm dimension, and you can find them here: https://makerworld.com/en/models/565708#profileId-485361

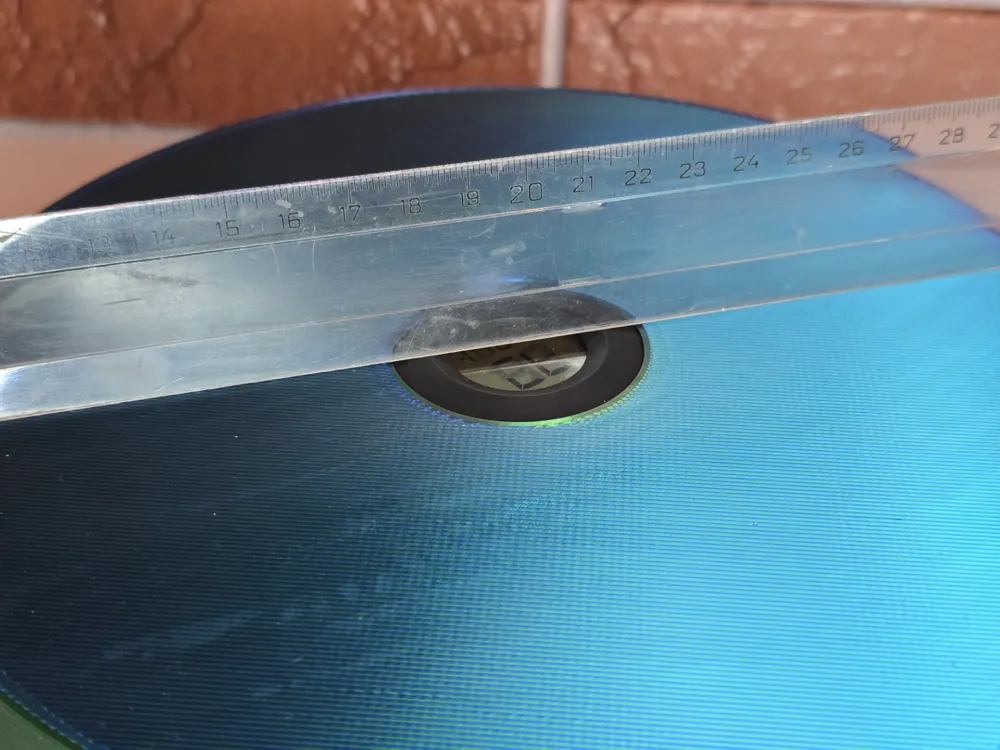

Max dimensions for spool: 210x71mm with minimum 50mm hole.

Added another lid for spools to max width 85mm.
