Stackable Tooli Marker Pen Holder

V2 version now available Click Here!

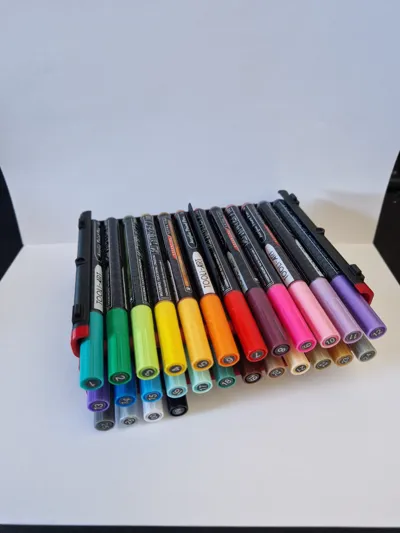

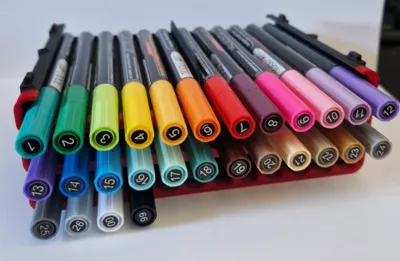

My girlfriend wanted a solution for her Tooli art markers. She wanted a way to have them organised and expandable per desire.
The overal shape was her idea, I put in the work of designing it to be functional, sturdy, yet using as little filament as I can possibly manage with my limited experience (about 55grams per tray).

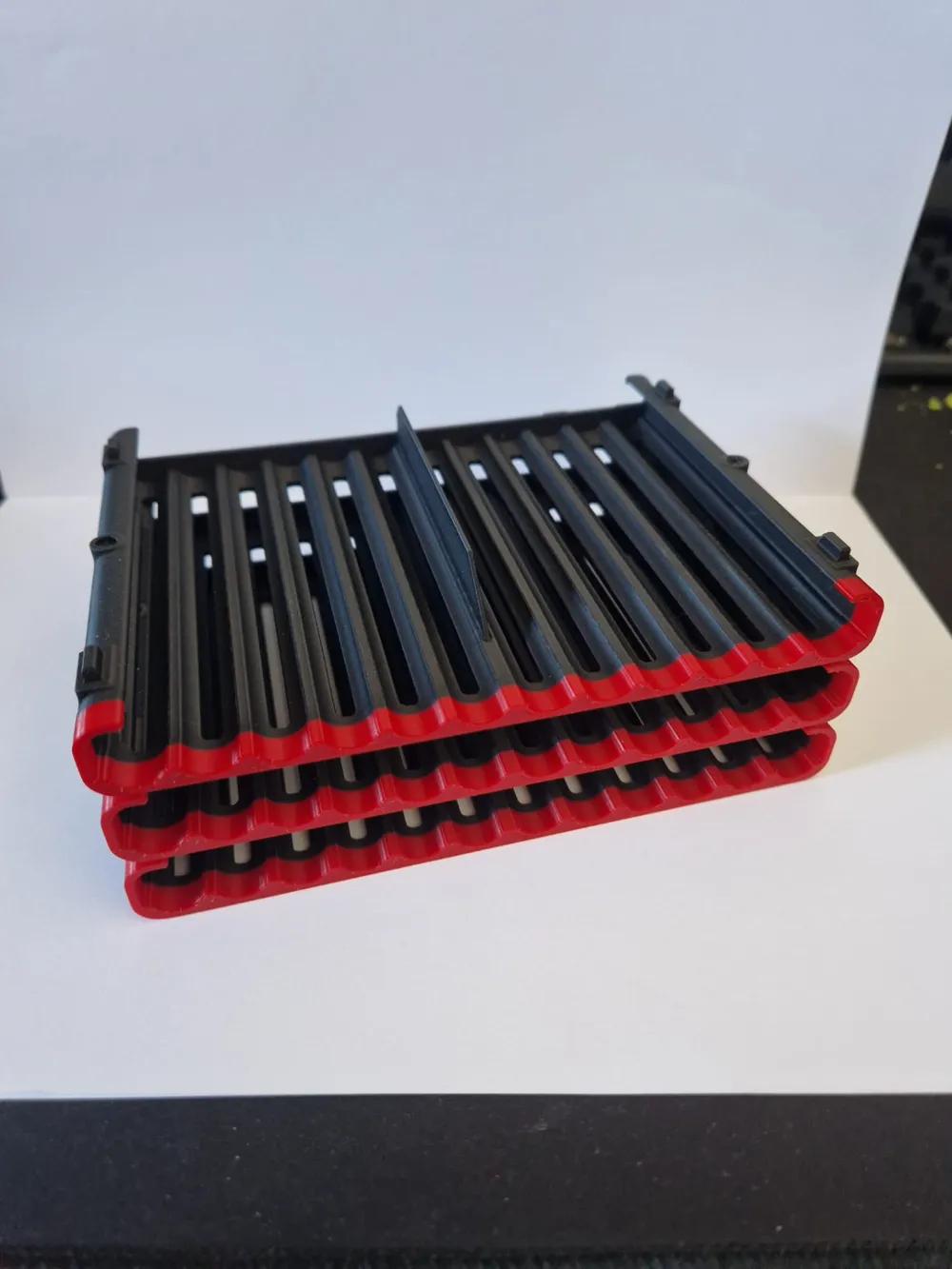

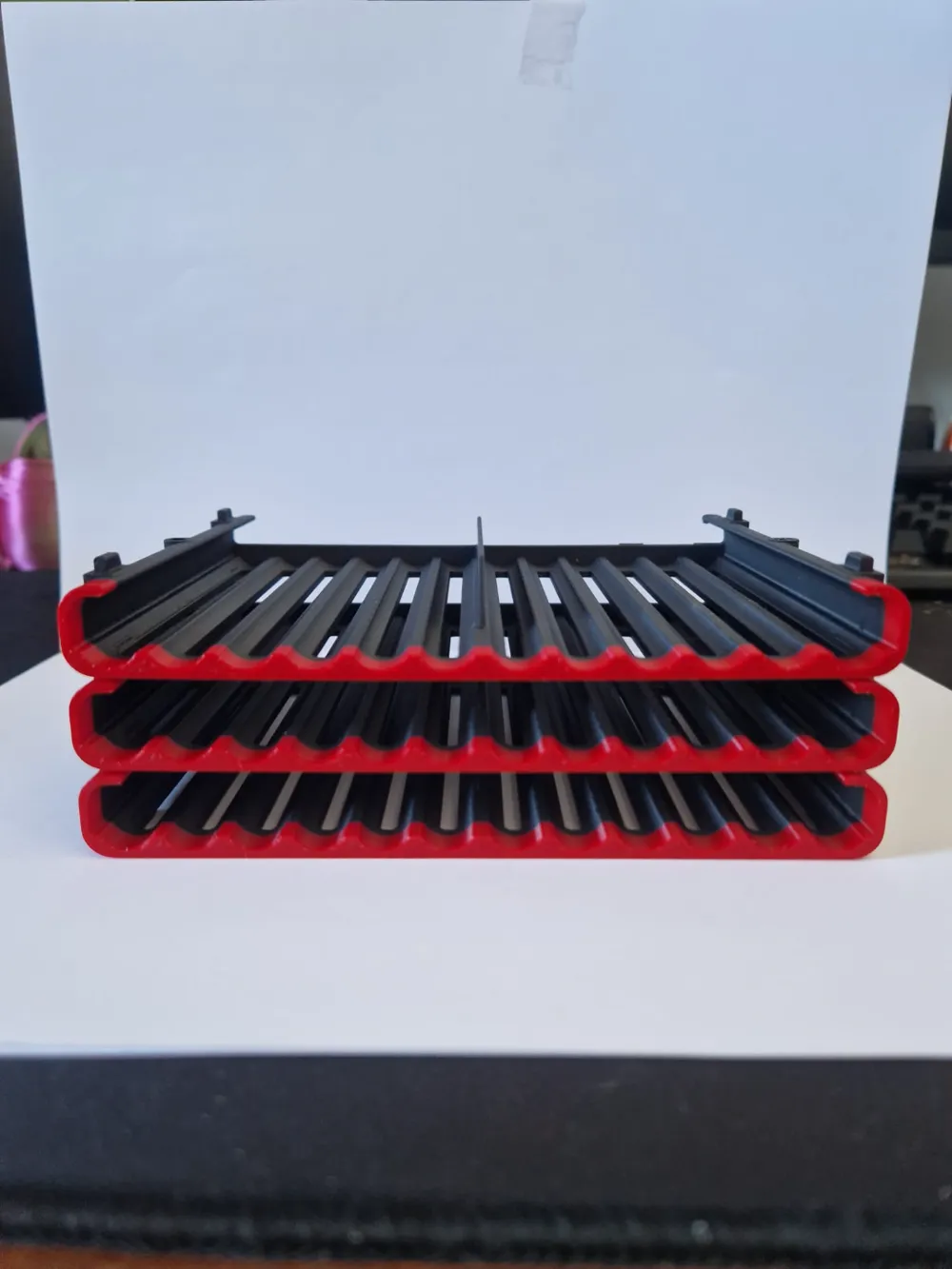

She also wanted a way to recognise the color set of markers (for example a set called Wildflowers), so I printed it with a band of a certain color that represents that color set. I did it by coloring it from a layer height of 108mm to the top.

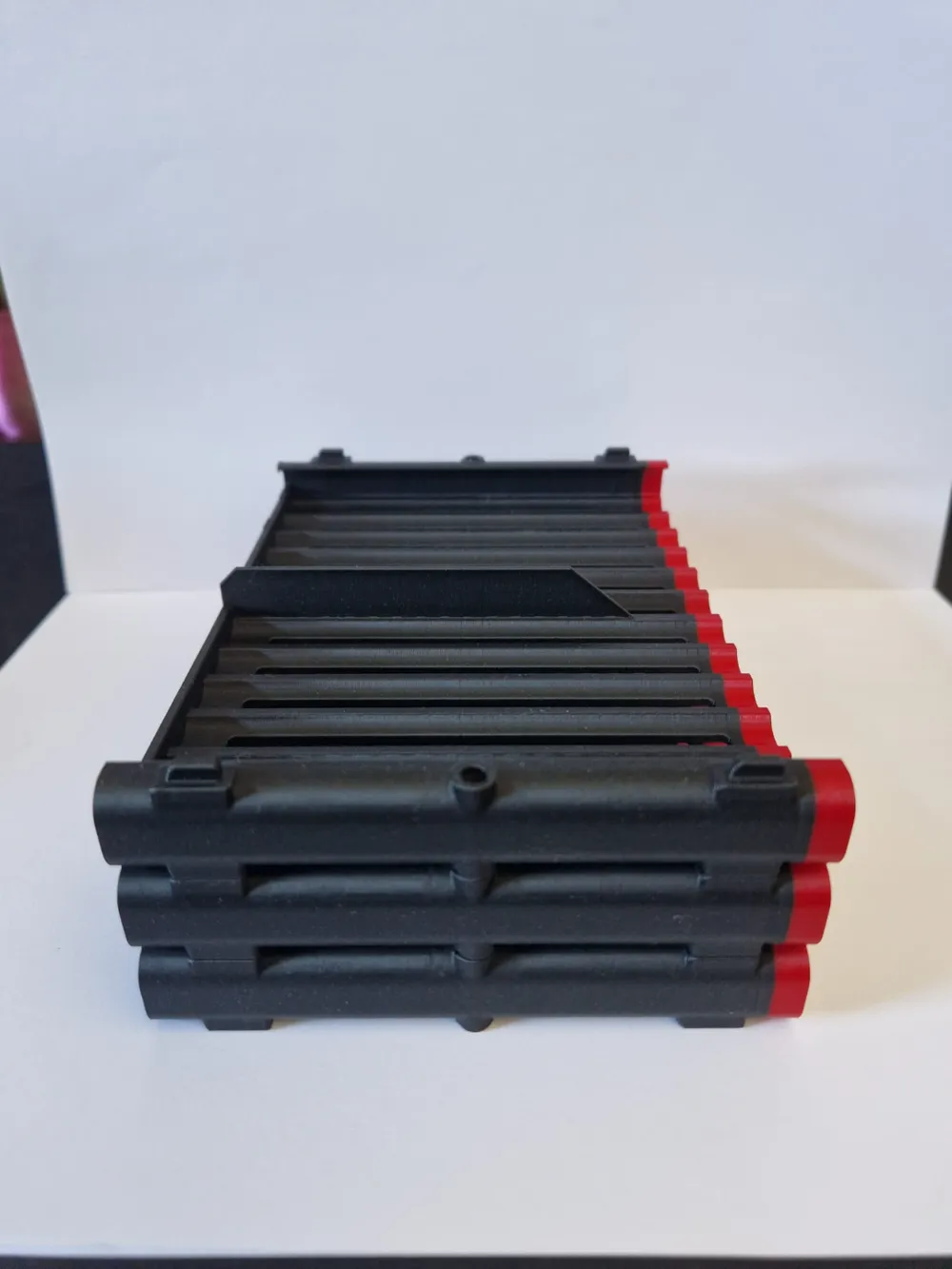

The middle “studs” have been made to house a magnet of 4mm x 1,5 mm if you would like some extra secure stacking though if you don't move it around much or take care when you take out a pen it's probably noy needed.

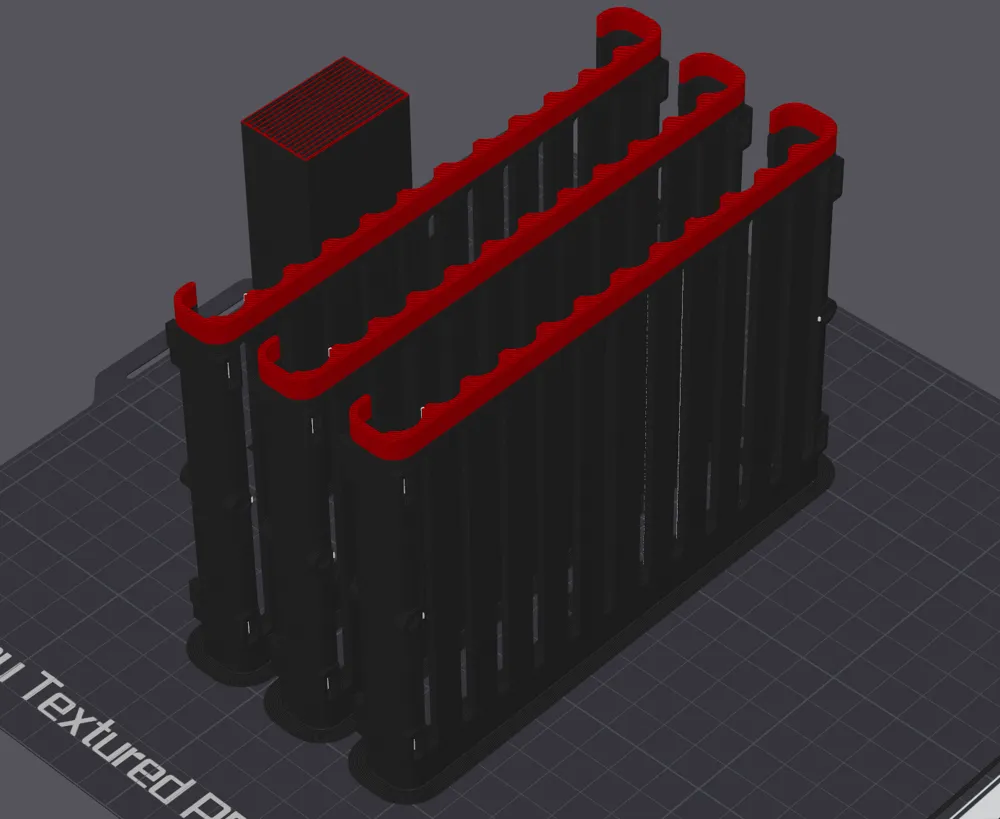

Print it on the backside standing up.

!!!! I made these specifically for the Tooli-ART Acrylic Paint Pens 0.7 mm extra fine tip !!!!

Though its probably possible other pens with a diameter of 11mm or LESS will work. The Tooli Art Pens are 132mm long but part of the tray where they lay in are 112mm.

I printed with other filament than bambu's. I'd reccomed to not set the speed too high. It IS printable without support for me on my P1S.

I also added a slanted base plate and a top lid as uploads on here. See my uploads:

Slanted base plate/foot: https://makerworld.com/en/models/677163#profileId-605318

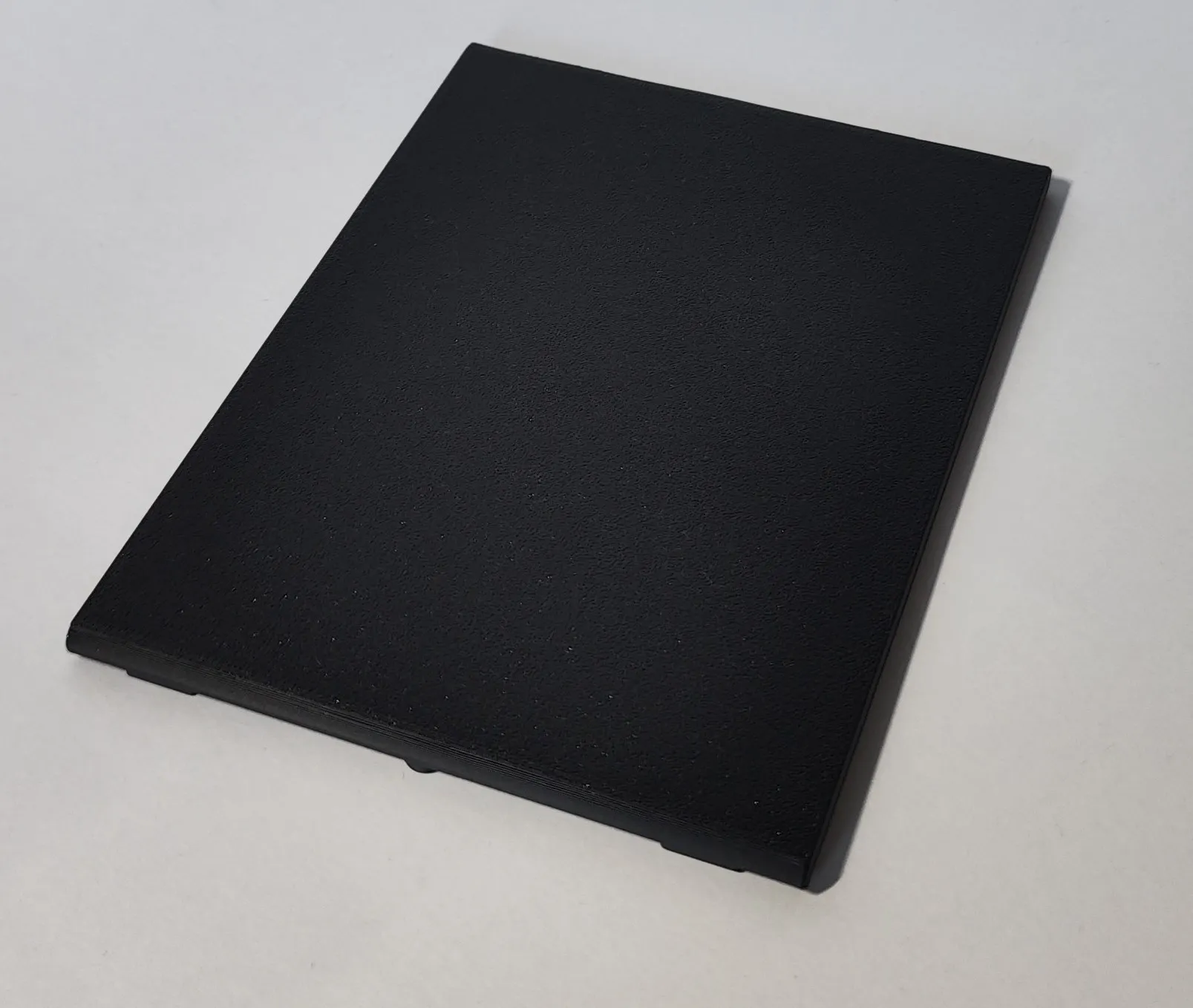

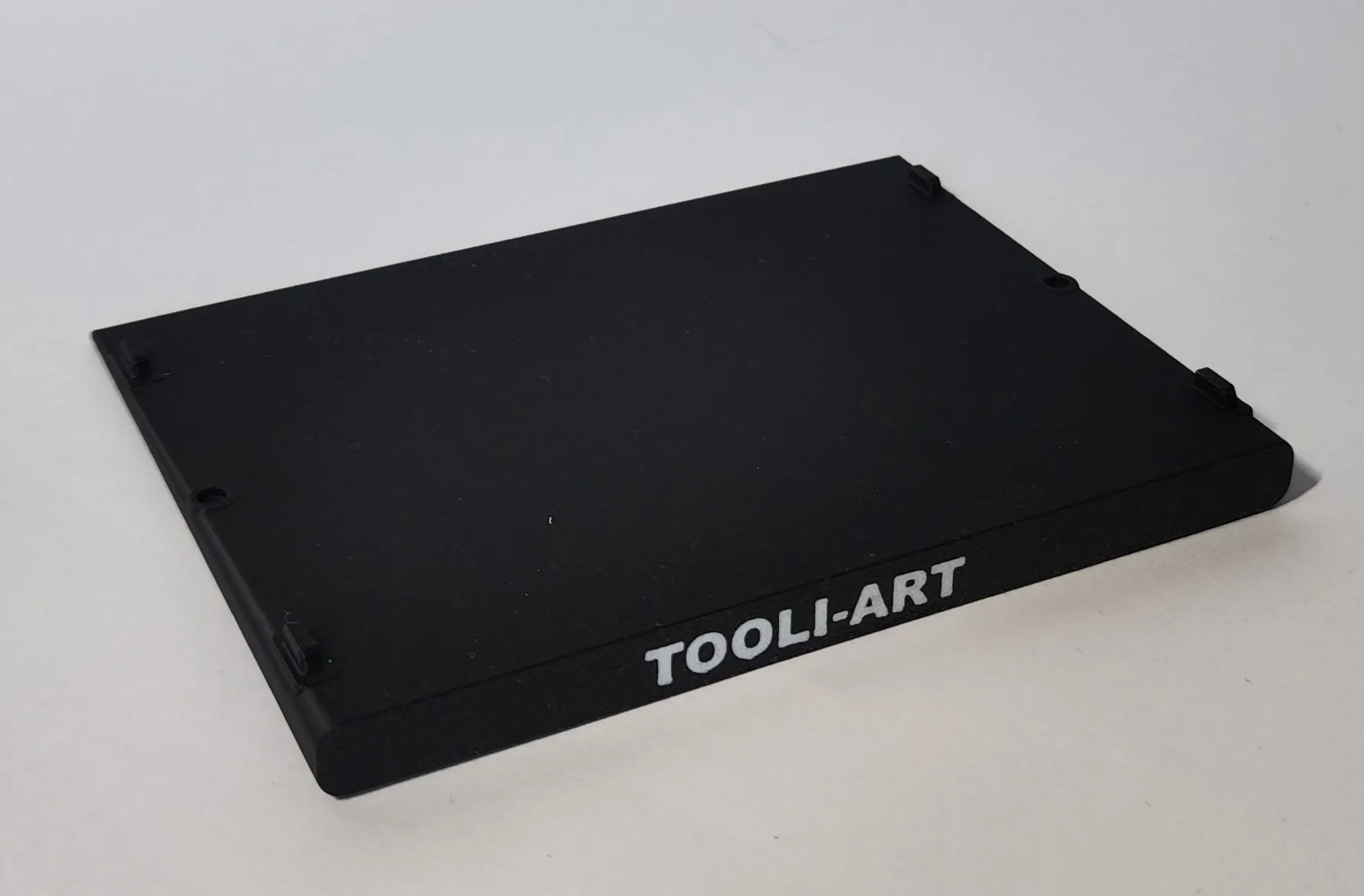

Top Lid: https://makerworld.com/en/models/677173#profileId-605329

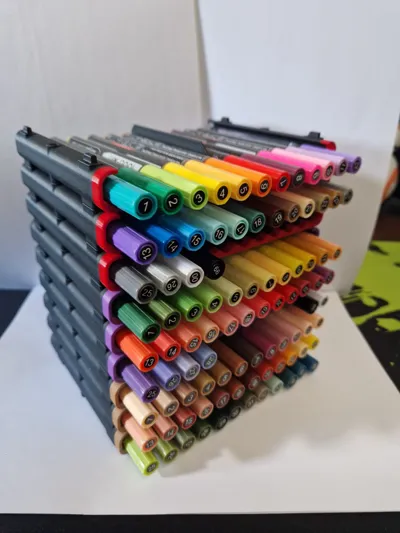

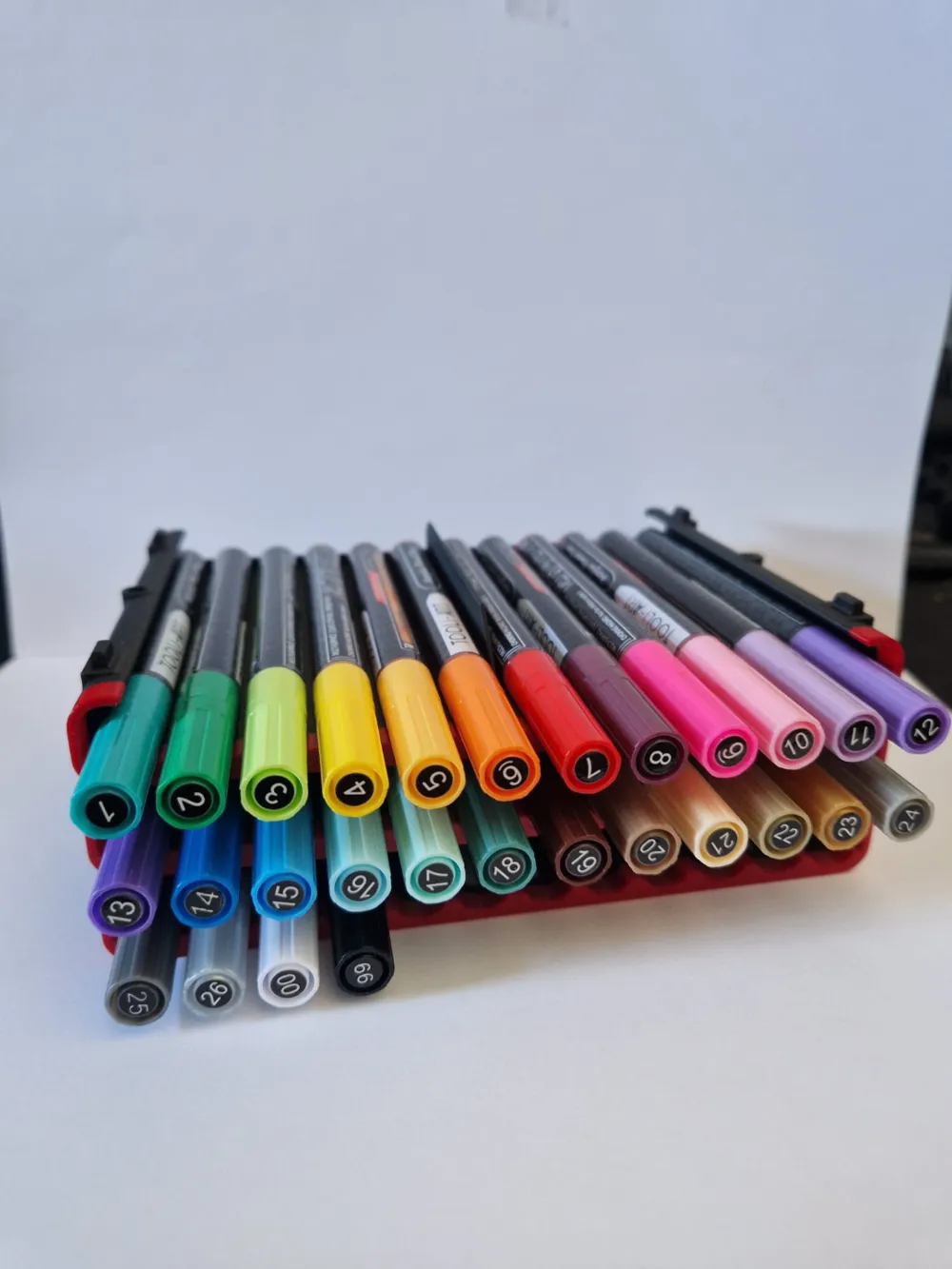

A complete stack looks like this:
