This is a mini self watering planter with a water indicator.

size (90mm x 72.94mm x 88.44mm)

how to set it up
Step 1: get some Styrofoam (i found out that styrofoam is the best type of material for a floaty.)

Cut the styrofoam by at least (12mm x 12mm x 40mm)




Note: the safe height limit is probably around 55mm but the thickness should be around 12mm

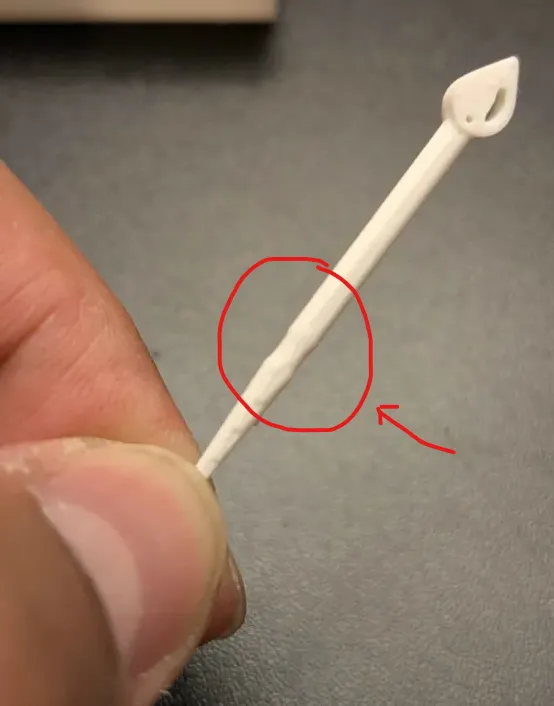

Step 2: insert the part with a water droplet to the indicator container then stab the styrofoam with it. there's a slight indentation to how far the indicator should go

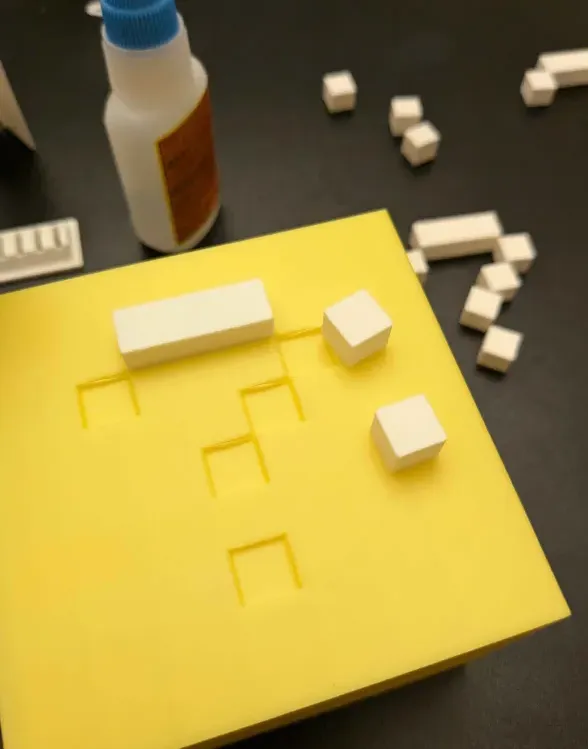

Step 3: Puzzle time!! assemble all the “?” parts to the outside container. most parts will be a snug fit but some parts might not fit because of the dropping (see below) ⬇️

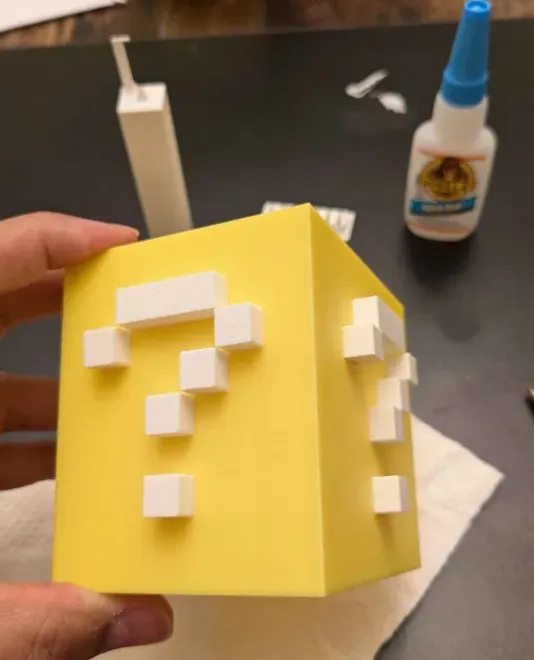

so what I did was sand them. if you don't have a small sander that can fit that, just turn the cube to the side and it should fit, but it's going to be loose so put some super glue.

For the most part, the cube should be a snug fit because of the X-Y Compensation settings

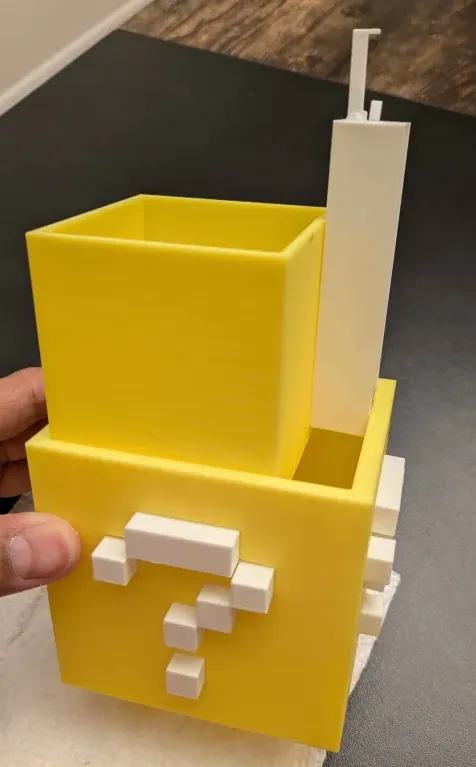

Step 4: just place the cachepot and the indicator inside the case

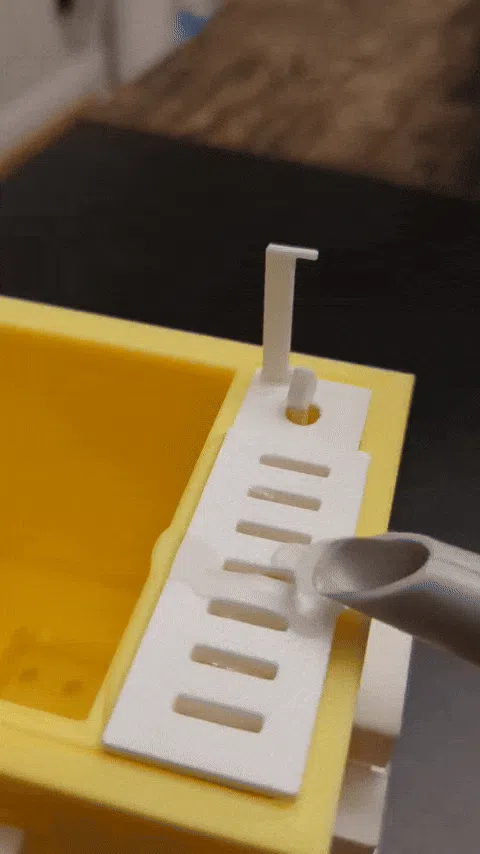

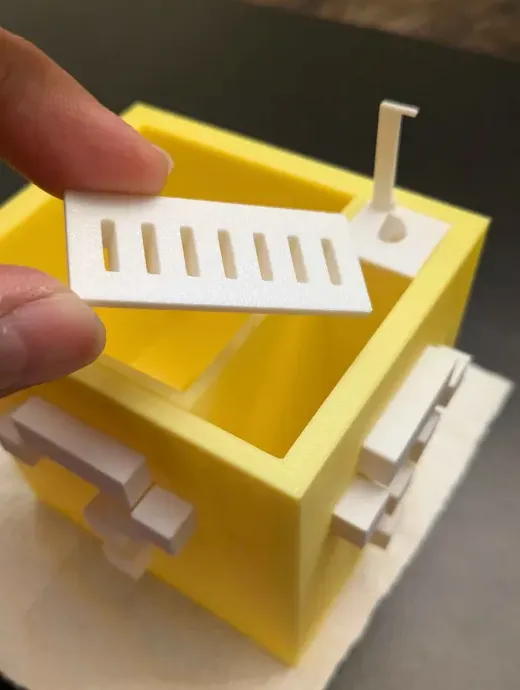

Step 5: Place the drain in the available space


and that's it !!!


Note: i adjust the drain a little bit. the updated print profile should be good.

As always… let me know what you guys think. Thanks
