Split Flap Display - Single Digit
Remixed by
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
2.2 h
1 plate
Open in Bambu Studio
Boost
21
50
1
4
99
43
Released
Description

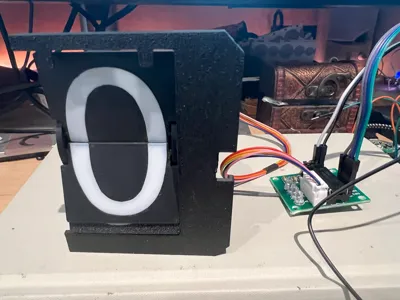

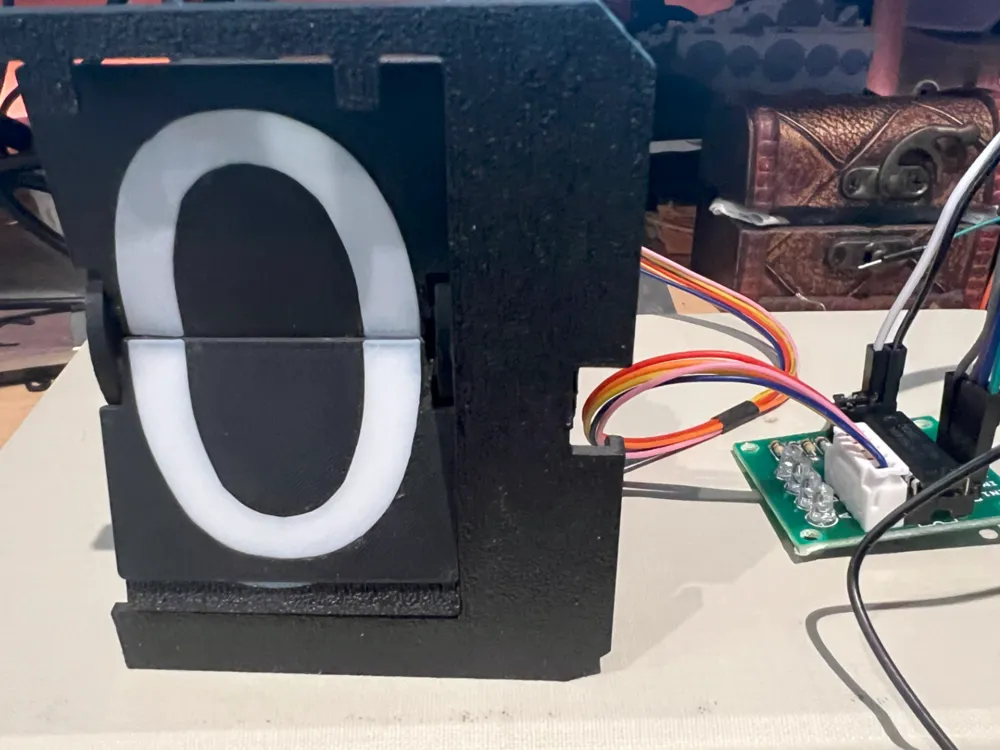

A single digit split-flap display demo using a microcontroller to control the 28BY-48 stepper motor. A hall effect sensor to detect the 0 position and pegs which can be melted to hold the sensor in place. A 607 bearing is used to ensure smooth rotation.
The middle gear is a little janky, working on a fix to make it more stable.
Remixed

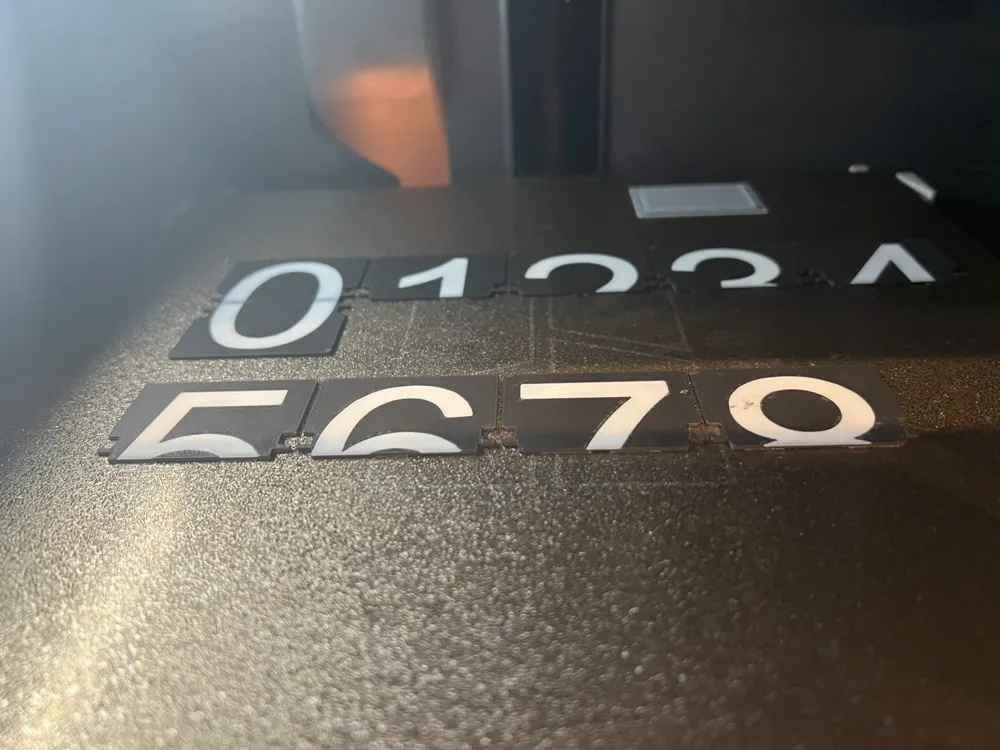

- Remixed the split-flaps to include the cut-out digits and painted so they can be printed with an AMS.
- Moved the posts to use the KY-003 Hall Effect Sensor.
Original and Instructions
Bill of Materials:
KY-003 Hall Effect Sensor
UL2003 28BYJ-48 Stepper Motor
2 x M2*8 screws and 2x nuts for motor mount
This remix is based on
